AVS Ventvisor Installation Instructions Manual

For proper installation and best possible fit, please read all instructions BEFORE you begin.
For technical assistance or to obtain missing parts, please call Customer Relations at 1-800-241-7219.
Important Safety Information
• CAUTION - Before driving, ensure that the vent visor is properly secured to vehicle.
• Do not use automatic "brush-style" car washes.
• Do not use cleaning solvents of any kind.
• Periodically check all components for tightness.

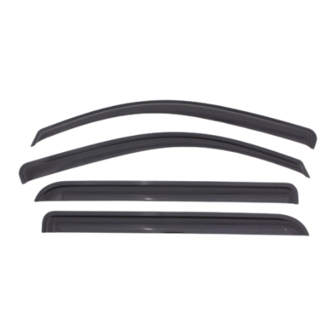

Contents - 2 Piece Set
Contents - 4 Piece Set
Front Driver
Side Visor
Tools Required
Car Wash Supplies
Preparation Before Painting / Installation
• A trial fit is recommended to ensure proper positioning and fit.
• Check fit of parts before painting as we will not accept the return of modified or painted parts.
• Wash and dry your vehicle to remove any debris and/or dirt from the installation area.
Installation Steps
Clean the metal door frame around the
window with an alcohol pad.
1
Installation Instructions
Ventvisor
NOTE: Actual product may vary from illustration.
Front Driver
Side Visor
Front Passenger
Side Visor
Clean Towel
NOTE: Actual application may vary slightly from illustrations.
Deflector
®
Front Passenger
Side Visor
Rear Driver Rear Passenger
Side Visor Side Visor
Nut Driver
Remove tape liner from frear flange. Peel back 2"
(5 cm) of tape line from each end of top flange.
free end
rear
flange
2
Page 1 of 3
I - Sheet Number VV31 Rev.C
Alcohol Pad x2
Alcohol Pad x4
Phillips Screwdriver
top flange
free end
front
flange
