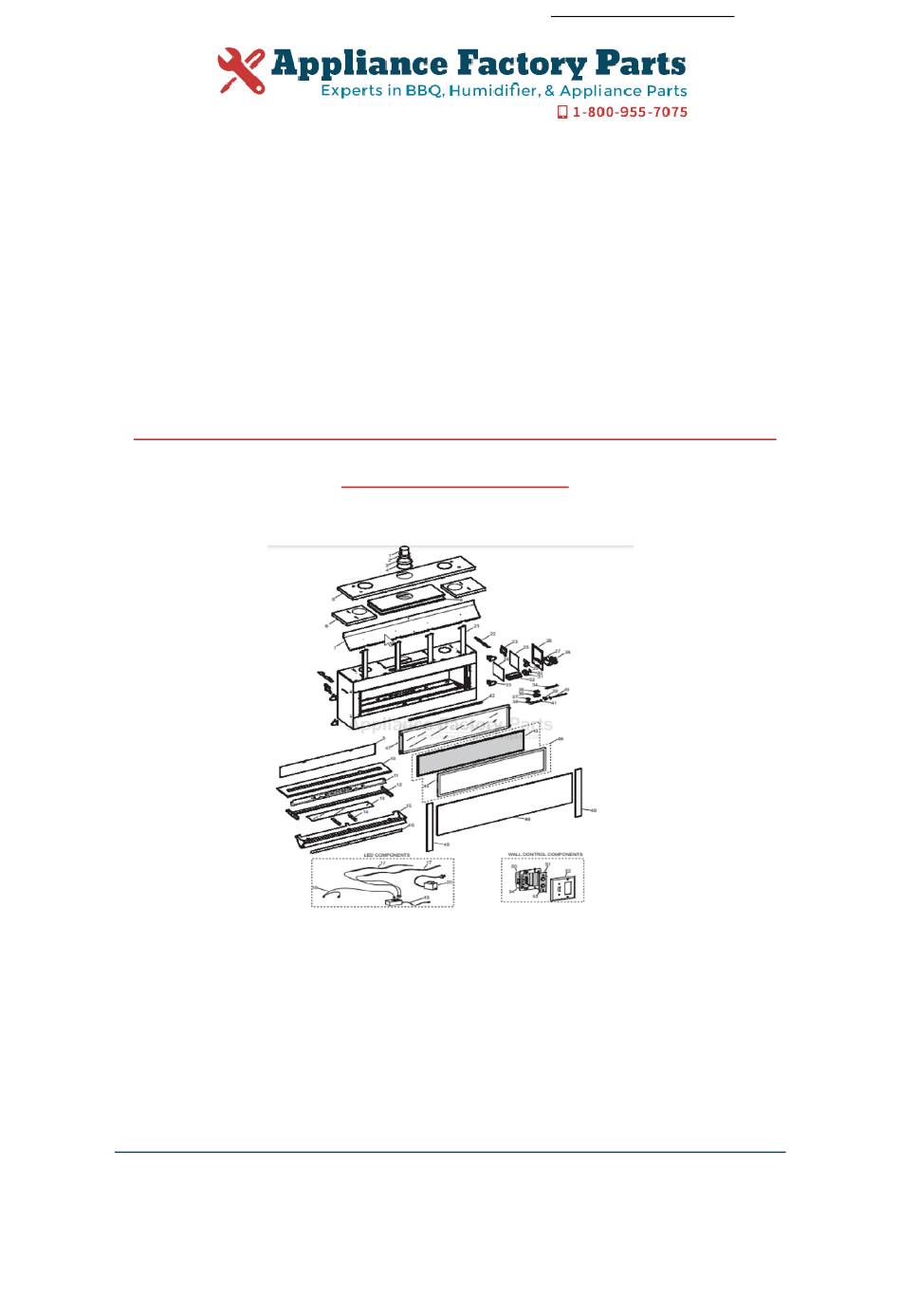

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. EMPIRE DVLL72BP90N2 Owner's Manual Shop genuine replacement parts for EMPIRE DVLL72BP90N2 Find Your EMPIRE Fireplace Parts - Select From 642 Models -------- Manual continues below --------...
-
Page 2: Installation Instructions
INSTALLATION INSTRUCTIONS INSTALLER: DIRECT VENT ZERO Leave this manual with the appliance. CLEARANCE GAS FIREPLACE CONSUMER: HEATER MODEL SERIES: Retain this manual for future reference. MULTIFUNCTION GAS-FIRED REMOTE (MF) WARNING DVLL72BP90(N,P)-2 FIRE OR EXPLOSION HAZARD UL FILE NO. MH30033 Failure to follow safety warnings exactly could result in serious injury, death or WARNING property damage. -
Page 3: Before You Start
BEFORE YOU START SAMPLE WARNINGS AND DEFINITIONS: 4. Lift fireplace off of the pallet. 5. Verify that the fireplace and components have not been DANGER damaged during shipping. 6. Set fireplace in a location near to its final installation location. Indicates a hazardous situation which, if not avoided, will result in death or serious injury. INSTALLATION CONSIDERATIONS - FIREPLACE INSTALLATION GUIDELINES WARNING When planning a fireplace installation, it’s necessary to determine: Indicates a hazardous situation which, if not avoided, could •... -
Page 4: Carton Contents & Hardware Pack
CARTON CONTENTS & HARDWARE PACK #10 x 1/2” HEX HEAD SCREW #10 X ½” HEX HEAD SCREW 1” PHILLIPS SELF DRILLING SCREW 1” PHILLIPS SELF DRILLING SCREW NAILING FLANGES NAILING FLANGES #4 x 3/8” STAINLESS PHILLIPS HEAD SCREW ” Items not shown to scale. INDEX PART QUANTITY DESCRIPTION NUMBER SUPPLIED Door Removal Tool 35978 (attached to fireplace) Product Registration Card 29804 AA Battery B076529... -
Page 5: Table Of Contents
TABLE OF CONTENTS SECTION PAGE Before You Start..........................2 Homeowner Reference Information ....................2 Carton Contents and Hardware Pack ....................3 Introduction ............................5 Specifications..........................6 Accessories ...........................7 FBB20 Blower Installation...................... 8 - 10 Fireplace Dimensions ........................11 Clearances...........................12 Optional Fireplace Locations .......................13 Vent Termination Clearances ....................14 - 15 Gas Supply .......................... -
Page 6: Introduction
INTRODUCTION Instructions to Installer Any alteration of the original design, installed other than as Leave instruction manual with owner. shown in these instructions or use with a type of gas not shown on the rating plate is the responsibility of the person 2. Have owner fill out and mail Product Registration Card and company making the change. -
Page 7: Specifications
SPECIFICATIONS DVLL72BP Natural Propane Input BTU/Hr Maximum 52,500 50,000 Input BTU/Hr Minimum 40,000 35,000 KWH (Maximum) 15.23 14.50 KWH (Minimum) 11.60 10.15 Orifice 2.15mm Air Shutter Opening 1/16-in Fully Open Height without standoff 38-5/16 38-5/16 Width 81-in 81-in Depth 18-5/8-in 18-5/8-in Gas Inlet Shutoff Valve (pipe) 1/2-in NPT 1/2-in NPT Vent Size 5 x 8 5 x 8 NOTICE: Air shutter settings are factory minimum settings. Some venting configurations may require minor air shutter adjustments for optimum performance. -
Page 8: Accessories
ACCESSORIES The following accessory parts can be obtained from your Empire Comfort Systems dealer. Contact your Empire Dealer for more accessory options. If you need additional information beyond what your dealer can furnish, contact Empire Comfort Systems Inc., 918 Freeburg Ave., Belleville, Illinois 62220-2623. ACCESSORIES Description Accessory Model Number Color Fireplace Models DVLL72BP Bronze Ridgeback Liner* DVP72LPZ Bronze Black Glass Liner DVP72LKR Gloss Black Trim Kit - Beveled Black DF72BL Black Trim Kit - Beveled Hammered Pewter DF72HP Hammered Pewter Beveled Window Frame - 2 inches DF702NB Nickel Brushed Beveled Window Frame - Textured Black DFL722LBLX Textured Black Decorative Front, Forged Iron Frame,... -
Page 9: Fbb20 Blower Installation
FBB20 BLOWER INSTALLATION Use a rag to wipe the inside bottom of the fireplace (where the blowers will be placed) to remove dirt or construction dust. 4. Place blowers on the floor behind the fireplace. Position the blowers with the two black connecting wires and green ground wire towards the left hand side when facing the back of the fireplace. See Figure 2. BLOWER ASSEMBLY PARTS LIST INDEX PART... - Page 10 FBB20 BLOWER INSTALLATION (CONT’D) Begin installing the left blower assembly into the bottom of 8. Next, install the right hand blower assembly towards the the fireplace. Once the blower is about half way in, secure right side of the access opening. The right hand edge of the wiring within the white plastic wire retention clips provided in blower base bracket should be about even with the right the fireplace. See Figure 4. edge of the access opening.
- Page 11 FBB20 BLOWER INSTALLATION (CONT’D) 10. Make sure the blower base brackets are pulled rearward against the bottom flange of the fireplace. The magnets on the blower base bracket will keep the blowers in place. See Figure 8. Figure 8 11. Re-attach the Blower Access Panel with the 11 screws removed in step 2.
-
Page 12: Fireplace Dimensions
FIREPLACE DIMENSIONS DVLL72BP90 INDEX DIMENSION DESCRIPTION LETTER (Dimensions in inches) The maximum height of firebox face (excluding standoffs) 38-1/4 The maximum width of the firebox face (excluding nailing flanges) The maximum depth of the fireplace 19-1/2 The height of the firebox opening The width of the firebox opening 76-1/4 The interior depth of the firebox (not shown) The rear exterior width of the firebox The height to the firebox standoffs 61-1/2 Width from the left side of the box to the centerline of vent 42-9/16 Depth from back of box to centerline of top vent 7-1/8 Height from the bottom of the box to the gas line opening 15-7/8... -
Page 13: Clearances
CLEARANCES Mantel Chart CLEARANCE TO COMBUSTIBLES Back See Fig. 10 12” Side 3-in Floor 0-in Top Stand-off Bracket 0-in HEADER Top Framing Edge 23-3/8 -in SHIELD SEE MANTEL CHART FOR MAXIMUM MANTEL DEPTH 2” X 4” HEADER 3” MINIMUM FINISHED WALL 34” TOP HEADER (COMBUSTIBLE) SHIELD SEE MANTEL CHART... -
Page 14: Optional Fireplace Locations
OPTIONAL FIREPLACE LOCATIONS CORNER CABINET INSTALLATION INSTALLATION FLUSH WALL ISLAND INSTALLATION INSTALLATION ANGLED CORNER INSTALLATION ROOM DIVIDER INSTALLATION NOTICE: Island and Room Divider installation is possible as long When you install your Direct Vent Fireplace in Room divider or as the horizontal portion of the vent system does not exceed 20 feet Flat on wall corner positions, a minimum of 8 inches clearance with a minimum vertical run of 8 feet. See details in Venting Section. -
Page 15: Vent Termination Clearances
VENT TERMINATION CLEARANCES Termination clearance for buildings with combustible and noncombustible exteriors. INSIDE CORNER OUTSIDE CORNER RECESSED LOCATION “A” = COMBUSTIBLE 9” (229mm) “F” = COMBUSTIBLE 6” (152mm) = NONCOMBUSTIBLE 2” (51mm) = NONCOMBUSTIBLE 6” (152mm) BALCONY BALCONY WITH PERPENDICULAR SIDE WALL WITH NO SIDE WALL “C” = CLEARANCE FROM CORNER IN RECESSED LOCATION COMBUSTIBLE 9”... - Page 16 VENT TERMINATION CLEARANCES (CONT’D) Canadian Installations1 US Installations2 Canadian Installations1 US Installations2 A= Clearance above grade, I= Clearance to service veranda, porch, deck, or 12 in (30 cm) 12 in (30cm) regulator vent outlet 3 ft (91 cm) 6 ft balcony B= Clearance to window or 6 in (15 cm) for appli- 6 in (15 cm) for appli- J= Clearance to nonme-...
-
Page 17: Gas Supply
GAS SUPPLY The gas pipeline can be brought in through the right side of the A gas valve and ground joint union should be installed in the gas fireplace. Consult the current National Fuel Gas Code, ANSI line upstream of the gas control to aid in servicing. It is required Z223.1 CAN/CGA-B149 (.1 or .2) installation code. by the National Fuel Gas Code that a drip leg be installed near the gas inlet. See Figure 16. This should consist of a vertical length NOTICE: Never use plastic pipe. Check to confirm whether your of pipe tee connected into the gas line that is capped on the local codes allow copper tubing or galvanized. - Page 18 GAS SUPPLY (CONT’D) Checking Manifold Pressures Gas Line Connection Both Propane and Natural Gas valves have a built-in pressure Remove the access panel from the right side of the fireplace regulator in the gas valve. Natural Gas models will have a shown in Figure 18 to access the gas valve, gas flex line, manifold pressure of approximately 3.5-in w.c. (.871 kPa) at the junction box, and system wiring. valve outlet with the inlet pressure to the valve from a minimum Attach the gas flex line to the pre-installed gas line. Refer to the of 4.5-in w.c.
-
Page 19: Electrical Connections
ELECTRICAL CONNECTIONS Control Module Access: CAUTION To access the control module for servicing, remove the barrier screen and glass door assemblies. The control module is located All wiring should be done by a qualified electrician and in the bottom right side opening. The control module is located to shall be in compliance with all local, city and state building the fireplace bottom with Velcro ®, and can be lifted up to access codes. Before making the electrical connection, make sure the module wiring connections. - Page 20 ELECTRICAL CONNECTIONS (CONT’D) Once the Junction box has been installed with the receptacle Place batteries in remote receiver and in the remote control using outlets facing inward towards the fireplace, locate the 3-prong instructions provided. Place the switch slider to the remote switch. power cord from the control module and plug into the receptical. Set the remote switch in wall box to remote. (center position) See Figure 21c.
-
Page 21: Installation
INSTALLATION Framing To further prevent drafts, the wall shield and ceiling firestops This fireplace can be elevated off the floor provided that the should be caulked with caulk rated for a minimum of 300°F fireplace is properly supported by framing materials and the continuous exposure rating to seal gaps. Gas line holes and ceiling clearances are maintained. - Page 22 INSTALLATION (CONT’D) Header Shield/Top Standoff Assembly 1. The two Header Shield halves and (4) Top Standoffs are packaged together and shipped with the fireplace. Pre- assemble each of the Header Shield halves to two of the Top Standoff brackets, before installing to the top of the fireplace and framing header. See Figure 25. BEND SUPPORT TAB DOWN AND SECURE TO THE HEAT SHIELD WITH (1) SCREW THROUGH EACH BRACKET REAR VIEW OF FIREPLACE AND HEADER SHIELD (VENTING REMOVED FOR CLARITY) INTERLOCK HEADER SHIELD...
- Page 23 INSTALLATION (CONT’D) Attach the four middle mount framing brackets to the top front edge of the fireplace. These brackets support the supplied non-combustible board above the fireplace. Preset depth to suit facing material (flush or 1/2 inch set back depths). See Figure 29. MIDDLE MOUNT BRACKETS (4) Figure 31 TOP FRONT EDGE Flush Wall Installation OF FIREPLACE 2 X 4 HEADER FINISHED WALL JOINT BETWEEN FINISHED WALL AND UNIT SEALED WITH 300°F (149°C)SEALANT MATERIAL...
- Page 24 INSTALLATION (CONT’D) Finishing Methods NON - COMBUSTIBLE BOARD FLUSH TO NON - COMBUSTIBLE FIREPLACE FACE (SUPPLIED) BOARD OVER 2” X 4” HEADER FIREPLACE FACE FINISHED WALL (NOT SUPPLIED) (COMBUSTIBLE) TOP HEADER SHIELD TOP FRAMING LEDGE NON-COMBUSTIBLE BOARD (SUPPLIED WITH Figure 35 THE FIREPLACE) Finishing Options •...
- Page 25 INSTALLATION (CONT’D) CORNER INSTALLATION - VERTICAL, 90-DEGREE ELBOW VERTICAL, 90-DEGREE ELBOW WITH HORIZONTAL TO HORIZONTAL OUT THE WALL (12-in minimum rise TERMINATION 2’ before elbow) (610mm) 12” MINIMUM (305mm) VERTICAL VENT REQUIRED MAXIMUM HORIZONTAL RUN WITH MINIMUM NOTE: DIMENSIONS SHOWN WITH FRAMING VERTICAL RISE AND SET ½”...
- Page 26 This Page Intentionally Left Blank. 41118-2-0420 Page 25...
-
Page 27: Vent System Identification
VENT SYSTEM IDENTIFICATION Begin the vent system installation by selecting the type of venting what systems are acceptable. Check all clearances and venting to be installed and the path it will take. Verify clearances are met components. Identify if any problems exist in the vent system. throughout the path of the venting system. -
Page 28: Venting Fireplace - Top
VENTING FIREPLACE - TOP WARNING Use flue restrictor for vertically terminated fireplaces only. Do not use for horizontally terminated fireplaces. Figures 40 to 43 show the location and recommended opening FULL OPEN AND for the flue restrictor. Installation of restrictor before venting is FOUR INDICATED attached. See Figure 37. HOLES ALIGNED Figure 43 Figure 40 NOTICE: When installing flue restrictor, install with screw pointing downward. - Page 29 VENTING FIREPLACE - TOP (CONT’D) Positioning the Fireplace Below Grade Installation Determine the exact position of the fireplace so the direct-vent When it is not possible to meet the required vent termination termination will be centered (if possible) between two studs. clearances of 12 inch (305 mm) above grade level, a snorkel This will avoid any extra framing. All vent kit pipes should be kit is recommended.
- Page 30 VENTING FIREPLACE - TOP (CONT’D) To Use the Vent Graph EXAMPLE C: Determine the height of the center of the horizontal vent If the horizontal run to the outer wall flange is 17 feet, the vertical pipe. Using this dimension on the Sidewall Vent Graph, dimension from the floor of the fireplace to the center of the locate the point it intersects with the slanted graph line. termination must not be less than 7 feet 6 inches. From the point of this intersection, draw a vertical line to the SPECIAL NOTE: For each 45°...
-
Page 31: Top Vent - Horizontal Termination
TOP VENT - HORIZONTAL TERMINATION One 90° Elbow Two 90° Elbows INSTALLED NOTICE: Subtract 3 feet from the total horizontal measurement VERTICALLY for each 90° elbow installed horizontally. Subtract 1-1/2 feet from the total horizontal measurement for each 45° elbow installed horizontally. 1’ MINIMUM TO BOTTOM OF UNIT EXAMPLE VENT RUNS INITIAL PIPE B (Horizontal) A (Vertical) -
Page 32: Top Vent - Vertical Termination
TOP VENT - VERTICAL TERMINATION No Elbows Three 90° Elbows NOTICE: Subtract 3 feet from the total horizontal measurement for each 90° elbow installed horizontally. Subtract 1-1/2 feet from the total horizontal measurement for each 45° elbow installed horizontally. DIMENSIONS (in inches) MINIMUM MAXIMUM 120 (10ft) 480 (40ft) Figure 52 EXAMPLE VENT RUNS INITIAL PIPE A (Vertical) B (Horizontal) Two 90°... -
Page 33: Vertical Termination
VERTICAL TERMINATION Locate and mark the center point of the vent pipe using a nail on CAUTION the underside of the roof. Drive the nail through the center point. Mark the outline of the roof hole around this center point. Treatment of firestop spacers and construction of the chase NOTICE: Size of the roof hole dimensions depend on the pitch may vary with the type of building. -
Page 34: Offset Chart
VERTICAL TERMINATION (CONT’D) Vertical Through-the-Roof Applications General Maintenance Your Gas Fireplace has been approved for: Inspect venting system semi-annually as follows: a) Vertical installations up to 40 feet in height. 1. Check for corrosion areas of the venting system exposed b) Two sets of 45 degree elbow offsets within these vertical to the elements. These will appear as rust spots or streaks installations. -
Page 35: Dvvk-5F Flex Vent Instructions
DVVK-5F FLEX VENT INSTRUCTIONS The DVVK-5F FLEX VENT KIT includes the following components: • (1) Horizontal Termination Cap • (1) 4-foot section of Flex vent with spacers (5-inch flue/ 8-inch outer pipe) with flue adapter collar • (1) Wall Firestop/Thimble Assembly • Hardware pack that includes band clamps and screws Maintain at least 1/2-inch rise for every 12 inches of vent run. CAUTION •... - Page 36 DVVK-5F FLEX VENT INSTRUCTIONS (CONT’D) Prior to making the vent connections, apply high temperature sealant (600°F min.) to the vent connections before securing 8” DIAMETER FLEX VENT PIPE with the band clamps provided. NOTE: the flue pipe end without the adapter is to be installed to the Termination Cap. 5” DIAMETER FLEX FLUE PIPE NOTE: For installation of Flex Venting on Fireplaces that have 5”...
-
Page 37: Framing And Finishing
FRAMING AND FINISHING Installing Support Brackets Installing Firestops Install a horizontal pipe support used for each 3 feet of horizontal Firestops are required for safety whenever the vent system passes run to framing members. Allow 3 inch clearance to combustibles through an interior wall, an exterior wall, or a ceiling. These above 8-inch diameter pipe and elbows, and 1 inch clearance to firestops act as a firebreak heat shield and as a means to insure... - Page 38 FRAMING AND FINISHING (CONT’D) Vertical Firestops Vertical runs of this system which pass through ceilings require the use of ONE ceiling firestop at the hole in each ceiling through which the vent passes. Position a plumb bob directly over the center of the vertical vent component and mark the ceiling to establish the center point of the vent.
-
Page 39: Liner Installation
LINER INSTALLATION NOTICE: A liner is required for operation of this fireplace. Refer to the instructions that came with your liner for proper installation. DVP72LPZ - Bronze Ridgeback Liner Kit Figure 69 DVP72LKR - Black Glass Liner Kit Figure 70 Page 38 41118-2-0420... -
Page 40: Glass Placement
DECORATIVE GLASS PLACEMENT Preparation of fireplace prior to decorative glass placement Place crushed glass media over the burner and burner screen in DVLL72BP: Remove the Barrier Screen and Glass Door a single layer. Use just enough crushed glass media to mask the Assembly. burner and burner screen (6 sq. ft. minimum). See Figure 71. Glass Quantity: CAUTION •... -
Page 41: Multifunction Remote Operating Instructions
MULTIFUNCTION REMOTE OPERATING INSTRUCTIONS Figure 72 TECHNICAL DATA Remote Control Supply voltage 4.5 V (three 1.5 V AAA batteries) Ambient temperature ratings 0-50°C (32 - 122°F) Radio frequency 315 MHz WARNING The transmitter and receiver are radio frequency devices. Placing the receiver in or near metal may severely reduce the signal range. - Page 42 MULTIFUNCTION REMOTE OPERATING INSTRUCTIONS Initializing the System for the First Time 5. With the batteries already installed in the Transmitter, Remove the wall cover. Open the wall mounted battery push the ON button. The Receiver will beep four times to back-up holder. See Figure 74. Install the four AA batteries indicate the Transmitter’s command is accepted and sets to into the wall mounted battery back-up holder then reinstall the matching code of that Transmitter. The system is now the cover.
- Page 43 MULTIFUNCTION REMOTE OPERATING INSTRUCTIONS Turn On the Fireplace With the system OFF, press the ON/OFF Button on the Transmitter. The Transmitter display will show some other active Icons on the screen. At the same time the Receiver will activate the fireplace. A single beep from the Receiver will confirm reception of the command. Turn OFF the Fireplace With the system ON, press the ON/OFF Button on the Transmitter. The Transmitter LCD display will only show the room temperature. See Figure 79. At the same time the Receiver will turn off the fireplace. A single beep from the Receiver confirms reception of the command.
- Page 44 MULTIFUNCTION REMOTE OPERATING INSTRUCTIONS Room Thermostat (Transmitter Operation) Smart Thermostat (Transmitter Operation) The Remote Control can operate as a room thermostat. The The Smart Thermostat function adjusts the flame height in thermostat can be set to a desired temperature to control accordance to the difference between the set point temperature the comfort level in a room. To activate this function, press and the actual room temperatures. As the room temperature gets the Thermostat Button Figure 73. The LCD display on the closer to the set point the Smart Function will modulate the flame Transmitter will change to show that the room thermostat is ON...
- Page 45 MULTIFUNCTION REMOTE OPERATING INSTRUCTIONS Blower Control If the fireplace is equipped with a blower assembly, the fan speed can be controlled by the Proflame remote. The fan can be adjusted through six speeds. To activate this function, use the Mode Button Figure 71 to index the fan control icon. See Figure 88. Use the Up/ Down Arrow Buttons Figure 71 to adjust the fan speed. See Figure 89. A single beep will confirm reception of the command. Figure 88 Figure 89 Remote Dimmer Control (Light) — Not applicable on DVLL72BP Models.
- Page 46 MULTIFUNCTION REMOTE OPERATING INSTRUCTIONS During a prolonged power outage, the fireplace can operate in Button Lock Continuous Pilot Mode. This reduces drain on the batteries used This function will lock the Buttons to prevent unsupervised to ignite the burner and ensures the fireplace will continue to operation. operate throughout the outage. To activate this function, press the MODE and UP Buttons at the same time. See Figure 92. Continuous Pilot/Intermittent Pilot (CPI/IPI) Selection To deactivate this function, press the MODE and UP Buttons at With the system in OFF position press the Mode Button Figure the same time. 70 to index to the CPI mode icon.
- Page 47 MULTIFUNCTION REMOTE OPERATING INSTRUCTIONS Using the Fireplace without a Remote Control Lockout State Definition The fireplace can be turned ON (HI only) and OFF with the wall To prevent damage to the fireplace, IFC board will automatically switch. The fireplace flame ON/OFF is the only function that will lockout the remote control if it detects a anomalous flame or operate; no flame adjustment, light or blower will work when using too many unsuccessful ignition attempts. The lockout state will the wall switch. The wall control switch should be turned OFF remain as long as the power supplies are applied. when the fireplace is not being used for extended periods of time. When the IFC board goes into lockout state: both the Pilot and the Main Burner solenoids in the gas valve Battery Backup Operation are de-energized;...
-
Page 48: For Your Safety Read Before Lighting
INTERMITTENT PILOT LIGHTING INSTRUCTIONS FOR YOUR SAFETY READ BEFORE LIGHTING WARNING If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance has a pilot which can be lit with the manual C. Use only the remote control or manual remote receiver on/off switch, a remote control, or by switching the remote switch to operate the gas valve. Never use tools. If valve receiver switch to the “ON” position. When lighting the pilot, does not operate, don’t try to repair it, call a qualified service... -
Page 49: Control System Troubleshooting
CONTROL SYSTEM TROUBLESHOOTING PROBLEM OBSERVED POSSIBLE CAUSE CORRECTIVE MEASURE WHAT TO DO IF YOU SMELL GAS Do not try to light any appliance. Do not touch any electrical switch; do Gas odor during setup Gas Leak not use any phone in your building. Leave the building immediately. - Page 50 CONTROL SYSTEM TROUBLESHOOTING (CONT’D) PROBLEM OBSERVED POSSIBLE CAUSE CORRECTIVE MEASURE Flame sensor dirty Clean pilot sensor Low gas pressure Check gas supply pressure Not enough fresh air for pilot Open door or window - ventilate Clogged or dirty burner ports Clean burner ports Move (optional) remote away from fire- (For fireplace equipped with optional ther- Burner &...
- Page 51 PARTS LIST INDEX INDEX DVLL72 DESCRIPTION DVLL72 DESCRIPTION NUMBER NUMBER R12283 Pilot - Natural 30975 Flue Outlet Assembly R12283 Pilot - Propane M170 Gasket, Flue Outlet 38211 Pilot Bracket R7567 Inlet Vent Adaptor - 8 inch R11977 Gasket - Venturi R7573 Gasket - Inlet Vent R11978 Venturi Tube - 90 Degree 38183...
-
Page 52: Parts View
PARTS VIEW 27 28 WALL CONTROL COMPONENTS LED COMPONENTS WARNING Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this fireplace may result in property damage or personal injury. 41118-2-0420 Page 51... -
Page 53: Component Wiring Diagram
COMPONENT WIRING DIAGRAM COMBUSTION BLOWER USER INTERFACE/ PILOT BATTERY HOLDER GREEN ORANGE YELLOW AUX. WHITE BLACK WHITE GAS CONTROL VALVE LOOP BLOWER BLACK ORANGE WHITE POWER CORD BLACK TO JUNCTION WHITE GREEN ORANGE If any of the original wire as supplied with this fireplace must CAUTION be replaced, it must be replaced with equivalent gauge and Label all wires prior to disconnection when servicing controls. -
Page 54: Maintenance And Service
MAINTENANCE AND SERVICE MAINTENANCE AND SERVICE NOTICE: The glass door is secured to the top of the firebox with tabs that allow it to pivot outward at the bottom. The bottom of the Removing the Barrier Screen door frame engages into the four bullet type retainers. Lift the barrier up approximately 1/4 inch with one hand under the lower barrier frame edge to disengage from the door frame. Pivot the glass door out until the bottom of the door is about 6 Grasp the top of the barrier and pull forward to disengage it. - Page 55 MAINTENANCE AND SERVICE (CONT’D) 8. The gas valve is now accessible for checking inlet and outlet WIRING gas pressures, flex line connections, and wiring to the valve. See Figure 100. Figure 101 shows the inlet and outlet gas If any of the original wire supplied with this unit must be replaced, it must be replace with 18 GA. 150°C wire or its equivalent. test ports.
-
Page 56: Cleaning Procedure
MAINTENANCE AND SERVICE (CONT’D) NOTICE: MAINTENANCE AND SERVICE It is normal for fireplaces fabricated of steel to give off The only recommended maintenance for the homeowner is some expansion and/or contraction noise during the start up or periodically cleaning the glass. Before cleaning the glass read cool down cycle. Similar noises are found with your furnace heat the warnings below. exchanger or car engine. This fireplace has no user-serviceable mechanical components. It is normal for your gas fireplace to give off some odor the first Contact your dealer or a qualified gas appliance service time it is burned. This is due to the curing of the paint and oil from technician for all service and repair. -
Page 57: Glass Cleaning
MAINTENANCE AND SERVICE (CONT’D) • CHECK VENT SYSTEM GLASS DOOR AND BARRIER SCREEN The fireplace and venting system should be inspected before REMOVAL AND REPLACEMENT initial use and at least annually by a qualified service person. Refer to page 53 for removal of the barrier screen and glass door Inspect the external vent cap on a regular basis to make sure assemblies. -
Page 58: For The Installer
MAINTENANCE AND SERVICE (CONT’D) FOR THE INSTALLER ANNUAL INSPECTION Maintenance Precautions • Have the fireplace inspected annually before use. Installation and repair should be done by a qualified service • More frequent inspection and cleaning may be required if the person. The fireplace should be inspected before use and at fireplace is installed in an area exposed to pet hair or dust, least annually by a qualified service person. More frequent or to excessive lint from new carpeting or bedding materials. cleaning might be required due to excessive lint from carpeting, During The Annual Checkup, The Technician Will: bedding material, etc. -
Page 59: Important Safety Information
IMPORTANT SAFETY INFORMATION Before enclosing the vent pipe assembly, operate the appliance to ensure it is venting properly. DO NOT OPERATE THIS APPLIANCE WITHOUT GLASS FRONT PANEL INSTALLED WARNING 6. “Clothing or other flammable material should not be 1. “Due to high temperatures, the appliance should be located out of traffic and away from furniture and placed on or near the appliance.”... -
Page 60: Safety Information For Users Of Propane Gas
SAFETY INFORMATION FOR USERS OF PROPANE GAS Propane is a flammable gas which can cause fires and The odorant in escaped gas can adsorb or absorb onto or into explosions. In its natural state, propane is odorless and walls, masonry and other materials and fabrics in a room. That will colorless. You may not know all the following safety take some of the odorant out of the gas, reducing its odor intensity. precautions which can protect both you and your family from Propane Gas may stratify in a closed area, and the odor intensity an accident. -
Page 61: Requirements For Massachusetts
REQUIREMENTS FOR MASSACHUSETTS For all side wall horizontally vented gas fueled equipment 3. SIGNAGE. A metal or plastic identification plate shall be installed in every dwelling, building or structure used in whole permanently mounted to the exterior of the building at a or in part for residential purposes, including those owned or minimum height of eight feet above grade directly in line with operated by the Commonwealth and where the side wall exhaust the exhaust vent termination for the horizontally vented gas... -
Page 62: Fireplace Service History
FIREPLACE SERVICE HISTORY Date Dealer Name Service Technician Name Service Performed/Notes 41118-2-0420 Page 61... -
Page 63: Master Parts Distributor List
To Order Parts After the Warranty Period, please contact your dealer or one of the Master Parts Distributors listed below. This list changes from time to time. For the current list, please click on the Master Parts button at www.empirecomfort.com. Please note: Master Parts Distributors are independent businesses that stock the most commonly ordered Original Equipment repair parts for Heaters, Grills, and Fireplaces manufactured by Empire Comfort Systems Inc. Dey Distributing F. W. Webb Company 1401 Willow Lake Boulevard 200 Locust Street Vadnais Heights, MN 55101 Hartford, CT 06114 Phone: 651-490-9191 Phone: 860-722-2433 Toll Free: 800-397-1339 Toll Free: 800-243-9360 Website: www.deydistributing.com... -
Page 64: Warranty
WARRANTY Empire Comfort Systems Inc. warranties this hearth product to be free from defects at the time of purchase and for the periods specified below. Empire will not warranty any Boulevard, Portrait, TruFlame fireplace that is not installed by the selling dealer or that dealer’s direct contract agents. This warranty applies to the original purchaser only and is not transferable. All warranty repairs must be accomplished by a qualified gas appliance technician. Limited Lifetime Parts Warranty – Combustion Chamber, Heat Exchanger, and Factory-Installed Glass If the combustion chamber, heat exchanger (see parts list) or factory-installed glass fails because of defective workmanship or material, Empire will repair or replace it at Empire’s option. Limited Three-Year Parts Warranty – All Other Components (Except Remote Controls, Thermostats, Lights,... - Page 65 Empire Comfort Systems Inc. Belleville, IL If you have a general question about our products, please e-mail us at info@empirecomfort.com. If you have a service or repair question, please contact your dealer. www.empirecomfort.com 41118-0-0819...
