- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Perfect Flame GSC3318N Owner's Manual Shop genuine replacement parts for Perfect Flame GSC3318N Find Your Perfect Flame Grill Parts - Select From 45 Models -------- Manual continues below --------...
-
Page 2: Prop 65 Warning
FOR SOMEONE ELSE, GIVE THIS MANUAL TO HIM OR HER TO SAVE FOR FUTURE REFERENCE. For Outdoor Use Only. FOR CUSTOMER SERVICE, EMAIL TO (outside any enclosure) SERVICE@PYROMAGICBBQ.COM CALL 1-877-885-8227 (TOLL-FREE), 6 A.M. – 5 P.M.(PST),MONDAY-FRIDAY. Printed in China GSC3318N Owner’s Manual... -
Page 3: Grill Operation
Always read and understand the WARNINGS and INSTRUCTIONS that are contained in this manual before attempting to use this gas barbecue grill, to prevent possible bodily injury or property damage. Always keep this manual in or near the grill, for convenient future reference. GSC3318N Owner’s Manual... -
Page 4: Table Of Contents
For Your Safety....................3 Illustrated Parts List ..................5 Hardware List.....................6 Assembly Instructions..................7 Operating Your Grill..................17 Natural Gas Connection........17 Checking for Leaks..........18 Lighting Your Grill..........18 Excess flow safety valve reset procedure……...20 Care and Maintenance........21 Award-Winning Barbecue Recipes..............22 Troubleshooting....................23 Warranty Program.....................25 GSC3318N Owner’s Manual... -
Page 5: For Your Safety
3. Clean and inspect the hose before each use. If there is evidence of abrasion, wear, cuts or leaks, the hose must be replaced prior to operation. The replacement hose assembly should be in accordance with the manufacturer’s specifications. 4. Move gas hoses as far away as possible from hot surfaces and dripping hot grease. GSC3318N Owner’s Manual... -
Page 6: General Information
Step 3 Ensure that the valve nozzle is pointing straight and completely inserted into the venture tube. GENERAL INFORMATION 1. A natural gas hose is required for operation. 2. This gas grill is NOT intended for commercial use. GSC3318N Owner’s Manual... -

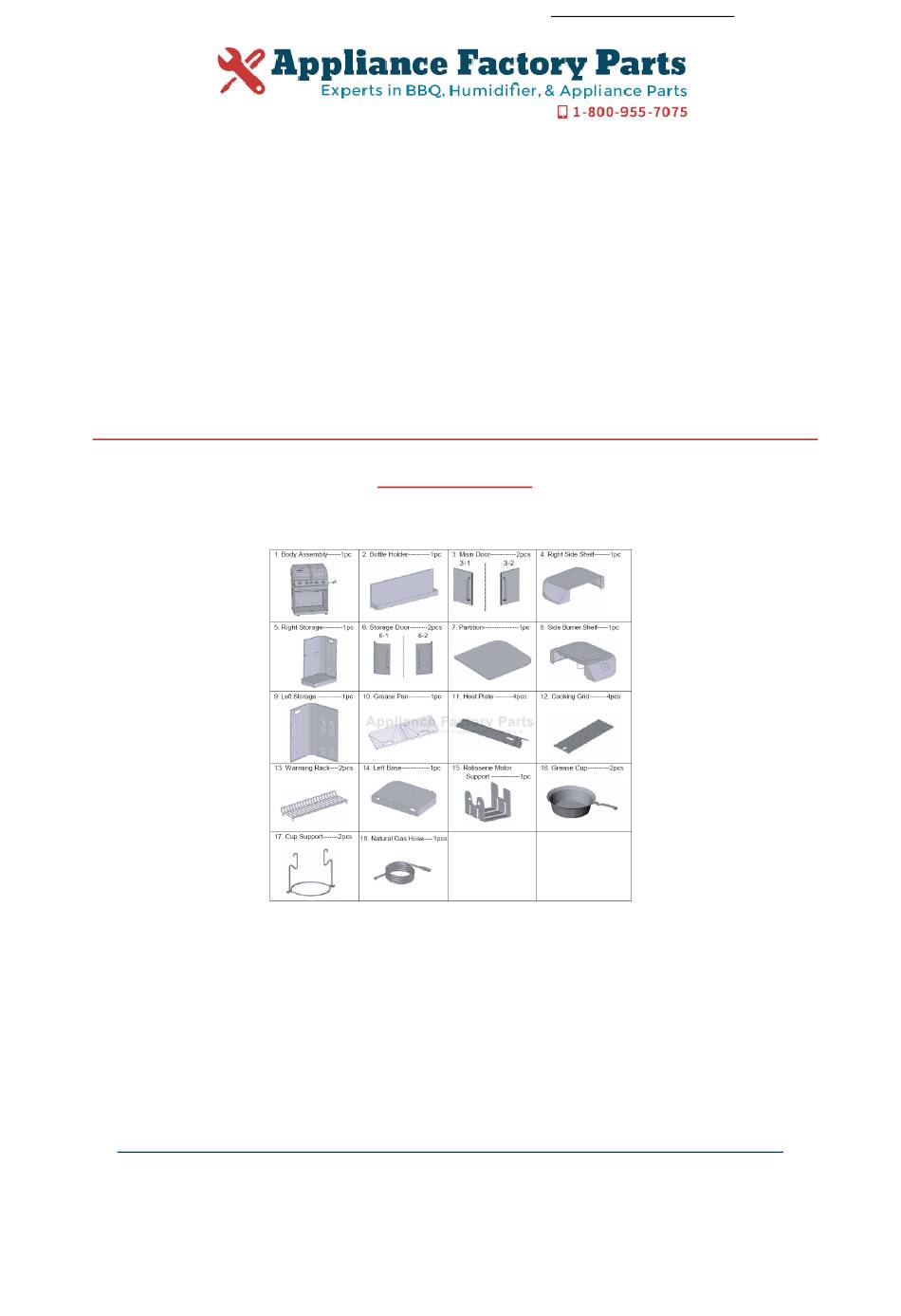

Page 7: Illustrated Parts List
8. Side Burner Shelf-----1pc 9. Left Storage -----------1pc 10. Grease Pan----------1pc 11. Heat Plate --------4pcs 12. Cooking Grid--------4pcs 13. Warming Rack----2pcs 14. Left Base-------------1pc 15. Rotisserie Motor 16. Grease Cup----------2pcs Support -------------1pc 17. Cup Support-------2pcs 18. Natural Gas Hose----1pcs GSC3318N Owner’s Manual... -
Page 8: Hardware List
Spring Washers M4 x10 mm Bolts 10pcs 2pcs M6 Washers 26pcs M6 Nuts 2pcs Side Knob Seat Side Burner Knob Screwdriver Hardware listed above is not scaled to exact size (A screwdriver is included for your convenience.) GSC3318N Owner’s Manual... -
Page 9: Assembly Instructions
Insert the pin on the bottom of the right door (3-1) into the hole at the bottom of the cart assembly. Insert the pin on top of the right door in the cart front beam. Repeat the same procedure for the left door (3-2). GSC3318N Owner’s Manual... - Page 10 (E) into each pre-drilled hole. Tighten by hand until secure. Repeat the same procedure for the left storage assembly with left side shelf (8). Tighten by hand until secure. Go back and tighten by the screwdriver provided. GSC3318N Owner’s Manual...
- Page 11 Align the holes on the top of the left side storage assembly with the holes on the top of the left side panel. Screw a M6x16mm bolt (B) with a spring washer (D) and M6 washer (E) into the pre-drilled hole. Tighten by hand until secure. GSC3318N Owner’s Manual...
- Page 12 Screw a M6x16mm bolt (B) with a spring washer (D) and M6 washer (E) into each pre-drilled hole. Tighten by hand until secure. GSC3318N Owner’s Manual...
- Page 13 Screw a M6x16mm bolt (B) with a spring washer (D) and M6 washer (E) into the pre-drilled hole. Tighten by hand until secure. Go back and tighten the bolts (include from step 8 & 9) by the screwdriver provided. GSC3318N Owner’s Manual...
- Page 14 (H) with the holes on the side shelf and side burner valve. Screw a M4x10mm bolt (C) into each pre-drilled hole. Tighten the bolts by the screwdriver provide. Insert the side burner knob (G) into knob shaft on valve. GSC3318N Owner’s Manual...
- Page 15 Step 14 Slide the grease pan (10) into the back of the cart assembly. Hook two cup supports (17) into the grooves beneath the grease pan. Place two grease cups (16) on the cup supports GSC3318N Owner’s Manual...
- Page 16 Insert a M6x16mm bolts (B) through each hole. Attach a M6 washer (E), a spring washer (D) and a M6 nut (F) to the ends each bolt. Tighten by the screw driver provided. GSC3318N Owner’s Manual...
- Page 17 Connect natural gas hose (18) to the side burner valve. Pass natural gas hose (quick connect end) through the hole in the left side panel. Refer to the “Natural Gas Connection” diagram in the manual for further details. GSC3318N Owner’s Manual...
- Page 18 Fully Assembled View Left Side Right Side GSC3318N Owner’s Manual...
-
Page 19: Operating Your Grill
1/2 psi (3.5kPa). Warning: Burner valves are pre-tested at the factory to operate on natural gas. If you wish to convert or change it, be sure to contact your grill distributor or dealer FIRST! GSC3318N Owner’s Manual... -
Page 20: Checking For Leaks
If the burner does not light, return the valve knob to the “OFF” position immediately. Wait five minutes for the gas to clear and repeat the procedure. After burner is lit, repeat the procedure with any other burner desired. Adjust valve knob(s) to desired cooking temperature. GSC3318N Owner’s Manual... - Page 21 FIG. B FIG. C Normal: Soft blue flames Out of adjustment: Noisy hard Poor combustion: Wavy, with yellow tips between 1 blue flames – too much air. yellow flames- too little inch - 2 inches high. air. GSC3318N Owner’s Manual...
-
Page 22: Excess Flow Safety Valve Reset Procedure
12. After the first front burner is lit, turn on the other control knob(s) to the HIGH position. **If you have more than two burners, ONLY turn them on ONE AT A TIME. 13. When all front burners are lit, close the BBQ lid 14. Wait for 10-15 minutes, the temperature should reach 400 – 450 F° GSC3318N Owner’s Manual... -
Page 23: Care And Maintenance
Inspect burner for damage (cracks or holes). If damage is found, replace with a new burner. Reinstall burner. Check to ensure the gas valve orifices are correctly positioned, pointing straight into burner inlet (venturi). Also, check position of spark electrode. GSC3318N Owner’s Manual... -
Page 24: Award-Winning Barbecue Recipes
Combine all ingredients and marinate steak for 7-8 vary according to the vegetables chosen. hours. Remove meat from marinade and grill over very high heat to desired doneness. Heat leftover marinade to a boil and pour over grilled steak to serve. GSC3318N Owner’s Manual... -
Page 25: Troubleshooting
Burn grill for 15 minutes with the lid closed manufacturing oils. Spider webs or insect nest in venturi Clean venturi. Food residue, grease or seasoning Clean burner. salt on burner. Poor alignment of valve to burner Assure burner venturi is properly engaged venturi. with valve GSC3318N Owner’s Manual... - Page 26 If flames are blue and noisy – close flap at flames. the end of the venturi tubes in 1/8” increments until flames are correct. *Propane Models must be open a minimum of 1/8” *Natural Gas Models must be open a minimum of 1/16” GSC3318N Owner’s Manual...
-
Page 27: Warranty Program
If you have any questions related to the product or warranty, please visit our website at www.pyromagicbbq.com or call our customer service center at 1-877-885-8227, 6:00 AM to 5:00 PM (PST), Monday through Friday. Manufactured by: Lucas Innovation Inc. Xiekeng District, QingXi Town, Dong Guan, Guang Dong, China Printed in China GSC3318N Owner’s Manual... -
Page 29: Assembly Instruction
Assembly Instruction * The rotisserie can be operated with one or two grill(s). Please follow the instructions carefully to avoid burns or damage to the rotisserie. Step 1 Insert front shaft (2) into handle (1) as shown. Step 2 Slide balance block (4) onto front shaft (2) b e t w e e n clampers (3). - Page 30 Step 4 Screw end shaft (6) onto middle shaft (5). Important! Step 4-1 For Single Grill Operation: Remove Handle. Screw end shaft (6) directly onto front shaft (2). Place middle shaft (5) in storage area. Step 5 Slide the two forks (8 and 9) on the shat assembly sharp edges facing inward to each other.
- Page 31 Step 7 Secure end shaft (6) end of r ot isse r ie shaft assembly into motor (10). (For single grill operation, remove handle.) Step 8 Slide the motor (10) onto the pre-assembled motor support. Position the roller (7) s o t h a t t h e g r o o v e s i t s o n t h e e d g e o f t h e g r i l l p a n e l a s s h o w n a n d t i g h t e n s e t s c r e w ( 8 ) t o s e c u r e r o l l e r .
