Installation of trolley onto beam
(1) The preferred method of installation is from the end
of the beam, with the chain hoist and the trolley
coupled. After installation, check that all the nuts are
correctly tightened. Fit the travel limit stops (not
provided) at the end of the runway.
(2) When there is no space between the end of the
beam and building, first remove the side plate from the
suspension shaft. After placing the side plate on the
other side of the flange, re-assemble and re-install side
plate as it was before. Also, bend securely the split pin
of the shaft stopper pin. After installation, check that all
the nuts are correctly tightened.
Safety Inspection
(1) The danger exists when heavy loads are
transported, particularly when the equipment is not
being used properly or is poorly maintained. Because
accidents and serious injury could result, special safety
precautions apply to the operation, maintenance. The
hoist may lift and hold a load more than the rated loads.
Check that structure for mounting the trolley has
sufficient strength.
(2) Check that the correct Trolley and the capacity of
lifting equipment attached to the Trolley are suitable for
the job at hand. Visually check that the Trolley has
been delivered and/or stored in a safe and undamaged
condition.
(3) Slacken off the suspension pin nuts & spread the
side plates so that the wheels can be slipped over the
runway beam. Screw the nuts firmly against the
washers. Then suspend a light load to the trolley to
ensure that all four wheels contact the runway beam.
Screw the nuts tightly against the washers, then secure
them with lockouts. NUTS MUST BE TIGHT.
02
(4) Suspend the Maximum Safe Working Load to the
trolley, and then run the unit slowly along the full length
of the runway beam to ensure satisfactory operation.
Once the unit is fitted - check that the clearance
between the beam's outer edge and the trolley wheel
is equal on both sides. Also, check that the Beam End
Stops have been fitted to the beam.
(5) Ensure that the load bar has been assembled
correctly. The Loadbar should also be checked for
wear, defects, and deformations, or
superficial/corrosion marks before every use.
Intended purpose
This trolley is designed for horizontally transporting
loads by hand, through an electric hoist under normal
atmospheric conditions of the workplace. The 1100lbs
trolley is suitable for a PA200-PA500 electric hoist.
The 2200lbs trolley Match the needs of the job for the
PA600-PA1000 electric hoist.

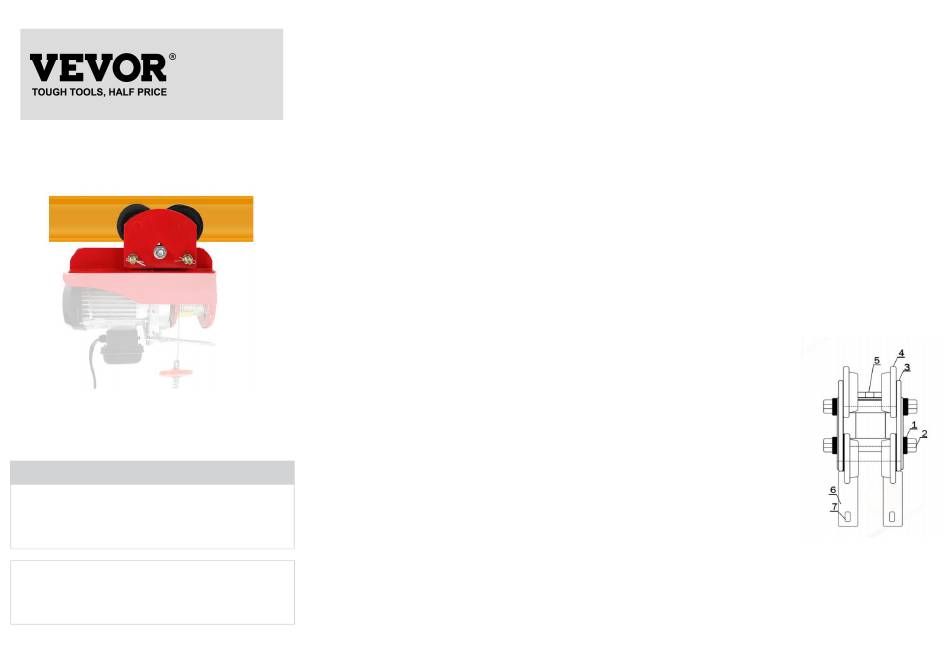

Main structure
1. Side Locking Nut
2. Trolley Pin
3. Side Plate
4. Steel Wheel
5. Casing Gaskets
6. Bracket
7. Mounting Hole
