CARDIOSAVE
INTRA-AORTIC BALLOON PUMP TRAINER
USER MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the CARDIOSAVE and is the answer not in the manual?

Questions and answers

Related Manuals for Maquet CARDIOSAVE

Summary of Contents for Maquet CARDIOSAVE

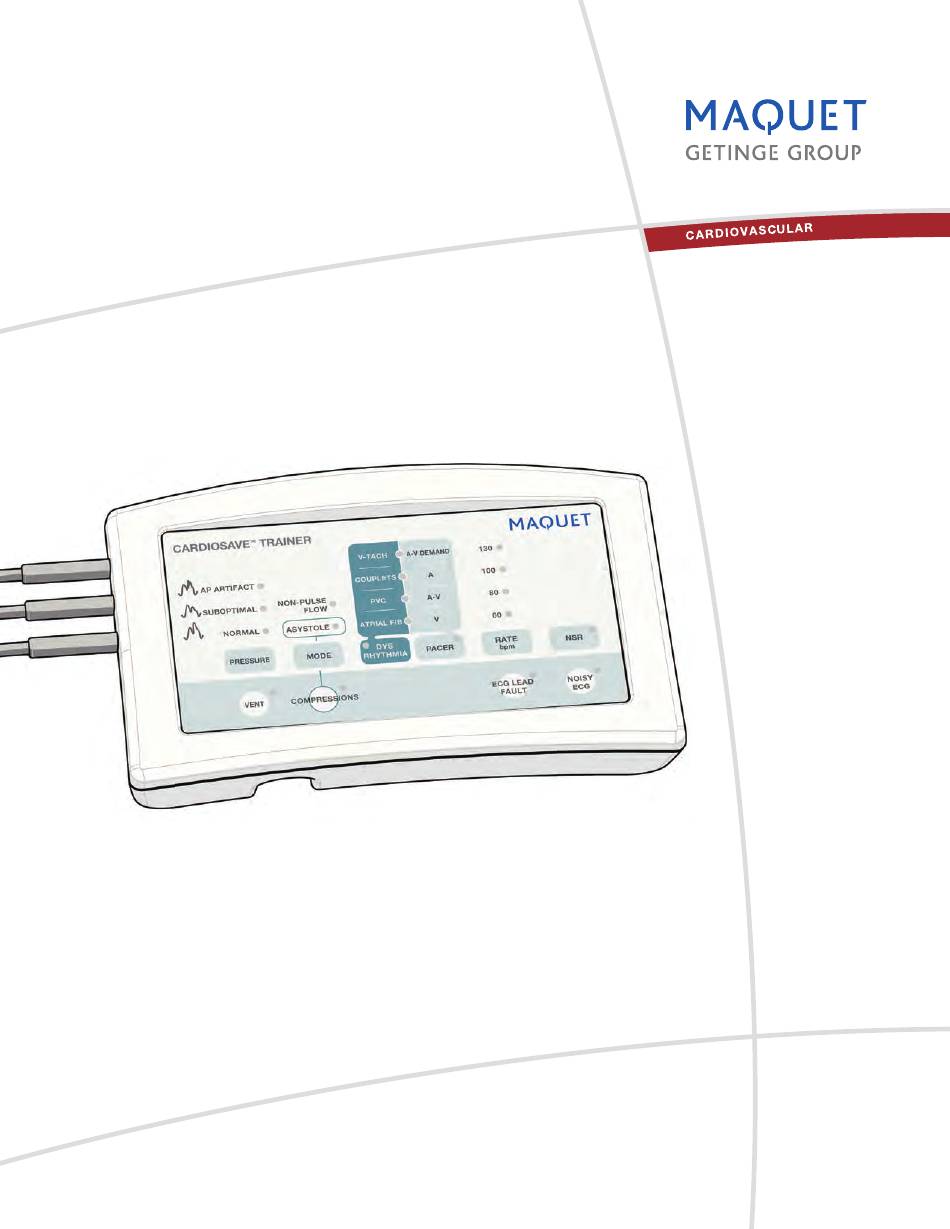

  • Page 1 ™ CARDIOSAVE INTRA-AORTIC BALLOON PUMP TRAINER USER MANUAL...
  • Page 2 ™ Trademark of Datascope Trademark Corp. Manufacturer Datascope Corp. 1300 MacArthur Blvd. Mahwah, NJ 07430, USA Phone: 1 800 777 4222 or 1 201 995 8700 Fax: 1 201 995 8910 http://ca.maquet.com http://www.maquet.com CARDIOSAVE™ Trainer | User Manual | 0070-00-0700...

  • Page 3: Table Of Contents

    Installation | 1 - 14 GENERAL USE AND STARTUP Startup Steps for Using the Trainer 2 - 1 USING THE CARDIOSAVE TRAINER Conditions and Simulations on the CARDIOSAVE Trainer 3 - 1 3.1.1 Zeroing (Conventional IAB) 3 - 1 3.1.2...
  • Page 4 THIS PAGE INTENTIONALLY LEFT BLANK. CARDIOSAVE™ Trainer | User Manual | 0070-00-0700...

  • Page 5: Document Conventions

    A NOTE is provided in the appropriate areas throughout the manual when additional general information is applicable. WARNINGS WARNING: The CARDIOSAVE Trainer is intended only as a training device. It should never be connected to CARDIOSAVE when the pump is connected to a patient. NOTES Note: In order to accurately evaluate alarm performance with the CARDIOSAVE Trainer, it is important to simulate real use conditions.
  • Page 6 |iii | CARDIOSAVE Trainer | Notes THIS PAGE INTENTIONALLY LEFT BLANK. CARDIOSAVE™ Trainer | User Manual | 0070-00-0700...

  • Page 7: Getting Acquainted With The Cardiosave Trainer

    This Trainer supports only the CARDIOSAVE Intra-Aortic Balloon Pump. It does not and is not expected to support earlier generation MAQUET/Datascope IABPs. Note: When a CARDIOSAVE Trainer is in use, CARDIOSAVE displays the Trainer in Use - NOT FOR CLINICAL USE! advisory message on the screen. WARNING: The CARDIOSAVE Trainer is intended only as a training device.

  • Page 8: Product Controls And Functionality

    The PRESSURE key controls various conditions that impact the appearance of the arterial pressure (AP) waveforms. Figure 1-2: CARDIOSAVE Trainer Pressure Key Functions Each time the PRESSURE key is pressed, it advances to the next pressure state in the group: Normal ...

  • Page 9: Mode Key

    1.2.2 MODE KEY The MODE key simulates no or low states of Ventricular output. Figure 1-3: CARDIOSAVE Trainer Mode Key Functions Each time the MODE key is pressed, it moves the Trainer to the next Mode in the group: Inactive ...

  • Page 10: Dysrhythmia Key

    The DYSRHYTHMIA key simulates various cardiac rhythms used to demonstrate the pump's behavior during common dysrhythmias. Figure 1-4: CARDIOSAVE Trainer Dysrhythmia Key Functions Each time the DYSRHYTHMIA key is pressed, it moves the Trainer to the next Dysrhythmia selection in the group (Atrial Fib, PVC, Couplets and V-Tach). The Dysrhythmia LED remains lit as well when the user cycles through each state of Dysrhythmia.

  • Page 11: Pacer Key

    The PACER key simulates various pacemaker patterns. It is used to demonstrate the pump's management of common pacing conditions. Figure 1-5: CARDIOSAVE Trainer Pacer Key Functions Each time the PACER key is pressed, the Trainer cycles to the next state in the series: Ventricular (V), Atrio-Ventricular (A-V), Atrial (A) and Atrio-Ventricular Demand (A-V DEMAND).

  • Page 12: Rate Bpm Key

    The RATE BPM key allows the user to simulate and make changes to the base heart rate. Figure 1-6: CARDIOSAVE Trainer Rate Key Functions When the Trainer is either in the normal sinus rhythm mode or generating a ventricular rhythm (PVC, Couplets, or V-Tach), press the RATE key to change the rate at which the simulated waveforms are generated.

  • Page 13: Nsr Key

    NSR LED is illuminated. Any asystole, dysrhythmia, (if NSR key is not already and pacer modes are terminated. illuminated). Any Press Resets RATE NSR LED is illuminated, or remains illuminated. Resets RATE to 80 BPM. CARDIOSAVE™ Trainer | User Manual | 0070-00-0700...

  • Page 14: Vent Key

    VENT LED is illuminated. Overrides the output of the AP waveform and simulates a flatlined 0(+/-10) mmHg output. Second Press Returns to inactive VENT LED is turned off and returns to the default state of a normal AP waveform output. CARDIOSAVE™ Trainer | User Manual | 0070-00-0700...

  • Page 15: Compressions Key

    COMPRESSIONS LED is off. First Press Active, if in Asystole mode. COMPRESSIONS LED is illuminated and chest compressions are simulated. Second Press Returns to inactive, if in Deactivates compressions, and LED is turned off. Asystole mode. CARDIOSAVE™ Trainer | User Manual | 0070-00-0700...

  • Page 16: Ecg Lead Fault Key

    ECG LEAD FAULT KEY The ECG LEAD FAULT key simulates the disconnection of multiple ECG skin electrodes. Figure 1-10: CARDIOSAVE Trainer ECG LEAD FAULT Key Each time the ECG LEAD FAULT key is pressed, the Trainer simulates an ECG signal that has faulted, resulting in a flatlined ECG.

  • Page 17: Noisy Ecg Key

    The NOISY ECG key simulates a poor quality ECG signal used to demonstrate the pump's management of patient signal selection. Figure 1-11: CARDIOSAVE Trainer NOISY ECG Key When the NOISY ECG key is pressed and the LED is illuminated, the Trainer simulates a noisy ECG signal.

  • Page 18: Connectors And Cables

    Getting Acquainted with the CARDIOSAVE Trainer CONNECTORS AND CABLES The Trainer plugs into the Direct ECG and Pressure Inputs on the back panel of CARDIOSAVE. The Trainer Connector plugs into the Trainer Input, also on the back of the pump. CARDIOSAVE must be powered on in order for the Trainer to function.
  • Page 19 | CARDIOSAVE Trainer | | 1 - 13 | Getting Acquainted with the CARDIOSAVE Trainer Figure 1-13: CARDIOSAVE Trainer with connector and cable callouts 1. ECG Connector A 12-pin male connector (green) that mates with the pump console’s ECG input.

  • Page 20: Installation

    | CARDIOSAVE Trainer | Getting Acquainted with the CARDIOSAVE Trainer INSTALLATION The CARDIOSAVE Trainer plugs directly into the ECG, Pressure and Trainer inputs on the back pannel of the CARDIOSAVE IABP. The GREEN ECG connector from the Trainer plugs into location 1.

  • Page 21: General Use And Startup

    Monitor Display and zeros are displayed to the right of the arterial pressure waveform. Note: If using a MAQUET/Datascope Fiber-Optic IAB, there is no need to zero. Once the Start key is pressed, the IABP automatically performs a calibration.
  • Page 22 | 2 - 2 | CARDIOSAVE Trainer | General Use and Startup THIS PAGE INTENTIONALLY LEFT BLANK. CARDIOSAVE™ Trainer | User Manual | 0070-00-0700...

  • Page 23: Using The Cardiosave Trainer

    This chapter covers some of the possible simulations and conditions that can be generated with the CARDIOSAVE Trainer. Not all simulations and alarms are listed. WARNING: The CARDIOSAVE Trainer is intended only as a training device. It should never be connected to CARDIOSAVE when the pump is connected to a patient. CARDIOSAVE...

  • Page 24: Suboptimal Diastolic Augmentation

    For a MAQUET/Datascope Fiber-Optic IAB, disconnect the Trainer pressure cable and the Fiber- Optic Sensor from the rear panel of CARDIOSAVE. Once both are reconnected, a calibration automatically occurs after 20 seconds, or a manual calibration can be invoked rather than waiting.

  • Page 25: Non-Pulsatile Flow

    Press the MODE key until the NON-PULSE FLOW LED is illuminated. While the pump is in Standby mode, this simulates a low pulsatility arterial pressure waveform. While CARDIOSAVE is assisting, this simulates an example of how the arterial pressure waveform may appear with counterpulsation therapy.

  • Page 26: Ecg Lead Fault

    Pressure trigger. Press the NOISY ECG key a second time and the artifact disappears. The pump switches back to ECG trigger after an appropriate amount of time, resulting in a clean signal. CARDIOSAVE™ Trainer | User Manual | 0070-00-0700...

  • Page 27: Specifications

    16 (±4) msec measured from start of pulse to 50% point on decaying waveform Tail  No Tails Power Consumption  100 mA maximum @ 5V nominal Mechanical Size  7.6"(L) x 4.5" (W) x 2.0" (H) Weight  16 oz CARDIOSAVE™ Trainer | User Manual | 0070-00-0700...
  • Page 28 | 4 - 2 | CARDIOSAVE Trainer | Specifications THIS PAGE INTENTIONALLY LEFT BLANK. CARDIOSAVE™ Trainer | User Manual | 0070-00-0700...

  • Page 29: Appendix

    The electrical installation of the relevant room complies with IEC requirements (VDE 0107); and The equipment is used in accordance with the Instructions for Use. To reorder the IABP Trainer User Manual, use part number 0070-00-0700. CARDIOSAVE™ Trainer | User Manual | 0070-00-0700...
