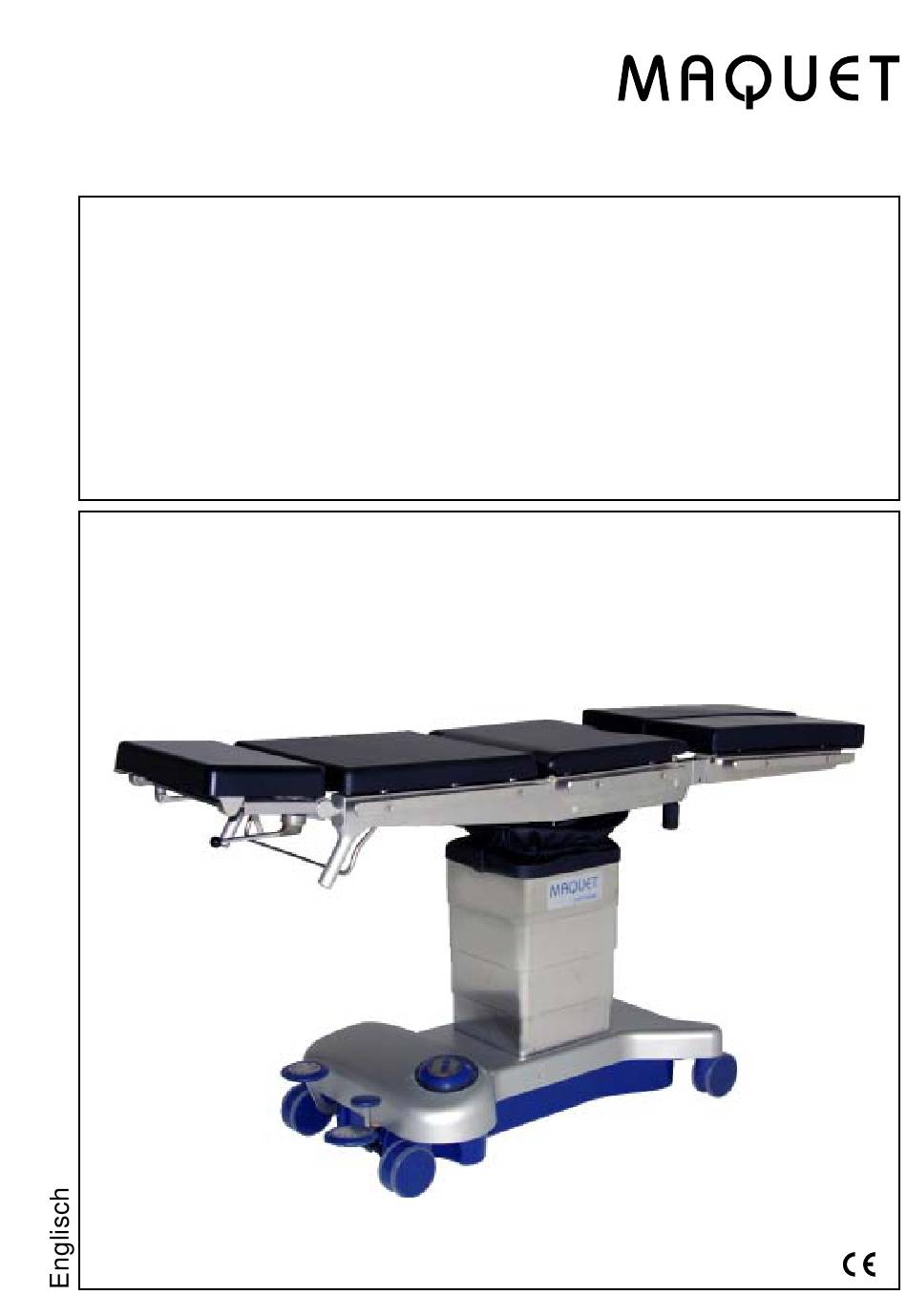

- Page 1 Betaclassic 1118.01M0 Operating Instructions Mobile Operating Table for general surgery GA1118M1GB01...
-
Page 2: Overview
1118.01M0 Overview Head rest Back plate Seat plate Leg plates Lever (leg plate up/down) Locking lever (leg plate) Grip screw (abduct leg plates) Castors Bellows Column casing Base cover Pump pedal Locking pedal (table locking) Lowering pedal (lower table top) Foot selector Locking screw (head rest) Operating bar (back plate) -
Page 3: Table Of Contents
1118.01M0 List of contents Overview ........................2 Important safety instructions ................... 4 Important information ....................6 Important information on the Directions for Use ............ 6 Use in the manner intended ................. 6 Purpose ....................... 6 Basic safety aspects ................... 6 III. -
Page 4: Important Safety Instructions
This may result in injury to the patient. Non-original accessories which affect the longitudinal geometry of the table top may only be used after consul- tation with MAQUET. Avoid endangering the patient’s respiratory system, nerve pathways and circulatory system by ensuring the patient’s proper positioning and observing the patient’s condition. - Page 5 1118.01M0 Remove possible obstacles before lowering or tilt- ing the operating table. Danger of operating table tipping over. Do not reach below the table top or between the components of the table top when making adjust- ments. Pinching hazard. When adjusting the table top (e.g. Trendelenburg/ reverse Trendelenburg position, height down, leg plate down), avoid collisions between table top components and the operating table base!
-
Page 6: Important Information
For your maintenance work, please remember that the MAQUET Customer Service is the right address as far as quality of work and warranty are concerned. We are sure you will appreciate that MAQUET can only accept respon- sibility for the safety of your equipment if installation, extension work, adjustments, modifications and repairs to your equipment have been carried out exclusively by our Customer Service or by technical experts authorised by us and also if the equipment has been operated strictly in accordance with our Directions for Use. -
Page 7: General Description
135 kg as per IEC 601-1 stand- ard. The operating table may only be equipped with original MAQUET accessories (observe the Opera- tion Instructions.). Non-original accessories may only be used with the manufacturer’s express prior ap-... -
Page 8: Activating The Functions
1118.01M0 3.Activating the functions 3.1.Functions The hydraulic functions of the operating table: height function inclination function lateral tilt function are foot-activated via the following operating elements. Foot selector (16) Pump pedal (12) Lowering pedal (15) 3.2 Functions of foot selector The desired function is activated by pressing the selector as shown. -
Page 9: Pump Pedal Function
1118.01M0 3.3 Pump pedal function The functions adjusted under 3.2 are executed with the pump pedal (12). 3.4 Lowering pedal function The sole purpose of the lowering pedal (15) is to reduce the height of the table top. The position of the dome-shaped selector switch has no relevance to this function. - Page 10 1118.01M0 3.6 Table top functions The manual functions are activated via the controls on the table top. Operating bar for back plate (18). Operating lever for head rest (20) Locking screw for head rest (17) Lever for leg plate (5) Locking lever for leg plate (6) Grip screw (abduct leg plate) (7) Release handle for longitudinal shift (21)
-
Page 11: Longitudinal Shift (Version: M)
1118.01M0 3.7 Longitudinal shift (Version: M) The release handle (21) for the longitudinal shift is lo- cated at the head end on the table top. When pulled to- wards the head end, this handle releases the locking mechanism for the longitudinal shift; the table top can be shifted manually to the desired position. -
Page 12: Operating The Operating Table
PE cable during surgery please or- der p/n 0200 403 4 at your local MAQUET repre- sentative. GA1118M1GB01... -
Page 13: Head Rest
1118.01M0 3.Table top components 3.1 Head rest 1130.64X0 To fix the head rest (1), insert the two pins into the locat- ing holes until they fully engage. Then tighten the two fastening screws (17). Check to see if the head rest is attached securely by pulling it. -
Page 14: Back Plate Adjustment
1118.01M0 3.4 Table top covering The PUR pads are also attached to the frame by means of bolts. 3.5 Back plate adjustment: The table top is equipped with a manually adjustable back section with gas-filled spring support and is activated by means of the bar (18). -
Page 15: Positionings
1118.01M0 V. Positionings 1. General The operating table must be integrated in the equipotential bonding system of the operating room. For this purpose, connect the equipotential bonding and the equalisation wire to an equipotential bonding of the operating room near the patient. An equalisation cable (5 m long) with connectors at ei- ther end is supplied with the operating table. -
Page 16: Thyroid
1118.01M0 3. Thyroid Immobilize the operating table Tilt the table top into the Trendelenburg position Move the back plate upwards Align the leg plate Adapt the head rest Recommended equipment 1132.64X0 Head rest 1002.57A0 Anaesthesia screen 1003.23C0 Radial setting clamp 1001.44D0 Arm posturing device 1002.24C0... -
Page 17: Lateral Positioning
1118.01M0 5. Lateral positioning (e.g. kidney, thorax) Immobilize the operating table Tilt the table top into the reverse Trendelenburg posi- tion Move the back plate downwards Adapt the head rest Recommended equipment 1130.53B0 Double articulation head rest 1002.57A0 Anaesthesia screen 1003.23C0 Radial setting clamp 1001.44D0... -
Page 18: Orthpedic Extension
1118.01M0 7. Orthopedic extension Immobilize the operating table Attach extension unit 1419 and secure the supports Remove the head rest Place patient on table and position legs Recommended basic equipment 1419.01X0 Extension unit 1003.23C0 Radial setting clamp (3 pcs.) 1002.57A0 Anaesthesia screen 1001.44D0 Arm posturing device... -
Page 19: Maintenance And Servicing
1118.01M0 VI. Maintenance and servicing We recommend you cover the operating table with drapes when it is not in use. 1. Cleaning Avoid excessive use of water on the surfaces of the mo- bile operating table. Also avoid spraying joints with spray cleaning or disinfec- tion equipment. -
Page 20: Maintenance
1118.01M0 4. Maintenance The operating table will have to be serviced once a year by the MAQUET factory service department or by service tech- nicians authorized by MAQUET to do so. Please adhere to prescribed maintenance intervals as oth- erwise guarantee coverage will lapse. -
Page 21: Specifications
1118.01M0 VII. Technical specifications Operating table type: 1118.01M0 290 mm Length without head rest: 1790 mm (70,5 in.) Length with head rest: 2075 mm (81,7 in.) Width of table top 510 mm (20,1 in.) Width across side rails: 570 mm (22,4 in.) 25°... -
Page 22: List Of Accessories
1118.01M0 VIII. List of accessories Non-original accessories which affect the longitudinal geometry of the table top may not be used without the express prior approval of MAQUET. Always read the operating instructions prior to use of accessories. Note Non-original accessories (for fixing to the side rails) must be examined carefully prior to use to make absolutely sure that they do not represent a hazard to patients or personnel and cannot damage the operating table (e.g. -
Page 23: Replacement Parts List
1. Operating table replacement parts Back plate pad, PUR 3112.6852 Seat plate pad, PUR 3112.2982 2. Accessories replacement parts list Leg plate pad 1118.50M0 right 3112.4693 PUR left 3112.4683 PUR Head rest 1130.64D0 3113.3003 PUR Use only spare parts approved by MAQUET. GA1118M1GB01... - Page 24 All information and technical specifications contained in these Operating Instructions apply at the time of going to press. In keeping with our policy of continuous product improvement, however, we reserve the right to change specifications without prior notice. MAQUET GmbH & Co.KG Kehler Str. 31 D-76437 Rastatt Surgical Tables Division...
