Texas Instruments ADS8344 User Manual

...................................................................................................................
1 Introduction
2 Analog Interface
3 Digital Interface
4 Power Supplies
5 EVM Operation
6 EVM Bill of Materials and Schematic
7 Related Documentation from Texas Instruments
1 Pinout of the Analog Input Connector, P1
...................................................................................................................
2 Pinout of J3
3 Factory Default Jumper Locations
4 Bill of Materials
5 EVM Compatible Device Data Sheets, Users Guides and Additional Resources
1 Introduction

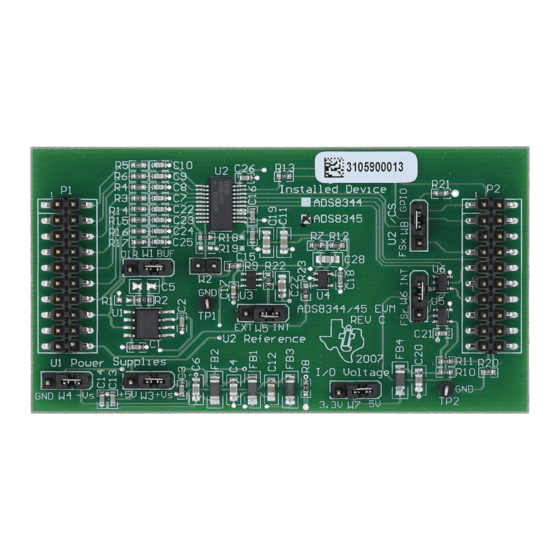

The ADS8344 and ADS8345 are complete 16-bit analog-to-digital (A/D) using state-of-the-art CMOS
structures. They contain a complete 16-bit, capacitor-based, successive approximation register (SAR) A/D
with sample-and-hold, external reference, and a serial data interface. Programmable options allow the use
of an internal oscillator or the external serial clock as the conversion clock source.
The EVM is available with either the ADS8344 and ADS8345 installed. The EVM can accommodate the
12-bit ADS7844 by simply removing and replacing the installed device. Samples of the ADS7844 can be
obtained through the sample program at Texas Instruments. See the ADS7844 Product Folder for details.
1.1 Features
• Full-featured Evaluation Board for the ADS8344 or ADS8345, serial Analog to Digital Converters
• 5V Analog Input Range
• Built in reference
• High-Speed Serial Interface
• Compatible with the 5-6K Interface Card for use with a variety of DSP Starter Kits as well as the
HPA-MCU Interface for use with C2000 and TMS470 processors.
• Field Programmable Gate Array (FPGA) users can evaluate the ADS8344/45 EVM by obtaining the
Texas Instruments Analog Adapter Kit from Avnet Design Services (www.em.avnet.com).
SLAU228 - July 2007
Submit Documentation Feedback
..............................................................................................................
..............................................................................................................
..............................................................................................................
...............................................................................................................
.....................................................................................
................................................................................
.........................................................................................
...............................................................................................................
ADS8344/45 EVM User's Guide
