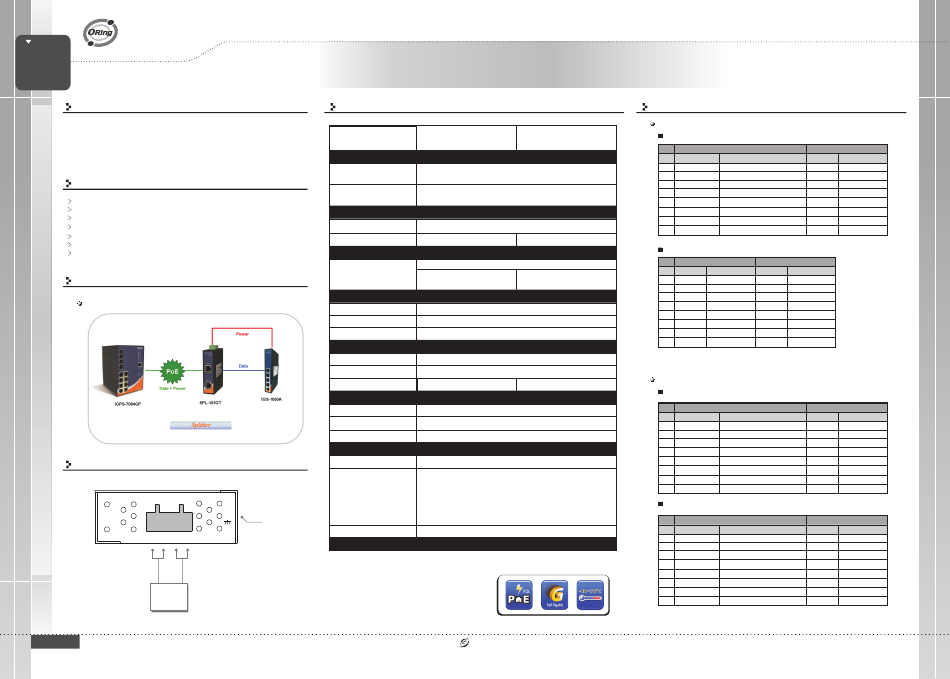

ORiNG SPL-101GT Series Quick Installation Manual

ORing Industrial Networking Corp.
GIGABIT
PoE
splitter
Q I
uick nstallation
I N D U S T R I A L
Introduction
SPL-101GT series is a high power PoE Splitter for use in Power over Ethernet
.
systems With Ethernet Input (data + power) port and Output (data only) port,
101GT series may split power from existing LAN cable and convert up to
24VDC 1.125A or 12VDC/1.6A(SPL-101GT-12V) for power hungry applications such /
,
as Wireless APs Security cameras and IP Phones The internal current limit, short-
circuit and overload protection are implemented for use as a DC power supply.
Features
Fully compliant with IEEE802.3at standard
Supports 10/100/1000Base-T(X) for PoE In and Data Out
Power Isolation and Short Circuit Protection for Power Output
Auto protection for Over Voltage Power Input
Supports Power Outputs up to 27Watts
IP-30 Rugged Case Design
DIN-Rail and wall-mount enabled
Connections
Connections of Splitter
Power Connection Guide
V- V- V+ V+ OUT PUT DC
Power
Output
12/24 VDC
Q I G
SPL-101GT Series
SPL-101GT Series
G
uide
Specifications
SPL-
ORing PoE Splitter Model
.
Physical Ports
10/100/1000 Base-T(X) Ports
in RJ45 Auto MDI/MDIX
10/100/1000Base-T(X) P.D.
Port in RJ45 Auto MDI/MDIX
Operating Voltage
Input Voltage
Output Power
LED indicators
Power indicator
Protection
Short Circuit Protection
Over Load Protection
Isolation Protection
Physical Characteristic
Enclosure
Dimension (W x D x H)
Weight (g)
Environmental
Storage Temperature
Operating Temperature
Operating Humidity
Regulatory Approvals
EMI
EMS
G
Frame Ground
Safety
Warranty
1907-2-29-SPL101GT-1.1
SPL-101GT SPL-101GT-12V
1
1
36 ~ 57 VDC on RJ45 connector
24Vdc @ 1.125A max. (27 Watts) 12Vdc @ 1.6A max. (20 Watts)
PWR / Ready: 1 x LED
Blue On: Power is on and Green On: Power is on and
functioning Normally. functioning Normally.
Present
Present
1500V
IP-30
26.1(W) x 70(D) x 95(H)mm (1.03x 2.76 x 3.74inch.)
250 g 250 g
o o
-40 to 85 C (-40 to 185 F)
o o
-40 to 70 C (-40 to 158 F)
5% to 90% Non-condensing
FCC Part 15, CISPR (EN55022) class A
EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11
EN60950-1
5 years
PRINTED ON RECYCLED PAPER
Industrial Gigabit Splitter
Connector and Pin Definition
PoE Definition 1
1000Base-T
RJ-45 Input (Data and Power) RJ-45 Output (Data Only)
Symbol Description Symbol
1 BI_DA+ Data BI_DA+ BI_DA+
2 BI_DA- Data BI_DA- BI_DA-
3 BI_DB+ BI_DB+
Data BI_DB+
4 BI_DC+ (Vdc+) Data BI_DC+ and Feeding power(+) BI_DC+
5 BI_DC- (Vdc+) Data BI_DC- and Feeding power(+) BI_DC-
6 BI_DB- Data BI_DB- BI_DB-
7 BI_DD+ (Vdc-) Data BI_DD+ and Feeding power(-) BI_DD+
8 BI_DD- (Vdc-) Data BI_DD- and Feeding power(-) BI_DD-
10/100 Base-T(X)
RJ-45 Input (Data and Power) RJ-45 Output (Data Only)
Symbol Description Symbol Description
1 Rx+ Rx+
Data Receive Data Receive
2 Rx- Data Receive Rx- Data Receive
Tx+ Tx+
3 Data Transmit Data Transmit
4 Vdc+ Feeding power(+) NC Not Connected
Vdc+ Feeding power(+) NC Not Connected
5
6 Tx- Data Transmit Tx- Data Transmit
Not Connected
7 Vdc- Feeding power(-) NC
8 Vdc- Feeding power(-) NC Not Connected
Note: pins 7 and 8 (-Vdc) should not be shorted to ground
PoE Definition 2
1000Base-T
RJ-45 Input (Data and Power)
RJ-45 Output (Data Only)
Symbol Description Symbol
1 BI_DA+ (Vdc+) BI_DA+
Data BI_DA+ and Feeding power(+)
2 BI_DA- (Vdc+) BI_DA-
Data BI_DA- and Feeding power(+)
3 BI_DB+ (Vdc-) Data BI_DB+ and Feeding power(-) BI_DB+
4 BI_DC+ Data BI_DC+ BI_DC+
Data BI_DC-
5 BI_DC- BI_DC-
6 BI_DB- (Vdc-) Data BI_DB- and Feeding power(-) BI_DB-
7 BI_DD+ Data BI_DD+ BI_DD+
8 BI_DD- Data BI_DD- BI_DD-
10/100 Base-T(X)
RJ-45 Input (Data and Power)
RJ-45 Output (Data Only)
Symbol Description Symbol
1 Rx+ (Vdc+) Rx+
Data Receive and Feeding power(+)
Rx- (Vdc+) Data Receive and Feeding power(+) Rx-
2
3 Tx+ (Vdc-) Data Transmit and Feeding power(-) Tx+
Not Connected
4 NC NC
5 NC Not Connected NC
Tx- (Vdc-) Tx-
6 Data Transmit and Feeding power(-)
7 NC Not Connected NC
Not Connected
8 NC NC
Note: pins 3 and 6 (-Vdc) should not be shorted to ground
Quick Installation Guide
Version 1.1
Description
Data BI_DA+
Data BI_DA-
Data BI_DB+
Data BI_DC+
Data BI_DC-
Data BI_DB-
Data BI_DD+
Data BI_DD-
Description
Data BI_DA+
Data BI_DA-
Data BI_DB+
Data BI_DC+
Data BI_DC-
Data BI_DB-
Data BI_DD+
Data BI_DD-
Description
Data Receive
Data Receive
Data Transmit
Not Connected
Not Connected
Data Transmit
Not Connected
Not Connected
