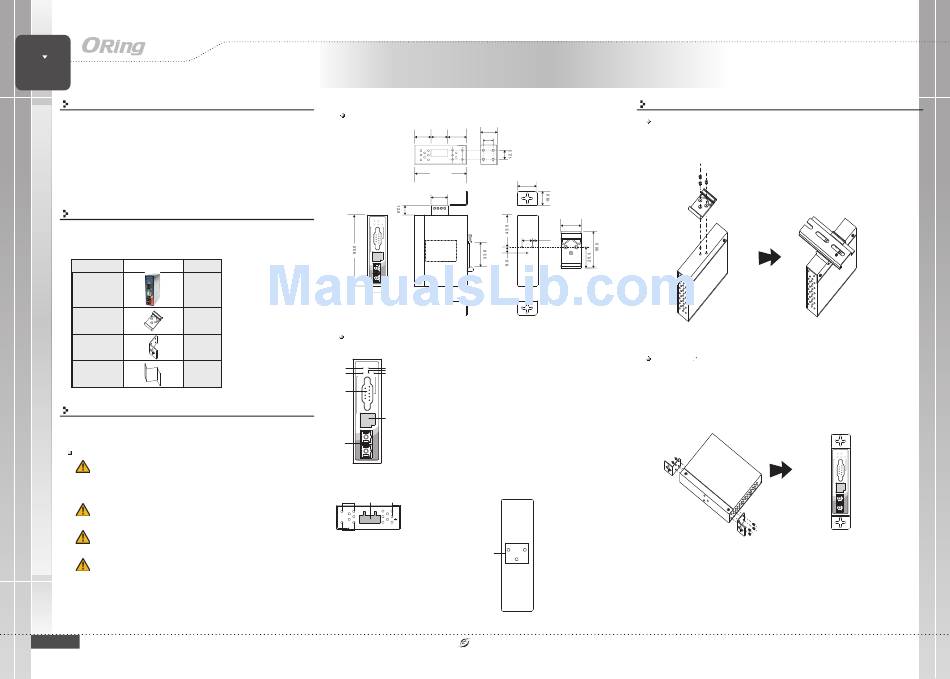

ORiNG ISC-1310FB-SS Quick Installation Manual

Serial
Media
Q I
Converter uick nstallation
Introduction
The ISC-1310FB is a cost-effective solution for conversion between RS-
232/422/485 and 100Base-FX interfaces, allowing you to extend serial
communication distances using optical fiber. The device provides a wide
operating temperature ranging from -40 ~ 70 C and a wide voltage range
from 12~48 VDC power inputs, making it an ideal serial media converter
suitable for harsh environments.
Package Contents
The device is shipped with the following items. If any of these items is
missing or damaged, please contact your customer service representative for
assistance.
Contents Pictures Number
ISC-1310FB-MM or
ISC-1310FB-SS
DIN-rail Kit
Wall-mount Kit
QIG
Preparation
Before installation, make sure you have all of the package contents
available.
Safety & Warnings
Elevated Operating Ambient: If installed in a closed cabinet, the operating
ambient temperature of the rack environment may be greater than room ambient.
Therefore, consideration should be given to installing the equipment in an
environment compatible with the maximum ambient temperature (Tma) specified
by the manufacturer.
Reduced Air Flow: Installation of the equipment should be such that the
amount of air flow required for safe operation of the equipment is not
compromised.
Mechanical Loading: Mounting of the equipment in the d
such that a hazardous condition is not achieved due to uneven mechanical
loading.
Circuit Overloading: Consideration should be given to the connection of the
equipment to the supply circuit and the effect that overloading of the circuits
might have on overcurrent protection and supply wiring. Appropriate
consideration of equipment nameplate ratings should be used when addressing
this concern.
Q I G
ISC-1310FB Series
ISC-1310FB Series
G
uide
Dimension (Unit: mm)
o
ISC-1310FB
P1 P2
RS422/ Fiber RS232
485
RX-
RX+
TX-
TX+
TX
RX
X 1
26.1
X 1
Panel Layouts
X 2
Front Panel
ISC-1310FB
1
P1 P2
X 1 2
RS422/ Fiber RS232
485
6
RX-
RX+
TX- D-
TX+ D+
TX
8
RX
Top Panel
1 2
in-rail
1
should be
1907-2-29-ISC1310FB-1.0
22.6
22.0 20.0 28.0
13.1
70.0
26.1
20.0
14.0 6.05
D-
D+
1. LED for power 1 module
3
4 2. LED for data transmitting from RS-422/RS-485 to fiber
5
3. LED for power 2 module
4. LED for fiber
5. LED for data transmitting from RS-232 to fiber
6. RS-232 port
7. 4-pin terminal block for RS-422/485 signal transmission
8. Optical fiber port
7
Rear Panel
3
1. Wall-mount screw 1. Din-rail screw holes
holes
G 2. Terminal block
3. Frame ground
1
PRINTED ON RECYCLED PAPER
Industrial Serial Media Converter
Installation
DIN-rail Installation
Step 1: Slant the switch and screw the Din-rail kit onto the back of the switch, right in the
middle of the back panel.
Step 2: Slide the switch onto a DIN-rail from the Din-rail kit and make sure the switch clicks into
the rail firmly.
23.0
Wall-mounting
Step 1: Screw the two pieces of wall-mount kits onto both sides of the switch. A
total of eight screws are required, as shown below.
Step 2: Use the switch, with wall mount plates attached, as a guide to mark the correct
locations of the four screws.
Step 3: Insert four screw heads through the large parts of the keyhole-shaped apertures, and
then slide the switch downwards. Tighten the four screws for added stability.
Version 1.0
ISC-1310FB
P1 P2
RS422/ Fiber RS232
485
RX-
RX+
TX- D-
TX+ D+
TX
RX
Quick Installation Guide
