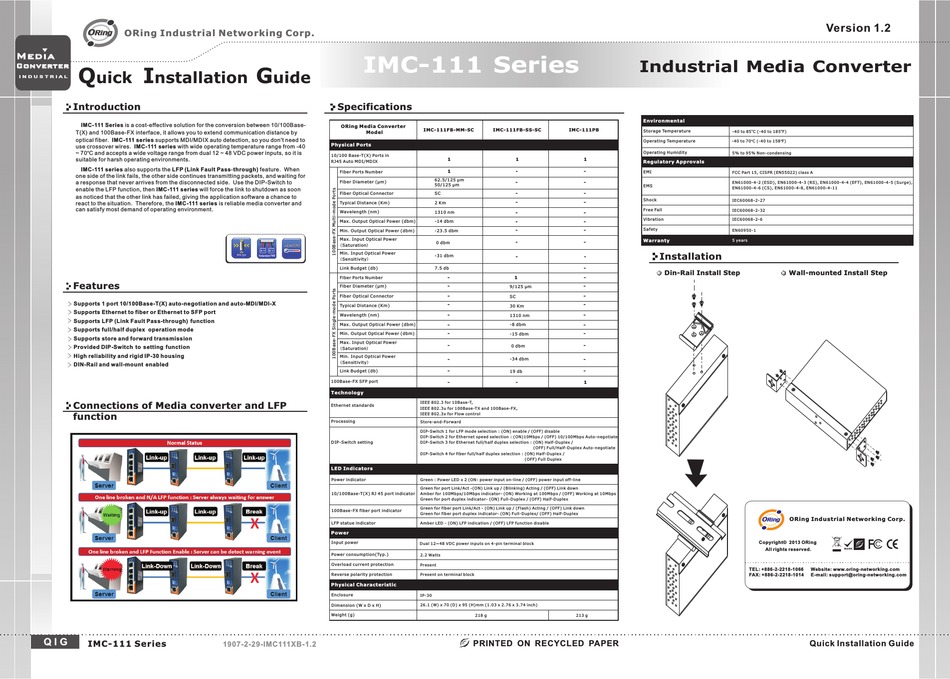

ORiNG IMC-111 Series Quick Installation Manual

ORing Industrial Networking Corp.
Media Media
Converter Converter
Q I
uick nstallation
I N D U S T R I A L

Introduction

-
IMC-111 Series is a cost effective solution for the conversion between 10/100Base-
( ) 100
T X and Base-FX interface, it allows you to extend communication distance by
optical fiber. IMC-111 series supports MDI/MDIX auto detection, so you don t need to
use crossover wires. IMC-111 series with wide operating temperature range from -40
o
~ 70 C and accepts a wide voltage range from dual 12 ~ 48 VDC power inputs, so it is
suitable for harsh operating environments.
IMC-111 series also supports the LFP (Link Fault Pass through)
one side of the link fails, the other side continues transmitting packets, and waiting for
a response that never arrives from the disconnected side. Use the DIP-Switch to
,
enable the LFP function then IMC-111 series
,
as noticed that the other link has failed giving the application software a chance to
react to the situation. Therefore, the IMC-111 series
can satisfy most demand of operating environment.

Features

Supports 1 port 10/100Base-T(X) auto-negotiation and auto-MDI/MDI-X
Supports Ethernet to fiber or Ethernet to SFP port
Supports LFP (Link Fault Pass-through) function
Supports full/half duplex operation mode
Supports store and forward transmission
Provided DIP-Switch to setting function
High reliability and rigid IP-30 housing
DIN-Rail and wall-mount enabled
Connections of Media converter and LFP
function
Q I G
IMC-111 Series
IMC-111 Series
G
uide

Specifications

ORing Media Converter
Model
'
Physical Ports
10/100 Base-T(X) Ports in
RJ45 Auto MDI/MDIX
- .
feature When
Fiber Ports Number
Fiber Diameter (µm)
will force the link to shutdown as soon
Fiber Optical Connector
is reliable media converter and Typical Distance (Km)
Wavelength (nm)
Max. Output Optical Power (dbm)
Min. Output Optical Power (dbm)
Max. Input Optical Power
( Saturation )
Min. Input Optical Power
( )
Sensitivity
Link Budget (db)
Fiber Ports Number
Fiber Diameter (µm)
Fiber Optical Connector
Typical Distance (Km)
Wavelength (nm)
Max. Output Optical Power (dbm)
Min. Output Optical Power (dbm)
Max. Input Optical Power
( )
Saturation
Min. Input Optical Power
( Sensitivity )
Link Budget (db)
100Base-FX SFP port
Technology
Ethernet standards
Processing
DIP-Switch setting
LED Indicators
Power indicator
10/100Base-T(X) RJ 45 port indicator
100Base-Fx Fiber Port indicator
LFP statue indicator
Power
Input power
Power consumption(Typ.)
Overload current protection
Reverse polarity protection
Physical Characteristic
Enclosure
Dimension (W x D x H)
Weight (g)
1907-2-29-IMC111XB-1.2
IMC-111FB-MM-SC IMC-111FB-SS-SC IMC-111PB
1 1 1
1 - -
62.5/125 µm
- -
50/125 µm
- -
SC
- -
2 Km
1310 nm - -
-14 dbm - -
- -
-23.5 dbm
- -
0 dbm
-31 dbm
- -
7.5 db -
- 1 -
- -
9/125 µm
- -
SC
- -
30 Km
- -
1310 nm
- -8 dbm -
- -
-15 dbm
- -
0 dbm
-34 dbm
- -
- -
19 db
- - 1
IEEE 802.3 for 10Base-T,
IEEE 802.3u for 100Base-TX and 100Base-FX,
IEEE 802.3x for Flow control
Store-and-Forward
DIP-Switch 1 for LFP mode selection : (ON) enable / (OFF) disable
DIP-Switch 2 for Ethernet speed selection : (ON)10Mbps / (OFF) 10/100Mbps Auto-negotiate
DIP-Switch 3 for Ethernet full/half duplex selection : (ON) Half-Duplex /
(OFF) Full/Half-Duplex Auto-negotiate
DIP-Switch 4 for fiber full/half duplex selection : (ON) Half-Duplex /
(OFF) Full Duplex
Green : Power LED x 2 (ON: power input on-line / (OFF) power input off-line
Green for port Link/Act -(ON) Link up / (Blinking) Acting / (OFF) Link down
Amber for 100Mbps/10Mbps indicator- (ON) Working at 100Mbps / (OFF) Working at 10Mbps
Green for port duplex indicator- (ON) Full-Duplex / (OFF) Half-Duplex
Green for fiber port Link/Act - (ON) Link up / (Flash) Acting / (OFF) Link down
Green for fiber port duplex indicator- (ON) Full-Duplex/ (OFF) Half-Duplex
Amber LED - (ON) LFP indication / (OFF) LFP function disable
Dual 12~48 VDC power inputs on 4-pin terminal block
2.2 Watts
Present
Present on terminal block
IP-30
26.1 (W) x 70 (D) x 95 (H)mm (1.03 x 2.76 x 3.74 inch)
218 g 213 g
PRINTED ON RECYCLED PAPER
Industrial Media Converter
Environmental
Storage Temperature -40 to 85 C (-40 to 185 F) o o
Operating Temperature -40 to 70 C (-40 to 158 F) o o
Operating Humidity 5% to 95% Non-condensing
Regulatory Approvals
EMI
FCC Part 15, CISPR (EN55022) class A
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge),
EMS
EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
Shock
IEC60068-2-27
Free Fall
IEC60068-2-32
Vibration IEC60068-2-6
Safety
EN60950-1
Warranty 5 years

Installation

Din-Rail Install Step

Wall-mounted Install Step

ORing Industrial Networking Corp.
Copyright© 2013 ORing
All rights reserved.
TEL: +886-2-2218-1066 Website: www.oring-networking.com
FAX: +886-2-2218-1014 E-mail: support@oring-networking.com
Quick Installation Guide
Version 1.2
