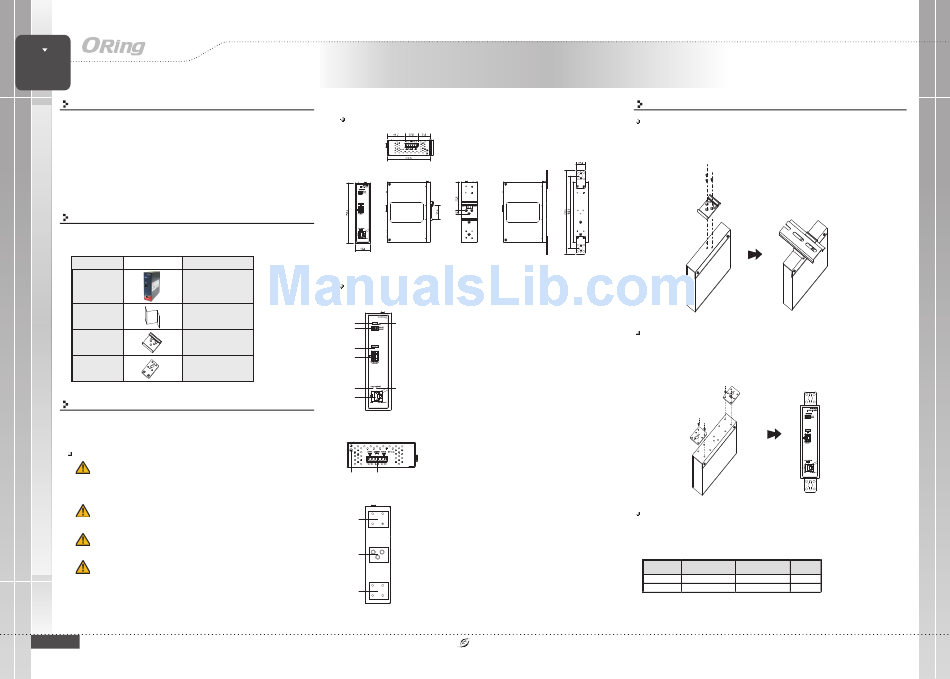

Introduction

The ITGMC-111GP+ is a cost-effective solution for interface conversion
between 1G/10GBase-T and 1G/10GBase-X SFP+ socket. It allows you to
extend communication distance of Gigabit copper port with optical fiber. The
ITGMC-111GP+ supports MDI/MDIX auto detection, so you don't need to use
crossover wires. With a wide operating temperature range from -20~60 C
and a wide voltage range from dual 12~48 VDC power inputs, the
111GP+ is suitable for harsh operating environments. Therefore, the
111GP+ is one of the most reliable media converters in harsh industrial
environments.

Package Contents

The series is shipped with the following items. If any of these items is missing
or damaged, please contact your customer service representative for
assistance.
Contents Pictures
ITGMC-111GP+
QIG
DIN-rail kit
Wall-Mount Kit

Preparation

Before installation, make sure you have all of the package contents
available and a PC with Microsoft Internet Explorer 6.0 or later, for using
web-based system management tools.
Safety & Warnings
Elevated Operating Ambient: If installed in a closed cabinet, the operating
ambient temperature of the rack environment may be greater than room ambient.
Therefore, consideration should be given to installing the equipment in an
environment compatible with the maximum ambient temperature (Tma) specified
by the manufacturer.
Reduced Air Flow: Installation of the equipment should be such that the
amount of air flow required for safe operation of the equipment is not
compromised.
Mechanical Loading: Mounting of the equipment in the d
such that a hazardous condition is not achieved due to uneven mechanical
loading.
Circuit Overloading: Consideration should be given to the connection of the
equipment to the supply circuit and the effect that overloading of the circuits
might have on overcurrent protection and supply wiring. Appropriate
consideration of equipment nameplate ratings should be used when addressing
this concern.
Q I G
ITGMC-111GP+
G
uide
Dimension (Unit: mm)
o
ITGMC-
ITGMC-
Number
Panel Layouts
X 1
Front Panel
X 1
ITGMC-111GP+
1
3
X 1
4
5
X 2
6
8
Top Panel
2 1
Real Panel
1
in-rail
should be
2
1
1907-2-29-ITGMC111GP+-1.0
ITGMC-111GP+
2
1. Power LED
2. Relay LED
3. DIP switch for relay
4. LNK/ACT LED for 10G copper port
5. 10G port
6. Speed LED for 10G SFP port
7. LNK/ACT LED for 10G SFP port
8. 10G SFP port
7
1. Terminal block
2. Grounding
1. Wall-mount screw holes
2. Din-rail screw holes
PRINTED ON RECYCLED PAPER
Industrial Gigabit Media Converter
Installation

DIN-rail Installation

Step 1: Slant the switch and screw the Din-rail kit onto the back of the switch, right in the
middle of the back panel.
Step 2: Slide the switch onto a DIN-rail from the Din-rail kit and make sure the switch clicks into
the rail firmly.

Wall-mount

Step 1: Screw the two pieces of wall-mount kits to the top and bottom panels of the device. A
eight
total of screws are required, as shown below.
Step 2: Use the device, with wall mount plates attached, as a guide to mark the correct locations
of the four screws.
Step 3: Insert a screw head through middle of the keyhole-shaped aperture on the plate, and
then slide the device downwards. Tighten the screw head for added stability.

Network Connection

The device has two 10/100Base-T(X) Ethernet ports. According to the link type, the AP uses
CAT 3, 4, 5, 5e, 6 UTP cables to connect to any other network device (PCs, servers,
switches, routers, or hubs).
Cable Types and Specifications:
Cable Type Max. Length Connector
10BASE-T Cat. 3, 4, 5 100-ohm UTP 100 m (328 ft) RJ-45
100BASE-TX Cat. 5 100-ohm UTP UTP 100 m (328 ft) RJ-45
Quick Installation Guide
Version 1.0
