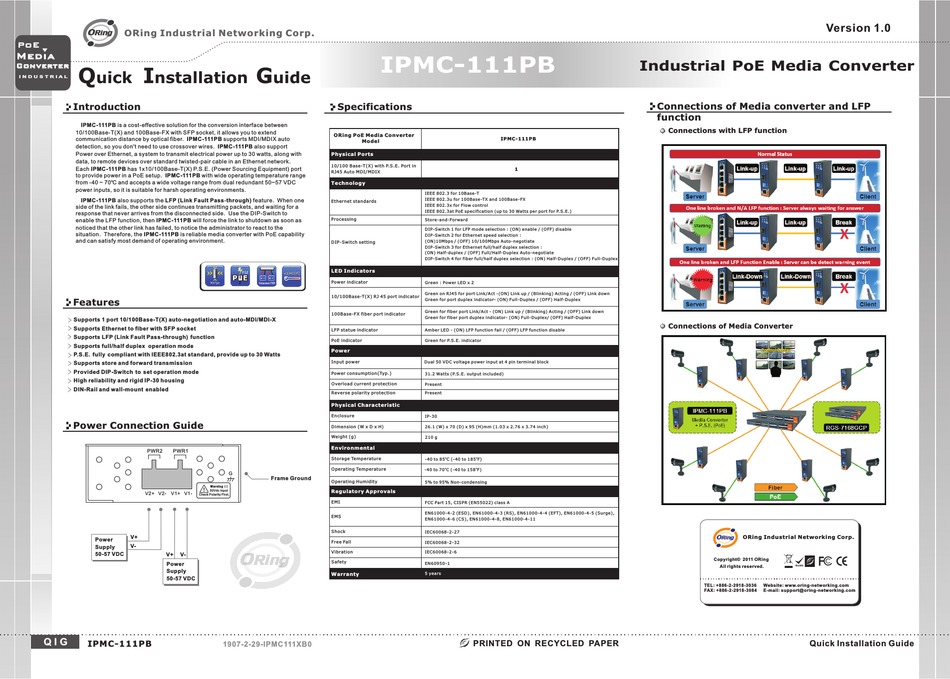

ORiNG IPMC-111PB Quick Installation Manual

ORing Industrial Networking Corp.
PoE
Media Media
Converter Converter
Q I
uick nstallation
I N D U S T R I A L
Introduction
-
IPMC-111PB is a cost effective solution for the conversion interface between
( ) 100 -
10/100Base-T X and Base FX with SFP socket it allows you to extend
communication distance by optical fiber. IPMC-111PB
'
detection, so you don t need to use crossover wires.
,
Power over Ethernet a system to transmit electrical power up to 30 watts along with
,
data to remote devices over standard twisted-pair cable in an Ethernet network
Each IPMC-111PB has 1x10/100Base-T(X) P.S.E. (Power Sourcing Equipment port
to provide power in a PoE setup. IPMC-111PB
℃
from -40 ~ 70 and accepts a wide voltage range from dual redundant 50~57 VDC
,
power inputs so it is suitable for harsh operating environments
IPMC-111PB also supports the LFP (Link Fault Pass through)
side of the link fails, the other side continues transmitting packets, and waiting for a
response that never arrives from the disconnected side. Use the DIP-Switch to
,
enable the LFP function then IPMC-111PB will force the link to shutdown as soon as
,
noticed that the other link has failed to notice the administrator to react to the
situation. Therefore, the IPMC-111PB is reliable media converter with PoE capability
and can satisfy most demand of operating environment.
Features
Supports 1 port 10/100Base-T(X) auto-negotiation and auto-MDI/MDI-X
Supports Ethernet to fiber with SFP socket
Supports LFP (Link Fault Pass-through) function
Supports full/half duplex operation mode
P.S.E. fully compliant with IEEE802.3at standard, provide up to 30 Watts
Supports store and forward transmission
Provided DIP-Switch to set operation mode
High reliability and rigid IP-30 housing
DIN-Rail and wall-mount enabled
Power Connection Guide
PWR2 PWR1
V2+ V2- V1+ V1-
V+
Power
V-
Supply
50-57 VDC V+ V-
Power
Supply
50-57 VDC
Q I G
IPMC-111PB
G
uide
Specifications
,
ORing PoE Media Converter
supports MDI/MDIX auto
Model
IPMC-111PB also support
,
Physical Ports
.
10/100 Base-T(X) with P.S.E. Port in
)
RJ45 Auto MDI/MDIX
with wide operating temperature range
Technology
.
- .
feature When one
Ethernet standards
Processing
DIP-Switch setting
LED Indicators
Power indicator
10/100Base-T(X) RJ 45 port indicator
100Base-FX fiber port indicator
LFP statue indicator
PoE indicator
Power
Input power
Power consumption(Typ.)
Overload current protection
Reverse polarity protection
Physical Characteristic
Enclosure
Dimension (W x D x H)
Weight (g)
Environmental
Storage Temperature
Operating Temperature
G
Frame Ground
Operating Humidity
Warning !!!
！
50Vdc Input Regulatory Approvals
Check Polarity First.
EMI
EMS
Shock
Free Fall
Vibration
Safety
Warranty
1907-2-29-IPMC111XB0
IPMC-111PB
IPMC-111PB
1
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE 802.3x for Flow control
IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.)
Store-and-Forward
DIP-Switch 1 for LFP mode selection : (ON) enable / (OFF) disable
DIP-Switch 2 for Ethernet speed selection :
(ON)10Mbps / (OFF) 10/100Mbps Auto-negotiate
DIP-Switch 3 for Ethernet full/half duplex selection :
(ON) Half-duplex / (OFF) Full/Half-Duplex Auto-negotiate
DIP-Switch 4 for fiber full/half duplex selection : (ON) Half-Duplex / (OFF) Full-Duplex
Green : Power LED x 2
Green on RJ45 for port Link/Act -(ON) Link up / (Blinking) Acting / (OFF) Link down
Green for port duplex indicator- (ON) Full-Duplex / (OFF) Half-Duplex
Green for fiber port Link/Act - (ON) Link up / (Blinking) Acting / (OFF) Link down
Green for fiber port duplex indicator- (ON) Full-Duplex/ (OFF) Half-Duplex
Amber LED - (ON) LFP function fail / (OFF) LFP function disable
Green for P.S.E. indicator
Dual 50 VDC voltage power input at 4 pin terminal block
31.2 Watts (P.S.E. output included)
Present
Present
IP-30
26.1 (W) x 70 (D) x 95 (H)mm (1.03 x 2.76 x 3.74 inch)
210 g
-40 to 85 C (-40 to 185 F) o o
o o
-40 to 70 C (-40 to 158 F)
5% to 95% Non-condensing
FCC Part 15, CISPR (EN55022) class A
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge),
EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
IEC60068-2-27
IEC60068-2-32
IEC60068-2-6
EN60950-1
5 years
PRINTED ON RECYCLED PAPER
Industrial PoE Media Converter
Connections of Media converter and LFP
function
Connections with LFP function
Connections of Media Converter
ORing Industrial Networking Corp.
Copyright© 2011 ORing
All rights reserved.
TEL: +886-2-2918-3036 Website: www.oring-networking.com
FAX: +886-2-2918-3084 E-mail: support@oring-networking.com
Quick Installation Guide
Version 1.0
