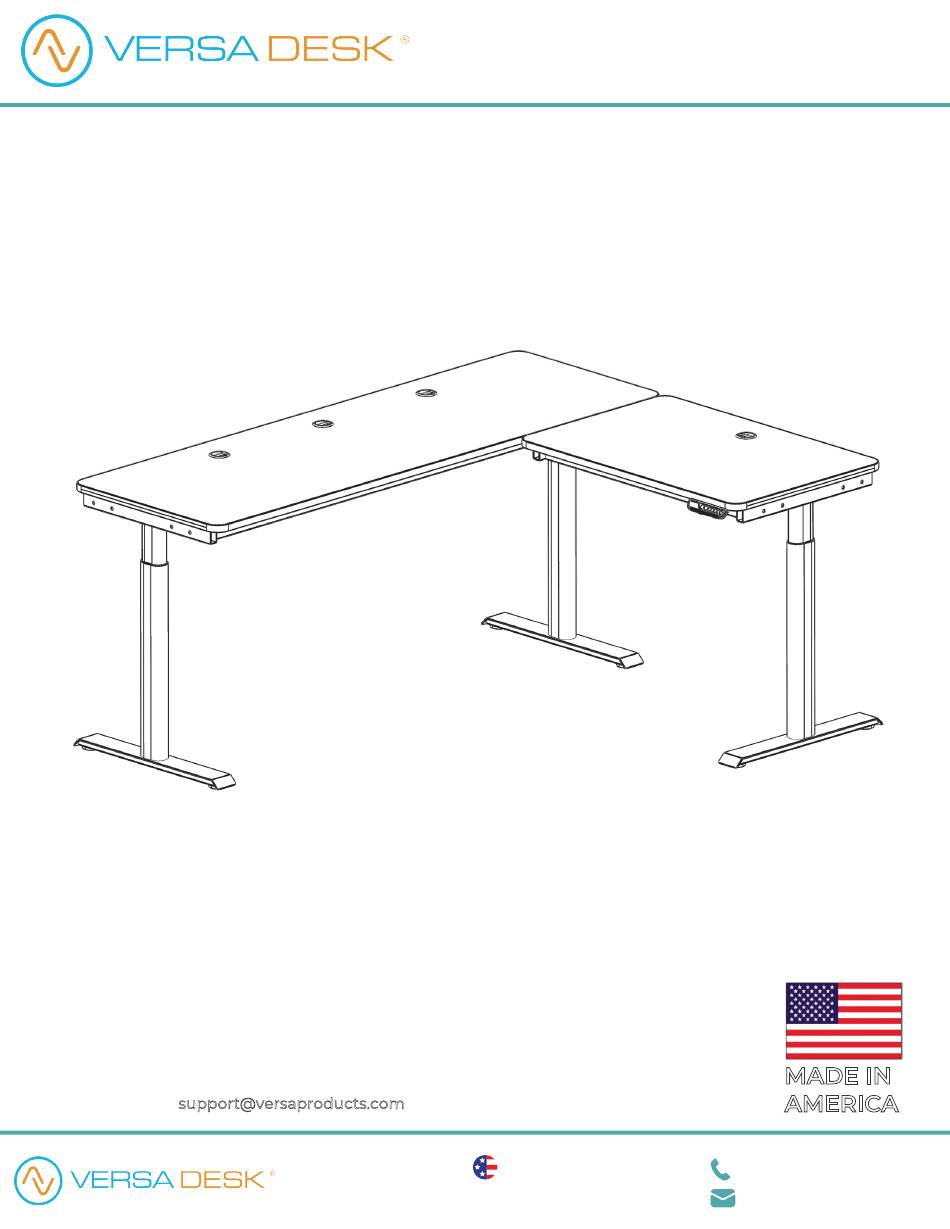

VERSA DESK
PowerLift L-Shaped Standing Desk
®
PLLSD
How can we improve our assembly instructions?
Your comments and suggestions are important to us.
Please e-mail us at: support@versaproducts.com
VERSA DESK
®
American Manufacturing
®
Protected by US Patent No. 10,485,336 & 10,849,424
Assembly Instructions
Lifetime Warranty
REV. 04022025
MADE IN
AMERICA
1 (800) 465-1660
support@versadesk.com
Advertisement
Related Manuals for Versa Desk PowerLift PLLSD
Summary of Contents for Versa Desk PowerLift PLLSD
- Page 1 VERSA DESK Assembly Instructions ® PowerLift L-Shaped Standing Desk ® REV. 04022025 PLLSD How can we improve our assembly instructions? MADE IN Your comments and suggestions are important to us. AMERICA Please e-mail us at: support@versaproducts.com 1 (800) 465-1660 American Manufacturing...
- Page 2 VERSA DESK Assembly Instructions ® Parts Main Surface & Frame (Assembly) Leg Actuator Side Surface & Frame (Assembly) Leg with Bracket Foot Inner Connecting Bracket Outter Connecting Bracket Control Switch Control Box Extension Cord Power Cord 1 (800) 465-1660 American Manufacturing...
-
Page 3: Additional Tools
VERSA DESK Assembly Instructions ® Hardware 1/4-20 x 12mm 10A x 5/8” Furniture Bolt Wood Screw M6 x 1.0 x 12mm Leg Lock Bracket M6 x 1.0 x 25mm Additional Tools 4mm Allen wrench Phillips Head Screwdriver (included) 1 (800) 465-1660... - Page 4 VERSA DESK Assembly Instructions ® Connect the Main Surface Frame to the Side Surface Frame using (1) Inner Connecting Bracket, (1) Outter Connecting Bracket, and (12) Wood Screws. Outter Inner Wood Screw Insert (4) M6 x 12mm Screws into (3) Leg Actuators. The red circles indicate where to place the screws.
- Page 5 VERSA DESK Assembly Instructions ® Align both Leg Actuators as shown and carefully drop them into place. To do this properly, you will need to push down and then back towards the edge of the frame. 1. Fully insert the side wiithout the handle of the Leg Lock Bracket into the opening shown in red.
- Page 6 VERSA DESK Assembly Instructions ® Align the Leg with Bracket as shown and carefully drop them into place. To do this properly, you will need to push down and then back towards the edge of the frame. Use a total of (2) 12mm Furniture Bolts to fasten the bracket to the frame.
- Page 7 VERSA DESK Assembly Instructions ® Attach (1) Foot to the end of each Leg as shown. Each Foot will require (4) M6 x 25mm Screws to complete this step. M6 x 25mm Screw Attach the Control Switch to the Main Surface by inserting (2) Wood Screws into the pre-drilled holes as shown.
- Page 8 VERSA DESK Assembly Instructions ® Wiring Feed the connector of the leg (circled in red) through the metal frame as shown then connect it directly to the L3 Port on the control box. Connect the next leg to the pre-installed extension cable as shown below.
- Page 9 VERSA DESK Assembly Instructions ® Wiring Take the pre-installed extension on the main surface and connect it to the leg connector on the side surface as shown. 1 (800) 465-1660 American Manufacturing Lifetime Warranty VERSA DESK ® support@versadesk.com Protected by US Patent No. 10,485,336 & 10,849,424...
-
Page 10: Wiring Diagram Reference
VERSA DESK Assembly Instructions ® Wiring Diagram Reference Power Supply C66 Box Extension Cable Richmat Leg Cable Control Switch Cable Power Cable C66 Cable Note: Use the openings on the underside of the frame to route the wires and prevent them from being visible... - Page 11 VERSA DESK Assembly Instructions ® Connect the power cord to a nearby outlet. Your new desk is ready to use! 1 (800) 465-1660 American Manufacturing Lifetime Warranty VERSA DESK ® support@versadesk.com Protected by US Patent No. 10,485,336 & 10,849,424...
- Page 12 VERSA DESK Assembly Instructions ® Control Switch Operation Instruction Display Save Up Down M1 M2 M3 M4 1 (800) 465-1660 American Manufacturing Lifetime Warranty VERSA DESK ® support@versadesk.com Protected by US Patent No. 10,485,336 & 10,849,424...
- Page 13 VERSA DESK Assembly Instructions ® Add-on: PowerLift Keyboard Arm and Tray Parts & Hardware 10A x 3/4” 10-24 x 1/2” Keyboard Bracket Wood Screw Phil Pan Hd Screw Keyboard Tray Keyboard Mechanism Tools Phillips Head Screwdriver 1 (800) 465-1660 American Manufacturing...
- Page 14 VERSA DESK Assembly Instructions ® Attach the Keyboard Bracket to the front edge of the desk using (2) 10A x 3/4” Wood Screws. 10A x 3/4 Wood Screw Attach the Keybord Mechanism to both the Keyboard Bracket and Cable Management Tray using (6) 10-24 Phil Pan Head Screws.
- Page 15 VERSA DESK Assembly Instructions ® Attach the Keyboard Tray to the Keyboard Mechanism using (6) Wood Screws. 10A x 3/4 Wood Screw 1 (800) 465-1660 American Manufacturing Lifetime Warranty VERSA DESK ® support@versadesk.com Protected by US Patent No. 10,485,336 & 10,849,424...
- Page 16 VERSA DESK Assembly Instructions ® Add-on: PowerLift CPU Holder Parts & Hardware Truss Head Screw Hex Head Screw Mounting Platform CPU Holder Tools Phillips Head Screwdriver Attach the Mounting Platform to the frame using (4) Truss Head Screws. Truss Head Screw...
- Page 17 VERSA DESK Assembly Instructions ® Attach the CPU Holder to the Mounting Platform using (4) Truss Head Screws. Truss Head Screw Place your CPU into the CPU Holder and adjust as needed. You may adjust the width and height as shown.
