VERSA DESK

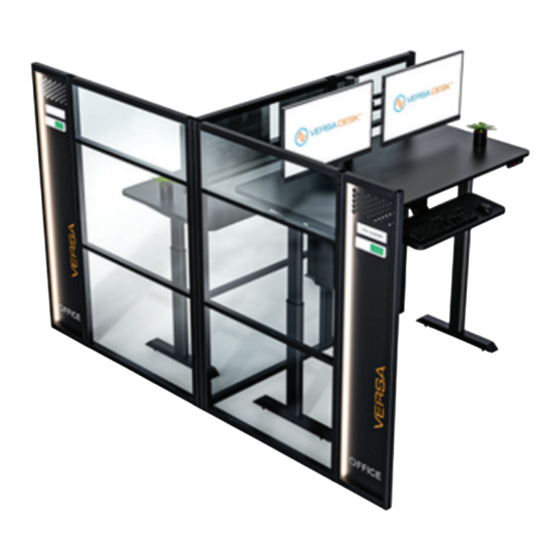

Q-Bee Cube T - Glass Office Cubicle
VOCT
How can we improve our assembly instructions?
Your comments and suggestions are important to us.
Please e-mail us at: engineering@versaproducts.com
VERSA DESK
®
American Manufacturing
®
Protected by US Patent No. 10,485,336 & 10,849,424
Assembly Instructions
Lifetime Warranty
REV. 05312023
MADE IN
AMERICA
1 (800) 465-1660
support@versadesk.com
Advertisement
Related Manuals for Versa Desk Q-Bee Cube T
Summary of Contents for Versa Desk Q-Bee Cube T
- Page 1 Assembly Instructions VERSA DESK ® Q-Bee Cube T - Glass Office Cubicle REV. 05312023 VOCT How can we improve our assembly instructions? MADE IN Your comments and suggestions are important to us. AMERICA Please e-mail us at: engineering@versaproducts.com 1 (800) 465-1660...
- Page 2 Assembly Instructions VERSA DESK ® Parts 27” Panel 39” Panel End Panel (Left & Right) 2.5” Connecting Bracket 3” Connecting Bracket Connecting Post Inner Corner 4.5” Connecting Bracket Connecting Bracket 1 (800) 465-1660 American Manufacturing Lifetime Warranty VERSA DESK ®...
-
Page 3: Additional Tools
Assembly Instructions VERSA DESK ® Hardware 1/4-20 x 20mm Furniture Bolt Additional Tools 4mm Allen wrench Allen wrench screwdriver and/or Tape measure (included) hand drill Level 1 (800) 465-1660 American Manufacturing Lifetime Warranty VERSA DESK ® support@versadesk.com Protected by US Patent No. 10,485,336 & 10,849,424... - Page 4 Assembly Instructions VERSA DESK ® Connect the 27” Panel to the Connecting Post using (2) 4.5” Connecting Brackets and (4) 20mm Furniture Bolts. 20mm Furniture Bolt Connect the 39” Panel to the 27” Panel using (4) 20mm Furniture Bolts and (2) Inner Corner Brackets.
- Page 5 Assembly Instructions VERSA DESK ® Connect a second 39” Panel to the first using (4) 3” Connecting Brackets and (8) 20mm Furniture Bolts. 20mm Furniture Bolt Attach a second 27” Panel to the Connecting Post and 39” Panel using (2) Inner Corner Brackets and (6) 20mm Furniture Bolts.
- Page 6 Assembly Instructions VERSA DESK ® Connect both End Panels to the 27” Panels using (8) 2.5” Connecting Brackets and (16) 20mm Furniture Bolts. 20mm Furniture Bolt Use a Level to make sure that all of the panels are set up properly.
