Versa Desk PowerLift PLSD Series Assembly Instructions Manual

Electric standing desk

Advertisement

Quick Links

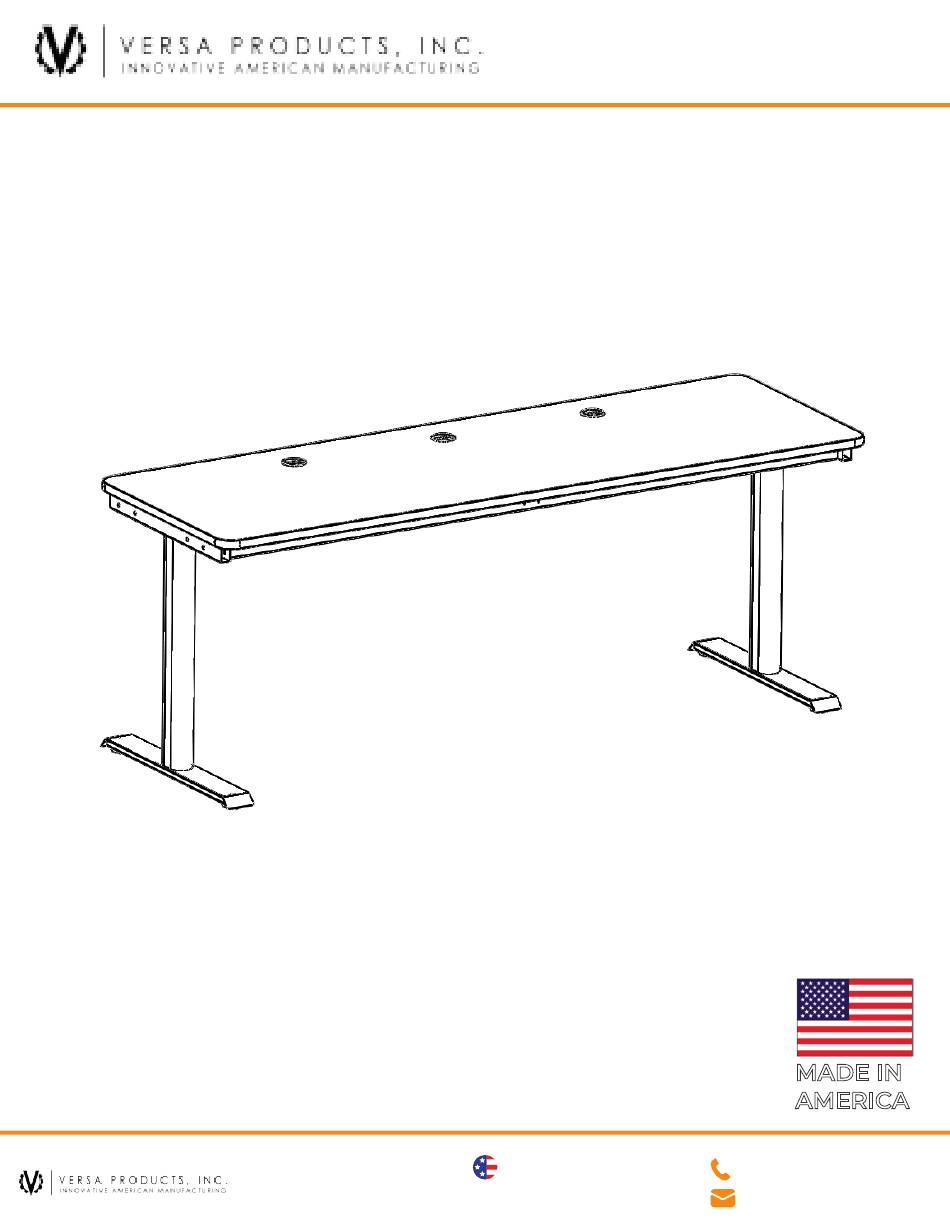

PowerLift Electric Standing Desk
PLSD Series
How can we improve our assembly instructions?
Your comments and suggestions are important to us.
Please e-mail us at: support@versaproducts.com
American Manufacturing
Protected by US Patent No. 10,485,336 & 10,849,424
Assembly Instructions
Assembly Instructions
Lifetime Warranty
REV. 03252025
MADE IN
AMERICA
1 (800) 465-1660
support@versadesk.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the PowerLift PLSD Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Versa Desk PowerLift PLSD Series

  • Page 1 Assembly Instructions Assembly Instructions PowerLift Electric Standing Desk REV. 03252025 PLSD Series How can we improve our assembly instructions? MADE IN Your comments and suggestions are important to us. AMERICA Please e-mail us at: support@versaproducts.com 1 (800) 465-1660 American Manufacturing Lifetime Warranty support@versadesk.com Protected by US Patent No.
  • Page 2 Assembly Instructions Tools 4mm Allen wrench Phillips Head Screwdriver (included) Parts Surface & Frame (Assembly) Feet Leg Actuator Control Switch 1 (800) 465-1660 American Manufacturing Lifetime Warranty support@versadesk.com Protected by US Patent No. 10,485,336 & 10,849,424...
  • Page 3 Assembly Instructions Hardware 10A x 5/8” M6 x 1.0 x 25mm M6 x 1.0 x 12mm Wood Screw Leg Lock Bracket 1 (800) 465-1660 American Manufacturing Lifetime Warranty support@versadesk.com Protected by US Patent No. 10,485,336 & 10,849,424...
  • Page 4 Assembly Instructions Insert (4) M6 x 12mm Screws into (2) Leg Actuators. The red circles indicate where to place the screws. Ensure to insert the screws on both sides. Note: Do not fully tighten screws. Leave a small 1/4” gap between the Screw Head and Leg M6 x 12mm Screw Left Side...
  • Page 5 Assembly Instructions 1. Fully insert the side wiithout the handle of the Leg Lock Bracket into the opening shown in red. 2. Slide over the Leg Lock Bracket to insert the other side into the oppos- ing opening. 3. Grab the handle of the Leg Lock Bracket and turn it towards the Lifting Column.
  • Page 6 Assembly Instructions Attach the Control Switch to the Surface by inserting (2) Wood Screws into the pre-drilled holes as shown. Wood Screw With the help of another person, carefully flip the table over. Connect the power cord to a nearby outlet and enjoy! Your new desk is ready to use! 1 (800) 465-1660 American Manufacturing...
  • Page 7: Wiring Diagram

    Assembly Instructions Wiring Diagram Switch on Right Configuaration Control Switch to HC on Control Box (HC - Orange) Power Cord to AC on Control Box (AC - Green) Legs to Control Box - 1, - 2) 1 (800) 465-1660 American Manufacturing Lifetime Warranty support@versadesk.com Protected by US Patent No.
  • Page 8 Assembly Instructions Control Switch Operation Instruction Display Save Up Down M1 M2 M3 M4 1 (800) 465-1660 American Manufacturing Lifetime Warranty support@versadesk.com Protected by US Patent No. 10,485,336 & 10,849,424...
  • Page 9 Assembly Instructions Add-on: PowerLift Keyboard Arm and Tray Tools Parts 10-24 x 1/2” 10A x 3/4” Phillips Head Screwdriver Keyboard Bracket Wood Screw Phil Pan Hd Screw Keyboard Mechanism Keyboard Tray Attach the Keyboard Bracket to the front edge of the desk using (2) 10A x 3/4”...
  • Page 10 Assembly Instructions Add-on: PowerLift Keyboard Arm and Tray Attach the Keybord Mechanism to both the Keyboard Bracket and Cable Management Tray using (6) 10-24 Phil Pan Head Screws. Back Front 10-24 x 1/2 Phil Pan Hd Screw Attach the Keyboard Tray to the Keyboard Mechanism using (6) Wood Screws.
  • Page 11 Assembly Instructions Add-on: PowerLift CPU Holder Tools Parts Phillips Head Screwdriver Truss Head Screw Hex Head Screw CPU Holder Mounting Platform Attach the Mounting Platform to the frame using (4) Truss Head Screws. Truss Head Screw 1 (800) 465-1660 American Manufacturing Lifetime Warranty support@versadesk.com Protected by US Patent No.
  • Page 12 Assembly Instructions Add-on: PowerLift CPU Holder Attach the CPU Holder to the Mounting Platform using (4) Truss Head Screws. Truss Head Screw Place your CPU into the CPU Holder and adjust as needed. You may adjust the width and height as shown. 1 (800) 465-1660 American Manufacturing Lifetime Warranty...

This manual is also suitable for:

Powerlift plsdr4824-ww
