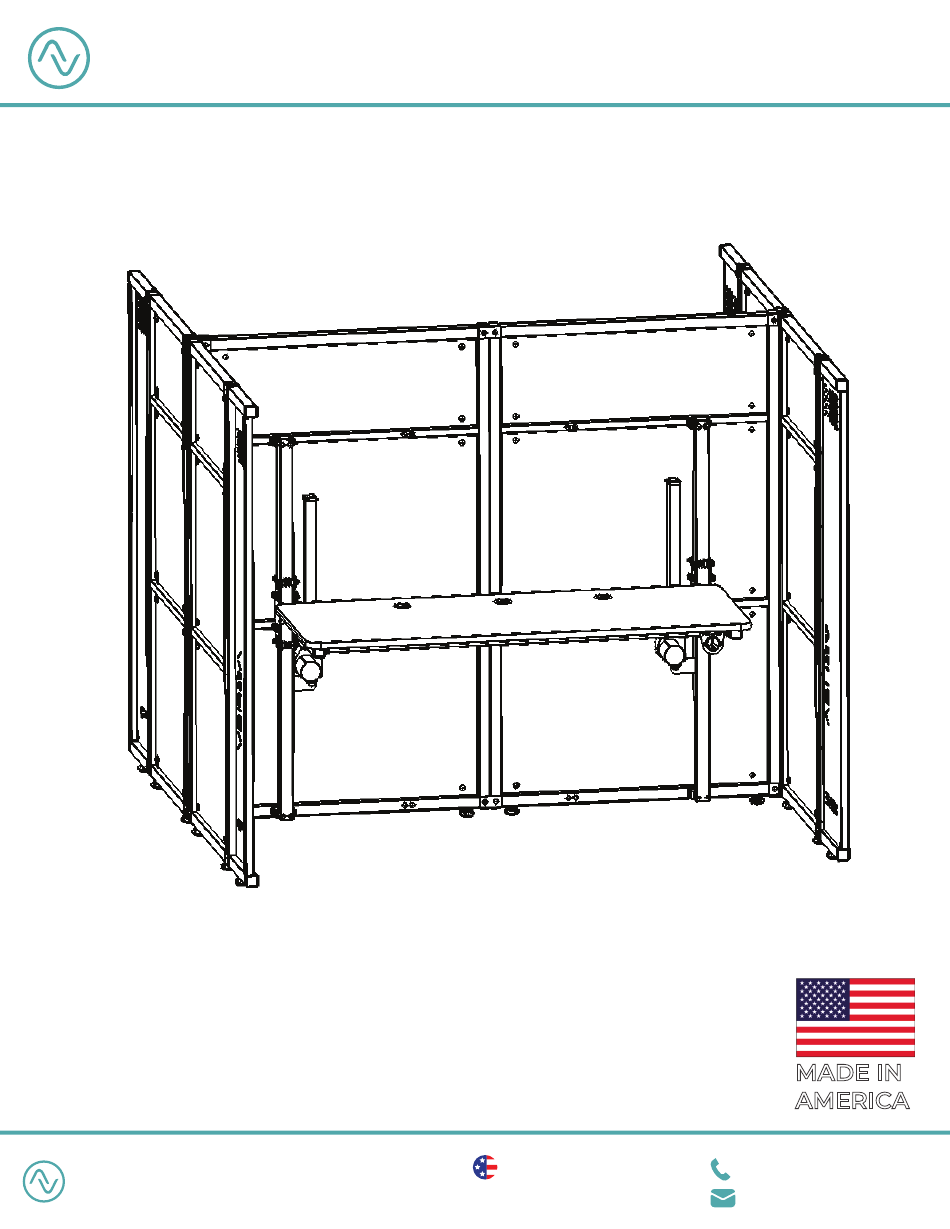

VERSA DESK

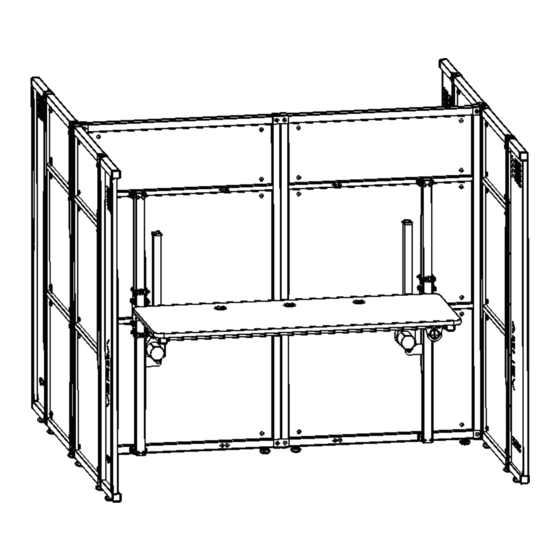

Qbee Floating Standing Desk Surface
FSSD
How can we improve our assembly instructions?
Your comments and suggestions are important to us.
Please e-mail us at: engineering@versaproducts.com
VERSA DESK
®
American Manufacturing
®
Protected by US Patent No. 10,485,336 & 10,849,424
Assembly Instructions
Lifetime Warranty
REV. 09012023
MADE IN
AMERICA
1 (800) 465-1660
support@versadesk.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Versa Desk FSSD
Summary of Contents for Versa Desk FSSD
- Page 1 Assembly Instructions VERSA DESK ® Qbee Floating Standing Desk Surface REV. 09012023 FSSD How can we improve our assembly instructions? MADE IN Your comments and suggestions are important to us. AMERICA Please e-mail us at: engineering@versaproducts.com 1 (800) 465-1660 American Manufacturing...
- Page 2 Assembly Instructions VERSA DESK ® Add-on: Floating Standing Desk Tools 4mm Allen wrench Allen wrench screwdriver and/or (included) hand drill Parts Moving Beam Actuator Control Switch Surface Vertical Post 1/4-20 x 20mm 1/4-20 x 50mm 1/4-20 x 4 in Post Mounting...
- Page 3 Assembly Instructions VERSA DESK ® Attach (1) Post Mounting Bracket to the Vertical Post at the bottom using (2) 1/4-20 x 4 in Furniture Bolts. Repeat for other side. Successful Completion 1/4-20 x 4 in Furniture Bolt Align (1) Moving Beam on top of the Vertical Post and slide it down until it reaches the tab.
- Page 4 Assembly Instructions VERSA DESK ® Attach the Vertical Post to the frame of the panel using (4) 1/4-20 x 4 in Furniture Bolts (2 bolts on top, 2 bolts on the bottom). Repeat for other side. 1/4-20 x 4 in Furniture Bolt Attach the Actuator to both the Moving Beam and the Vertical Post.
- Page 5 Assembly Instructions VERSA DESK ® Align the Cross Support with both Moving Beams. Then use (4) 20mm Furniture Bolts to attach the parts together. 20mm Furniture Bolt Align the Surface with both Moving Beams. Then fasten the Surface using (4) 50mm Furniture Bolts. The red circles show the location for the bolts.
-
Page 6: Wiring Diagram
Assembly Instructions VERSA DESK ® Attach the Control Switch to the Surface using (2) Wood Screws. NOTE Press once to activate child safety lock. Down Wood Screw Wiring Diagram Right Actuator Left Actuator Control Switch Splitter Cable Power Note: Left Actuator will...
