Versa Desk Foundry FB Series Assembly Instructions Manual

Bench
Hide thumbs

Advertisement

Table of Contents

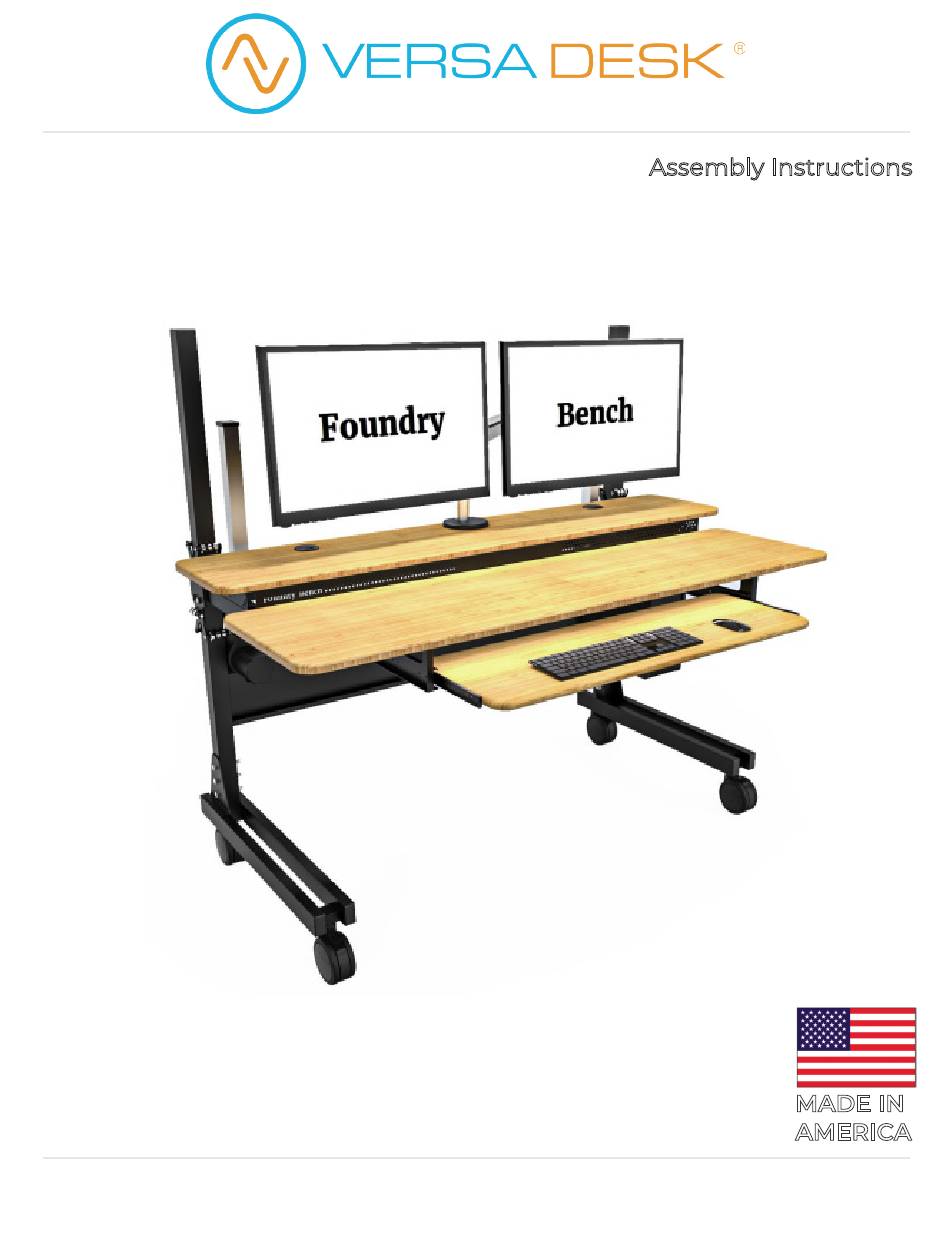

Foundry Bench
FB Series 48" & 60"
How can we improve our assembly instructions?
Your comments and suggestions are important to us.
Please e-mail us at: support@versaproducts.com
14105 Avalon Boulevard, Los Angeles, CA 90061 | Tel 800-465-1660 x1 | Fax 310-353-7109
www.Versatables.com
Page 1 / 18
Assembly Instructions
REV 01062025
MADE IN
AMERICA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Foundry FB Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Versa Desk Foundry FB Series

Summary of Contents for Versa Desk Foundry FB Series

  • Page 1 Foundry Bench Assembly Instructions FB Series 48” & 60” REV 01062025 How can we improve our assembly instructions? MADE IN Your comments and suggestions are important to us. AMERICA Please e-mail us at: support@versaproducts.com 14105 Avalon Boulevard, Los Angeles, CA 90061 | Tel 800-465-1660 x1 | Fax 310-353-7109 www.Versatables.com Page 1 / 18...
  • Page 2 REV 01062025 Parts Bamboo Surfaces Steel Support Metal Panels Foot (2 pc) Back Panel (1 pc) Top Surface (1 pc) Bottom Surface (1 pc) Front Panel (1 pc) Leg Upright (2 pc) Electronics https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-print Control Switch (1 pc) Cross Support (1 pc) Y-Split Cable (1 pc) Actuator (2 pc)

  • Page 3: Additional Tools Required

    REV 01062025 Power Cord (1 pc) Extension Cord (1 pc) HJC4S Power Box (1 pc) Hardware 8A x 5/8” Caster (4 pc) 20mm Furniture Bolt (16 pc) 50mm Furniture Bolt (4 pc) Wood Screw (5 pc) 2 Brake, 2 No Brake 3/8-16 Washer (12 pc) 12mm Washer (2 pc) Clevis Pin (2 pc)

  • Page 4: Back Panel

    REV 01062025 Assembly Step 1 Leg Uprights Attach the Leg Upright to the Foot using Leg Upright (3) 3/8-16 x 2 1/2 Hex Bolts, (3) 3/8-16 Washers and (3) 3/8-16 Hex Nuts as shown. Use the included wrenches to tighten the bolts. Repeat for other side.
  • Page 5 REV 01062025 Assembly Step 3 Casters Casters with brakes Using the same position as the previous step, insert (4) Casters into the feet as shown. Please note: Before continuing on to the next step, make sure the two casters with brakes have the brake ON.
  • Page 6 REV 01062025 Assembly Step 5 Actuators Moving Beam Secure the bottom of the Actuator to the Leg Upright as shown. 12mm Washer First, align the Actuator to the Leg Upright and put (1) Clevis Pin through the holes. Then, put (1) Cotter Pin through the hole of the Clevis Pin.

  • Page 7: Front Panel

    REV 01062025 Assembly Step 7 Front Panel Attach the Front Panel to both of the supporting brackets using (4) 8-32 x 3/4” Flat Head Screws (2 screws per side). 8-32 x 3/4 Flat Head Screw Step 8 Top Surface Top Surface Place the Top Surface on top of the supporting brackets and the Front Panel.

  • Page 8: Cross Support

    REV 01062025 Assembly Step 9 Cross Support Attach the Cross Support to Moving Beam the Moving Beams using (4) 20mm Furniture Bolts (2 bolts per side). Cross Support 20mm Furniture Bolt Step 10 USB Switch Attach the Switch Bracket to the Bottom Surface using (2) 8A x 5/8”...

  • Page 9: Bottom Surface

    REV 01062025 Assembly Step 11 Bottom Surface Bottom Surface Attach the Bottom Surface to the Moving Beams using (4) 50mm Furniture Bolts as shown. Then, use (4) 1/4-20 x 1/2” Truss Head Screws to fasten the Bottom Surface onto the Front Panel as shown.
  • Page 10 REV 01062025 Assembly Wiring Front View of Foundry Bench rcode-labels/#:~:text=How%20to%20con gure%20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%20 https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-prin Note: Control Box can be placed on the Center Back Panel 20con gure%20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D%20barcode%20labels%20in%20 e%20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D%20barcode%20labels%20in%20Zenstores https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-barcode-labels/#:~:text=Ho https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-barcode-labe https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d 14105 Avalon Boulevard, Los Angeles, CA 90061 | Tel 800-465-1660 x1 | Fax 310-353-7109 www.Versatables.com Page 10 / 18...
  • Page 11 REV 01062025 Assembly Foundry Wiring Place the control box inside the center panel as shown before beginning the wiring steps. Connect the Left Actuator directlly to the L1 port on the control box. Untie the twist tie to fully extend the actuator wire.
  • Page 12 REV 01062025 Assembly Foundry Wiring Similarly to L1, Connect the Right Actuator directlly to the L2 port on the control box. Untie the twist tie to fully extend the actuator wire. Connect the end of the extension cable (circle in red) to the HC port of the control box. Please Note: If C66 equipped, must connect the C66 end rst to the HC Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D%20barcode%20labels%20in%20Zenstores.
  • Page 13 REV 01062025 Assembly Foundry Wiring Extend the cable through the middle panel towards the control switch as shown and connect the corresponding end of the control switch. printing-royal-mails-2d-barcode-labels/#:~:text=How%20to%20con gure%20the%20Zebra%20GK420D%20printer%20for,y %20Royal%20Mail%202D%20barcode%20labels%20in%20Zenstores. https://www.zenstores.com/help/how-con gure-zebra-gk420d-print 0printer%20for,your%20Royal%20Mail%202D%20barcode%20labels%20in%20Zenstores. ra-gk420d-printer-printing-royal-mails-2d-barcode-labels/#:~:text=How%20to%20con gure%20the%20Zebra%20GK420D% zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-barcode-labels/#:~:text=How%20to%20c a%20GK420D%20printer%20for,your%20Royal%20Mail%202D%20barcode%20labels%20in%20Zenstores. ow-con gure-zebra-gk420d-printer-printing-royal-mails-2d-barcode-labels/#:~:text=How%20to%20con gure%20the%20Z gure%20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D%20barcode%20labels%20in%20Zenst https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-bar https://www.zenstores.com/help/how-con gure-...
  • Page 14 REV 01062025 Assembly Foundry Wiring Connect the end of the HJC4S Power Box to the DC port of the control box. Similar to the previous step, extend the Power Box through the middle panel towards the control switch. Connect the end of the Y-Split cable to a 12V port on the Power Box and another end to corresponding end of the control switch.
  • Page 15 REV 01062025 Assembly Foundry Wiring Lastly, connect one end of the Power Cord to the AC port in the control box and connect the other end to any power outlet. Your New Desk is now Ready to Be Used! 20con gure%20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D%20barcode%20labels%20in%20 https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-barcode-labels/#:~:text=Ho https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-barcode-labels/ 14105 Avalon Boulevard, Los Angeles, CA 90061 | Tel 800-465-1660 x1 | Fax 310-353-7109...

  • Page 16: Led Wiring

    REV 01062025 Assembly LED Wiring Use the diagram below as refrenece for the following steps: https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-print %20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D%20barcode%20labels%20in%20Zenstores. Note: The LED Strips are pre-installed on the wood surfaces. 20con gure%20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D%20barcode%20labels%20in%20 https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-barcode-labels/#:~:text=Ho https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-barcode-labels/# 14105 Avalon Boulevard, Los Angeles, CA 90061 | Tel 800-465-1660 x1 | Fax 310-353-7109 www.Versatables.com Page 16 / 18...
  • Page 17 REV 01062025 Assembly LED Wiring The LED Strip Wiring begins here. There is nothing to connect. Continue to & Locate the Female end barrel plug in location and locate the Male end barrel plug in location . Then simply connect both ends of the barrel plugs together. Female End in Location Male End in Location Connect Both Ends...
  • Page 18 REV 01062025 Control Switch Operation Instructions Push & Hold Both for Bluetooth Pairing Set Memory Setting Display Up Down M1 M2 M3 LED Light Control ode-labels/#:~:text=How%20to%20con gure%20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D s%20in%20Zenstores. How%20to%20con gure%20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D%20barcode%20la https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-barcode-labels/#:~:te https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-ba https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing How%20to%20con gure%20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D%20barcode%20la https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-barcode-labels/# 20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D%20barcode%20labels%20in%20Zenstores.
  • Page 19 REV 01062025 Add-on: Sit to Stand Keyboard Arm and Tray Tools Parts Phillips Head Screwdriver 8A x 5/8” Wood Screw Left Keyboard Bracket Right Keyboard Bracket Keyboard Tray Bamboo Keyboard Assembly Step 1 Attach both keyboard brackets to the Bottom Surface using (8) 8A x 5/8”...
  • Page 20 REV 01062025 Add-on: Sit to Stand Keyboard Arm and Tray Assembly Bamboo Keyboard Surfaces Use for 33” bamboo keyboard Outter holes OR metal keyboard tray Inner holes Use only for 23” bamboo keyboard Step 2 Slide the Keyboard Tray or Bamboo Keyboard into the Keyboard Brackets as shown.
  • Page 21 REV 01062025 Add-on: CPU Holder Tools Parts Phillips Head Screwdriver CPU Holder Mounting Bracket Hex Head Screw 1/4-20 x 13mm 3/8-16 x 2 1/2” 3/8-16 8A x 5/8” Truss Hd Screw Hex Bolt Hex Nut Wood Screw Assembly Step 1 Align the top frame of the CPU Holder with the 4 holes on the mounting brackets.
  • Page 22 REV 01062025 Add-on: CPU Holder Assembly Step 2 Decide which side you would like to place the CPU Holder on. The CPU Holder can be mounted on either one of the moving beams. Moving Beam Option Option Step 3 Align the holes of the mounting brackets with the holes on the moving beam as shown in the upper right corner.
  • Page 23 REV 01062025 Add-on: CPU Holder Assembly Step 4 Fasten the CPU Holder brackets to the moving beam using (1) 3/8-16 x 2 1/2” Hex Bolt and (1) 3/8-16 Hex Nut as shown. The image on the bottom right corner shows a successful completion of this step.
  • Page 24 REV 01062025 Add-on: CPU Holder Assembly Step 6 Secure the side frame to the top frame using (2) Head Hex Screws as shown. 8A x 5/8 Wood Screw Step 7 rcode-labels/#:~:text=How%20to%20con gure%20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%20 https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-prin Place your CPU into the CPU Holder. Adjust the CPU Holder to ensure that your CPU is secured properly.
  • Page 25 REV 01062025 Add-on: CPU Holder Adjustability ode-labels/#:~:text=How%20to%20con gure%20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D s%20in%20Zenstores. How%20to%20con gure%20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D%20barcode%20la https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-barcode-labels/#:~:te https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-ba https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing 14105 Avalon Boulevard, Los Angeles, CA 90061 | Tel 800-465-1660 x1 | Fax 310-353-7109 www.Versatables.com Page 5 / 5 20con gure%20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D%20barcode%20labels%20in%20 https://www.zenstores.com/help/how-con gure-zebra-gk420d-printer-printing-royal-mails-2d-barcode-labels/#:~:text=Ho 20the%20Zebra%20GK420D%20printer%20for,your%20Royal%20Mail%202D%20barcode%20labels%20in%20Zenstores.
