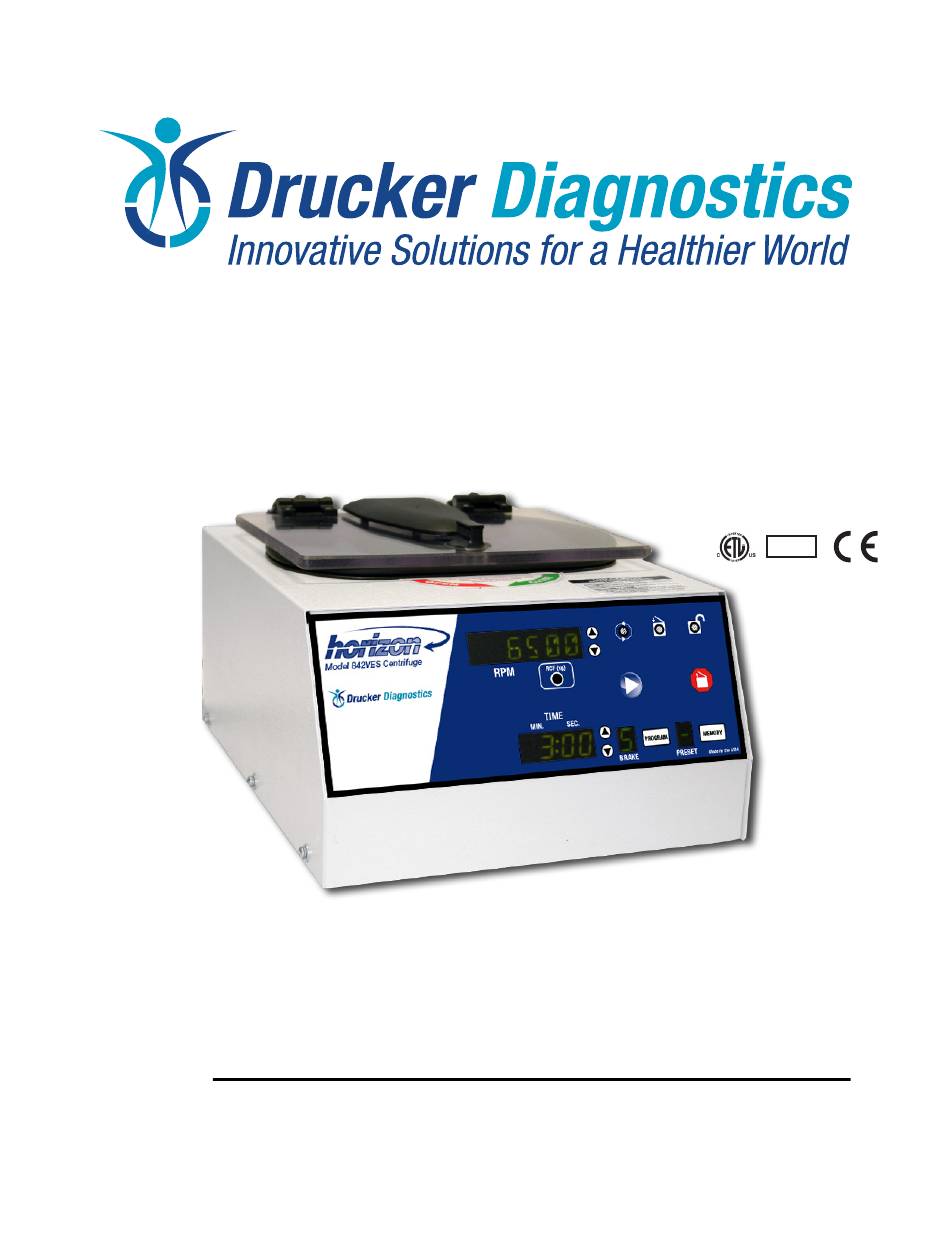

- Page 1 Operator/Service Manual Model 842VES • Laboratory Centrifuge p/n 7711011 Rev. F...
-
Page 2: Table Of Contents
Table of Contents Model Description page 3 Supplied Equipment page 3 Warranty Information page 3 Specifications page 4 Control Panel / Parts of the Centrifuge page 5 Setup Location page 6 Initial Setup Procedure pages 6,7 Operation page 7 Tube Holder Configurations Performance Plus Horizontal Rotor page 7 6-Place Horizontal Rotor... -
Page 3: Model Description
Operating Manual. Users should also comply with the specimen receptable manufacturer’s specific instructions for use, in addition to any other protocols established by the testing organization. WARRANTY: Drucker Diagnostics warranties that this centrifuge is free from defects in workmanship and parts for 2 years. page 3... -
Page 4: Specifications
75mm tube holder 7713056 6 13mm x 75mm 1000 to 6,500 RPM 140 to 5,000 xg NOTE: Contact Drucker Diagnostics for assistance when changing the installed rotor. The installed rotor may only be changed by qualified personnel. 13 x 100 mm 1.5 to 2mL... -
Page 5: Control Panel / Parts Of The Centrifuge
Control Panel / Parts of the Centrifuge: Lid Knob Lid Safety Interlock System Control Panel (see below) Cabinet Latched Up/Down RPM Running Unlocked Indicator Change Buttons Indicator Indicator Light Light Light RPM Display RCF Conversion Button Start Button Open / Stop Button Time Display... -
Page 6: Setup Location
If any problems are found during the initial setup procedure, refer to the troubleshooting section. For further assistance, contact Drucker Diagnostics at 814-342-6205 or 814-692-7661. Plug the female end of the line cord into the rear of the centrifuge. Plug the male end into an approved electrical outlet. -
Page 7: Operation
Operation: NOTE: Follow the initial setup procedure before initial operation. 1. Press the ‘OPEN / STOP’ button to unlock the lid and then open the lid. Insert cushions (if needed) into the tube carriers (holders) for the tube size you are using. Refer to ‘Tube Holder Configurations’ for assistance. Place the test tube samples into the tube carriers (holders). Be sure to follow the rules for balanced loads. -
Page 8: 6-Place Horizontal Rotor
For Example: A tube is found to be as long as box C. Accordingly, we can use a 75/100 mm tube holder (configurations C). A. & B. BLUE 75/100 Tube Holder BLUE 75/100 Tube Holder with 1525 cushion* * This part is available as an accessory. Contact Drucker Diagnostics for assistance. page 8... -
Page 9: 6-Place Fixed Angle Rotor
Tube Holder Configurations: The fixed angle rotor is capable of spinning test tubes up to 17 mm x 125 mm. Use the following chart and drawing to determine which tube holder and cushion combination should be used with your application. DIRECTIONS: Compare the tube to be spun with the three boxes shown below. 2. Find the box that most closely matches the tube’s length. NOTE: The tube length with its stopper or cap must be shorter then the chosen box or the tube will not fit properly in the tube holder. -
Page 10: Control Panel Functions
Control Panel Functions: Time Adjustment and Timer Operation - The run time may be set from 30 seconds to 99 minutes and 30 seconds. Press the up and down arrow buttons next to the time display to adjust the run time. Adjustments may be made prior to a run or after a run begins. A quick tap will adjust the time by 30 seconds. -
Page 11: Braking Rate
Advanced User Settings (continued): Braking Rate - The user may adjust the braking rate from minimum (slowest deceleration, 0) to maximum (quickest deceleration, 9) using the following procedure: While the centrifuge is idle, press the PROGRAM button. Use the UP/DOWN arrow buttons next to the speed display until “BRAKE” is displayed in the speed display. The current braking rate is displayed in the brake display. -
Page 12: Memory Locations / Storing And Recalling
Memory Locations / Storing and Recalling: The Performance Series centrifuges are capable of storing up to 10 user-defined presets. These memory presets contain all of the settings needed to define a specific run, (run time, speed, acceleration rate, braking rate, etc.). The user can use these memory locations to quickly configure the centrifuge for a specific test type and ensure that the test is run in the same way each time by recalling this same setting. Store a configuration in a memory location Adjust the various settings (speed, time, acceleration rate, etc.) for the configuration to be saved. Press and hold the PROGRAM button until the preset display begins to flash. Press the MEMORY button to increment the memory location by one. Continue to press the memory button until the desired location is displayed. -
Page 13: Care And Preventative Maintenance
Care and Preventative Maintenance: With proper care and maintenance your Horizon centrifuge will provide years of laboratory service. For proper care, the following steps should be taken: 1. Provide Adequate Ventilation: For cooling purposes, the Horizon draws in ambient air through the air intake cover on the top of the lid and exhausts this air in the rear of the base. -
Page 14: Rotor Removal And Installation
Rotor Removal and Installation: To remove the rotor: 1. Unlock the centrifuge by pushing the ‘OPEN / EMERGENCY STOP’ button and unlatch and open the lid. CAUTION: 1) Unplug the centrifuge from the electrical outlet at this time to eliminate the possibility of electrical shock or other injury. 2) Rotors may be removed for cleaning. However, rotors are not to be replaced in the field. The factory installed rotor is the only rotor intended to be used in the centrifuge. -
Page 15: Troubleshooting
Solutions: • Make sure that nothing has fallen into the rotor chamber. • If there is nothing obstructing the rotor, the motor may be damaged. Contact your authorized dealer or Drucker Diagnostics for further assistance. 2. Problem: There is excessive noise when the machine is running. -
Page 16: Safety
Drucker Diagnostics. Calibration and Earth Ground Testing: It is recommended that the top speed, ground continuity and line leakage be tested every two years for continued safe operation. Contact Drucker Diagnostics for further information or testing availability. page 16... -
Page 17: Replacement Parts
Contact your authorized dealer or Drucker Diagnostics to order replacement parts or accessories. Replacement Parts: 6-Place Part No. Description Horizontal Rotor 7724177 Rubber Foot p/n 7786061 7751068 Lid Tray Micro-Switch 7723002 Lid Tray Solenoid 7735011 Motor, ½ H.P. Brushless DC 7717041...
