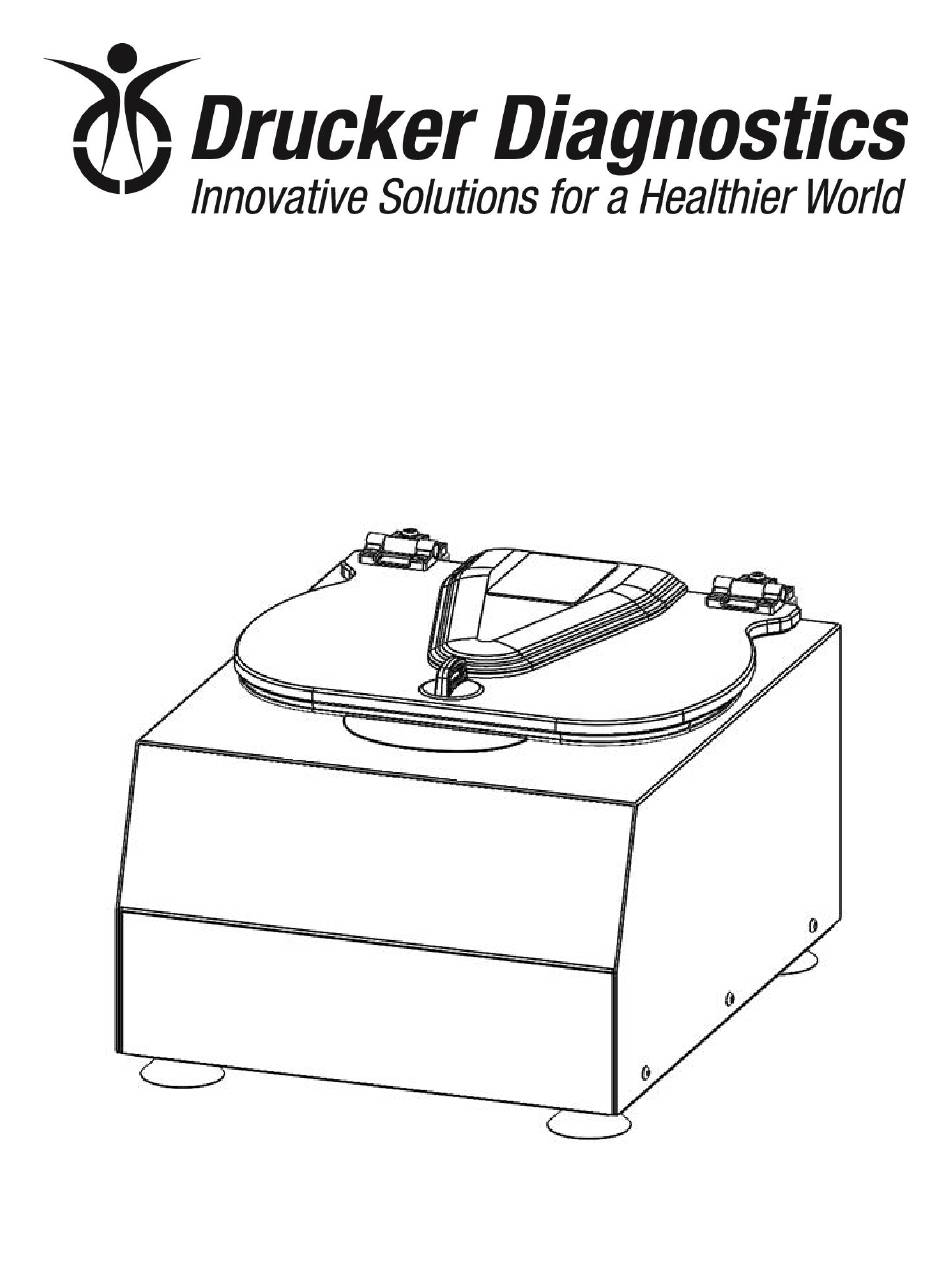

- Page 1 200 Shadylane Drive Philipsburg, PA 16866 www.druckerdiagnostics.com Service Manual Horizon 12 Flex Centrifuge DRUCKER DIAGNOSTICS SM028 HORIZON 12 FLEX SERVICE MANUAL REV A...
-
Page 2: Table Of Contents
Contents PREFACE INTENDED USE GENERAL DESCRIPTION OF MAJOR COMPONENTS WARRANTY INFORMATION SPECIFICATIONS TROUBLESHOOTING SERVICE INSTRUCTIONS WIRING DIAGRAM SPARE PARTS LIST DRUCKER DIAGNOSTICS SM028 HORIZON 12 FLEX SERVICE MANUAL REV A... -
Page 3: Preface
Failure to follow the procedures in this document may result in personal injury or instrument damage. Drucker Diagnostics will not be held liable for any injury or damage because of improper servicing. -
Page 4: Specifications
Tighten rotor screw per section 7-2 PROBLEM POSSIBLE CAUSE SOLUTION Debris in air intake / exhaust ports Remove power before clearing debris. Whistling noise while running Gasket failure Requires service DRUCKER DIAGNOSTICS SM028 HORIZON 12 FLEX SERVICE MANUAL REV A... -
Page 5: Service Instructions
If the rotor screw needs to be tightened, use a 1/8” hex key and tighten to 3.5 Nm. 7.5. Speed Calibration • Check the centrifuge speed periodically, every two years is recommended. DRUCKER DIAGNOSTICS SM028 HORIZON 12 FLEX SERVICE MANUAL REV A... - Page 6 – do not over tighten. Each nut sets the height of a separate control panel button. Too low, and they cannot be actuated, too high and they jam against DRUCKER DIAGNOSTICS SM028 HORIZON 12 FLEX SERVICE MANUAL REV A...
- Page 7 Attach the motor to the motor mount plate with four #8 screws and torque to 18 in-lbs (Fig 2). • Secure the motor wire harness with a zip tie as shown. Snip the tag end of the zip tie flush when complete. DRUCKER DIAGNOSTICS SM028 HORIZON 12 FLEX SERVICE MANUAL REV A...
- Page 8 (fig 7). • Install one fender washer onto each stud (fig 8). • Finish the assembly with one Nylok nut on each stud, and tighten to 13 in-lbs DRUCKER DIAGNOSTICS SM028 HORIZON 12 FLEX SERVICE MANUAL REV A...
- Page 9 Secure the base with six #8 screws torqued to 10 in-lbs. (fig 11). • Install the exhaust cover and secure with three #8 screws torqued to 10 in-lbs. (fig 12). DRUCKER DIAGNOSTICS SM028 HORIZON 12 FLEX SERVICE MANUAL REV A...
- Page 10 Carefully place the cabinet onto the base taking care not to pinch any wires between the two. • Complete the assembly by replacing the eight #8 screws, with a 3/32 hex key. DRUCKER DIAGNOSTICS SM028 HORIZON 12 FLEX SERVICE MANUAL REV A...
- Page 11 8. WIRING DIAGRAM DRUCKER DIAGNOSTICS SM028 HORIZON 12 FLEX SERVICE MANUAL REV A...
- Page 12 9. SPARE PARTS LIST DRUCKER DIAGNOSTICS SM028 HORIZON 12 FLEX SERVICE MANUAL REV A...
