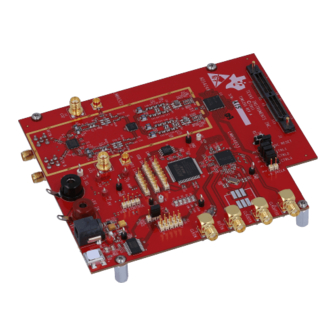

TSW1265EVM Evaluation Module
The TSW1265EVM evaluation module is a wideband, dual-receiver reference design and evaluation
platform. The signal chain allows conversion from RF to bits using a dual-channel downconversion mixer,
the LMH6521 dual-channel, digitally controlled variable gain amplifier (DVGA), and the ADS4249 14-bit
250-MSPS analog-to-digital converter (ADC). The TSW1265EVM also includes the LMK04800 dual-PLL
clock jitter cleaner and generator to provide an onboard low-noise clocking solution. A provided software
GUI allows for configuration of the ADS4249 and LMK04800. Either the GUI or an FPGA using the high-
speed connector can control the gain of the LMH6521 DVGA. The EVM mates with the TSW1400 pattern
capture and generation card to capture data from the ADS4249. Then, the High Speed Data Converter
Pro software tool can perform signal analysis. The TSW1265EVM product folder on the TI web site
contains the EVM schematic, bill of materials, and layout files.
1
Introduction
1.1
Overview
1.2
Block Diagram
2
Software Control
2.1
Installation Instructions
2.2
Software Operation
3
Basic Test Procedure
3.1
TSW1400 Setup
3.2
Test Setup Block Diagram
3.3
Quick-Start Procedure
3.4
Optional Features and Configurations
1
TSW1265EVM Block Diagram
2
ADS4249 Control Tab
3
LMK04800 Main Tab
4
LMK04800 Outputs Tab
5
LMK04800 Advanced Tab
6
LMH6521 Gain Tab
7
Send All, Save, Load, and Read All
8
Test Setup Block Diagram
9
TSW1265 Sample Capture using the TSW1400
1
ADS4249 Control Tab Section Descriptions
2
LMK04800 Main Tab Section Descriptions
3
LMK04800 Outputs Tab Section Descriptions
4
LMK04800 Advanced Tab Section Descriptions
5
LMH6521 Gain Tab Section Descriptions
6
Send All, Save, Load, and Read All Descriptions
Windows is a registered trademark of Microsoft Corporation.
All other trademarks are the property of their respective owners.
SLAU429 – March 2012
Submit Documentation Feedback
..................................................................................................................
............................................................................................................
......................................................................................................
............................................................................................................
............................................................................................
................................................................................................
.......................................................................................................
....................................................................................................
......................................................................................
...........................................................................................
............................................................................................
......................................................................................................
.......................................................................................................
....................................................................................................
.................................................................................................
.........................................................................................................
......................................................................................
...............................................................................................
Copyright © 2012, Texas Instruments Incorporated
Contents
.........................................................................
List of Figures
......................................................................
List of Tables
............................................................................
..............................................................................
..........................................................................
........................................................................
...............................................................................
......................................................................
User's Guide
SLAU429 – March 2012
TSW1265EVM Evaluation Module
2
2
2
3
3
3
9
9
10
10
12
2
4
5
6
7
8
9
10
11
4
5
6
7
8
9
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TSW1265EVM and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments TSW1265EVM

  • Page 1 ADS4249. Then, the High Speed Data Converter Pro software tool can perform signal analysis. The TSW1265EVM product folder on the TI web site contains the EVM schematic, bill of materials, and layout files.
  • Page 2 The signal chain allows conversion from RF to bits using a dual-channel downconversion mixer, the LMH6521 dual-channel DVGA, and the ADS4249 14-bit, 250-MSPS ADC. The TSW1265EVM also includes the LMK04800 dual-PLL clock jitter cleaner and generator to provide an onboard low-noise clocking solution.
  • Page 3 3. Run setup.exe, and follow the installation prompts. 4. Start the GUI by going to the Start Menu → All Programs → Texas Instruments ADCs → TSW1265 GUI. 5. When plugging the board into the computer for the first time through the USB cable, you are prompted to install the USB drivers.
  • Page 4 Set the test patterns of both channels for testing and troubleshooting of the digital interface. Offset Correction Enable and set parameters of the offset correction feature. TSW1265EVM Evaluation Module SLAU429 – March 2012 Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated...
  • Page 5 Configure PLL 1 settings when using the dual PLL mode. PLL 2 Settings Configure PLL 2 settings for both dual and single PLL mode. SLAU429 – March 2012 TSW1265EVM Evaluation Module Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated...
  • Page 6 Also select the source for the output. Clock Out 10 and 11 Configure Clock Out 10 and 11 outputs. Enable the outputs and set the divider, delay, and output buffer. TSW1265EVM Evaluation Module SLAU429 – March 2012 Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated...
  • Page 7 Status Pins Setup Setup the status pins for various outputs as well as control some miscellaneous functions. Holdover Mode Enable and configure holdover mode. SLAU429 – March 2012 TSW1265EVM Evaluation Module Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated...
  • Page 8 Section Description Channel A Set the gain for channel A of the LMH6521. Channel B Set the gain for channel B of the LMH6521. TSW1265EVM Evaluation Module SLAU429 – March 2012 Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated...
  • Page 9 This document assumes that the High Speed Data Converter Pro software and the TSW1400 pattern capture and generation board are both installed and functioning properly. This information can be found at http://www.ti.com/tool/tsw1400evm. SLAU429 – March 2012 TSW1265EVM Evaluation Module Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated...
  • Page 10 3.3.3 TSW1265 GUI 1. Start the TSW1265 GUI by going to Start Menu → All Programs → Texas Instruments ADCs → TSW1265 GUI. 2. Make sure the green indicator is lit up indicating that the TSW1265 board has been successfully connected to the PC.
  • Page 11 LMH6521 gain can be changed on the LMH6521 Gain tab of the TSW1265 GUI. An example of a -1- dBFS plot is shown in the figure below. Figure 9. TSW1265 Sample Capture using the TSW1400 SLAU429 – March 2012 TSW1265EVM Evaluation Module Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated...
  • Page 12 3.4.1 Clocking The TSW1265EVM allows for multiple clocking configurations by using the LMK04800 clock jitter cleaner and generation chip. The board comes preinstalled with a 20-MHz crystal which can be used to generate the sampling clock. The default for the board is a 250-MHz sampling clock.
  • Page 13 2 and 3. This configures the CPLD to route the gain from the connector rather than from the USB connection. SLAU429 – March 2012 TSW1265EVM Evaluation Module Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated...
