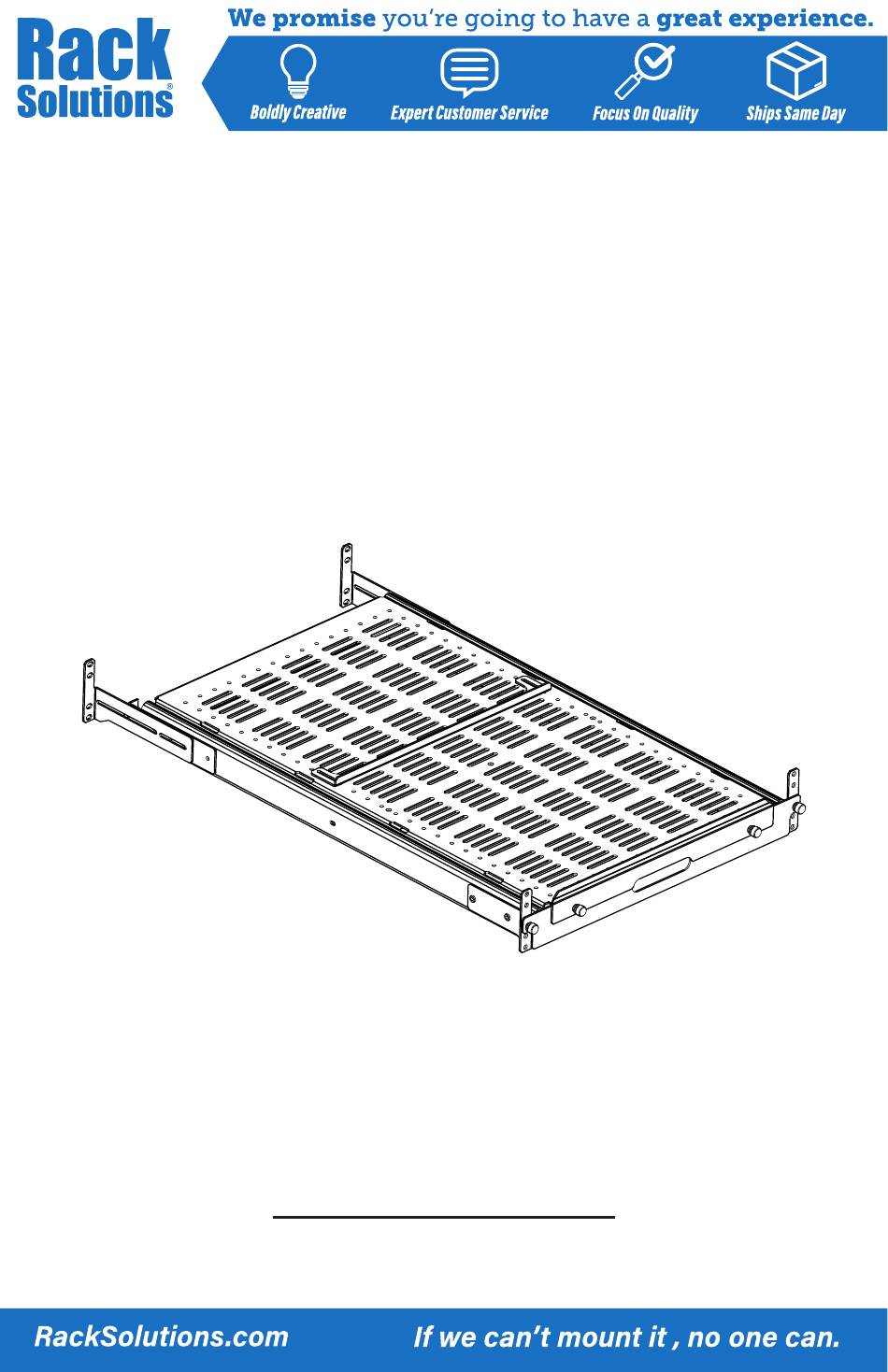

- Page 1 Patent(s) Pending Heavy Duty Sliding Shelf for 4Post Racks Installation Instructions Kit P/N: 115-1529 (4Post)
- Page 2 Kit Contents (1) Partially Assembled Shelf Rear Assembly Hardware Kit: (2) Anti-Slip Mat 12" x 15” 10-32 x 1/2” Flat Head Screws 10-32 Nuts (2) Heavy Duty Equipment Straps Stop Hardware Kit: Brackets: 8-32 x 3/8” Pan Head Screws Rear Rack Brackets 8-32 Nuts Front Rack Brackets Removable Front Stop...
- Page 3 Installation Instructions Step 4a. Rear Bracket Attachment: Move the slide rails back at least 8 inches. Attach the Rear Rack Brackets and the Cable Arm Extension as shown below. Attach using 10-32 x 1/2” Flat Head Screws and 10-32 Nuts. Depending on rack depth, either 2 or 3 screws can be used per Rear Bracket.
- Page 4 Installation Instructions Step 6. Server Installation: Pull the shelf out of the rack until it stops. Attach the Removable Front Stop (shown below) to the front of the shelf. Place the 2 Anti-Slip Mats on the shelf (cut as necessary). Put the server or other equipment on the shelf and move forward against the Front Stop.
