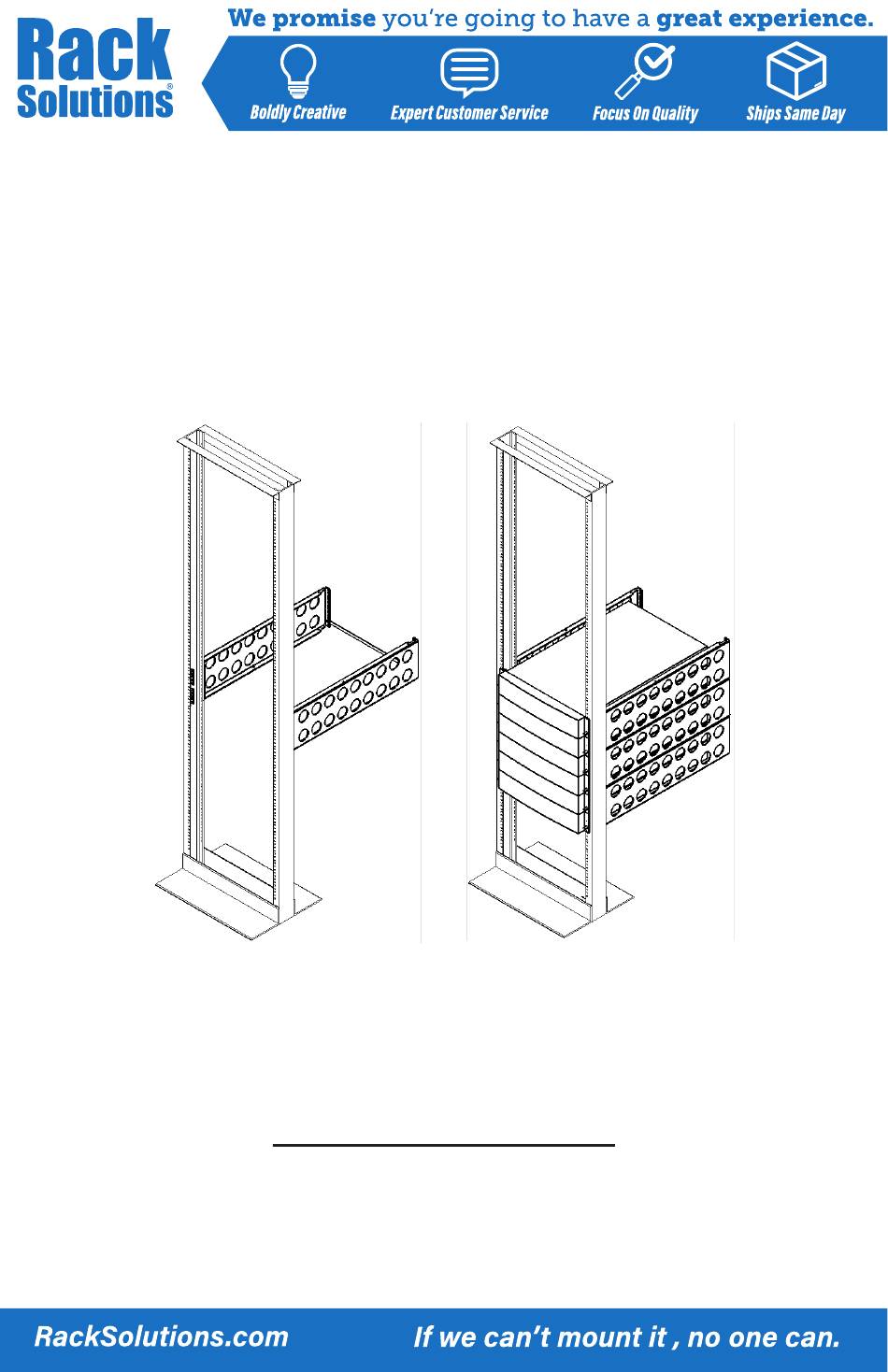

- Page 1 2Post Flush Racking System Installation Instructions Kit P/N: 4UKIT-003BLK for 1U – 7U Servers...
- Page 2 Kit Contents Metal Components: Structural Bracket Hardware: (2) Flush Structural Brackets (8) 12-24 Bolts (4) "059" Adapter Brackets (1) 19" Rear Cross-Brace 059 Hardware: (8) 12-24 Pan Head Screws Generic-Use Hardware: (8) 12-24 Cage Nuts Cross-Brace Hardware: (8) 12-24 Pan Head Screws (2) 12-24 Cage Nuts (2) 12-24 Pan Head Screws Flush...
- Page 3 Installation Instructions Step 1. 2Post Racks: This flush 2Post racking system is designed for the most common type of 2Post racks with 3" deep uprights (see the dimension below). For other rack depths, contact RackSolutions for additional reducer brackets. Step 2. General Installation Information: The figure below shows a typical bracket installation for 2U and 4U servers.
- Page 4 Installation Instructions Step 3. Bracket Locations: The figures below and on page 5 depict the locations of the bracket for various servers. These figures represent the left side of the rack. Steps 4, 5, and 6 describe the mounting of each bracket type. 2U Servers (Mounts two PowerEdge 2450, 2550) The "Blue Button"...
- Page 5 Installation Instructions Step 3. Bracket Locations: (Continued) 6U Servers (PowerEdge 2400) The "Blue Button" on the front of the Dell RapidRail aligns here 7U Servers (PowerEdge 4400, 6400) The "Blue Button" on the front of the Dell RapidRail aligns here 7U Servers (PowerEdge 7150) The "Blue Button"...
- Page 6 Installation Instructions Step 4. Attach the "059" Adapter Brackets (Dell Only): Attach the "059" Adapter Brackets to the 2Post uprights using two 12-24 Pan Head Screws for each bracket. Refer to the figures below for bracket orientation and screw locations. Refer to Step 3 for bracket location.
- Page 7 Installation Instructions Step 5. Attaching the Flush Structural Bracket: Attach the Flush Structural Brackets to the back of the 2Post uprights using three 12-24 Bolts for each bracket. Refer to the figure below for bracket orientation and bolt locations. Refer to Step 3 for bracket location.
- Page 8 Installation Instructions Step 6. 19" Rear Cross-Brace: The 19" Rear Cross-Brace ensures the proper rack spacing at the back of the rack. Install the Brace using two 12-24 pan Head Screws and two 12-24 Cage Nuts. The brace can be installed in any two unused holes across the back of the rack.
