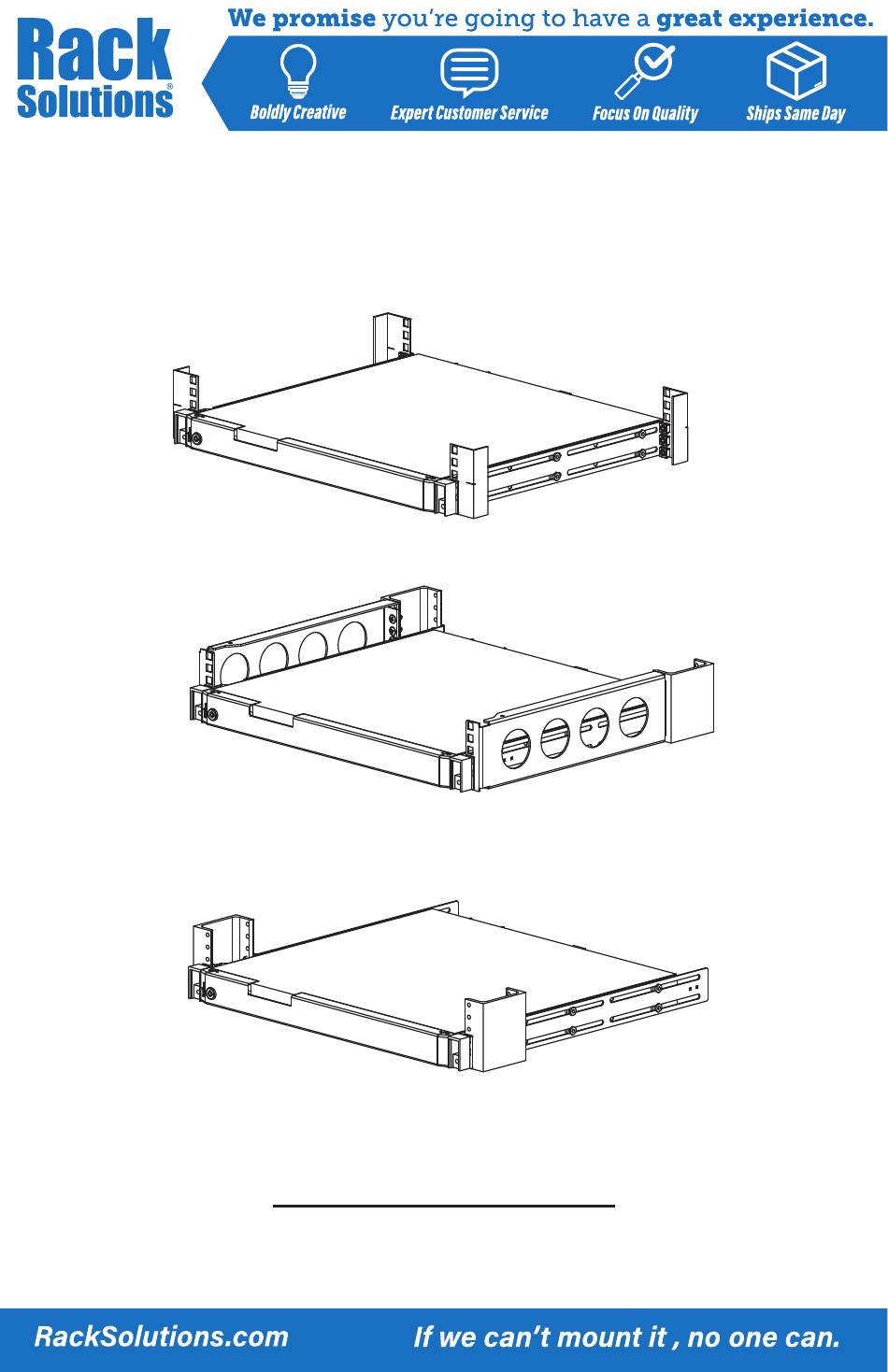

- Page 1 4Post and 2Post Rails for Dell PowerEdge R210 4Post Page 2 2Post Center Page 4 2Post Flush Page 6 Installation Instructions Kit P/N: 109-1953 109-1956...
- Page 2 (4) 8-32 x .500 Pan Head (4) 8-32 x .375 Flat Head (4) 8-32 Keps Nut 4Post Installation Instructions Step 1. Install cage nuts as shown at the rear of a square hole rack: (4) 12-24 black cage nuts. Rear of Rack (4) 12-24 black cage nuts Step 2a.
- Page 3 4Post Installation Instructions Step 3. Attach the rails to the rack: - Attach the front and Rear of the rails to the 4Post rack using (4) supplied Pan Head Screws on each side - Tighten the front and rear Pan Head Screws on the right side rail. Leave the front and rear Pan Head Screws on the left side rail slightly loose.
- Page 4 2Post Center Installation Instructions Step 1. Installing Rail Kit: Installing this rail kit in a 2Post center rack requires the Pre-Set Range 15.00" to 19.75" [381mm to 501mm] Step 2. Attach the rails to the rack: - Attach the 2Post Adapter Bracket per the "2 Post Racking System" Instructions.
- Page 5 2Post Center Installation Instructions Step 3. Install the equipment: Slide the equipment onto the rails so the Equipment Mounting Lugs on each side slide into the Rail Slot on both sides. Slide the equipment all the way in. Tighten the (2) Pan Head Screws on the back of the left slide rail.
- Page 6 2Post Flush Installation Instructions Step 1. Install Rails: Pre-Set Range 15.00" to 19.75" [381mm to 501mm] Rack Mount Flanges Range 3" to 6" [76mm to 152mm] Step 2. Attach the rails to the rack: - Attach the Front and Rear of the rails to the 2Post rack using (4) supplied Pan Head Screws on each side.
- Page 7 2Post Flush Installation Instructions Step 3. Install the equipment: Slide the equipment onto the rails so the Equipment Mounting Lugs on each side slide into the Rail Slot on both sides. Slide the equipment all the way in. Tighten the (2) screws on the back of the left slide rail. Slide the equipment out about 8 inches and tighten the (2) screws on the front of the left slide rail.
- Page 8 Warranty Statement Innovation First, Inc. warrants our products against defects in material and workmanship for a period of one (1) year from the date of purchase. Innovation First, Inc. liability shall be limited to repairing or replacing, at our option, any defective product. 1953 1956...
