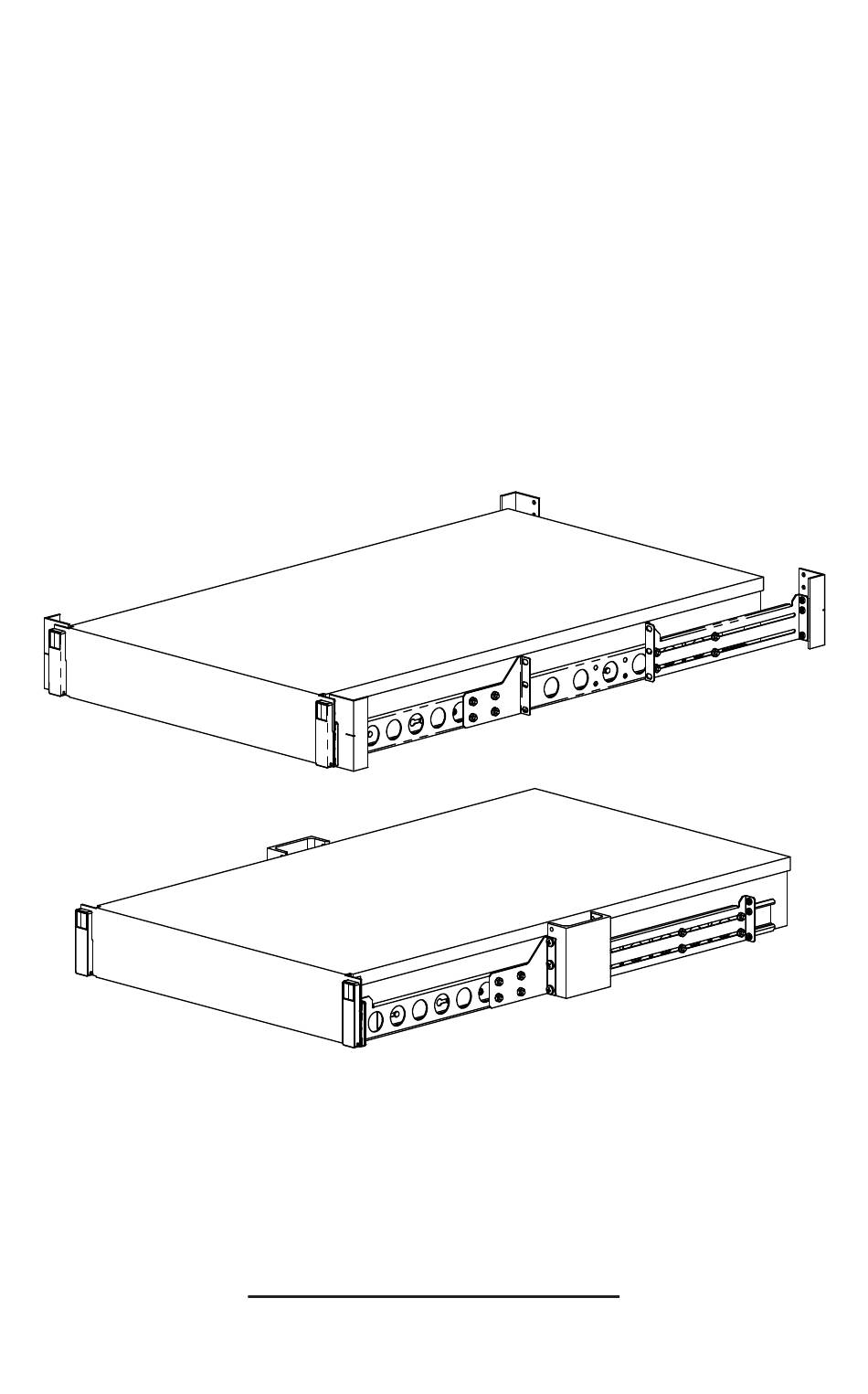

- Page 1 Patent(s) Pending 4Post and 2Post Sliding Rails for Cisco C210 4Post Page 2 2Post Center Page 4 Installation Instructions Kit P/N: 122-2448...
- Page 2 Kit Contents Kit Contents: Rack Mount 8x: (2) Outer Rail (Left & Right) (8) 10-32 x .500 Pan Head Screw (2) Inner Rail (8) 12-24 x .500 Pan Head Screw (2) Rear Bracket (Left & Right) (8) 12-24 x Square Nut (8) 12-24 x Cage Nut Secure Hardware: (2) 10-32 x .250 Truss Head Screw...
- Page 3 4Post Installation Instructions Step 3. Attach the rails to the rack: Attach the Front and Rear of the rails to the 4Post rack as shown below using supplied 8-32 Pan Head Screws on each side. Repeat for the other side. Right side shown, Left side rail is labeled "L". Tighten the front and rear Pan Head Screws on the right side rail.
- Page 4 2Post Center Installation Instructions Step 1. Rail Attachment: Attach the Inner Rail to the chassis by aligning the Shoulder Lugs with the keyholes in the Inner Rail, then slide toward the front of the server. Install supplied M4 pan head screw as shown to secure inner rail to the chassis. Repeat for the other side.
- Page 5 2Post Center Installation Instructions Step 4. Attach Retainer Bracket: Attach Retainer Bracket to the front of the outer rail as shown below using the supplied 8-32 Pan Head Screws. Repeat for the other side. (3) 8-32 x .375 Pan Head Screws Outer Rail Retaining Plate Step 5.
- Page 6 Page 6...
- Page 7 Page 7...
- Page 8 Warranty Statement Innovation First, Inc. warrants our products against defects in material and workmanship for a period of one (1) year from the date of purchase. Innovation First, Inc. liability shall be limited to repairing or replacing, at our option, any defective product. 2448...
