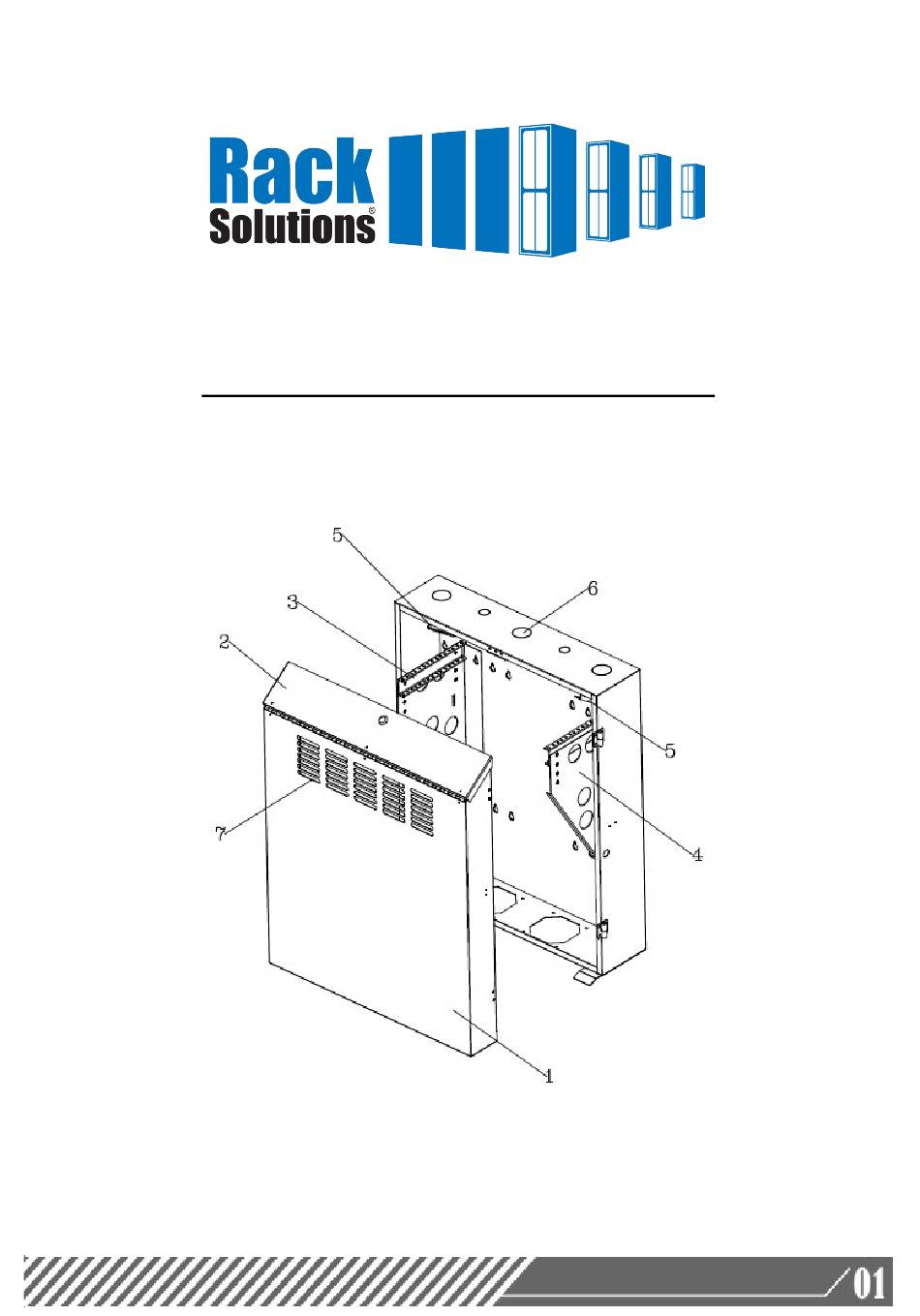

- Page 1 5U Vertical Wall Mount Rack Instruction Manual Model:180-5281/180-5282 Feature Identification 3 Horizontal Mounting Rails 7 Vents 4 Vertical Mounting Bracket...
- Page 2 Cable Access and Management The top and bottom panels of the wall mount rack both have circular holes for cable access. The top has three 1.75” ports and two 1” ports, while the bottom has three 1” ports and two 1.75” ports. Reversing the Front Door The front door can be reversed by switching the configuration of its latch, lock and hinges.
- Page 3 Adjusting Mounting Rail Depth The wall mount rack comes with reversible horizontal mounting rails that have threaded holes for mounting rack equipment. The holes on the top of the rail are threaded for M6 hardware, while the holes on the bottom are threaded for 12-24.
- Page 4 Mounting Using a level, measure to position your mounting areas precisely. Use appropriate fasteners (not included) to secure the enclosure to the wall. Warning: The area you plan to mount the enclosure to must be able to withstand the weight of the enclosure and all mounted equipment.
- Page 5 Use the included mounting screws and washers to secure your equipment to the rack rail. Place the washers between the screws and the equipment mounting brackets. Optional Patch Panel Installation The 180-5281 / 180-5282 both come with an integral, slide-out mounting bracket at the top of the enclosure. It can be used to secure a patch panel to the enclosure, and it partially slides out for easier cabling access.
