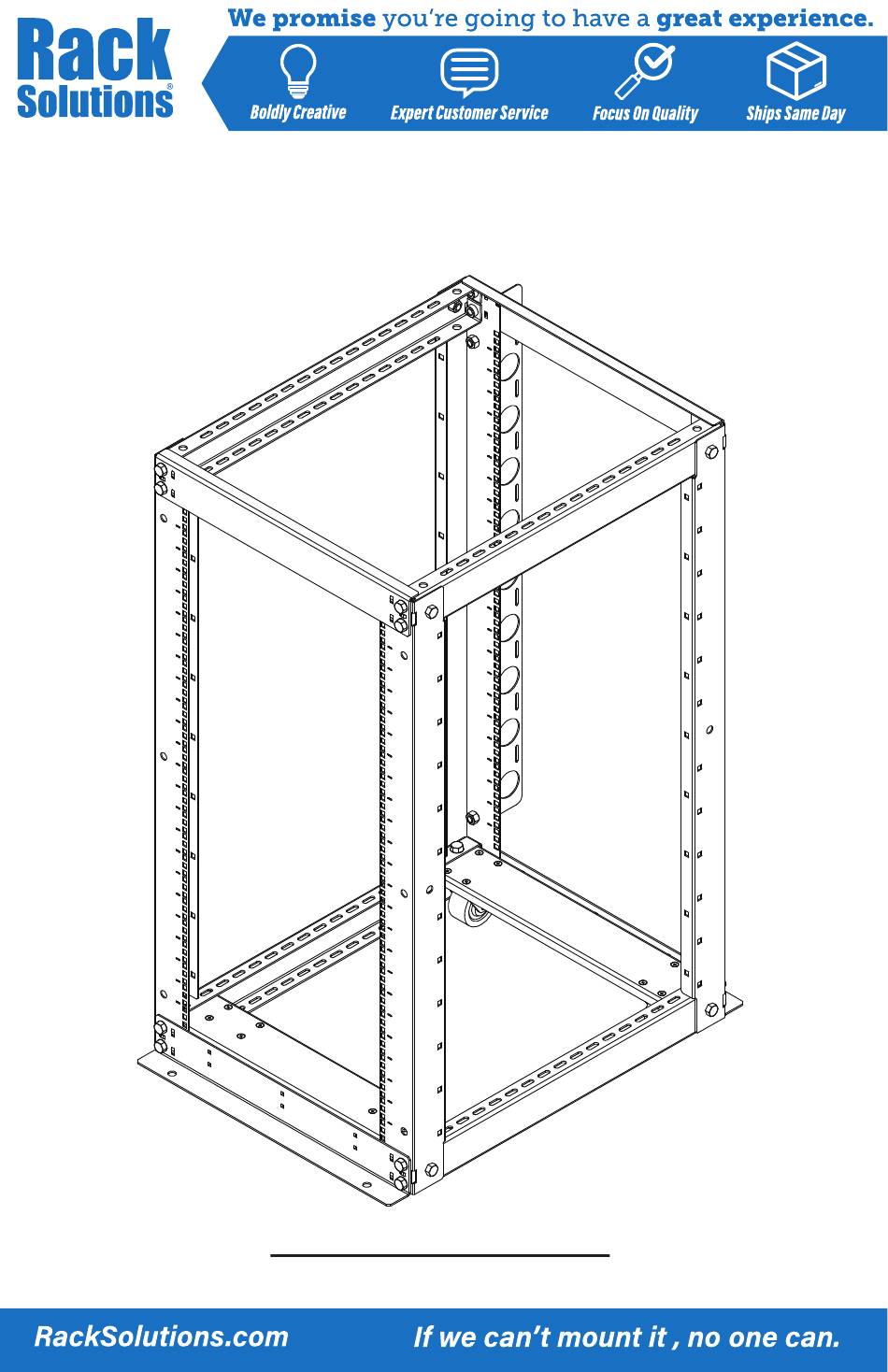

- Page 1 Patent(s) Pending Rack 111 Caster Kit Installation Instructions Kit P/N: 111-1731...
- Page 2 Safety Guidelines Follow these guidelines to ensure a safe and stable rack installation. Failure to follow these guidelines may result in personal injury and/or equipment damage. 1. This Caster Kit will attach to any RACK-111, however, we only recommended casters for 24U and shorter racks.
- Page 3 Assembly Instructions – Rack Sides Step 1-3. Refer to the “Rack-111 Assembly Instructions for Floor Anchored Models” Step 4a. Locate (1) Black Steel Caster Plate and (2) Swivel Casters: The Black Steel screws and (8) nuts. Note the orientation of the caster bases. Tighten all fasteners.
- Page 4 Assembly Instructions – Fixed Caster Plate Step 4b. Locate (1) Black Steel Caster Plate and (2) Fixed (non-swivel) Casters: The Black Steel Caster Plates in this kit are not identical. Attach the casters using Tighten all fasteners. Fixed Caster Plate – This Side Installed at Rear of Rack Page 4...
- Page 5 Assembly Instructions – Attach Caster Plates Step 4c. Attach the top angles using (8) bolts, and (8) lock washers: The washers should be installed under the bolt heads. Ensure that the slots and tabs are aligned, and then tighten each bolt completely. Step 4d.
- Page 6 Assembly Instructions – Fixed Caster Plate Step 4e: Attach the bottom angles using (8) bolts, and (8) lock washers: The washers should be installed under the bolt heads. Ensure that the slots and tabs are aligned, and then tighten each bolt completely. Page 6...
- Page 7 Assembly Instructions – Attach Caster Plates Step 6f. Note the swivel casters are located at the front of the rack. Back of Rack Bottom View of Rack Front of Rack Return to step 9 in “Rack-111 Assembly Instructions for Floor Anchored Models”.
- Page 8 Warranty Statement Innovation First, Inc. warrants our products against defects in material and workmanship for a period of one (1) year from the date of purchase. Innovation First, Inc. liability shall be limited to repairing or replacing, at our option, any defective product. 1731...
