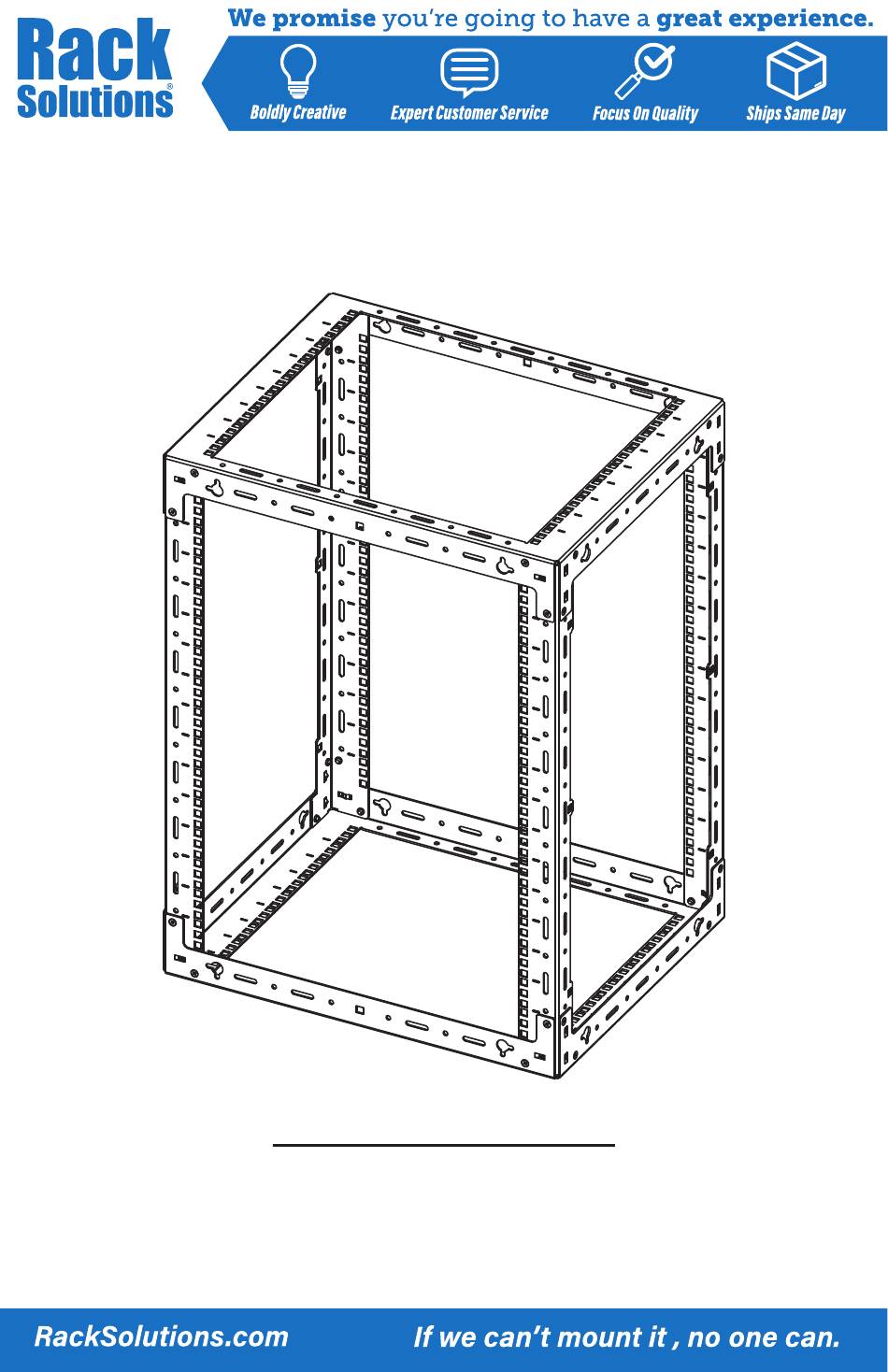

- Page 1 Desk/Wall-Mount Rack Installation Instructions Post P/N: 119-1752 119-1781 119-1782 119-4014 Frame P/N: 119-1591 119-1754 119-1755...
-
Page 2: Kit Contents
Kit Contents (2) Frames Mounting Hardware Kit: (4) Posts (4) .25" Hex lag Screws (4) .281 Flat Washers Assembly Hardware Kit: Rack Mount Hardware Kit: (32) 10-32 x .375” Flat Head Screws (20) 12-24 x .500” Pan Head Screws (20) 12-24 Cage Nuts Assembly Instructions Step 1. - Page 3 Assembly Instructions Step 3. 1-3 until all (4) Posts are installed. Tighten all screws once the rack is fully assembled. Frames Post Step 4. Mounting: Instructions Page General Mounting Instructions Mounting Into Wood Studs Page 3...
-
Page 4: General Mounting Instructions
General Mounting Instructions Determine Location and Orientation: Note: For wall types not mentioned below, contact a professional engineer for mounting recommendations. Wall Wall Page 4... - Page 5 Mount Into Wood Studs Step 1. each stud. Step 2. Caution: All Lag Bolts must be installed into the center of the wood studs in order to support the maximum weight. Washer Lag Bolt Step 3. Caution: All Lag Bolts must be installed into the center of the wood studs in order to support the maximum weight.
- Page 6 Mounting to Drywall (Wood or Metal Studs) Step 1. Studs 12" Step 2. the desired location when installed. Step 3. Caution: Three studs must be used to mount the plywood in order to support the maximum weight. Page 6...
- Page 7 Mounting to Drywall (Wood or Metal Studs) Stud Center 11" 4" Studs Step 4. Step 5. Installing Lower Lag Bolts: 1/8" Washer Lag Bolt Page 7...
-
Page 8: Maximum Weight Capacity
Floor and Desktop Locations Step 1. Step 2. Pan Head Screw Maximum Weight Capacity Rack Size Maximum Weight Capacity 1752 1781 1782 4014 1591 1754 1755 1791 1792 1793 1794 1795 1796 1797 1798 1799...
