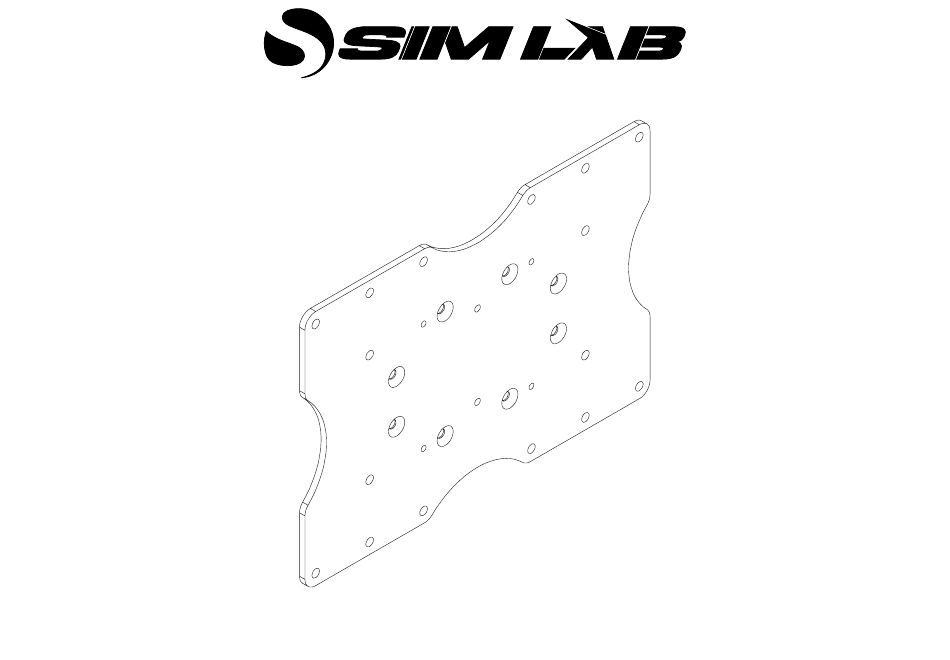

- Page 1 INSTRUCTION MANUAL UNIVERSAL VESA VERSION 1.0 Last updated: 19-10-2023...
-
Page 2: Before You Start
BEFORE YOU START: Thank you for purchasing this Sim-Lab product! On the following pages, you will find detailed instructions on assembly. This requires only a set of simple tools and some of your time. Please check the bill of materials before starting (page 5) and make sure all the parts are delivered. - Page 3 Mounting directly onto profile? Please see the following page.
- Page 5 BOX A - UNIVERSAL VESA HARDWARE KIT Part QTY Note Universal VESA plate Machined. Bolt M6 X 20 DIN 912 Bolt M6 X 16 DIN 912 Bolt M6 X 16 DIN 7991 Countersunk. Bolt M6 X 12 DIN 7991 Countersunk.
- Page 6 Holes for VESA 100/100, 200/100, 200/200, 300/200. 200MM 100MM 100MM 200MM 300MM...
- Page 7 They can be reached at support@sim-lab.eu Alternatively, we now have a Discord server where there are quite some experienced Sim-Lab customers hanging out. They might just help you along if you ask them nicely ;) www.sim-lab.eu/discord...
