ARK High Voltage Battery System
User Manual (V1.0)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARK 2.5H-A1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Growatt ARK 2.5H-A1

Summary of Contents for Growatt ARK 2.5H-A1

  • Page 1 ARK High Voltage Battery System Growatt New Energy Download User Manual (V1.0) Manual Shenzhen Growatt New Energy Co., Ltd 4-13/F,Building A,Sino-German(Europe) Industrial Park, Hangcheng Ave,Bao’an District, Shenzhen, China +86 755 2747 1942 service@ginverter.com www.ginverter.com GR-UM-223-A-00...

  • Page 2: Table Of Contents

    5.2 Power off battery system 6.1 Preparation 6.2 Battery pack or high voltage 6 Maintenance Guide controller replacement 6.3 System fault information and suggestions 7 Technical Specifications 7.1 System Data 7.2 Battery System designation Appendix I 7.3 HVC 60050-A1 7.4 ARK 2.5H-A1 Appendix II...

  • Page 3: Product Overview

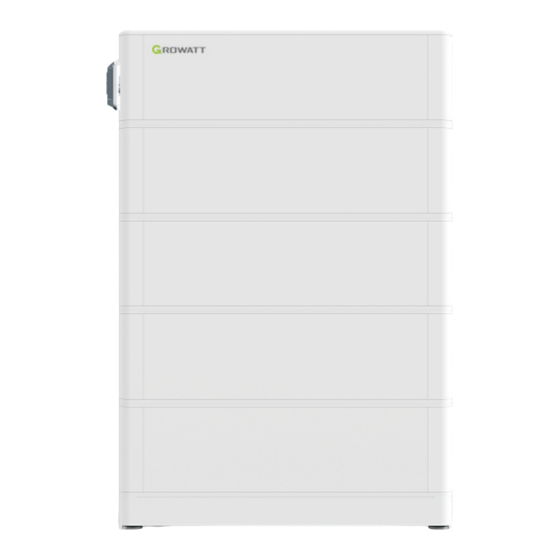

    The entire ARK High Voltage Battery System includes a HVC 60050-A1(high voltage controller) and multiple ARK 2.5H-A1 (battery pack). Each ARK 2.5H-A1 consists of 50Ah cells which form 51.2V voltage battery pack via one parallel and sixteen serial connection (1P16S). Two to ten ARK 2.5H-A1 can be connected in serial to extend the capacity and power of energy storage system.

  • Page 4: Safety

    Before any installation or use of the battery system, please read all safety instructions carefully and always follow the relevant rules. Growatt is not responsible for any consequences resulting from violation of the following regulations: Ÿ...

  • Page 5: Symbol Description

    Dispose the batteries according to local safety regulations. Do not use the PACK beyond specifide conditions.It might cause heat Ø Model ARK 2.5H-A1 generation,damage,or deterioration of its performance. Store and recharge battery in accordance with this manual. Ø Do not throw,drop,hit,drive a nail in,stamp on the PACK.It may cause Ensure the connection of ground wire reliable.

  • Page 6: Storage And Transportation

    If the battery system is soaked or submerged in water, do not access Wet Packs it. Contact Growatt or distributors immediately for technical assistance. If not follow the above instructions for long-term storage, the battery Damage to the shell is very dangerous, so special attention must be cycle life will be reduced or even damaged.

  • Page 7: Installation

    Installation The installation and use of batteries involve a lot of expertise. Ø Therefore, please ensure that technicians have obtained relevant technical certificates before operation. Ensure to read the Guidance before installation in order to understand Ø product information and safety cautions. Operators should be well trained technicians and fully understand the Ø...
  • Page 8 (HVC 60050-A1), Safety Goggle Safety Shoes Insulated Glove battery pack (ARK 2.5H-A1) You can freely match the number within 2 to 10 . The battery base is only used for floor installation, and the wall bracket Ø...

  • Page 9: Electrical Connection

    4.3.2 Wall Mounted Installation 4.3.3 Floor Standing Installation Fig 4.8: Floor standing installation process Step 1: Place the battery base in the area to be installed, and mark the position of the Ø installation hole with a marker. The minimum distance between the wall and the battery is 300mm.
  • Page 10 Don't forget to connect the communication plug of the last battery pack, otherwise it Ø will cause system failure. When installing in two rows, please purchase the extended serial cable. Ø The cable connecting PCS can be purchased from GROWATT. Ø...
  • Page 11 Ø power line. Only the same color of the connector could be connected Notice together. To ensure system security, do not forget to install ground wire. Ø B. ARK 2.5H-A1(Battery module) wiring Fig 4.12: ARK 2.5H-A1 Electrical wiring connection diagram...

  • Page 12: 1 Power On Battery System

    Maintenance Guide Power on/off Battery system 6.1 Preparation The installation and use of batteries need to be operated by Ø Before maintenance, please make sure that the battery system is powered off and the DC professional technicians. circuit breaker is off. Do not contact any positions with potential difference.

  • Page 13: System Data

    Wall-mounted/floor stacking installation Altitude ≤2000m communicati CAN（to PCS） on method Certified IEC62619 / RCM+ CEC /CE product Transport UN38.3 certification IP rating IP65 Environment RoHS，Reach requirements Battery Secondary Li-ion Battery System System Warranty[1] 10 years [1]Conditions apply. Refer to GROWATT Warranty Card.

  • Page 14: Battery System Designation

    ARK 25.6H-A1 2.Constant current 10A charging to 550V; Transport 10S]M/-10+50/90 UN38.3 3.Constant current 2A charging to 550V; certification IP rating IP65 Environment RoHS，Reach requirements Battery System Secondary Li-ion Battery System Warranty[1] 10 years [1]Conditions apply. Refer to GROWATT Warranty Card.

  • Page 15: Hvc 60050-A1

    "Software code history table". Items Specification 3. The 5th to 8th digits represent the supplier code. GROWATT is 0000, the supplier D is Battery pack Module ARK 2.5H-A1 0001, and other outsourced suppliers are 0002/0003... , and so on, please refer to the corresponding relationship table of the supplier code.
  • Page 16 Appendix II LED indication Control Mechanism Charge and discharge RUN/ALM light LED light definition high (t=1S) flicker green temperature SOC indication RUN/ALM protection Status Items Remark LED1 LED2 LED3 LED4 LED5 Charge and discharge 0%-25% (t=1S) RUN/ALM light (t=1S) RUN/ALM light flicker green 26%-50% (t=1S)
  • Page 17 Current RUN/ALM light sampling (t=1S) stays red fault Main circuit RUN/ALM light (t=1S) fault stays red Shenzhen Growatt New Energy Co., Ltd 4-13/F,Building A,Sino-German(Europe) Industrial Park, Hangcheng Ave,Bao’an District, Shenzhen, China +86 755 2747 1942 service@ginverter.com www.ginverter.com...

This manual is also suitable for:

Ark series

Table of Contents
