WARNING
Allow only qualified personnel to perform the
following tasks. Follow the safety instructions in
this document and all other related documentation.
Remove the Packing Gland
The air motor lockout valve is item 1 in Figure 1.
Set the air
motor lockout
valve to . . .
ON
1. See Figure 1. Operate the air
motor until the coupling (5)
is accessible.
OFF
2. Place the elevator in the
NEUTRAL position and shut off
the compressed air supply (1).
3. Depending upon your system,
perform one of the following:
S
S
4. Bleed the hydraulic pressure
4. Bleed the hydraulic pressure
through the valve and guns.
Leave the valve open.
5. Remove the screws (4)
securing the coupling to the
plunger rod and coupling shaft.
6. Drain the solvent chamber (6).
7. Set the air motor regulator to
0 bar/psi.
ON
8. Using minimal air pressure,
cycle the air motor to push the
plunger rod down.
9. Cycle the air motor to raise the
air the motor shaft.
OFF
10. Remove the solvent chamber
cup (8) from the upper collar (9).
11. Remove the packing gland
screws (7) from the upper
collar (9).
12. Insert two of the packing gland
screws (7) into the upper collar
threaded holes (10) as shown.
Alternate tightening the packing
gland screws (7) to remove the
packing gland assembly.
E 2007 Nordson Corporation
Rhinor SD2/XD2 Packing Gland Replacement
Then . . .
Open the ball valve (2).
Open the bleed valve (3) no
more than three turns.
Issued 1/07
1
2
3
DO NOT OPEN THE
BLEED VALVE MORE
THAN 3 TURNS.

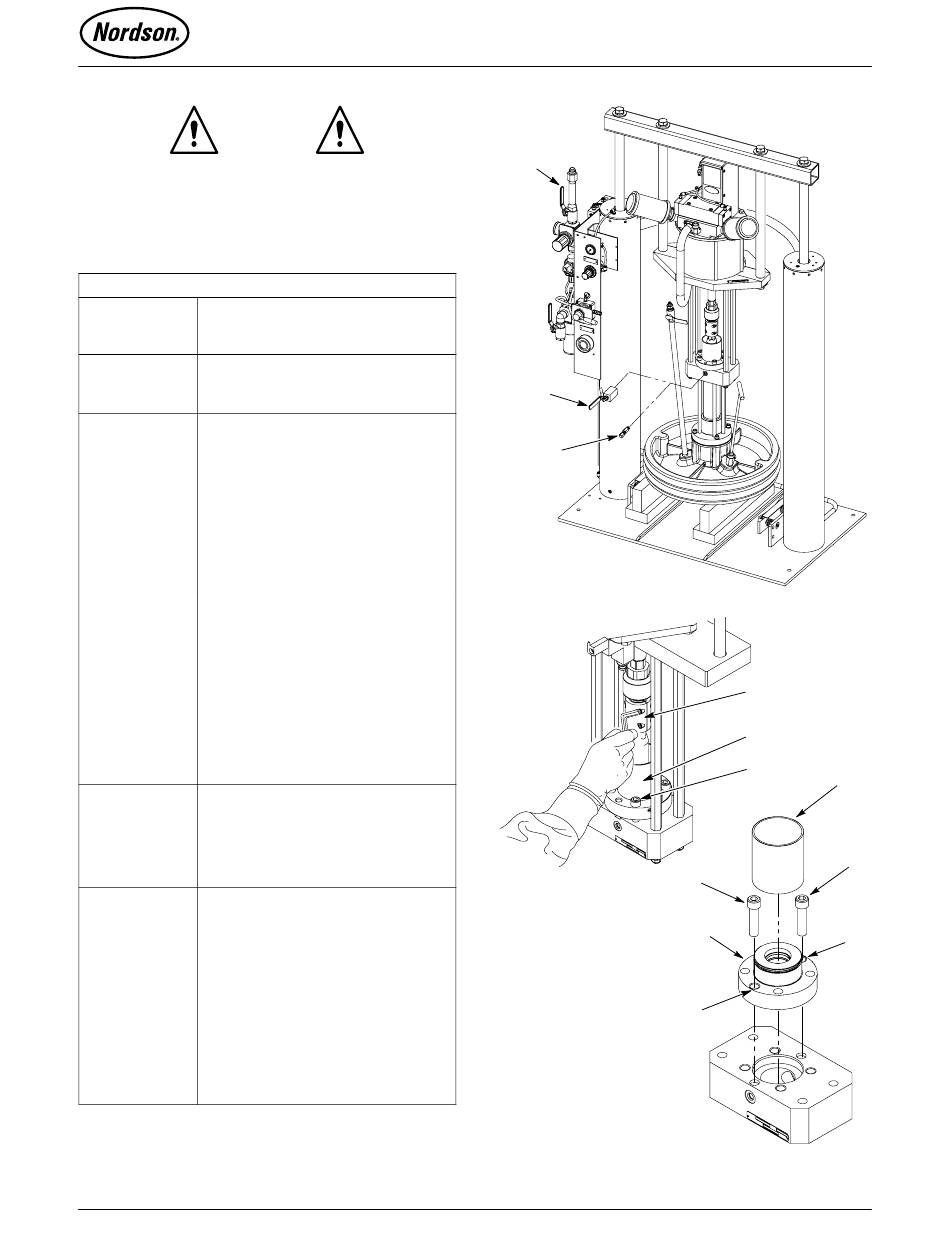

Figure 1
Removing the Packing Gland
4
5
6
7
8
7
7
9
10
10
Operator's Card: 1075674A

Advertisement

loading
Need help?

Need help?

Do you have a question about the Rhino SD2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Nordson Rhino SD2

  • Page 1 12. Insert two of the packing gland screws (7) into the upper collar threaded holes (10) as shown. Alternate tightening the packing gland screws (7) to remove the packing gland assembly. Figure 1 Removing the Packing Gland E 2007 Nordson Corporation Issued 1/07 Operator’s Card: 1075674A...
  • Page 2 Rhino SD2/XD2 Packing Gland Replacement Rebuild the Packing Gland NOTE: This procedure requires the use of either a hydraulic or an arbor press to remove the internal parts of the packing gland. 1. See Figure 2. Place the packing gland housing (2) on a fixture (5) with the solvent cup end facing up.
  • Page 3 Rhino SD2/XD2 Packing Gland Replacement Install the Packing Gland NOTE: A packing gland insertion tool is required to perform this procedure: 5.8 cubic inch pump: Use insertion tool 1073589. 8.1 cubic inch pump: Use insertion tool 1035823. The air motor lockout valve is item 1 in Figure 1.
  • Page 4 EQUAL COUPLING GAPS Figure 4 Installing the Coupling Halves Original copyright date 2007. Nordson, the Nordson logo, and Rhino are registered trademarks of Nordson Corporation. All other trademarks are the property of their respective owners. E 2007 Nordson Corporation Operator’s Card: 1075674A...
