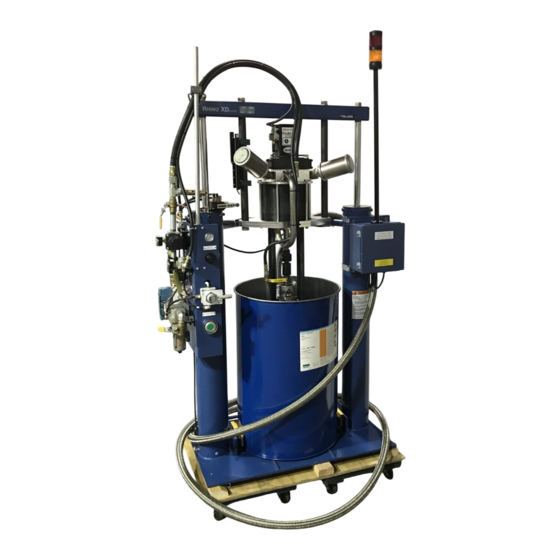

Rhinor SD2/XD2 Container Change
for Two-Hand Controls with Blow-Off Circuit
Description
See Figure 1 and Refer to Table 1.
6
1
A
2
5
4
2-HAND CONTROL
RAM DIRECTION
2-HAND CONTROL
3
LEFT
NEUTRAL
RIGHT
A
DOWN
UP
DRUM
PURGE
IN POSITION
Figure 1
Component Locator
E 2019 Nordson Corporation
Part 1094288-02
Advertisement
Related Manuals for Nordson Rhino SD2
Summary of Contents for Nordson Rhino SD2
- Page 1 Rhinor SD2/XD2 Container Change for Two-Hand Controls with Blow-Off Circuit Description See Figure 1 and Refer to Table 1. 2-HAND CONTROL RAM DIRECTION 2-HAND CONTROL LEFT NEUTRAL RIGHT DOWN DRUM PURGE IN POSITION Figure 1 Component Locator E 2019 Nordson Corporation Part 1094288-02...
- Page 2 Rhino SD2/XD2 Container Change for Two-Controls with Blow-Off Circuit Table 1 Component Description Item Description Blow-Off Valve: Forces air through the follower to relieve any vacuum between the drum and follower plate Bleeder Stem: Bleeds air from below the follower when a new...
-
Page 3: Daily Operation
Rhino SD2/XD2 Container Change for Two-Controls with Blow-Off Circuit Daily Operation Read and understand these procedures before operating this equipment. Review the Using the Ram Controls section if necessary. Contact a local Nordson representative regarding these procedures if necessary. WARNING: Allow only qualified personnel to perform the following tasks. - Page 4 Rhino SD2/XD2 Container Change for Two-Controls with Blow-Off Circuit 7. Perform the following: a. Select DOWN on the RAM DIRECTION switch (10). Press and hold in the LEFT and RIGHT 2-HAND CONTROL push buttons (11) at the same time to manually lower the follower into the drum.
- Page 5 Rhino SD2/XD2 Container Change for Two-Controls with Blow-Off Circuit 2-HAND CONTROL RAM DIRECTION 2-HAND CONTROL PURGE LEFT NEUTRAL RIGHT DOWN DRUM IN POSITION PRESS 2-HAND CONTROL PUSH BUTTONS AT THE SAME TIME. Figure 2 Changing a Container E 2019 Nordson Corporation...
- Page 6 Rhino SD2/XD2 Container Change for Two-Controls with Blow-Off Circuit Using the Ram Controls Read and understand this section before operating this equipment. Contact a local Nordson representative regarding these procedures if necessary. WARNING: Allow only qualified personnel to perform the following tasks.
- Page 7 Rhino SD2/XD2 Container Change for Two-Controls with Blow-Off Circuit 2-HAND CONTROL RAM DIRECTION 2-HAND CONTROL LEFT NEUTRAL RIGHT DOWN MANUAL UP/DOWN RAM MOVEMENT Figure 3 Manual Ram Operation Without a Drum in Position E 2019 Nordson Corporation Part 1094288-02...
- Page 8 Rhino SD2/XD2 Container Change for Two-Controls with Blow-Off Circuit Lower the Ram With a Drum in Position See Figure 4. Lowering the ram must be done manually until the follower enables the Follower in Drum switch (A). The ram will automatically move downward until the follower enables the Drum-Empty switch (B) which stops the air motor.
- Page 9 Rhino SD2/XD2 Container Change for Two-Controls with Blow-Off Circuit 2-HAND CONTROL RAM DIRECTION 2-HAND CONTROL NEUTRAL LEFT RIGHT DOWN MANUAL RAM MOVEMENT AUTOMATIC RAM MOVEMENT Figure 4 Lowering the Ram With a Drum in Position E 2019 Nordson Corporation Part 1094288-02...
- Page 10 Rhino SD2/XD2 Container Change for Two-Controls with Blow-Off Circuit Raise the Ram With a Drum in Position See Figure 5. Raising the ram can be done automatically when a drum is positioned on a bulk unloader. Upward ram movement activates the Blow-Off circuit.
- Page 11 Rhino SD2/XD2 Container Change for Two-Controls with Blow-Off Circuit 2-HAND CONTROL RAM DIRECTION 2-HAND CONTROL LEFT NEUTRAL RIGHT DOWN BLOW-OFF CIRCUIT DEACTIVATES BLOW-OFF CIRCUIT ACTIVATES AUTOMATIC RAM MOVEMENT Figure 5 Automatically Raising the Ram With a Drum in Position E 2019 Nordson Corporation...
-
Page 12: Service And Maintenance
Rhino SD2/XD2 Container Change for Two-Controls with Blow-Off Circuit Ram Operation for Service and Maintenance See Figure 6. When performing service and maintenance, use the following procedure to manually raise or lower the ram. CAUTION: If the follower needs to be lowered when a material drum is not positioned on the frame, place support blocks (A) as shown to prevent damage to the follower (B) and drum position sensor (C). - Page 13 Rhino SD2/XD2 Container Change for Two-Controls with Blow-Off Circuit 2-HAND CONTROL RAM DIRECTION 2-HAND CONTROL LEFT NEUTRAL RIGHT DOWN MANUAL UP/DOWN RAM MOVEMENT Figure 6 Manual Ram Operation for Service and Maintenance E 2019 Nordson Corporation Part 1094288-02...
- Page 14 Rhino SD2/XD2 Container Change for Two-Controls with Blow-Off Circuit Notes: Original copyright date 2019. Nordson, the Nordson logo, and Rhino are registered trademarks of Nordson Corporation. All other trademarks are the property of their respective owners. Part 1094288-02 E 2019 Nordson Corporation...
