- Page 1 Manual Not For Use in USA and Canada! G 3200 OH 8.756-333.0 01/17...
-
Page 2: Table Of Contents
Troubleshooting The packing material can be recycled. Speci cations Please do not place the packaging into the ordinary refuse for disponsal, but G 3200 OH arrange for the proper recycling. Operating Pressure 3200 PSI Old appliances contain valuable materials Water Volume 9.5 L/Min... -
Page 3: High Pressure Washer Operator Manual
HIGH PRESSURE WASHER OPERATOR MANUAL Symbols on the machine Safety Alert Symbols DANGER The high pressure jet may not be directed at persons, animals, live Indicates “an imminently hazardous situation electrical equipment or at the ap- which, if not avoided, will result in death or seri- pliance itself. -
Page 4: Model Overview

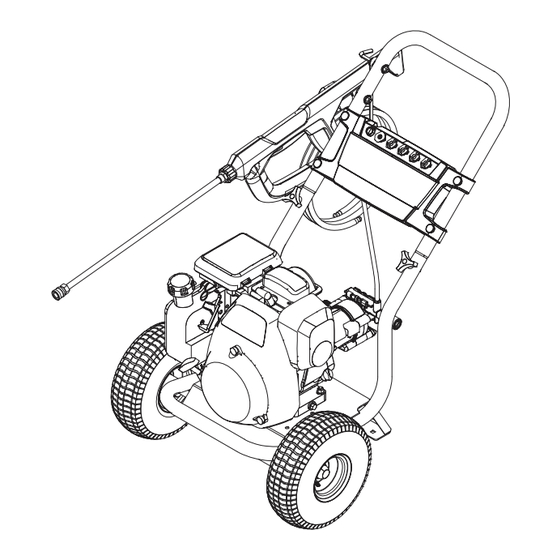

MODEL OVERVIEW Handle Water inlet with garden hose connector Trigger gun High pressure outlet Trigger gun safety lock Detergent suction tube with fi lter Quick connect nozzles High pressure hose Water inlet fi lter Gas tank Tap adaptor Spray wand For engine details see engine manual. -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS ■ ■ Do not use acids, solvents, or any alkaline Read the operating instructions of the engine or fl ammable material in this product. These manufacturer before start-up and follow the products can cause physical injuries to the safety instructions carefully. -
Page 6: Assembly Instructions
WATER SUPPLY (Cold Water Only) ■ ■ Do not touch hot surfaces or allow accessories Garden hose must be at least 16mm to contact hot surfaces. diameter. ■ ■ Flow rate of water supply must not fall below Do not leave machine running unattended. 9.5 L/Min (Liters per minute) ■... - Page 7 Hardware (included) Description Purpose Illustration Quick Nozzles Kit Assembly Connect Nozzle Wand Wand Assembly Gun/Hose Storage Assembly Washer Gun/Hose Storage Assembly Assembling STEP 1: STEP 4: Attach the handle to the frame of the pres- Place the quick connect nozzles (H) in the sure washer.
-
Page 8: Operating Instructions
OPERATING INSTRUCTIONS STEP 1: If you have further questions regarding the engine, please refer to the engine manual Pull the spring-loaded collar of the wand back included with the unit. to insert your choice of quick connect nozzle. STEP 3: Check oil level. -
Page 9: Using The Accessories
OPERATING INSTRUCTIONS STEP 8: STEP 11: Unlock the trigger gun safety lock. Trigger the Pull the starter handle. If the engine fails to gun to eliminate trapped air, wait for a steady start after 3 pulls, squeeze the trigger gun to fl... -
Page 10: Working With Detergents
USING THE ACCESSORIES CAUTION ■ Pull the nozzle to make sure it is seated High pressure in nozzle area. Risk of injury properly before operating your unit. (See caused by improperly locked nozzle. ASSEMBLY INSTRUCTIONS: Step 1) ■ Make sure you hear the "click" when inserting WARNING the nozzle tip into the quick connection. -
Page 11: Shutting Down & Clean-Up
SHUTTING DOWN & CLEAN-UP STEP 1: STEP 5: If detergents have been used, remove deter- Release trigger and engage gun safety lock. gent suction tube from container and insert into 1 gallon of fresh water. Siphon water at low pressure for one minute to clear the line of residual detergent. -
Page 12: Cleaning Tips
CLEANING TIPS Deck Cleaning Cement Patios, Brick and Stone (with or without detergent). Pre-rinse deck and (with or without detergent). Pre-rinse cleaning surrounding area with fresh water. If using Kärcher surface with fresh water. If using Kärcher Pres- Deck Wash, apply to surface at low pressure. For sure Wash or Degreaser, apply to surface at low best results, limit your work area to smaller sec- pressure. -
Page 13: Optional Accessories
CLEANING TIPS Optional Accessories Patio & Lawn Furniture (with or without detergent). Pre-rinse furniture Optional accessories are available to further and surrounding area with fresh water. If using enhance your cleaning capabilities. These acces- Pressure Wash, apply to surface at low pressure. sories are accurate as of the printing date of this Allow Pressure Wash to remain on surface 1-3 manual. - Page 14 TROUBLESHOOTING Symptom Cause Solution NO DETERGENT Detergent suction tube not Check connection properly connected to the machine Detergent is too thick Dilute detergent, for best results use Kärcher detergent Filter on detergent suction Run warm water through fi lter to remove debris tube is clogged Damaged or clogged deter-...
-
Page 15: Warranty Information
WARRANTY INFORMATION High Pressure Washers Limited warranty Cold water gasoline pressure washers This Kärcher product is warranted by Kärcher to be free of defects in workmanship and materials under normal use. Specifi c warranty applies to: • Kärcher KPS and KXS series engines are warranted for three (2) years on parts and labor. •... - Page 16 WARRANTY INFORMATION • Any cost for shipping by the customer or authorized service center of the alleged defec- tive part or equipment. This warranty is non-transferable and applies only to products purchased through a Kärcher authorized reseller in Australia and New Zealand. This warranty gives you specifi c legal rights. You may have other rights, which vary by country and state/province.
- Page 17 Alfred Kärcher Ges.m.b.H. Kärcher OY Kärcher AS Karcher Asia Paci c Pte. Ltd. Lichtblaustraße 7 Yrittäjäntie 17 Stanseveien 31 5 Toh Guan Road East 1220 Wien 01800 Klaukkala 0976 Oslo #01-00 Freight Links (01) 250 600 ☎ ☎ 0207 413 600 Express Distripark 24 17 77 00 Singapore 608831...
