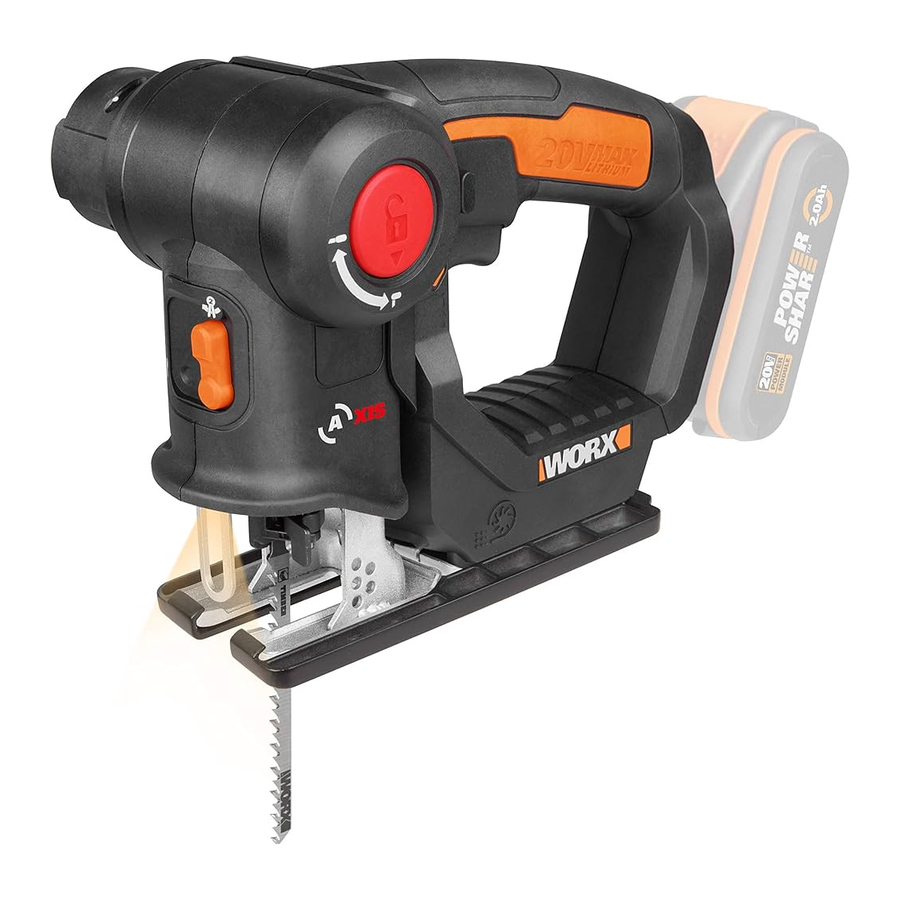

Worx Axis WX550, Axis WX550.9 Manual

GENERAL POWER TOOL SAFETY WARNINGS

Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. WORK AREA SAFETY
   1. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
   2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
   3. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2. ELECTRICAL SAFETY
   1. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
   2. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
   3. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
   4. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
      Damaged or entangled cords increase the risk of electric shock.
   5. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
   6. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.
      Use of an RCD reduces the risk of electric shock.
3. PERSONAL SAFETY
   1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
   2. Use personal protective equipment.
      Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
   3. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
   4. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
   5. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
   6. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
   7. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. POWER TOOL USE AND CARE
   1. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
   2. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
   3. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
   4. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
   5. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
   6. Keep cutting tools sharp and clean.
      Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
   7. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to beperformed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5. BATTERY TOOL USE AND CARE
   1. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
   2. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
   3. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
   4. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
6. SERVICE
   1. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

RECIPROCATING SAW SAFETY WARNINGS

1. Hold reciprocating saw by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring.Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

ADDITIONAL SAFETY RULES FOR RECIPROCATING SAW

1. Always wear a dust mask.

SAFETY WARNINGS FOR BATTERY PACK

1. ON/OFF SWITCH
2. LOCK-OFF BUTTON
3. HAND GRIP AREAS
4. PIVOT RELEASE BUTTON
5. MOTOR COVER
6. PENDULUM FUNCTION CONTROL
7. PROTECTION FINGER
8. LED WORK LIGHT (SEE FIG. H)
9. BLADE HOLDER
10. FOOT PLATE
11. BASE PLATE
12. BOTTOM PLATE
13. BATTERY PACK *
14. BATTERY PACK RELEASE BUTTON*

*Not all the accessories illustrated or described are included in standard delivery.

TECHNICAL DATA

Cutting capacity

** Voltage measured without workload. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts.

ACCESSORIES

We recommend that you purchase your accessories from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

OPERATING INSTRUCTIONS

NOTE: Before using the tool, read the instruction book carefully.

INTENDED USE
The machine is 2 saws in 1 tool with rep saw and jig saw function, intended for sawing wood, plastic, metal and building materials while resting firmly on the workpiece. It is suitable for straight and curved cuts.

ASSEMBLY AND OPERATION

ACTION	FIGURE
BEFORE OPERATION
Removing the battery pack	See Fig. A1
Charging the battery pack	See Fig. A2
Installing the battery pack	See Fig. A3
Working mode adjustment Position I worked as a jigsaw. Position II worked as a reciprocating saw. NOTE: Select the blade best suitable for the working mode for better cutting performance (special reciprocating saw blade not included). To avoid being pinched, keep hands away from the hinge when changing positions. To avoid tool being turned on accidentally, make sure keep your hands away from the lock-off button. Before operation, make sure the pivot release button is locked into position.	See Fig. B1-C4
ASSEMBLY
Replacing the saw blade When using jig saw mode, the blade teeth face outward as shown in Fig. D1; while in rep saw mode, the blade teeth should face as shown in Fig. D3. Keep your hands away from the lock-off button to prevent switch actuation before making any adjustments or removing or installing attachments or accessories.	See Fig. D1-D3
OPERATION
Burn hazard. Do not touch the bimmediately after use. Contact with the blade may result in personal injury.
Switching On and Off NOTE: For safety reasons the On/Off switch of the machine cannot be locked; it must remain pressed during the entire operation.	See Fig. E
Pendulum Function	See Fig. F1, F2
Cutting Never hold the pivot head when operating the tool. Never hold the motor cover when operating the tool. Always use a blade suited to the material and material thickness to be cut. Before cutting any type of material, be sure it is firmly anchored or clamped to prevent slipping. Holding the work by hand or against your body leaves it unstable and may lead to loss of control. Whenever possible, the saw foot plate must be held firmly against the material being cut. This will prevent the saw from jumping or vibrating and minimize blade breakage.	See Fig. G1 – G3
LED Work Light	See Fig. H

WORKING HINTS FOR YOUR MULTI-PURPOSED SAW

If your power tool becomes too hot, run no-load for 2-3 minutes to cool the motor. Avoid prolonged usage at very low speeds.
Any movement of the material may affect the quality of the cut. The blade cuts on the upward stroke and may chip the uppermost surface.
Ensure your uppermost surface is a non-visible surface when your work is finished.

MAINTENANCE

Your power tool requires no additional lubrication or maintenance.
There are no user serviceable parts in your power tool.
There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal and will not damage your power tool.
