FAEMINA
MANUALE DEL TECNICO
ENGINEER'S MANUAL
MANUEL DU TECHNICIEN
TECHNIKERHANDBUCH
MANUAL DEL TÉCNICO
MANUAL DO TÉCNICO
rev. 2242

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FAEMINA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Faema FAEMINA

Summary of Contents for Faema FAEMINA

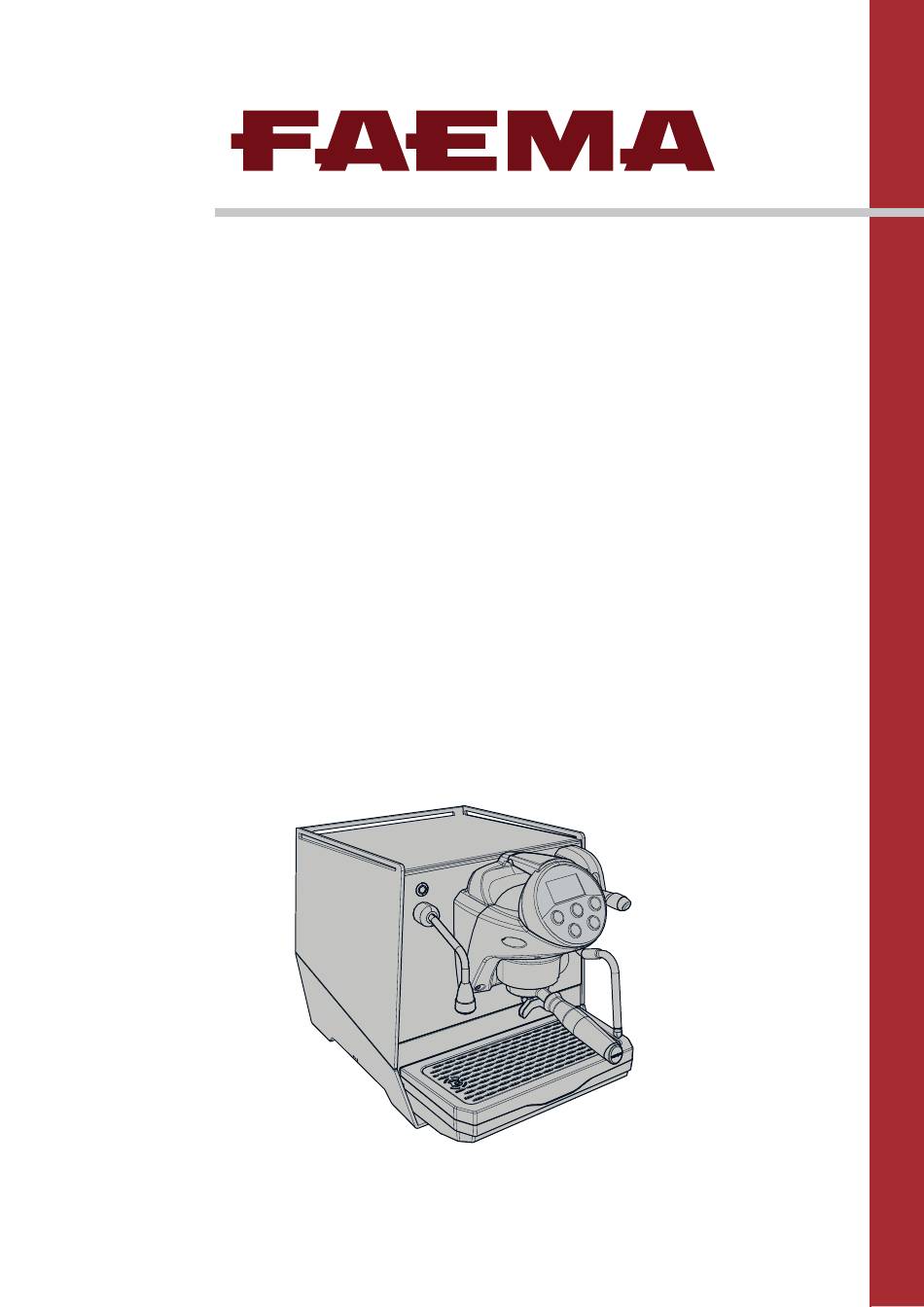

  • Page 1 FAEMINA MANUALE DEL TECNICO ENGINEER'S MANUAL MANUEL DU TECHNICIEN TECHNIKERHANDBUCH MANUAL DEL TÉCNICO MANUAL DO TÉCNICO rev. 2242...
  • Page 2 Standard version Autosteam version...
  • Page 3 LEGENDA LEGEND Interruttore generale Main switch Piano appoggiatazze Cup tray Pulsante erogazione acqua calda Hot-water-dispensing push button Tubo (lancia) acqua calda Hot-water pipe (nozzle) Serbatoio acqua Water tank Bacinella Basin Manometro pompa Pump pressure gauge Leva regolazione vapore Steam adjustment lever Tubo (lancia) vapore orientabile Orientable steam pipe (nozzle) Display...
  • Page 4 1 gruppo tipo di macchina 1 unit Type of machine 1 groupe type de machine 1 gruppe Maschinentyp 1 grupo modelo de la máquina 1 grupo PED / DESP tipo de la màquina Fluido - Fluid - Fluide Capacità - Capacity - Capacitè Flüssig - Fluido - Fluido Kapazität - Capacidad - Capacidade [ L ]...

  • Page 5: Table Of Contents

    Contents Page Page Contents ................. 1 PROGRAMMING - TECHNICIAN MODE ....... 5 Description of symbols on display ........2 ........... 5 .......... 3 COFFEE MENU ............. 7 Warning for the user ..........3 WATER ..............8 STEAM ..............9 ..........3 PROGRAMMING MEASURES WITH THE ..........

  • Page 6: Description Of Symbols On Display

    Description of the symbols on the display LEVEL This symbol indicates that the machine is in the This symbol indicates the water level in the boiler. pre-heating phase, or that the boiler pressure has During the loading phase, the lower part of the fallen below the "cold machine"...

  • Page 7: Warning For The User

    18 JUL 22 09:59 94.0° 94.0°C Press and hold the button for a If unused for a further 60 seconds, the few seconds. the display dimmed. Press any button twice in a row to return to normal operation. Warning for the user icon WILL APPEAR, requesting the user's intervention 94.0°...
  • Page 8 94.0° 94.0° 94.0° Once infusion has been completed, Press the button corresponding to the The infusion phase begins (shown by required dose. dispensing begins (shown by the the symbol on the group display, symbol with the re NB: if customer programming is enabled, Press for continuous dispensing.

  • Page 9: Programming Menu

    CUSTOMER PROGRAMMING TECHNICAL PROGRAMMING PROGRAMMING MENU - Use the 5 buttons to navigate "TECHNICAL" programming is accessed by pressing the OK button (A button (B OK for a further 5 seconds. The machine will go into standby, the heating elements To return to normal operation, press the water button for 5 seconds.
  • Page 10 After entering TECHNICAL programming mode, press . The display will show the following message and TECHNICAL PROG. COFFEE WATER STEAM DOSE SELF-LEARNING CONFIGURATION TECHNICAL PROG. DATA MENU MANUAL COMMANDS The individual items are detailed below.

  • Page 11: Coffee Menu

    1. COFFEE MENU buttons, then press The display will show: KEY MENU COFFEE KEY 1 dose 0090 imp KEY 2 KEY 3 select grinder MM1-B KEY 4 KEY 5 The button pad can be used to memorise the required Press OK to start dispensing and to see the relative dose for each button.

  • Page 12: Water

    - "Tea infusion", selecting the required dose. The buttons can also be set with the following functions: - Stop, to end a dispensing phase KEY MENU Type Tea infusion dose 250g - Disabled - no function. - dose 2. WATER buttons, then press - Water dispensing time.

  • Page 13: Steam

    3. STEAM - T. steam + air buttons, then press - T stop steam (temperature value "xxx°C" for hot milk 85°. the relative buttons. STEAM KEY 1 T stop steam 072°C KEY 2 40°C 85°C For AUTOSTEAM only: - Emulsion level Press one of the two buttons of the selector.

  • Page 14: Programming Measures With The "Self-Learning" Function

    4. PROGRAMMING MEASURES WITH THE “SELF-LEARNING” FUNCTION also be programmed with the “SELF-LEARNING” function. TECHNICAL PROG. COFFEE WATER STEAM DOSE SELF-LEARNING CONFIGURATION buttons, then press The following message appears on the display: DOSE SELF-LEARNING Dv: 0000 STOP 0090 0090 0089 0090 During this phase, the value of the volumetric dispensing device pulses (below the representation of the buttons...

  • Page 15: Configuration Menu

    5. CONFIGURATION MENU CONFIGURATION CONFIGURATION UNIT OF MEASUREMENT Boiler Time control 5" Boiler Buzzer Boiler pr. 1.3 bar Flush 2" COFFEE T. WASHING OPTIONS Level sensitivity MEASUREMENT UNIT - Includes 2 sub-menus: Boiler- The heating element and the self-levelling function temperature of the service boiler are activated and deactivated using the “Boiler”...
  • Page 16 MAINTENANCE - Includes 5 items for setting the CONFIGURATION maintenance parameters: SOFTENER REG. Max cycles - the number of cycles initially set: FILTER REPL. 40000. MAINTENANCE Max days - the number of days initially set: 185. Standard data No. cycles - the number of cycles until the next maintenance WIFI task.
  • Page 17 Wi-Fi menu - WIFI Connect RSSI Network - CONNECT - to connect to the access point selected. - RSSI - signal intensity: - IP - displays the IP address assigned to the machine by the wireless access point. - MAC - indicates the Mac address of the Wi-Fi module on the machine. This parameter is read-only, and cannot be - NETWORK - enter the name of the access point.

  • Page 18: Bluetooth Connection

    Bluetooth connection Bluetooth menu - The parameters that can be set are: - MM1-MM2 - Possibility to connect 1 or 2 grinders. - Search - - Reset - The connection with the associated device is annulled.

  • Page 19: Bluetooth Communication Between Machine And Grinder-Doser

    Bluetooth communication between machine and grinder-doser Switch on the machine; the initial menu appears on Use the buttons to position the cursor the display. The symbol indicates that the machine on the “CONFIGURATION” item in the Technical can be associated with a Bluetooth device. prog.
  • Page 20 Grinder control-1 Position the cursor on “GRINDER CONTROL” in the Grinder control-2 The parameters that can be set are: - Enabled CONFIGURATION : not active BLUETOOTH GRINDER CONTROL : manual grinder control (for grinder-dosers with no Log reset : automatic grinder control (Bluetooth connection with GRINDER CONTROL Position the cursor on “MM1”, then press : enabled...
  • Page 21 When this animated icon appears, it means the grinder enabled reset reg. threshold Q ref. 1B 3.90 ml/s The icons shown are: Q ref. 1A 3.50 ml/s indicating that the grinder needs to be loosened indicating that the grinder needs to be tightened 1.
  • Page 22 : Method 1: setting the Q.ref in manual mode. enabled reset reg. threshold Q ref. 1B 3.90 ml/s Q ref. 1A 3.50 ml/s 1. Disable grinder control if it is active. 2. Associate the machine with the grinder-doser via Bluetooth and enable communication as per the method already used.
  • Page 23 INFO: grinder control. INFO Q ref. 1C 3.90 ml/s Q ref. 3.90 ml/s INFO Q ref. 3.50 ml/s GROUP 1 Press the button on “GROUP 1” to see: Position the cursor on machine “INFO”, then press . GROUP 1 [ml/s] 22.2 24.4 00.0...

  • Page 24: Data Menu

    6. DATA MENU: TECHNICAL PROG. DATA MENU MANUAL COMMANDS 6.1. COUNTERS The parameters linked to counters are: To enter the data menu, press . The following message will appear on the display: - brewing (number of dispensing actions in "brewing" DATA MENU - tea infusion COUNTERS...

  • Page 25: Wash Archive

    6.2 WASH ARCHIVE The washing parameters that can be viewed are: DATA MENU - Required: indicates the number of washes that were COUNTERS requested by the machine. WASH ARCHIVE - Performed: indicates the number of washes that were REFILL HISTORY MALFUNCT.

  • Page 26: Malfunctions Archive

    6.4 MALFUNCTIONS ARCHIVE The numbers following the“fault code” indicate the time, in Press the button on “Malfunc. archive” to see: hours and minutes, since the last fault registered. Press again to see a detailed display showing: - the day and time when the fault occurred MALFUNCT.

  • Page 27: Manual Commands Menu

    7. MANUAL COMMANDS MENU To access the manual control panels, position the cursor on MANUAL COMMANDS - allows the components to be “Manual commands” using the “ buttons. activated manually using the buttons. TECHNICAL PROG. DATA MENU MANUAL COMMANDS When the button is pressed again, the display shows the following box: Manual panel 1...
  • Page 28 Manual panel 2 G R 1 0 0 8 4 . 1 ° 0 0 0 % 0 0 7 % O F F 5 ° ± Press to activate the components. If they have a direction, use Press to return to panel M1. Manual panel G R 1 0 0 8...
  • Page 29 Boiler pressure Water level in the boiler accessed for movement are as follows: Boiler heating element Pump motor Water tank Water inlet solenoid valve Steam temperature (if the Autosteam system is Ein1 Infusion solenoid valve Autosteam compressor motor * Autosteam solenoid valve * Hot water solenoid valve...

  • Page 30: Updating The Software

    Updating the software PRELIMINARY INDICATIONS If possible, use a USB pen drive with an operating LED. • • IDEA.GCP • After removing the side panel (as explained in the "DISMANTLING" Format the USB pen drive (e.g. pen drive. with the machine switched on insert the USB pen drive in the relative port on the machine's CPU board, then wait for it to be recognised.

  • Page 31: Diagnostics Messages

    8. DIAGNOSTICS MESSAGES MALFUN. DESCRIPTION POSSIBLE CAUSES VERIFICATIONS and SOLUTIONS CODE • iDEA expansion board not • Update the software. If the problem programmed correctly persists, replace the iDEA expansion board • Module on 485 Bus not con- • Check the module is correctly nected correctly inserted and positioned on the relative •...
  • Page 32 • The group x boiler safety • Check if the safety thermostat of the thermostat has been group x boiler has been triggered, and triggered reset it if necessary Note: group 1 is the one on • The resistance is interrupted •...
  • Page 33 • Clogged hydraulic circuit • Check water is supplied from the main • Faulty volumetric doser line. or leakage. Note: Group 1 is to the far left. • Replace the broken board. • Clogged hydraulic circuit. • Check water is supplied from the main •...
  • Page 34 • Initialisation malfunction • Event only archived and not displayed history (and washing history on the display during normal machine for machines without TFT operation. display)

  • Page 35: Dismantling And Adjustments

    9. DISMANTLING AND ADJUSTMENTS ALL TASKS MUST BE CARRIED OUT WITH THE MACHINE SWITCHED OFF AND COLD. ALWAYS USE THE NECESSARY ACCIDENT PREVENTION EQUIPMENT (SHOES, GLOVES). 9.1 Removing the basin...

  • Page 36: Removing The Cup-Holder Plate

    9.2 Removing the cup-holder plate...

  • Page 37: Removing The Rear Panel

    9.3 Removing the rear panel...

  • Page 38: Removing The Side Panels

    9.4 Removing the side panels...

  • Page 39: Draining The Boiler

    9.5 Draining the boiler...

  • Page 40: Removing The Boiler Heating Element

    9.6 Removing the boiler heating element The heating element must only be removed after draining the boiler.
  • Page 42 0,6 mm...

  • Page 43: Resetting The Safety Thermostat

    9.8 Resetting the safety thermostat...

  • Page 44: Adjusting The Volumetric Pump

    9.9 Adjusting the volumetric pump...

  • Page 45: Replacing The Battery

    9.10 Replacing the battery BATTERY BATTERIA CR 2032...

  • Page 46: Wiring Diagram

    English English WIRING DIAGRAM CPU BOARD J10: I2C TASTIERA 1: +24V 2: SDA_1 3: SCL_1 4: PRESENZA BACINELLA 5: INT. TASTIERA J12: I2C EXP 6: - J11: I2C DISPLAY RS-485 7: TASTO ACQUA UART IoT 8: GND RS-232 INGRESSI DIGITALI 1: GND 2: +5V 3: TASTO 2 AS...
  • Page 47 English English WIRING DIAGRAM Functional wiring diagram - low voltage P_LED LED1 536301000 LED3 (opz.) P_LED (opz.) LED2 (opz.) P_LED (opz.) SCALDATAZZE 536302000 RES. BOILER RES. CALDAIA POMPA NTCb -t° NTCc -t° FLUSSIMETRO ALIMENTATORE DC ALIMENTAT A A ORE DC MOTORE MOTORE 536285000...
  • Page 48 English English WIRING DIAGRAM Power supply RB (BOILER) ST (SCALDATAZZE) LF (PS) RC (CALDAIA) P (POMPA) INTERRUTTORE GENERALE SCALDATAZZE NC (CALDAIA) NB (BOILER) NF (PS) NST (SCALDATAZZE) NP (POMPA) MORSETTIERA POMPA SCHEDA TRIAC FILTRO DELTA EL 16MBFG5 TERMOSTATO CALDAIA RESISTENZA CALDAIA RESISTENZA BOILER TERMOSTATO BOILER TERMOSTATO BOILER...

  • Page 49: Hydraulic Circuit

    English English Hydraulic circuit 0.6 mm 0.6 mm 0.6 mm FAEMINA_2139...

  • Page 50: Hydraulic Circuit Key

    Hydraulic circuit key LEGEND LÉGENDE LEGENDA Bac hot-water delivery spout Bac erogatore dell'acqua calda Bac distributeur d'eau chaude Service boiler Caldaia Flowmeter Contatore volumetrico Compteur volumétrique Eac Hot-water solenoid valve Eac Elettrovalvola acqua calda Eac Électrovanne eau chaude Infusion solenoid valve Elettrovalvola infusione Électrovanne infusion Turbosteam solenoid valve...
  • Page 51 GRUPPO CIMBALI SpA - 20082 BINASCO (MILANO) ITALY CERT. NR. 50 100 3685 / 10877 / 11721...
