ASSEMBLY MANUAL
Stock Code:
RB128-2x4
Version #12.2
April 15, 2025
Thank you for purchasing a 12'
x 8' Garden in a Box. Please
take the time to identify all
the parts prior to assembly.
Please use Safety Eyewear and
Gloves while Assembling. Be sure to
read and
follow all operating instructions for
any tools used during assembly.
Remember- NO SAW CUTTING IS
REQUIRED!
Safety Points and Other
Considerations
Please follow this instruction manu-
al when assembling your Garden in a
Box and retain the manual for future
maintenance purposes.
In the event of a missing or broken piece, simply call the Outdoor Living Today Customer Support
Line @ 1-888-658-1658 within 30 days of the delivery of your purchase. It is our commitment to you to
courier replacement parts, free of charge, within 10 business days of this notification. Replacement
parts will not be provided free of charge after the 30 day grace period.
B
F
C
D
Estimated Assembly Time for the
Garden in a Box = 5 Hours.
A

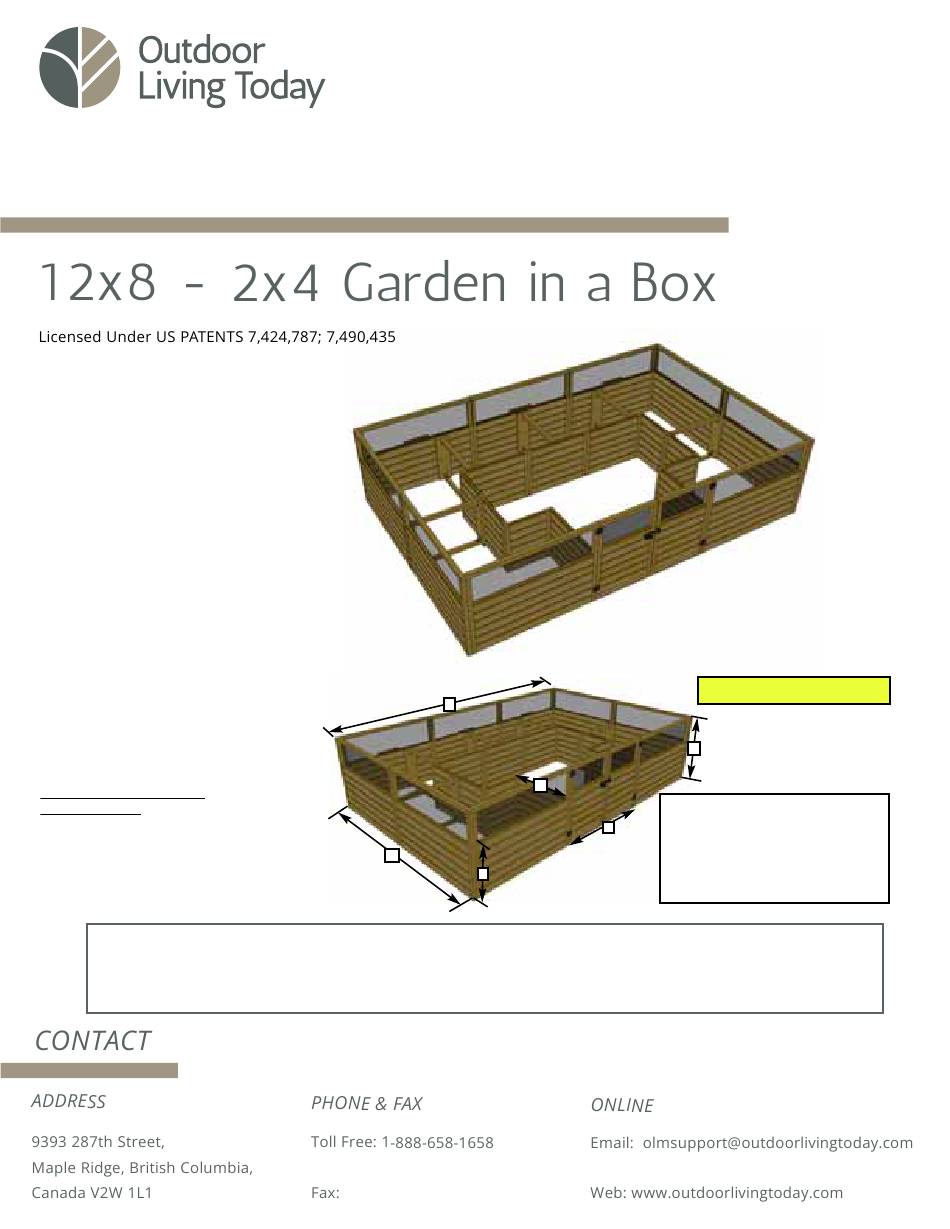

Garden in a Box Dimensions:
E
A: Height = 33 1/2"
B: Outside Width = 141"
C: Outside Depth = 92"
D: Height to Bottom of Screen = 21"
E: Door Width = 46"
F: Length of Inner Panel Sections = 60"
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for OLT RB128-2x4
Summary of Contents for OLT RB128-2x4
- Page 1 ASSEMBLY MANUAL Stock Code: RB128-2x4 Version #12.2 April 15, 2025 Thank you for purchasing a 12’ x 8’ Garden in a Box. Please take the time to identify all the parts prior to assembly. Please use Safety Eyewear and Gloves while Assembling. Be sure to...
- Page 2 Exploded View & Parts List for 12’x8’ Garden In A Box Parts List Exploded View Panel Section Part A 9 - Side/Rear Panels 46” wide x 33 1/2” high Part C 2 - Door Panels 22 3/4” wide x 31 1/2” high Part D1 2 - Interior Panels (Rear) 41 1/2”...
- Page 3 Important Information for the Homeowner 92” Selecting A Location - Garden Setting Or Patio Walk around your property and make notes of the following: - Sunny spots. - Slope of the land. - Light blocking trees and high buildings. Don’t hide your Garden away in a dark corner. Ensure you have easy access to it.
- Page 4 Parts (Steps 1 - 8) Hardware (Steps 1 - 2) Orientate Side/Rear Panels and Door A - Side/Rear Panels S1 - 2 1/2” Screws Panels as illustrated (their Screens positioned (46” x 33 1/2”) x 9 x 1 total to the inside). C - Door Panels (22 3/4”...
- Page 5 Hardware (Steps 3 - 4) Attach panels completely together using 4 additional 2 1/2” Screws evenly S1 - 2 1/2” Screws spaced on panel framing. Make sure panels are aligned prior to screwing. x 9 total Pre-drill first to prevent wood from splitting. Important: Be sure to level the ground so panels sit evenly.
- Page 6 Hardware (Steps 5 - 6) Align and attach the 3rd Rear Panel S1 - 2 1/2” Screws as per Step 4. Use 5 - 2 1/2” Screws to x 10 total secure. Important: Be sure to level the ground so panels sit evenly. Align and attach the 2nd Side Panel to the 3rd Rear Panel as per Step 2 &...
- Page 7 Hardware (Steps 7 - 8) Align and attach the remaining 3rd & 4th S1 - 2 1/2” Screws Side Panels as per Step 4 & 5, to the current x 20 total secured Side Panels. Use 5 - 2 1/2” Screws per panel to secure.
- Page 8 Interior Panel framing flush with Front Panel Framing. Important: Be sure to level the ground so panels sit evenly. Parts (Steps 9 - 13) Locate all 8 Interior Panels. Align D1 - Interior Panels (Rear) (41 1/2” x 21”) x 2 frame of the 2 Front Interior Panels with D2 - Interior Panels (Sides) (32 1/8”...
- Page 9 Align and attach both Side Interior Panels as per Step 9 & 10. Attach with 3 - 2 1/2” Screws per panel. Align and attach both Rear Interior Panels to the frame of the previous Side Interior Panels, as per Step 9, 10, & 11. Attach with 3 - 2 1/2”...
- Page 10 Part F Bed Rib Connection Plates. 2 1/2” screw Part G Bed Rib Frame. Parts (Steps 14 - 16) To complete rib assembly, locate all F - Bed Rib Connecting Plates x 10 10 Bed Rib Connecting Plates and 10 Bed G - Bed Rib Frames (Sides) Rib Frames On a level flat surface, screw (1 1/2”...
- Page 11 6 - 2 “ Screws. Important: Do not over screw! Complete both sides. Important: Do not align connection plate on vertical wall framing. Offset as shown. Flush with bottom. Hardware (Steps 17 - 18) Lift and position completed short Bed Rib Frame and S3 - 2”...
- Page 12 Hardware (Step 19) Locate the Door Panels from Step 1 and position SB1 - 3/4” Black Headed Screws x 12 Pcs. on flat surface screen down. Attach both hinges to Y7 - Plastic Hinge x 4 Pcs. door panel with 3 - 3/4” Black Headed Screws per hinge.Space hinges evenly on door frame.
- Page 13 Parts (Step 21) Attach Door Threshold directly below I - Door Threshold (3/4” x 3 1/2” x 46”) x 1 front doors, flush with front wall framing. Hardware (Step 21) Use 4 - 1” Screws and 1 - Brackets per end SS1 - 1”...
- Page 14 Attach Black Drop Latch (male and female pieces) to door and front wall panel frame with 6 - 3/4” Black Headed Screws. Pre-drill first to prevent wood from splitting. Do a dry run first to confirm fit before attaching. Important: If installing a deer fence option after assembling the raised bed, do not install the black drop latch until Step 10 in the deer fence assembly.
- Page 15 Congratulations on assembling your 12x8 Garden in a Box! We strongly recommend you now line the inner walls of your Garden in a Box with landscape fabric or 6 mil poly/plastic sheeting (not provided) before filling with soil. Note: Raised Garden Beds qualify for our Limited 3-Year Warranty only if the interior of the beds is fully lined with a waterproof barrier...
