Summary of Contents for TKH SVS-VISTEK CoaXPress CXP-12

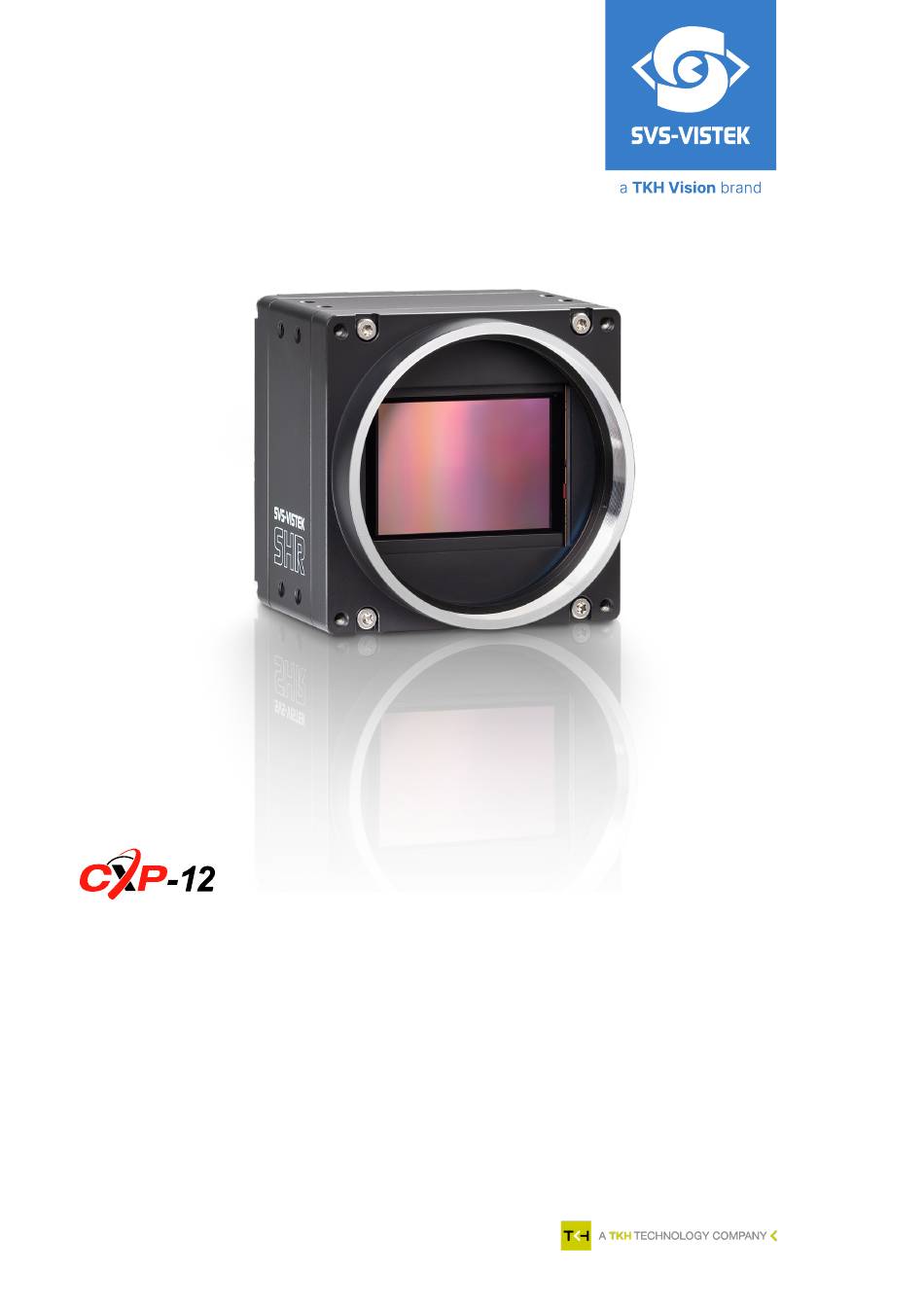

- Page 1 Manual SHR CoaXPress shr461CCX, shr461MCX, shr661CCX12, shr661MCX12, shr411CCX, shr411MCX, shr811CCX12, shr811MCX12...
-
Page 2: Table Of Contents
Content General information Company information 1.1.1 Disclaimer 1.1.2 Copyright notice Legal information 1.2.1 Registered trademarks 1.2.2 Conformity and use 1.2.3 Rules and regulations for USA and Canada 1.2.4 Rules and regulations for Europe 1.2.5 Warranty and non-warranty clause Supplements Tips and notes Support The SHR camera series High precision with large pixels... - Page 3 5.1.4 Color 5.1.5 Image flipping 5.1.6 Binning 5.1.7 Decimation 5.1.8 GenICam 5.1.9 Trigger modes 5.1.10 Shutter modes 5.1.11 Exposure 5.1.12 Exposure speed 5.1.13 Auto exposure 5.1.14 Acquisition and processing time 5.1.15 Bit depth Camera features 5.2.1 Glass filter 5.2.2 Shading correction 5.2.3 Defect pixel correction 5.2.4...
- Page 4 Fig. 3-2: Connection diagram for PoCXP output Fig. 4-1: Camera status LED codes Fig. 5-1: Noise caused by too much gain Fig. 5-2: Dark noise cut off by the offset Fig. 5-3: Example of Bayer pattern (source: wikipedia) Fig. 5-4: Original image Fig.
-
Page 5: List Of Tables
Fig. 5-47: Debouncer between the trigger source and trigger Fig. 5-48: The debouncer module Fig. 5-49: Prescale values and their result on trigger signal Fig. 5-50: The prescale module Fig. 6-1: I/O driver circuit schematics Fig. 6-2: Action control List of tables Table: 3-1: Hirose connector types Table: 5-1: Table of dB and corresponding ISO value Table: 5-2: Assigning I/O Lines –... -
Page 6: General Information
General information Company information SVS-Vistek GmbH Ferdinand-Porsche-Str. 3 82205 Gilching Germany Tel.: +49 8105 3987-60 Fax: +49 8105 3987-699 Mail: info@svs-vistek.com Web: https://www.svs-vistek.com 1.1.1 Disclaimer This manual contains important instructions for safe and efficient handling of SVCam products. This manual is part of the product and must be kept accessible in the immediate vicinity of the product for any person working on or with this product . -
Page 7: Legal Information
Legal information Errors and omissions excepted. These products are designed for industrial applications only. Cameras from SVS- VISTEK are not designed for life support systems where malfunction of the products might result in any risk of personal harm or injury. Customers, integ- rators and end users of SVS-VISTEK products might sell these products and agree to do so at their own risk, as SVS-VISTEK will not take any liability for any damage from improper use or sale. -
Page 8: Rules And Regulations For Europe
It is necessary to use a shielded power supply cable. You can then use the “shield contact” on the connector which has GND contact to the device housing. This is essential for any use. If not done and the device is destroyed due to Radio Mag- netic Interference (RMI) WARRANTY is void! ... -
Page 9: Tips And Notes
Pour les utilisateurs au Canada Cet appareil est conforme aux normes Classe A pour bruits radioélectriques, spé- cifiées dans le Règlement sur le brouillage radioélectrique. Life support applications The products described in this manual are not designed for use in life support appliances or devices and systems where malfunction of these products can reas- onably be expected to result in personal injury. -
Page 10: The Shr Camera Series
The SHR camera series High precision with large pixels The SVCam SHR series is a series of industrial machine vision cameras featuring especially on very high image resolutions with large pixels and global shutter. In the industrial machine vision business, there are applications where global shut- ter with high resolutions cannot permit compromises on image quality. -
Page 11: O Adds Light And Functionality
4I/O adds light and functionality Fig. 2-1: Illustration of 4I/O concept of switching LEDs Your SVS-VISTEK camera is equipped with the 4I/O-interface allowing full light control, replacing external strobe controllers. Each of the outputs can be indi- vidually configured and managed using pulse width modulation. With its high current output, the camera is able to drive LED lights directly without external light controller. -
Page 12: Connectors
Connectors Cameras from SVS-VISTEK feature a combined I/O and power supply connector (Hirose) and a data connector. CoaXPress 3.1.1 Protocol description CoaXPress was established as a standard protocol in machine vision 2009. The current version documented by Japan Industrial Imaging Association is 1.1. It is targeted to high bandwidth connections. -
Page 13: Connecting The Data Cable(S)
3.1.3 Connecting the data cable(s) You need a CoaXPress frame grabber for connecting the camera to your host computer. Before powering on, connect the cables to the camera and the frame grabber. CXP connectors have a locking mechanism. Always plug and unplug the cable at the connector, never pull the cable. -
Page 14: Using Pocxp (Power Over Cxp)
For detailed information about switching lights with the power outputs via GenICam, refer to "LED strobe control" on page Type HR10A-10R-12P Matching connector HR10A-10P-12S Table: 3-1: Hirose connector types Using PoCXP (Power over CXP) Camera Pin 12 = Out0 Class 2, Pin 7 ... -
Page 15: Getting Started
Getting started Find camera specs For technical data sheets visit https://www.svs-vistek.com/en/industrial-cam- eras/svs-cameras.php Search for a specific camera, using series and model name or by using the SVCam camera finder. The details and download section provides you with manuals, drawings, as well as software and firmware. Power safety For safety reasons, for protection of the camera and users, use certified power supplies (Low power supply according IEC 62368-1) only. -
Page 16: Cooling
INFO Only power supply with external dedicated power supply is powering 4I/O LED lights. Power supply via data lines covers camera supply only. If you want to use the I/O-output lines to drive LED lights, the camera needs an external dedicated power supply on the Hirose connector. -
Page 17: Camera Status Led Codes
In addition, vibrations will be minimized within the entire system. If available, activating the built-in fan or adjust the fan control threshold (for details, see "Fan control"). If available, activating the built-in thermoelectric cooling feature. Using an air- or water-cooling system. INFO Even if the housing temperature remains below the maximum operating tem- perature, using additional cooling is recommended to ensure optimal image... -
Page 18: Feature Description
Feature description This chapter covers features of SVCam cameras. Not every feature might be sup- ported by your specific camera model. For information about the features of your specific model, refer to the specifications area of our website with your exact model. -
Page 19: Resolution
Fig. 5-1: Noise caused by too much gain Auto gain INFO For automatic adjustment of gain refer to auto exposure (see "Auto exposure" on page 34). When using auto-gain with steps of gain, the non-continuous gain adjustment might be visible in final image. Depending on your application it might be prefer- able to use fixed gain values instead and modify exposure with exposure time. -
Page 20: Color
Signal Offset Dark noise Pixel Fig. 5-2: Dark noise cut off by the offset Most noise is proportional to temperature. The offset is automatically regulated by the camera sensor to compensate for the surrounding temperature changes by referencing specific pixels as „black“, i.e. never exposed to light. So the offset will be set dynamically and conditioned to external influences. - Page 21 Camera Link frame grabbers need information of the sequence order of the col- ors. The order depends on sensor type. USB3 and GigE cameras provide this in their XML file. INFO It is recommended to use an IR cut filter for color applications INFO Industrial vision cameras are not intended to display colors according to human perception.
-
Page 22: Image Flipping
The White Balance “Continuous” mode is only recommended in a slow triggered mode. Usually, it is sufficient to perform a white balance once with the given lighting. Use a white, not too dark, but not overexposed surface (white wall or paper) as image. -
Page 23: Fig. 5-4: Original Image
Fig. 5-4: Original image Fig. 5-5: Horizontal flip 5 Feature description... -
Page 24: Binning
Fig. 5-6: Vertical flip 5.1.6 Binning Binning provides a way to enhance dynamic range, but at the cost of lower res- olution. Binning combines electron charges from neighboring pixels directly on the chip, before readout. INFO Binning is only used with monochrome CCD sensors. On CMOS sensors, binning will not affect image quality. -
Page 25: Fig. 5-7: Vertical Binning
Vertical binning Accumulates vertical pixels. Fig. 5-7: Vertical binning Horizontal binning Accumulates horizontal pixels. Fig. 5-8: Horizontal binning 2×2 Binning A combination of horizontal and vertical binning. When DVAL signal is enabled only every third pixel in horizontal direction is grabbed. -
Page 26: Decimation
Fig. 5-9: 2x2 binning 5.1.7 Decimation For reducing width or height of an image, decimation can be used. Columns or rows can be ignored. INFO Refer to "ROI / AOI" on page 46 for reducing data rate by reducing the region you are interested in. -
Page 27: Genicam
Fig. 5-11: Vertical decimation 5.1.8 GenICam The GenICam standard provides a generic programming interface to control all kinds of cameras and devices. Regardless of the interface technology (GigE Vision, USB 3 Vision, CoaXPress, Camera Link, etc.) or implemented feature, the application programming interface (API) will always be the same. -
Page 28: Trigger Modes
5.1.9 Trigger modes To start capturing images, the camera has to receive a trigger signal. This trigger signal can be a software trigger, it might be an electric signal on the hardware I/O or it can be a timed trigger (sequence of images or "Precision Time Protocol"). -
Page 29: Fig. 5-13: Mode 2: External Trigger With Programmable Exposure Time (Non Overlap)
Fig. 5-13: Mode 2: External trigger with programmable exposure time (non overlap) Exposure time can be changed during operation. No frame is distorted during switching time. If the configuration is saved to the EEPROM, the set exposure time will remain also when power is removed. Detailed info of external trigger mode INFO The diagrams below are identical for CCD and CMOS technique. -
Page 30: Shutter Modes
Fig. 5-16: Mode 1: External trigger with programmable exposure time (overlap) Line duration Exposure delay Min. trigger pulse width Fig. 5-17: Mode 1: External trigger with programmable exposure time (non-overlap) Exposure delay Min. trigger pulse width 5.1.10 Shutter modes CCD and CMOS area cameras consist of pixels, ordered in lines and columns. -
Page 31: Fig. 5-18: Flash Control With Rolling Shutter
Next integration has to wait for finished readout (per line) No external exposure control (expose while trigger signal active) Limitations Use short exposure times for preventing blur / deforming artifacts. Image of mov- ing object on sensor must not move more than half pixel width. In case of moving objects, exposure movement on sensor has to be shorter than half a pixel for whole image. -
Page 32: Fig. 5-19: Rolling Shutter Lines Light Sensitivity Versus Time
Make sure to protect from changing environment light (recommendation: flash strobe in darkness). Short Flash strobe times with moving objects. Light control with rolling shutter Not all sensor lines are sensitive to light at the same time. Make sure your light is ON as long any pixel are going to e exposed. -
Page 33: Exposure
Rolling shutter limitations Due to the principles of rolling shutter, some standard features of SVS-VISTEK cameras are not applicable. External exposure control (expose while trigger signal active) does not make sense with rolling shutter ROI with rolling shutter: With rolling shutter the whole sensor must always be read out. -
Page 34: Exposure Speed
Setting exposure time Exposure time can be set by width of the external or internal triggers or pro- grammed by a given value. 5.1.12 Exposure speed Frames per second, or frame rate describes the number of frames output per second (1/ frame time). Especially GigE and USB cameras cannot guarantee pre- dictable maximum frame rates with heavy interface bus load. -
Page 35: Bit Depth
Fig. 5-20: Acquisition and processing time On the other hand, while processing and transferring the image the sensor might capture already the next frame. 5.1.15 Bit depth Values of brightness are internally represented by numbers. The number of bits for brightness representation is limiting the number of color values that can be represented. -
Page 36: Fig. 5-21: Original And Shading Corrected Image
Fig. 5-21: Original and shading corrected image This shading can be caused by non-uniform illumination, non-uniform camera sensitivity, vignetting of the lens, or even dirt and dust on glass surfaces (lens). Shading correction is a procedure to create a flat-field image out of a non-uni- form image regardless of the reasons of the non-uniformity. - Page 37 Creating a shading map Shading maps are test files containing a description for the camera how to bal- ance shading control. Shading maps can be created and uploaded to the cam- era with SVCapture. The shading map creation process takes any image with any illumination and creates a shading map out of it.
-
Page 38: Fig. 5-22: Shading Control Disabled
Fig. 5-22: Shading control disabled Load the reference images. Observe the shading in the preview (2). Select Generate map (3) to create the shading map. Select Save map to file. This file can be used in programmed environments via SDK as well. -
Page 39: Defect Pixel Correction
enabled shading control. Run the camera with same lighting to see corrected image. 5.2.3 Defect pixel correction All image sensor have defect pixels in a lesser or greater extent. Type and num- ber of defects determine the quality grade (quality classification) of the sensor. Defect Pixel Correction is using information from neighboring pixels to com- pensate for defect pixels or defect pixel clusters (cluster may have up to five defect pixels). -
Page 40: Fig. 5-23: Illustration Of A Defect Pixel
The *.txt file can be uploaded into the camera. Beware of possible Offset! Defect maps can be switched off to show all default defects, and switched back on to improve image quality. Unlike shading correction, defect pixel correction suppresses single pixels or clusters and reconstructs the expected value by interpolating neighboring pixel values. - Page 41 For easy image processing, it is recommended to have pixel correction activ- ated Pixel correction maps can be saved and loaded The std factory map can be selected any time Generate your own custom map Select your own defect pixel map The procedure to create a std map is pretty straight forward.
- Page 42 Save a completely white image as bmp file. Open Assistant > Defect Pixel Correction > Select Map > Custom Map. Select Generate Map…. Add a “Dark Image”. Add a “Bright Image”. 5 Feature description...
-
Page 43: Look-Up Table
Select Generate map. Observe how many defect pixel were detected in the “Defect Pixel Count”. Select Upload map to camera. 5.2.4 Look-up table The look-up table feature (LUT) lets the user define certain values to every bit value that comes from the ADC. -
Page 44: Fig. 5-24: Custom Lut Adding Contrast To The Mid-Tones
Fig. 5-24: Custom LUT adding contrast to the mid-tones INFO LUT implementation reduces bit depth from 12 bit to 8 bit on the output. Gamma correction Using the look-up table makes is also possible to implement a logarithmic cor- rection. This is commonly called “gamma correction”. Historically gamma correction was used to correct the illumination behavior of CRT displays, by compensating brightness-to-voltage with a gamma value between 1,8 up to 2,55. -
Page 45: Fig. 5-25: Several Gamma Curves Comparable To A Lut
Fig. 5-25: Several gamma curves comparable to a LUT Gamma values less than 1.0 map darker image values into a wider ranger. Gamma values greater than 1.0 do the same for brighter values. INFO Gamma algorithm is just a way to generate a LUT. It is not implemented in the camera directly. -
Page 46: Roi / Aoi
Fig. 5-26: Several gamma curves comparable to a LUT Gamma values less than 1.0 map darker image values into a wider ranger. Gamma values greater than 1.0 do the same for brighter values. INFO Gamma algorithm is just a way to generate a LUT. It is not implemented in the camera directly. -
Page 47: Basic Capture Modes
With CCD sensors, setting an AOI on the left or right side does not affect the frame rate, as lines must be read out completely. With CMOS Sensors, AOI is sensor dependent. Some CMOS sensors require the camera to read full horizontal sensor lines internally. Reducing horizontal size with AOI might result in limited frame rate gain. -
Page 48: Read-Out Control
Fig. 5-29: Mode 1: External Trigger with Pulse Width Exposure Control (overlap) Exposure time of the next image can overlap with the frame readout of the cur- rent image (rising edge of trigger pulse occurs when FVAL is high). When this happens: the start of exposure time is synchronized to the falling edge of the LVAL signal. -
Page 49: Temperature Sensor
Fig. 5-31: Illustration of physical data stream in time 5.2.8 Temperature sensor A temperature sensor is installed on the main board of the camera. To avoid overheating, the temperature is constantly monitored and read. Besides software monitoring, the camera indicates high temperature by a red flashing LED (see flashing LED codes). - Page 50 Save user sets Select the user set to be saved in the UserSetSelector and save it with the User- SetSave command. Set a user set as default Use User Set Default to select the user set that is to be loaded when the camera is started.
-
Page 51: I/O Features
I/O Features The SVCam cameras are equipped with several inputs and outputs, providing state-of-the-art control regarding input and output channels. All I/O functions are realized as modules. These functions can be connected in the GenICam tree. 5.3.1 Assigning I/O Lines – IOMUX The IOMUX is best described as a switch matrix. -
Page 52: Table: 5-2: Assigning I/O Lines - Iomux
Translation LineSelector Line16 LogicB Line17 LensTXD Line18 Pulse0 Line19 Pulse1 Line20 Pulse2 Line21 Pulse3 Line22 Uart2 In Table: 5-2: Assigning I/O Lines – IOMUX The input and output lines for strobe and trigger impulses can be arbitrarily assigned to actual data lines. Individual assignments can be stored persistently to the EPROM. -
Page 53: Table: 5-3: Input Vector To Switch Matrix
Name Description r_sequenzer_active output from module iomux_sequenzer_0 r_debouncer output from module iomux_dfilter_0 r_prescaler output from module iomux_prescaler_0 r_sequenzer_pulse_b output from module iomux_sequenzer_0 (pwmmask) r_logic output from module iomux_logic_0 strobe(2) output from module iomux_pulseloop_2 strobe(3) output from module iomux_pulseloop_3 mft_rxd input ... -
Page 54: Fig. 5-33: Example Of An Iomux Configuration
Name / register Description pulse-loop hw_trigger input to module iomux_pulseloop_2 pulse-loop hw_trigger input to module iomux_pulseloop_3 rxd_to_uart2 output (uart2_in) Table: 5-4: Output vector from switch matrix INFO For physical number of open drain outputs refer to pinout or specifications. Example of an IOMUX configuration Fig. -
Page 55: Fig. 5-34: I/O Assistant Of Svcapture With Activated Debouncer And Logic Input
signal from pulse loop module 1 appears on line 7 connect line 7 to 1 (output 1) Turn of a light that was ON during the time between two pictures. connect line 17 to 15 invert signal from pulse loop module 2 it appears on line 20 connect line 20 to 2 (output 2) Inverter... -
Page 56: Pulse Width Modulation
With the example above Input 1 will be debounced at first Then input 1 is combined via logic module with the logic value of input 2 The logic result signal finally is the input for trigger. NOTICE This assistant view is showing the module connection only. -
Page 57: Fig. 5-35: Pwm Intensity
Fig. 5-35: PWM intensity Examples of PWMs The integrals over both periods are equal. An equal amount of Photons will be emitted. The intensity of light is the same. The periods are equal in length. Fig. 5-36: Example: 25% PWM load 5 Feature description... -
Page 58: Led Strobe Control
Fig. 5-37: Example: 50% PWM load Fig. 5-38: Example: 75% PWM load The PWM module Fig. 5-39: The PWM module 5.3.3 LED strobe control The SVCam 4I/O concept contains an integrated strobe controller. Its controls are integrated into the GenICam tree. With LED lights attached to the outputs, this enables the user to control the light without external devices. -
Page 59: Fig. 5-40: Attach Led Lights To Camera Outputs
0.3 A. Despite internal protections, higher current peaks might be able to dam- age the camera. Fig. 5-40: Attach LED lights to camera outputs NOTICE To avoid destruction of your LED light or camera, make sure to use the right dimension of shunt resistor. -
Page 60: Table: 5-5: Leds In Continuous Mode
LEDs in continuous mode Voltage drop al 5 LEDs, 2,2V per LED (see spec. of 11 V LED) Max. continuous current (see spec. of LED) 250 mA Voltage supply 24 V Voltage drop at resistor (24 V – 11 V) 13 V 52 Ω... -
Page 61: Sequencer
Strobe polarity Positive or negative polarity of the hardware strobe output can be selected. Strobe duration The exposure time of LED lights can be set in tics. The min duration is 1 µs. The longest time is 1 second. Strobe delay The delay between the (logical) positive edge of trigger pulse and strobe pulse output. - Page 62 Example Scenario An object should be inspected with a monochrome camera. For accentuating dif- ferent aspects of the image, 4 images should be taken in a row with 4 different colors of light: red, green, blue, white. White light should be generated from the RGB lights being activated at the same time.
- Page 63 Interval 0 Interval 1 Interval 2 Interval 3 Scenario values (RED) (GREEN) (BLUE) (WHITE) Seq pulse A start 0 ms 0 ms 100 ms 0 ms Seq pulse A stop 100 ms 300 ms 300 ms 100 ms Seq pulse B start 0 ms 100 ms 200 ms...
-
Page 64: Optical Input
Values to set in GenICam prop- Interval 0 Interval 1 Interval 2 Interval 3 erties (RED) (GREEN) (BLUE) (WHITE) PWM Fre- 66667 tic 66667 tic 66667 tic 66667 tic quency f (1000 Hz) (1000 Hz) (1000 Hz) (1000 Hz) PWM change 0 66667 tic 0 tic 0 tic... -
Page 65: Plc / Logical Operation On Inputs
sources or switches. The disadvantage of an optical input is that it is slower in terms of signal transmission and slew rate than a direct electrical connection. If you need super fast response from the camera, direct electrical access is your choice. -
Page 66: Serial Data Interfaces
GenICam tree setting Fig. 5-43: GenICam tree setting The logic function always combines the values of Digital IO InputA / LogicA and InputB / LogicB. In case of the trigger enabled logic function, LogicB is the trigger enable signal and will be combined with LogicA value. NAND XNOR A B Y... -
Page 67: Fig. 5-44: Uart Encoding Of A Data Stream
Serial interface parameter RS-232 RS-422 Min. signal range ±3 V Max. signal range ±15V 10 V Table: 5-8: Serial interface parameters – RS-232 and RS-422 INFO See your camera data sheet regarding its serial capabilities. Data transport is always asynchronous. Synchronization is implemented by fist and last bit of a package. -
Page 68: Trigger-Edge Sensitivity
5.3.8 Trigger-edge sensitivity Trigger-edge sensitivity is implemented by a “Schmitt trigger”. Instead of trig- gering to a certain value, the Schmitt trigger provides a threshold. Fig. 5-45: Schmitt trigger noise suppression 5.3.9 Debouncing trigger signals Bounces or glitches caused by a switch can be avoided by software within SVCam. -
Page 69: Fig. 5-47: Debouncer Between The Trigger Source And Trigger
Therefore the signal will not be accepted until it lasts at least a certain time. Fig. 5-47: Debouncer between the trigger source and trigger Use the IO Assignment tool to place and enable the debouncer module in between the “trigger” (Schmitt trigger) and the input source (e.g.: line 1). ... -
Page 70: Prescale
5.3.10 Prescale The prescale function can be used for masking off input pulses by applying a divisor with a 4-bit word, resulting in 16 unique settings. Reducing count of interpreted trigger signal Use the prescale function to ignore a certain count of trigger signals. ... -
Page 71: Annex
Annex Dimensions INFO All length units in mm. Find the technical drawings in the web download area at https://www.svs-vistek.com/en/support/svs-support-download-center.php CAD step files available with valid login at SVS-VISTEK.com I/O driver circuit schematics Camera power supply and power supply for PWM out is 25V max. Power for PWM out has to be supplied via Hirose connector. -
Page 72: Fig. 6-2: Action Control
DeviceKey to authorize the action on this device. GroupKey to define a group of devices on which actions have to be executed. GroupMask to be used to filter out some of these devices from the group. All these values can be set here: Fig. -
Page 73: Faq
A short Phyton program example to generate an action command. The IP address of "server.bind" shall be adapted to the IP address of the local network card. import socket import time from struct import server = socket.socket(socket.AF_INET, socket.SOCK_DGRAM, sock- et.IPPROTO_UDP) server.setsockopt(socket.SOL_SOCKET, socket.SO_ REUSEADDR, 1) # Enable broadcasting mode server.setsockopt(socket.SOL_SOCKET, socket.SO_BROADCAST, 1) server.settimeout(0.2) - Page 74 SVS-Vistek GmbH Ferdinand-Porsche-Str. 3 82205 Gilching Phone: +49 8105 3987-60 https://www.svs-vistek.com info@svs-vistek.com © November, 2024...
