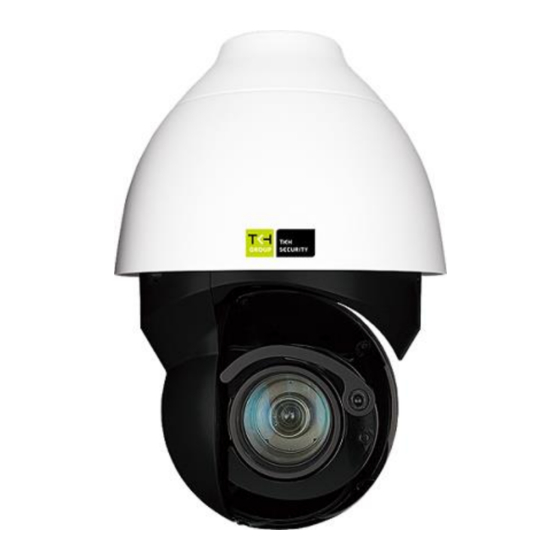

PD950/PD980
Installation Manual
Status:
v2.3
Author:
Onno Verkerk
TKH Security B.V. | +31 182 592 333 | info.nl@tkhsecurity.com | tkhsecurity.com
PD950/PD980
Installation Manual
January 4, 2021
Meridiaan 32
2801 DA, Gouda
Page 1
The Netherlands
11-Jul-23
Advertisement
Table of Contents
Related Manuals for TKH PD950
Summary of Contents for TKH PD950
- Page 1 Our Brands: FlinQ | iProtect | Park Assist | ParkEyes | Siqura | VDG Installations in over 80 countries PD950/PD980 Installation Manual Status: v2.3 11-Jul-23 Author: Onno Verkerk TKH Security B.V. | +31 182 592 333 | info.nl@tkhsecurity.com | tkhsecurity.com...
- Page 2 Installations in over 80 countries Revision history Date Remarks 9-okt-2022 Version 2.1 reworked into new format 16-okt-2022 Version 2.2 type from feature list on page 7 27-jun-2023 Version 2.3 added grommet handling TKH Security B.V. | +31 182 592 333 | info.nl@tkhsecurity.com | tkhsecurity.com...
- Page 3 Any brand names mentioned in this manual are registered trademarks of their respective owners. Liability TKH Security accepts no liability for claims from third parties arising from improper use other than that stated in this manual. Although considerable care has been taken to ensure a correct and suitably comprehensive description of all relevant product components, this manual may nonetheless contain errors and inaccuracies.
-
Page 4: Table Of Contents
Factory default network settings and login information ..............29 Get Access via SDM2 Device Manager .................... 30 Get Access via Web Browser ......................31 Set Video Resolution ....................33 Export/Import configuration files ................34 TKH Security B.V. | +31 182 592 333 | info.nl@tkhsecurity.com | tkhsecurity.com... - Page 5 Import configuration file ........................34 Technical Support .......................35 No Video on Chrome, Firefox, Edge ....................35 Delete Previously Installed Siqura Viewer ..................35 Allow ActiveX Control Installation ...................... 35 TKH Security B.V. | +31 182 592 333 | info.nl@tkhsecurity.com | tkhsecurity.com...
-
Page 6: About This Manual
We are committed to delivering high-quality products and services. The information given in this manual was current when published. As we continuously seek to improve our products and user experience, all features and specifications are subject to change without notice. TKH Security B.V. | +31 182 592 333 | info.nl@tkhsecurity.com | tkhsecurity.com... -
Page 7: Functions Overview
(ZDT) technology, the camera ensures smooth streaming without sudden power- loss. 2.1 Features • Multiple progressive scan CMOS sensor support up to 5 MP (PD950) and up to 8 MP (PD980) resolution. • Up to 40x optical zoom •... -
Page 8: Package Contents
Our Brands: FlinQ | iProtect | Park Assist | ParkEyes | Siqura | VDG Installations in over 80 countries 2.2 Package contents Make sure that the package contains the following items. 2.2.1 PD950 / PD980 TKH Security B.V. | +31 182 592 333 | info.nl@tkhsecurity.com | tkhsecurity.com... -
Page 9: Pd950Dc
Installations in over 80 countries Cautions: If you use an external power supply, contact TKH Security to make sure that the power supply has the proper power specifications. Make sure that the power supply complies with LPS requirements. For PoE input connection, use only with UL listed I.T.E. with "PoE" output. Description for the "PoE" is intended to be connected to not exposed (outside plant) networks or equivalent statement in installation instructions. -
Page 10: Pd950Nw
NOTE: The recommended tightening torque is 0.5 N-m. NOTE: Use of controls or adjustments of performance or procedures other than those specified herein may result in hazardous radiation exposure. 2.2.3 PD950NW TKH Security B.V. | +31 182 592 333 | info.nl@tkhsecurity.com | tkhsecurity.com... - Page 11 WARNING: For "PoE" input connection, use only with UL listed I.T.E. with "PoE" output. Description for the "PoE" is intended to be connected to not exposed (outside plant) networks or equivalent statement in installation instructions. TKH Security B.V. | +31 182 592 333 | info.nl@tkhsecurity.com | tkhsecurity.com...
-
Page 12: Connectors
Note: It is not recommended to continuously (24/7) record with the micro SD card, as the camera may not support long-term continuous data read/write. Contact the manufacturer of the micro SD card for information about the card’s reliability and life expectancy. TKH Security B.V. | +31 182 592 333 | info.nl@tkhsecurity.com | tkhsecurity.com... -
Page 13: Pd950Dc Connectors
Contact the manufacturer of the micro SD card for information about the card’s reliability and life expectancy. 2.3.3 PD950NW connectors TKH Security B.V. | +31 182 592 333 | info.nl@tkhsecurity.com | tkhsecurity.com... - Page 14 Note: It is not recommended to continuously (24/7) record with the micro SD card, as the camera may not support long-term continuous data read/write. Contact the manufacturer of the micro SD card for information about the card’s reliability and life expectancy. TKH Security B.V. | +31 182 592 333 | info.nl@tkhsecurity.com | tkhsecurity.com...
-
Page 15: Connect Cables
3. Seal the cable entry hole of the mounting kit (see below) with thread seal tape to prevent water from entering the camera. 4. Fasten the M4 security screw with rubber on the cap. TKH Security B.V. | +31 182 592 333 | info.nl@tkhsecurity.com | tkhsecurity.com... - Page 16 Refer to chapter 4 for installation guide of NPS-NPT coupler. Note: The accessory “Rubber stopper” is available for PD900 and PD910. 6. The cables shall be applied with electrical plumber tape to prevent shortage caused by water. TKH Security B.V. | +31 182 592 333 | info.nl@tkhsecurity.com | tkhsecurity.com...
-
Page 17: Grommet Installation Guide
Our Brands: FlinQ | iProtect | Park Assist | ParkEyes | Siqura | VDG Installations in over 80 countries 3.1 Grommet installation guide 3.1.1 Package Contents Item Pendant Cap with anti-drop chain Grommet RJ45 insertion tool Grommet holder TKH Security B.V. | +31 182 592 333 | info.nl@tkhsecurity.com | tkhsecurity.com... - Page 18 The sponge can be placed in two ways as shown in the illustrations below. STEP 2 Align the screw holes on the pendant mount with the drilled holes and fix the pendant mount to the wall with four screws. TKH Security B.V. | +31 182 592 333 | info.nl@tkhsecurity.com | tkhsecurity.com...
- Page 19 Thread the Ethernet cable through the grommet with the RJ45 insertion tool. NOTE: Please thread the Ethernet cable straight through the grommet. Do not bend the Ethernet cable as it may cause damage to the grommet. TKH Security B.V. | +31 182 592 333 | info.nl@tkhsecurity.com | tkhsecurity.com...
- Page 20 NOTE: After threading the Ethernet cable through the grommet, make sure to pull the grommet downward so that it tightly wraps around the Ethernet cable, achieving an effective waterproofing seal. Then remove the RJ45 insertion tool from the Ethernet cable. TKH Security B.V. | +31 182 592 333 | info.nl@tkhsecurity.com | tkhsecurity.com...
- Page 21 Thread the Ethernet cable through the grommet holder, and then install the grommet into the grommet holder. STEP 6 Screw the grommet holder to the mounting kit. Installation completed. TKH Security B.V. | +31 182 592 333 | info.nl@tkhsecurity.com | tkhsecurity.com...
-
Page 22: Connect Power
Alternatively, connect an Ethernet cable to the RJ-45 connector of the camera, and use a PoE 802.3bt type 3 class 6 compatible power injector/switch to power the camera up. Consult TKH Security for more advise on the choise of PoE 802.3bt type 3 powering devices. -
Page 23: Connect Audio/Alarm I/O And Rs-485
Alarm OUT A1 Alarm IN 3 Alarm OUT A2 Alarm IN 2 Alarm OUT B1 Alarm IN 1 Alarm OUT B2 GND (Alarm I/O and RS-485) RS-485 D+ Audio IN TKH Security B.V. | +31 182 592 333 | info.nl@tkhsecurity.com | tkhsecurity.com... -
Page 24: Surge Protection
Through Ethernet transformer coupling, this will induce a surge on the secondary side of the transformer, potentially damaging the Ethernet transceiver chip (often on the surveillance camera). More information, please refer to here (https://incompliancemag.com/article/designing-ethernet-cable-ports-to-withstand-lightning-surges/). TKH Security B.V. | +31 182 592 333 | info.nl@tkhsecurity.com | tkhsecurity.com... -
Page 25: Installation With Nps-Npt Coupler
4.2 Application Loading the applicator gun: make sure the applicator is setup with correct plunger attachment for cartridge. TKH Security B.V. | +31 182 592 333 | info.nl@tkhsecurity.com | tkhsecurity.com... - Page 26 The adhesive sealant should be tack-free in 50 – 60 minutes with a full cure occurring at approximately 24 hours. There is no need to wait for the product to become tack-free before TKH Security B.V. | +31 182 592 333 | info.nl@tkhsecurity.com | tkhsecurity.com...
- Page 27 Avoid cleaning with alcohol as it will interfere with the curing process. If sealant is already cured, removal is done mechanically with razor knife, piano wire, sanding or 3M™ Scotch-Brite™ Molding Adhesive and Stripe Removal Disc. TKH Security B.V. | +31 182 592 333 | info.nl@tkhsecurity.com | tkhsecurity.com...
-
Page 28: System Requirements
ActiveX control. The ActiveX control will allow for the same streaming performance as also found in your VMS client. (Caution: unsafe, requires camera ActiveX component installation) TKH Security B.V. | +31 182 592 333 | info.nl@tkhsecurity.com | tkhsecurity.com... -
Page 29: Get Access To The Camera
IP address .64 is already found to be in use. Default login information (Username / Password): ➢ Username: n/a ➢ Password: n/a TKH Security B.V. | +31 182 592 333 | info.nl@tkhsecurity.com | tkhsecurity.com... -
Page 30: Get Access Via Sdm2 Device Manager
(see the above table with default network settings). SDM2 Device Manager will auto discover the TKH Security device using different protocols and mechanisms. Normally, your device should appear in the device list within a couple of seconds. If the automatic discovery does not detect your device, follow these troubleshooting steps: 1. -
Page 31: Get Access Via Web Browser
If needed, use the zoom and focus function buttons on the home page to adjust the zoom and focus settings of the camera. For more information about the function buttons, refer to the user manual. TKH Security B.V. | +31 182 592 333 | info.nl@tkhsecurity.com | tkhsecurity.com... - Page 32 The Netherlands Our Brands: FlinQ | iProtect | Park Assist | ParkEyes | Siqura | VDG Installations in over 80 countries Figure 1 900-series cameras main web page TKH Security B.V. | +31 182 592 333 | info.nl@tkhsecurity.com | tkhsecurity.com...
-
Page 33: Set Video Resolution
You can set the video resolution on the Video configuration page of the camera’s web interface. The Video configuration page is found under the Streaming tab. For more information about video resolution combinations, refer to the user manual. TKH Security B.V. | +31 182 592 333 | info.nl@tkhsecurity.com | tkhsecurity.com... -
Page 34: Export/Import Configuration Files
To import a configuration file to the camera, follow these steps: 1. Click on Browse to select the configuration file. 2. Click on Upload to import the configuration file. TKH Security B.V. | +31 182 592 333 | info.nl@tkhsecurity.com | tkhsecurity.com... - Page 35 If ActiveX control installation is blocked, either set the Internet security level to default or change the ActiveX controls and plug-ins settings. Set Internet security level to default 1. Start Internet Explorer. 2. Select Tools in the menu bar. 3. Select Internet options. TKH Security B.V. | +31 182 592 333 | info.nl@tkhsecurity.com | tkhsecurity.com...
- Page 36 8. Click on Yes. 9. Click on OK to close the Internet Options window. 10. Close the browser window and open a new one later to access the camera. TKH Security B.V. | +31 182 592 333 | info.nl@tkhsecurity.com | tkhsecurity.com...
