Summary of Contents for Sportop B800

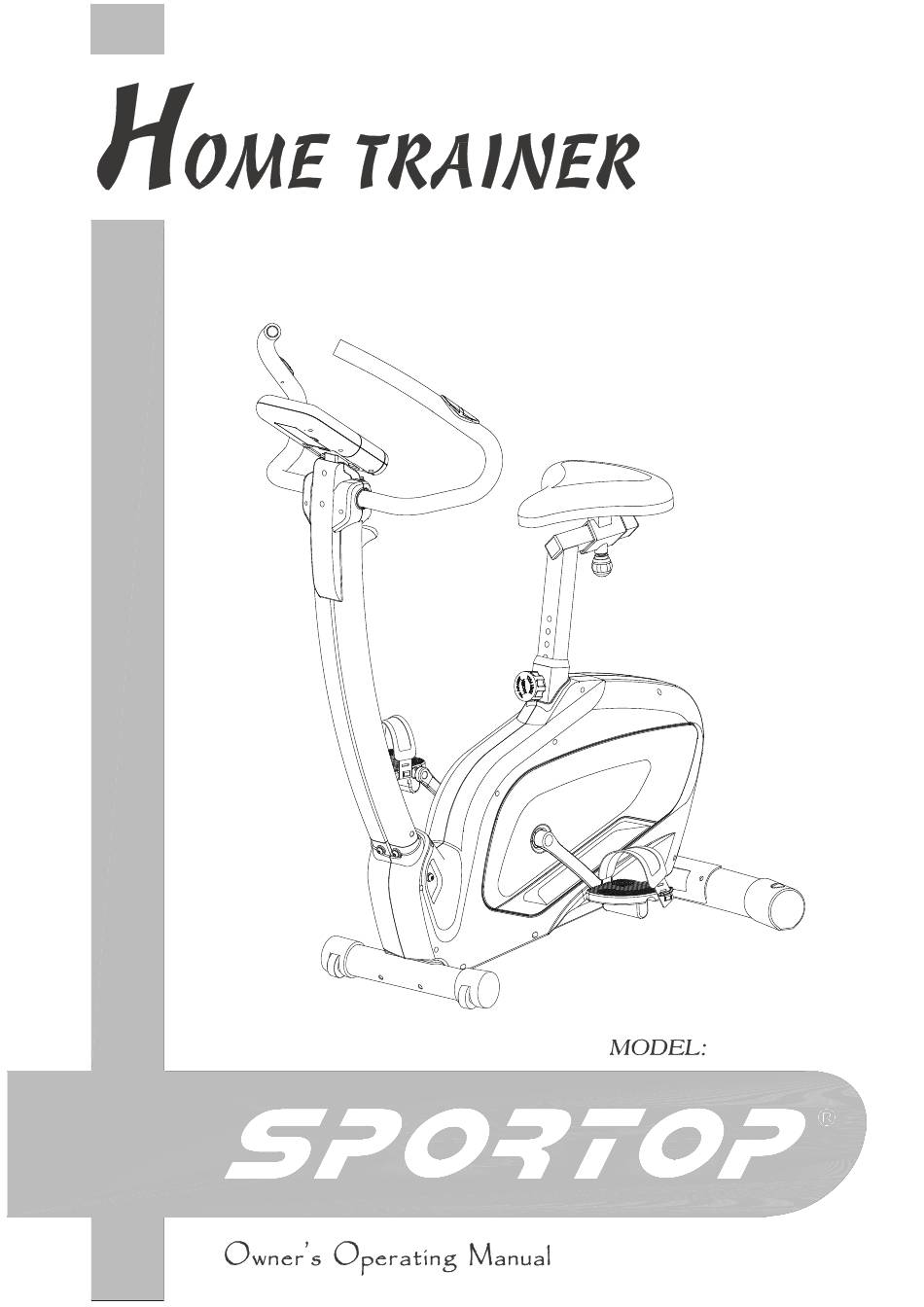

- Page 1 B800 ENGLISH...
- Page 2 Maim frame Handlebar Saddle Decoration cover Console Saddle tube MOVEING J1 Rear J2 Front BASEMENT K1 Pedal(left) K2 Pedal(right) Tools L1 Screw L2 Screw L3 Washer L4 Nut L5 Screw L6 Spring L12 E TYPE KNOB L7 Washer L8 Clip L10 Screw...
- Page 3 FIGURE_1 ASSEMBLY FOR FRONT STABILIZER Step1.Secure the front stabilizer(B) to the main frame(A), using screw(L1), washer(L3). USE TOOL FIGURE__2 ASSEMBLY FOR REAR STABILIZER Fix the rear stabilizer(C) with the main frame (A) by bolts(L2), washers(L3) & nuts(L4). HOW TO KEEP THE MACHINE STABLE ** After you finish assembly (Figure 1...
- Page 4 FIGURE_3 ASSEMBLY FOR CENTRAL SUPPORT TUBE STEP 1.Take off the bolt (A1), washer (A2) from the central tube (D) before assembly. STEP 2.Equip the cable of tension control (D2) in the slot of tension cable ir on brackte (A23) as shown in ViewA-1. Fit togetehr the large and small brass barrels and tighten by turning with your fingers asshown in ViewA-2.
- Page 5 FIGURE_5 ASSEMBLY FOR HANDLEBAR & REAR DECORATION COVER WITH CENTRAL SUPPORT TUBE USE TOOL L5 L6 L7 L8 FIGURE_6 ASSEMBLY FOR HANDLE BAR AND FRONT DECORATION COVER USE TOOL - 4 -...
- Page 6 FIGURE_7 ASSEMBLY THE COMPUTER STEP 1: Connected the sensor wire and computer wire and position the computer (H) into the computer holder (D) as the shown direction and secure it by screw (H1) . FIGURE_8 ASSEMBLY PEDAL WITH MAIN FRAME Step1.
- Page 7 FIGURE_9 HOW TO MOVE MACHINE Step1. Hold the handle bar and push down the handle bar. Step2. You can move the machine easily by the transportation wheel on the front stabilizer. - 6 -...
- Page 8 D7 D6 A10-1 A10-2 A10-4 A6-1 A10-3 A10-5 A10-9 A10-6 A10-7 A14-1 A10-8 A28-1 A27-2 A27-1 A28-2 - 7 -...
- Page 9 DESCRIPTION Q＇TY DESCRIPTION Q＇TY SCREW MAIN FRAM BELT SCREW AXLE WASHER SCREW SENSOR WIRE DRIVING WHEEL KNOB MAGNETIC PLASTIC PIPE A6-1 SCREW CRANK(R) SCREW BEARING SCREW COVER C TYPE BUCKLE CRANK(L) MAGNETIC WHEEL CHAIN COVER(R) PULLY A10-1 CHAIN COVER(L) BEARING A10-2 ONE WAY BEARING A10-3...
- Page 10 DESCRIPTION Q＇TY DESCRIPTION Q＇TY SCREW REAR DECORATION COVER SPRING WASHER FRONT DECORATION COVER WASHER PEDAL(L) CLIP PEDAL(R) SCREW SCREW SCREW SCREW WASHER BUSH E TYPE KNOB MOVING BASEMENT - 9 -...
-
Page 11: Exercise Computer
EXERCISE COMPUTER FUNCTION BUTTON To make upward adjustment to each function datas. DOWN To make backward adjustment to each function datas. Touch the button to select year, month, date, hour and minute for setting. MODE /ENTER Touch the button to preset TIME, DISTANCE, CALORIES and PULSE. Touch the button for selection, or enter after setting up. - Page 12 OPERATION ORDER Installs 2 pieces of 1.5V #3 batteries, then the screen will display as following “Drawing A” and have “Bi” sound at the same time, then display wheel diameter. as "Drawing B". The calendar display will be in blinking mode shown as "Drawing C", then you can press UP/DOWN button to set up the value.
- Page 13 Drawing E You can also press "Mode" button to select single function display except RPM & SPEED function. The RPM & SPEED function will switch display. Except the SPEED / RPM cannot set up other function mode. For example when set-up is completed of TIME, DISTANCE, CALORIES, TARGET H.R., enter and set up the RPM value will count down to 0 and produce 4 times "Bi"...
- Page 14 NOTE Stop training for 4 minutes, the main screen will be off and display the room temperature , clock, and calendar autometically, other function display will be off.(Drawing I) If the computer displays abnormally, please re-install batteries and try again. Battery Spec: 1.5V UM-3 or AA (2PCS).
