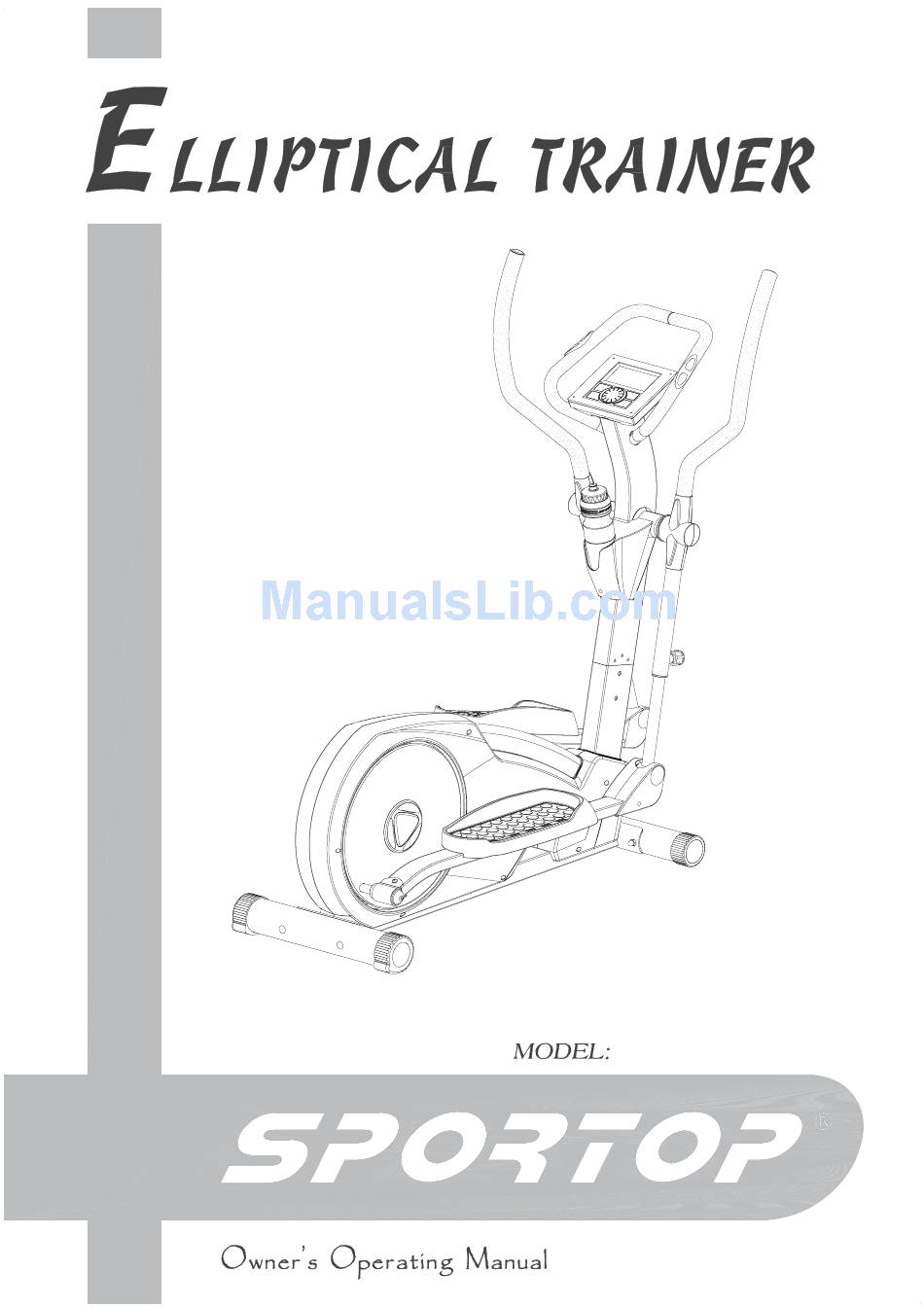

  • Page 1 E7000P PLUS...

  • Page 2: Water Bottle

    Main frame Monitor TOOLS Central support tube Front handlebar Rear stabilizer Side handlebar Front stabilizer Water bottle Handlebar joint cover Pedal tube joint cover Pedal (H1) (H3) (H5) (H2) (H4) (H6) (J1) Knob (J2) Screw M5x8L (J3) Screw M4x12L (J4) Washer M6 (J5) Spring washer M6 (J6) Knob (J10) Iron bracket...

  • Page 3: Bolt

    ASSEMBLY FOR REAR STABILIZER First, remove the bolts(C4), washer(C5) and nuts(C6) from the rear stabilizer(C). Use two bolts(C4) through the rear stabilizer(C) to attach to the bracket at the back of the main frame(A). Then, secure it with washer(C5), spring washer(C6) and nut(C7). After you complete Figure 1 &...
  • Page 4 ASSEMBLY FOR CENTRAL SUPPORT TUBE First, remove the bolts(B21), spring washers(B14) and washer(B13) from the central support tube(B). Step1. Connect the cable(B5) & (A15). Step2. Assemble the central support tube(B) onto the main frame(A) with bolts(B21), spring washer(B14) and washer(B13). Attention: when pushing the tubes ASSEMBLY FOR MONITOR...

  • Page 5: Connect Tube

    contrastive drawing for the (G4) assembly position. for the (J1) assembly position. ASSEMBLY FOR SIDE HANDLEBAR Step1. Pull up right or left connect tube(A43) and adjust the suitable position which 4 holes are available when loosing the pop-pin the middle tube(B) and lower tube(A43) will be fixed securely.
  • Page 6 ASSEMBLY FOR SIDE HANDLEBAR JOINT COVERS Step1. Connect right side handlebar joint covers (H1 & H2) onto side handlebar(G) and secure with screws(J3). Repeart Step1 on left side handlebar joint covers. ASSEMBLY FOR FRONT HANDLEBAR First, remove the bolts(B7), from the central support tube(B) and remove the screw(F3) from the handlebar clip of the front handlebar(F).

  • Page 7: Spring Washer

    SIDE PEDAL JOINT COVERS Connect right side pedal tube joint covers(H3 & H4) onto pedal joints and secure with screws(J2). Repeat again on left side pedal tube joint covers. ASSEMBLY FOR PEDAL Assemble the iron bracket(J10) on the pedal tube and secure it by screw(J7), spring(J9) and washer(J8).

  • Page 8: Front Stabilizer

    HOW TO MOVE THE MACHINE The front stabilizer has built-in transport wheels. To move the machine, stand at the front and lift it up until the weight of the machine is transferred to the transport wheels. You can now easily move the machine to a new location. HOW TO USE THE ADAPTOR Position Machine on consideration for convenience, using the adaptor(N), there is one adaptor hole located at the rear of the...
  • Page 9 - 8 -...

  • Page 10: Table Of Contents

    PARTS LIST DESCRIPTION Q'TY DESCRIPTION Q'TY MAIN FRAME CENTRAL SUPPOR TUBE MAGNETIC FLYWHEEL WATER BOTTLE FLAT WASHER SENSOR WIRE HAND PULSE SENSOR WIRE TENSION PULLEY BOLT PIPE BUSHING FLAT WASHER SHAFT SCREW BEARING BEARING BUSHING E CLIP CONNECT TUBE MAGNETIC HOUSING FLAT WASHER SPRING WASHER SCREW...
  • Page 11 1. LCD display (with all segments): 2. BUTTON functions: In stop mode, the mode is to confirm all exercise data MODE setting, and enter into program. ENCODER To select training mode and adjust function value up. To start or stop exercise. ENCODER To select training mode and adjust function value down.
  • Page 12 4. Operation Procedure: 4-1 Power on: Install power supply and computer will have long beep sound and display all segments for 2 seconds, then show wheel diameter. (as figure 1) Console will ask user to set up clock first and then enter into standby mode. User may turn UP and DOWN button to select exercise program from P1 to P12, and press MODE to confirm.

  • Page 13: Program Mode

    MANUAL mode FUNCTION SELECT FUNCTION SELECT MANUAL SELECT TOTAL RESET PRESS TOTAL RESET PRESS PRESS PRESS CLOCKWISE OR MODE MODE MODE CLOCKWISE OR CLOCKWISE OR ANTI-CLOCKWISE ANTI-CLOCKWISE ANTI-CLOCKWISE FUNCTION SELECT FUNCTION SELECT START / STOP PRESS PRESS MODE MODE CLOCKWISE OR CLOCKWISE OR ANTI-CLOCKWISE ANTI-CLOCKWISE...
  • Page 14 PROGRAM Profile for P2 to P11: A3-3 In P12 mode (HR control), AGE information is required to be entered. User may press UP and DOWN button to set up AGE (default is 25), and press MODE to enter. After AGE is setted, user need to select HR level from 55%, 75%, 90% or target pulse. (as figure 8 and 9) Figure 8 Figure 9...
  • Page 15 4. RECOVERY After exercising for a period of time, keep holding on handgrips and press “RECOVERY” button. All function display will stop except “TIME” starts counting down from 00:60 to 00:00. Screen will display your heart rate recovery status with the F1,F2….to F6. F1 is the best, F6 F6 is the worst.
