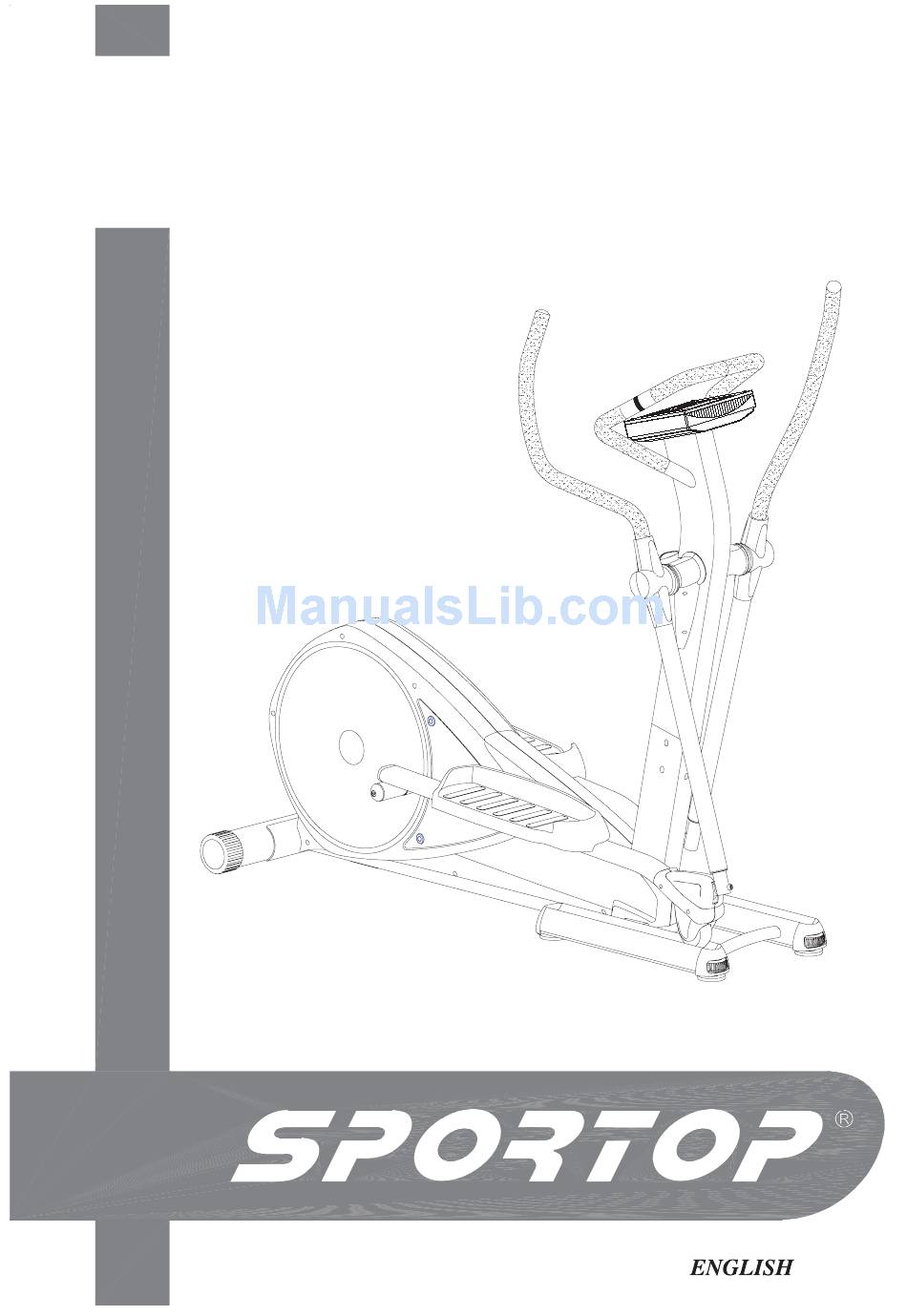

Page 1: Elliptical Trainer
ELLIPTICAL TRAINER E 8000P MODEL: Owner's Operating Manual... - Page 4 ASSEMBLY FOR REAR STABILIZER Attach the Rear Stabilizer (C)(the Rear Stabilizer will have wheels) to the bracket at the back of the Main Frame (A) Use two bolts (L1), two Arc Washers (L2) and two Nuts (L3.) ASSEMBLY FOR FRONT STABILIER Before you attach the Front Stabilizer(D) to the brackets on the Main Frame (A) you will need to put two bolts (L6)
- Page 9 ASSEMBLY F OR F RONT HANDLEBAR Step1. Connect sensor wires(F7) and sensor wires(B12) Step2. Insert the front handlebar(F1-L & F2-R) into the central support tube. F2-R F1-L Step 3.Twist and connect the front handlebar (F1-L & F2-R) as shown on (Figure 8-2). F2-R StEP 4.
- Page 11 H1-FRONT H1-BACK ASSEMBLY F OR SIDE HANDLEBAR J OINT COVER Starting on the right side connect the front of the Handlebar Joint Covers (H1-Front) to the back of the Handlebar Joint Covers (H1-Back) using two screws (L16). Repeat the steps above for the left hand side of the Handlebar Joint Covers (H1-Front &...
- Page 12 HOW TO MOVE THE MACHINE Stand at the front of the machine and lift it up until the weight of the machine is transferred to the transport wheel (located on the Rear Stabilizer (C.) Now the machine can be rolled to a new location if necessary.
