ST STEVAL-25R3916B User Manual

DRAFT
Introduction
STEVAL-25R3916B is a ready-to-use development kit to evaluate the features and
functionality in reader/writer, peer-to-peer and card emulation modes of the
high-performance NFC universal device ST25R3916B for contactless applications.
The kit is composed of two boards:
• MB1396 a microprocessor motherboard, which includes a
complement of hardware and software tools enabling the use the full STM32 Nucleo
ecosystem. The board is powered through USB connectors.
• MB1749 a daughter board, which embeds the ST25R3916B
device and an antenna etched on the PCB with its tuning circuit.
The communication link between the two boards is the SPI bus and the processor card
provides the power. Specific data lines complete the pin connector assignment shared
between cards.
A variety of demonstrations can be performed with this kit, which allows the users to
develop and test their applications.
The MB1396 and the MB1749 boards schematics, BOM, Gerber files, drivers and firmware
are available on the STMicroelectronics website www.st.com.
March 2022
Getting started with STEVAL-25R3916B

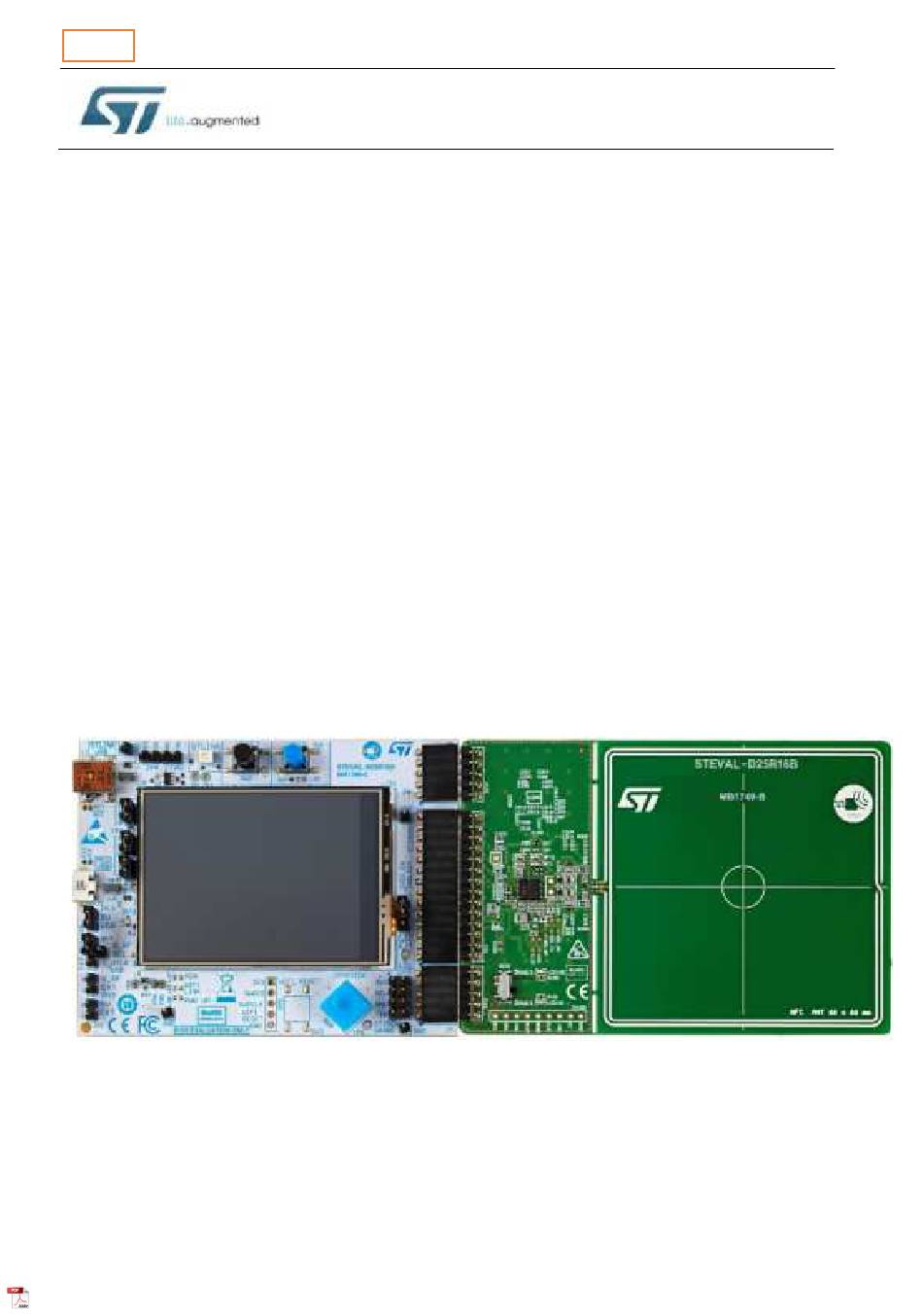

Figure 1. STE AL-25R3916B board (top view)
