Summary of Contents for Leuze AMS 108i

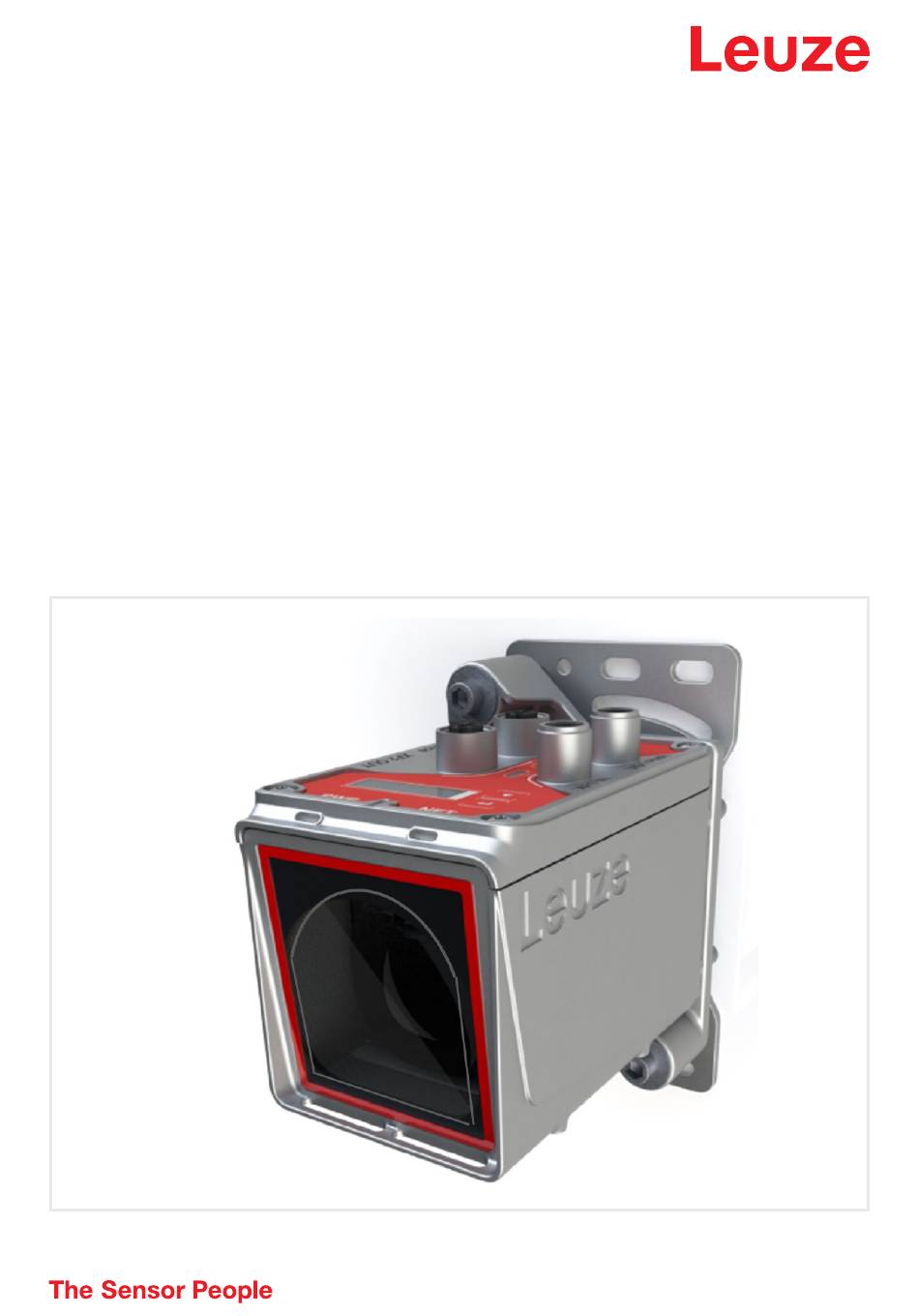

- Page 1 Translation of original operating instructions AMS 108i Optical laser measurement system – Ethernet TCP/IP We reserve the right to make technical changes EN • 2024-07-11 • 50151433...
- Page 2 © 2024 Leuze electronic GmbH + Co. KG In der Braike 1 73277 Owen / Germany Phone: +49 7021 573-0 Fax: +49 7021 573-199 www.leuze.com info@leuze.com Leuze electronic GmbH + Co. KG AMS 108i...
-
Page 3: Table Of Contents
Mounting with laser beam deflector units ................ 32 Mounting the reflector ...................... 33 5.3.1 Pitch of the reflector...................... 33 Electrical connection.................. 36 PWR – voltage supply / switching input/output .............. 36 Ethernet TCP/IP ........................ 37 Ethernet TCP/IP / Service ..................... 37 Leuze electronic GmbH + Co. KG AMS 108i... - Page 4 Manual configuration of the IP address ................ 38 Automatically setting the IP address .................. 39 Setting the Ethernet host communication ................ 39 Communication protocol (Leuze binary protocol via TCP/IP) .......... 39 Request telegram to the AMS 108i .................. 39 Response telegram to the AMS 108i .................. 40 TCP user data area....................... 41...
-
Page 5: About This Document
Text passages with this symbol provide you with further information. Symbol for action steps Text passages with this symbol instruct you to perform actions. Symbol for action results Text passages with this symbol describe the result of the preceding action. Leuze electronic GmbH + Co. KG AMS 108i... -
Page 6: Safety
Ä Only operate the device in accordance with its intended use. Ä Leuze electronic GmbH + Co. KG is not liable for damages caused by improper use. Ä Read these operating instructions before commissioning the device. Knowledge of the oper- ating instructions is an element of proper use. -
Page 7: Competent Persons
Warranted features cannot be guaranteed after the device has been opened. Ä Repairs must only be performed by Leuze electronic GmbH + Co. KG. Competent persons Connection, mounting, commissioning and adjustment of the device must only be carried out by competent persons. -
Page 8: Laser Safety Notices
Ä The device must not be tampered with and must not be changed in any way. There are no user-serviceable parts inside the device. Repairs must only be performed by Leuze electronic GmbH + Co. KG. NOTICE Affix laser information and warning signs! Laser information and warning signs attached to the device. - Page 9 0.8 µs 0.8 µs Wavelength: 660 nm ≤ 660 nm CLASS 2 LASER PRODUCT IEC 60825-1:2014 Complies with 21 CFR 1040.10 IEC 60825-1:2014 Fig. 2.2: Laser warning and information signs – supplied stick-on labels Leuze electronic GmbH + Co. KG AMS 108i...
-
Page 10: Fast Commissioning
Ethernet interface NOTICE The AMS 108i can communicate via TCP/IP and UDP. Standard is TCP/IP. In the case of com- munication via UDP, the UDP protocol must be activated via the display under the menu item Ethernet > Host communication. -
Page 11: Manual Configuration Of The Ip Address
UDP and TCP/IP can be activated simultaneously and used in parallel. If you would like to use the TCP/IP protocol, you must also define whether the AMS 108i is to operate as a TCP client or as a TCP server. - Page 12 The AMS 108i requires from the user the IP address and the port number of the communication partner. In the same way, the host system (PC / PLC) requires the set IP address of the AMS 108i and the selected port number.
-
Page 13: Device Description
The high absolute measurement accuracy of the laser measurement system and the fast response time are designed for position control applications. NOTICE A list with all available device types can be found on the Leuze website www.leuze.com. Indicators and operational controls 4.2.1... -
Page 14: Display
4.2.3 Control buttons Tab. 4.4: Control buttons DOWN Navigate downward/sideways ENTER Confirm/enter value, change menu levels Navigating within the menus Ä Use the [DOWN] button to select the menus within a menu level. Leuze electronic GmbH + Co. KG AMS 108i... -
Page 15: Menus
Main menu (level 1) • Parameters • Language selection • Diagnosis • Device information Device information menu • Product name • Part number • Serial No. • HW revision • FW revision Leuze electronic GmbH + Co. KG AMS 108i... -
Page 16: Parameter Menu
Repetition time Server Port number Activation IP address Port number Output cycle Position resolution Velocity resolution Position value Unit Counting direction Offset Preset Error delay Position value in the case of failure Leuze electronic GmbH + Co. KG AMS 108i... -
Page 17: Language Selection Menu
Lock and enable parameter entry able ON/OFF The standard setting (OFF) prevents unintended pa- rameter changes. With parameter enable activated (ON), the display is inverted. In this state, it is possible to change parame- ters manually. Leuze electronic GmbH + Co. KG AMS 108i... - Page 18 IP address, gateway and net mask from a DHCP server. The manual settings made above have no effect. Host com- TCP/IP Activation ON/OFF munica- TCP/IP communication with the host tion is activated Leuze electronic GmbH + Co. KG AMS 108i...
- Page 19 (host system) does not respond. Repetition The repetition time can be set to any 5000 time value between 100 and 60,000 ms. Time after which another attempt is made to establish a connection. Leuze electronic GmbH + Co. KG AMS 108i...
- Page 20 The value of the free resolution is de- termined in the "Position value" sub- menu in the "Free resolution value" parameter. Velocity 1 mm/s / 10 mm/s / 100 mm/s 1 mm/s resolution Leuze electronic GmbH + Co. KG AMS 108i...
- Page 21 Position value Last valid value / zero Zero in the case of Specifies which position value is output after the error delay time failure elapses. Leuze electronic GmbH + Co. KG AMS 108i...
- Page 22 If the OFF parameter is selected, dimming is permanently deactivated, i.e. the measurement value is always dis- played. Service Ether- Port address The service interface is available for Leuze-internal pur- 7070 net TCP/IP poses only. Leuze electronic GmbH + Co. KG...
-
Page 23: Operation Examples
Press the [ENTER] button to enter the Parameter enable menu. In the Parameter enable menu, use the [DOWN] button to select the menu item ON. Param. enabling Press the [ENTER] button to activate parameter en- able. Leuze electronic GmbH + Co. KG AMS 108i... - Page 24 Exit the menu by pressing the [DOWN] button sev- eral times until Exit menu appears and then press the [ENTER] button, or wait until the AMS displays the measurement screen again. Leuze electronic GmbH + Co. KG AMS 108i...
-
Page 25: Reflectors
4.4.1 Description of the reflective tape The AMS 100i measures distances against a reflective tape specified by Leuze. All technical data given for the AMS 100i, such as the operating range or accuracy, can only be achieved with the reflective tape spec- ified by Leuze. - Page 26 For on-vehicle mounting of the AMS 100i, the reflector size must accommodate any travel tolerances that may arise and the associated "wandering" of the light spot on the reflector. Leuze electronic GmbH + Co. KG AMS 108i...
-
Page 27: Mounting
Example AMS 107i name plate Ä Save the original packaging for later storage or shipping. Ä If you have questions, please contact your supplier or Leuze customer service. Ä Observe the applicable local regulations when disposing of the packaging materials. -
Page 28: Mounting With Pre-Mounted Alignment Unit (Bta)
Ä Position the adapter plate using one of the various options (1-4). Ä Guide four screws (M4) from the rear side through the holes in the adapter plate. Ä Screw the four screws (M4) into the internally threaded holes in the AMS 100i housing. Leuze electronic GmbH + Co. KG AMS 108i... -
Page 29: Mounting Without Accessories
A mounting bracket for mounting the AMS 100i on a flat, horizontal surface is available as an optional ac- cessory, see chapter 12.6 "Accessories – mounting systems". Mounting bracket Fig. 5.5: Mounting with optional mounting bracket Leuze electronic GmbH + Co. KG AMS 108i... -
Page 30: Parallel Mounting
Both reflectors move independently of one another at different distances to the AMS 100i. Minimum parallel spacing X of the two laser light spots: X = 100 mm + (max. measurement distance in mm x 0.01) Leuze electronic GmbH + Co. KG AMS 108i... - Page 31 Note that when the AMS 100i units are mounted in a mobile manner, travel tolerances could cause the two laser light spots to move towards each other. Ä Take the travel tolerances of the vehicle into account when defining the parallel spacing of adjacent AMS 100i units. Leuze electronic GmbH + Co. KG AMS 108i...
-
Page 32: Parallel Mounting Of And Ddls Optical Data Transmission
Ä When mounting, make certain that the laser light spot of the AMS 100i is aligned with the center of the deflecting mirror. To align the laser light spot with the reflector, see chapter 5.2 "Mounting the device". Leuze electronic GmbH + Co. KG AMS 108i... -
Page 33: Mounting The Reflector
Reflective tape 200x200-H 2 x 15 mm 2 x 20 mm Reflective tape 500x500-S 2 x 10 mm Reflective tape 500x500-M Reflective tape 500x500-H 2 x 15 mm 2 x 25 mm Reflective tape 749x914-S 2 x 20 mm Leuze electronic GmbH + Co. KG AMS 108i... - Page 34 NOTICE Reliable operation, the max. operating range and accuracy of the AMS 100i can only be achieved with the reflective tape specified by Leuze. Correct operation cannot be guaranteed if other reflectors are used. Pitch of reflective tapes …-S and …-M Angle approx.
- Page 35 Mounting Pitch of reflective tapes …-H Angle approx. 1° Direct reflection due to triple structure Fig. 5.13: Mounting of heated reflectors Angle approx. 1° Spacer sleeves Fig. 5.14: Pitch of the heated reflector Leuze electronic GmbH + Co. KG AMS 108i...
-
Page 36: Electrical Connection
The corresponding mating connectors and preassembled cables are available as accessories for all con- nections, see chapter 12.5 "Accessories – connection technology". PWR – voltage supply / switching input/output M12 connector, 5-pin, A-coded Leuze electronic GmbH + Co. KG AMS 108i... -
Page 37: Ethernet Tcp/Ip
Ethernet TCP/IP NOTICE The AMS 108i can communicate via TCP/IP and UDP. Standard is TCP/IP. In the case of com- munication via UDP, the "UDP" protocol must be activated via the display under the menu item "Ethernet" - "Host communication". -
Page 38: Commissioning - Ethernet Tcp/Ip
General information on Ethernet The AMS 108i is designed as an Ethernet device (acc. to IEEE 802.3) with a standard baud rate of 10/100 Mbit/s. A fixed MAC ID is assigned to each AMS 108i by the manufacturer; this ID cannot be changed. -
Page 39: Automatically Setting The Ip Address
UDP and TCP/IP can be activated simultaneously and used in parallel. If you would like to use the TCP/IP protocol, you must also define whether the AMS 108i is to operate as a TCP client or as a TCP server. - Page 40 • Length (16 bit): Always 0x0002 • 0xFF (8 bit): Always 0xFF • Function code (8 bit): 0xF1 (depending on function, value between 0xF1 and 0xF8) Response telegram to the AMS 108i ETHERNET IP HEADER TCP HEADER TCP USER DATA HEADER...
- Page 41 Signals whether a movement > 0.1 m/s is currently being detected: 0 = No movement detected 1= Movement detected Ready 0 = AMS not ready 1 = AMS ready LSR (laser prefailure message) 0 = OK 1 = Laser warning Leuze electronic GmbH + Co. KG AMS 108i...
- Page 42 OVFL (overflow; measurement value greater than 24 bit) 0 = ok 1 = Overflow Sign (sign of measurement value) 0 = Positive 1 = Negative D0 - D23 (distance value) D0 = LSB; D23 = MSB Leuze electronic GmbH + Co. KG AMS 108i...
-
Page 43: Care, Maintenance And Disposal
The device does not normally require any maintenance by the operator. Repairs to the device must only be carried out by the manufacturer. Ä For repairs, contact your responsible Leuze subsidiary or Leuze customer service (see chapter 10 "Ser- vice and support"). -
Page 44: Diagnostics And Troubleshooting
Tab. 9.2: NET LED NET LED display Possible error cause Measure No supply voltage connected Check supply voltage Incorrect wiring Check wiring Ethernet deactivated Activate Ethernet interface Leuze electronic GmbH + Co. KG AMS 108i... -
Page 45: Display Messages
Send in device at next possible opportu- nity to have laser diode replaced. (laser diode warn- ing) Have replacement device ready. Indicates an uncorrectable error in the Send in device for repair hardware (hardware error) Leuze electronic GmbH + Co. KG AMS 108i... -
Page 46: Service And Support
Service and support Service and support Service hotline You can find the contact information for the hotline in your country on our website www.leuze.com under Contact & Support. Repair service and returns Defective devices are repaired in our service centers competently and quickly. We offer you an extensive service packet to keep any system downtimes to a minimum. -
Page 47: Technical Data
Operating temperature for standard design without -5 °C …+60 °C integrated heating Operating temperature for devices with integrated -30 °C … +60 °C heating Tab. 11.3: Optical data Light source Laser, red Laser class 2 (acc. to IEC 60825-1:2014) Wavelength 660 nm Impulse duration ≤ 0.8 µs Leuze electronic GmbH + Co. KG AMS 108i... - Page 48 -5 °C … +60 °C • Operation with integrated device heating -30 °C … +60 °C • Storage -30 °C … +70 °C Relative humidity Max. 90 %, non-condensing Vibration IEC 60068-2-6, test Fc Shock IEC 60068-2-27, test Ea Noise IEC 60068-2-64 Electromagnetic compatibility EN 61000-6-2 EN 61000-6-4 Leuze electronic GmbH + Co. KG AMS 108i...
-
Page 49: Reflective Tapes
Temperature control Controlled heating with the following switch-on and switch-off temperatures, measured at the reflector surface Switch-on temperature ~ 5 °C Switch-off temperature ~ 20 °C Operating temperature -30 °C … +70 °C Storage temperature -40 °C … +80 °C Air humidity Max. 90 %, non-condensing Leuze electronic GmbH + Co. KG AMS 108i... -
Page 50: Dimensioned Drawings
Technical data 11.3 Dimensioned drawings Optical laser measurement system AMS 108i All dimensions in mm Fig. 11.1: AMS 108i Leuze electronic GmbH + Co. KG AMS 108i... - Page 51 Technical data Floor fixing bracket BT0100M-F-001 All dimensions in mm Fig. 11.2: Dimensioned drawing MW OMS/AMS 01 Leuze electronic GmbH + Co. KG AMS 108i...
- Page 52 Technical data Deflector unit US AMS 02 All dimensions in mm Fig. 11.3: Dimensioned drawing US AMS 02 Leuze electronic GmbH + Co. KG AMS 108i...
- Page 53 Technical data Adapter plate All dimensions in mm Fig. 11.4: Dimensioned drawing BT 0100 M Leuze electronic GmbH + Co. KG AMS 108i...
- Page 54 Dimensioned drawing of reflective tape on carrier plate All dimensions in mm Tab. 11.11: Dimensions of reflective tape on carrier plate Article Reflective tape [mm] Reflector plate [mm] Reflective tape 200x200-M Reflective tape 500x500-M Reflective tape 914x914-M Leuze electronic GmbH + Co. KG AMS 108i...
- Page 55 Fig. 11.6: Dimensioned drawing of heated reflector All dimensions in mm Tab. 11.12: Dimensions of heated reflectors Article Reflective tape [mm] Insulated carrier plate [mm] Reflective tape 200x200-H Reflective tape 500x500-H Reflective tape 914x914-H Leuze electronic GmbH + Co. KG AMS 108i...
-
Page 56: Order Guide And Accessories
40: max. operating range in m 120: max. operating range in m Mounting accessories: see chapter 12.3 "Accessories – Mounting" NOTICE A list with all available device types can be found on the Leuze website www.leuze.com. 12.2 AMS 108i type overview Tab. 12.1: AMS 108i... -
Page 57: Accessories - Reflective Tapes
50104171 KD U-M12-5A-V1-020 Connection cable, length 2 m, unshielded 50132077 KD U-M12-5A-V1-050 Connection cable, length 5 m, unshielded 50132079 12.6 Accessories – mounting systems Tab. 12.5: Mounting systems Type designation Description Part no. MW OMS/AMS 01 Mounting bracket 50107255 Leuze electronic GmbH + Co. KG AMS 108i... -
Page 58: Ec Declaration Of Conformity
European standards and directives. NOTICE You can download the EC Declaration of Conformity from the Leuze website. Ä Call up the Leuze website: www.leuze.com. Ä Enter the type designation or part number of the device as the search term. The part num- ber can be found on the name plate of the device under the "Part No."... -
Page 59: Licenses
After an Ethernet cable has been connected, a web browser can be opened via the service interface using IP address 192.168.60.101. The license texts for the software packages can be selected via a drop-down menu. Leuze electronic GmbH + Co. KG AMS 108i...
