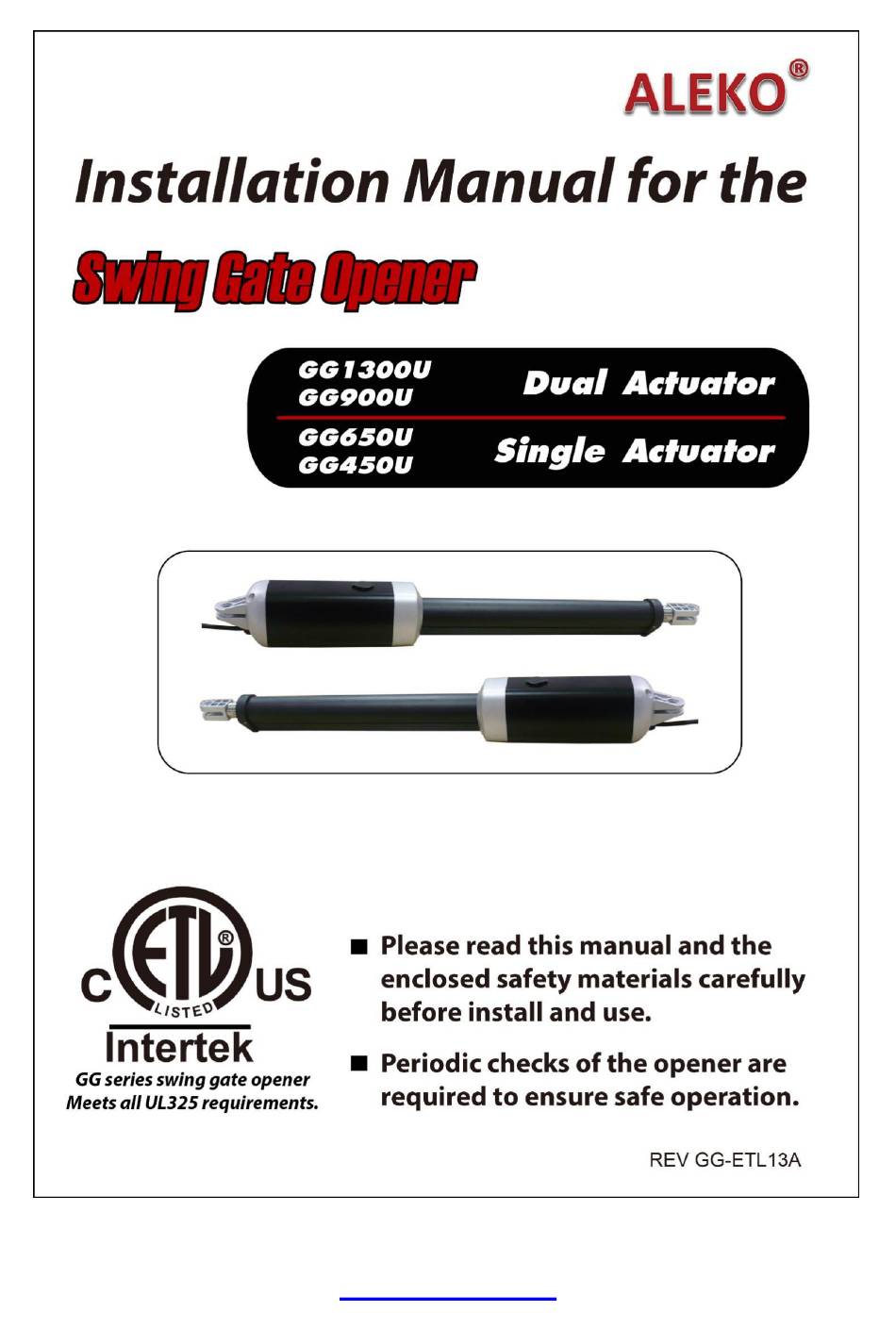

- Page 1 C030225 VER 24b...
-
Page 2: Table Of Contents
Contents Pre-Installation Notes ..............................1 Important Safety Instructions ............................ 2 Important Installation Instructions ..........................2 Dual Gate Opener Parts List ............................4 Single Gate Opener Parts List ............................ 5 Optional Accessories Parts List ..........................6 Technical Specifications & Features .......................... 7 Preparation for Installation ............................11 Determining the Position of Mounting Hardware ....................11 Installing the Mounting Hardware ........................... -
Page 3: Pre-Installation Notes
Pre-Installation Notes Thank you for purchasing ALEKO GG series swing gate opener. The swing gate opener will provide convenience and assurance to the ultimate users for many years. It is ruggedly built of the finest materials and has been thoroughly inspected and tested at the factory. It has many features that will aid in the installation and testing of the complete gate system. -
Page 4: Important Safety Instructions
Important Safety Instructions WARNING – To reduce the risk of injury or death: 1) READ AND FOLLOW ALL INSTRUCTIONS. 2) Never let children operate or play with gate controls. Keep the remote control away from children. 3) Always keep people and objects away from the gate. NO PERSON SHOULD CROSS THE PATH OF THE MOVING GATE. - Page 5 D. The gate must be properly installed and work freely in both directions prior to the installation of the gate opener. Do not over-tighten the opener clutch or pressure relief valve to compensate for a damaged gate. E. Controls intended for user activation must be located at least ten feet (10’) away from any moving part of the gate and where the user is prevented from reaching over, under, around or through the gate to operate the controls.
-
Page 6: Dual Gate Opener Parts List
4) One or more contact sensors shall be located at the bottom edge of a vertical barrier (arm). Dual Gate Opener Parts List Opener and Mounting Hardware... -
Page 7: Single Gate Opener Parts List
Single Gate Opener Parts List Opener and Mounting Hardware... -
Page 8: Optional Accessories Parts List
Optional Accessories Parts List Back-up Battery Electric Lock Wired Push Button Wireless Push Button Photocell Beam Back-up Battery Box Alarm Lamp Exit Wand System Solar Controller Supporting Frame for Bracket for Solar Panel Solar Panel Solar Panel Mounting Post for Keypad Wireless Keypad Wired Keypad Wired Keypad... -
Page 9: Technical Specifications & Features
·Hacksaw or Heavy Duty Bolt Cutters ·Phillips Screwdriver ·An extra person will be helpful Technical Specifications & Features Specifications Model: GG1300U GG650U GG900U GG450U Input: 120V~ 60Hz Power: 130W 100W 10A, 250VAC, Φ5*20mm Fuse: Motor voltage: 24VDC Actuator speed: 20mm/s（0.8 in/s）... - Page 10 Features: ·Soft start and soft stop ·Emergency release key in case of power failure ·Dual/Single gate running mode ·Adjustable opening/closing interval between master and slave gate ·Stop/Reverse in case of obstruction during gate opening/closing. ·Built in adjustable auto-close (0-99 seconds) ·Built in max.
-
Page 11: Single Gate Overview
Single Gate Overview... -
Page 12: Dual Gate Overview
Dual Gate Overview... -
Page 13: Preparation For Installation
Preparation for Installation The proper position of the post brackets is a decisive factor to the efficiency and leverage of the gate opener. The distance (usually it is 2.5cm /1 inch or more) between the gate opener and the gate is also determined by the proper position of the post brackets. - Page 14 Step 1 Place the post pivot bracket between the two post brackets. Insert the M10 x 35 bolt through the center hole of the post bracket and post pivot bracket as shown. Place a ￠10 washer , ￠10 lock washer and M10 nut on the bottom of the bolt and hand tighten.
- Page 15 Step 2 Attach the gate bracket and post bracket assembly to the opener by inserting a clevis pin. Secure the clevis pins using the hairpin clips. Step 3 With the gate in its desired open position (from 0° to 100° from the gate closed position) and with the opener in its retracted position, place the opener with the gate bracket and post bracket assembly on the gate post and the gate.
-
Page 16: Installing The Mounting Hardware
Step 4 Determine the optimum position of the pivot bracket on the post bracket assembly by ensuring a minimum 2.5cm (1 inch) distance exists between the gate and the gate opener in both the gate-open and gate-closed positions. To ensure the minimum 2.5cm (1 inch) distance maintained in the gate-closed position, remove the clevis pin from the gate bracket while holding the gate opener, and then close the gate. -
Page 17: Installing Of The Opener
Step 6 Using a drill and a bit of ￠10.5, drill holes through the post and the gate at the sign bolt hole point. Step 7 Attach the post bracket assemblies to the gate posts by inserting four M10 x 200 bolts through each post bracket assembly and the drilled holes in the gate post. -
Page 18: Installation Of The Safety Photoelectric Sensor
Installation of the Safety Photoelectric Sensor NOTE: Non-contact sensors are not included with the gate opener, but we strongly recommend you use a non-contact senor (photo beam) in the gate system. The photoelectric sensors which intend to be used in the system must be complied with UL325 standard. -
Page 19: Mounting The Control Box
Mounting the Control Box Step 1 To install the control box use the deck screws (not provided). Even though the control box is waterproof designed, for safety reason and a longer service life, it is recommended to install the control box inside a secure surface and at least 100 cm (40 inches) above the ground to avoid being flooded or buried under snow. -
Page 20: Connection Of Power Supply
CAUTION: Make sure the cable outlet hole in the Control Box is always down during installation so as to drain off the water. Connection of Power Supply WARNING: NEVER connect the gate opener to the power supply before all the installations have been done. -
Page 21: Connection Of The Control Board
4. The fuse in the control board is interchangeable. A 10a, 250vac, Φ5*20mm fuse is suitable to the control board. Connection of the Control Board WARNING – To protect against fire and electric shock: MAKE SURE the power is turned off BEFORE wiring or servicing the opener. - Page 22 Actuator 1 Insert the stripped cable wires into the appropriate terminals on the opener terminals block. The red wire should be inserted into the “MOTOR1+” terminal, the black wire into “MOTOR1-“, the blue wire into ULT1, the green wire into COM, and the yellow wire into DLT1 terminal. Actuator 2 Similar as the connection of Actuator 1, insert the stripped cable wires into the appropriate terminals on the opener terminals block.
-
Page 23: How To Learn Or Erase The Remote
matter the polarity. The RED wire of the exit wand should be connected into the COM (9#) terminal. The GREEN wire of the exit wand should be connected into the BAT- (14#) terminal. The sensitivity adjustment board should be wired to the GREEN wire and the YELLOW wire of the wand. No matter the polarity. -
Page 24: Setting Of The Control Board
display”--” .Now all remote codes have been erased. NOTE: The gate opener could learn up to maximum six remotes. If you lose one of any remote control, please learn all other remote controls to have a new code for safety. Maximum distance which the remote control can operate the opener is 60 ft. - Page 25 indicate “P3”. Now Master/Slave Gate Set is finished. (Factory set is “01”) 4. Set the Open Interval between Master and Slave Gate When the Digital Display indicates “P3”, the gate opener is on the Open Interval between Master/Slave Gate Setting. The open interval can be adjusted by pressing the “INC”...
- Page 26 Display will show “1”-“9” which indicates the stall force levels. “1” means the minimum force, and “9” is the maximum force. Each time you press and release the “INC” button, the figure increase by 1, and the force increases to a higher level. Each time you press and release the “DEC” button, the figure decreases by 1, and the force decreases to a lower level.
-
Page 27: Indicate Illustration On The Digital Display When Gate Opener Is Running
mode. Press and release the “INC” or “DEC” button, the Digital Display will show a “01”-“99” which indicates the current automatic closing time. The minimum time is 1 second, 99 seconds maximum. Each time you press and release the “INC” button, the figure increases by 1, and the timing increases by 1 second. -
Page 28: Adjusting The Limit Switch
indicates “n” or “u” respectively. “- -”. When the motor is not running, the Digital Display indicates When Gate Opener 2 is set as Master gate (i.e. when “10” indicated at P2 set mode in the Control Board), the Digital Display flashes “-n” before the gate completely opens and closes. Adjusting the Limit Switch Note: Before adjusting the limit switch, refer to the chapter of “Install the Opener on the... -
Page 29: Emergency Release
Emergency Release NOTE: Disconnect the gate opener from power supply BEFORE release the gate opener. In case of the system failure or power cut-off, the gate can be manually opened. Open the plug of the release hole, Insert the release key inside the hole located on the top of actuator body, and then turn clockwise 90°... -
Page 30: Maintenance
Step 3 With the gate in closed position and with the opener in their retracted position, place the opener with the gate bracket and post bracket assembly on to the gate post and the gate. Position the gate bracket and the post bracket assembly so that the gate opener is level with the horizontal cross member of the gate. -
Page 31: Trouble Shooting
Trouble Shooting 1. Opener does not run. Digital Display indicator is not on. • Check if all motor are properly connected and color coded. Make sure the AC input is connected. • Check if the fuse in control board is bad. 2. -
Page 32: Quick-Setting Guide
Quick-Setting Guide... - Page 36 8307 S 192nd St Kent WA 98032 USA Phone : 833-926-2323 hello@alekoproducts.com ©2024-2027 ALEKO All Rights Reserved...
