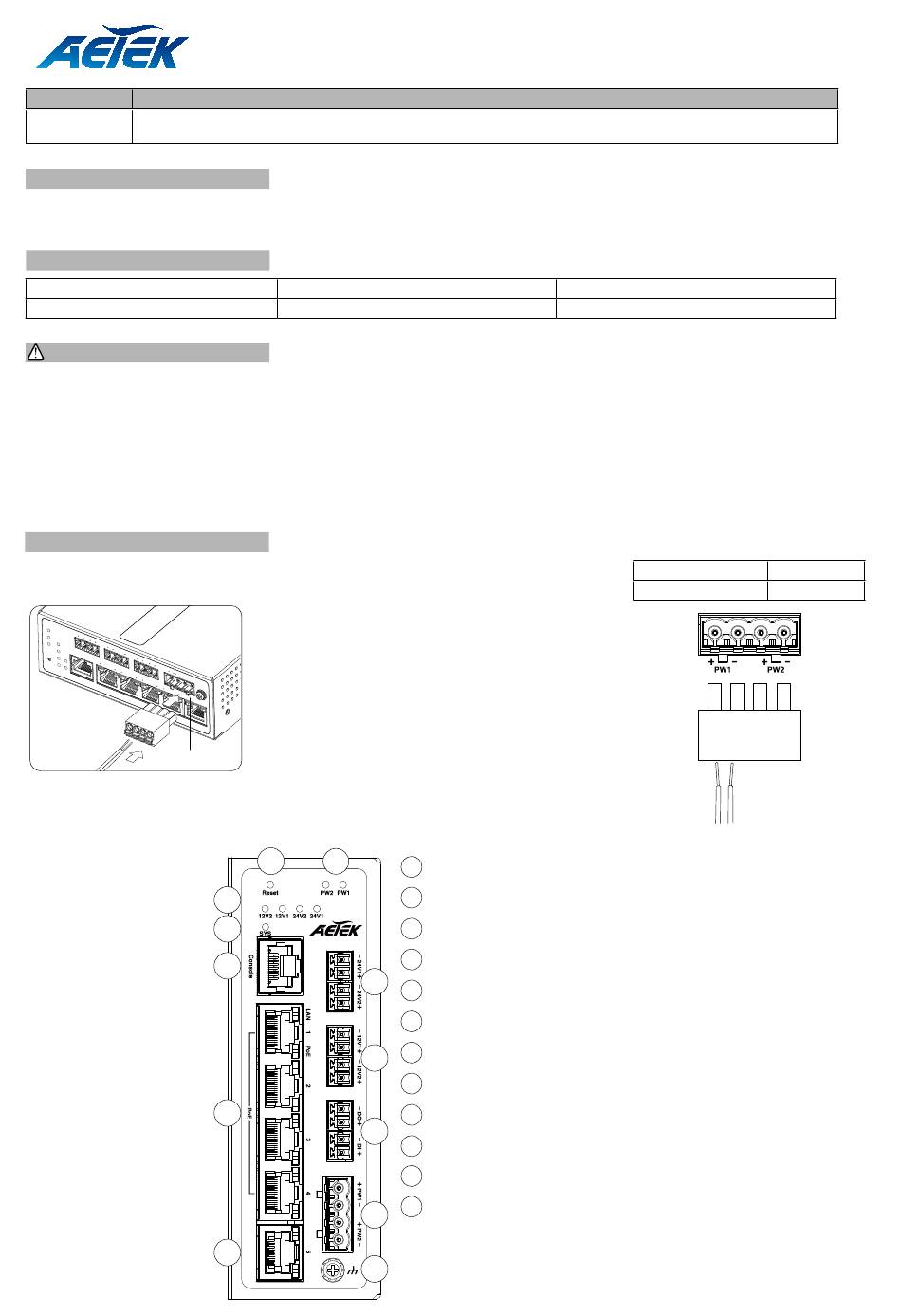

AETEK D62-041-30-DC Quick Installation Manual

Model Description
D62-041-30-DC 4xGbE 30W PoE + 1xGbE RJ45 + 2x24VDC output + 2x12VDC output w/ 12-48 VDC Input Managed Switch
INTRODUCTION
The D62-041-30-DC is a 4 port 10/100/1000BaseT at PoE switch capable of feeding 15.4/30W (54Vmax. per port)
power to Power over Ethernet (PoE) devices. It comes with another 1xGbE RJ45 port.
PACKAGE CONTENTS
* 1x PoE switch
* 1x DB9F-RJ45 console cable
IMPORTANT :
1. To prevent potential damage, ensure that all 12VDC, 24VDC, and Digital Input/Output (DI/DO) devices are properly
connected before applying or turning on the DC input power. Connecting these devices after the power is on may result
in malfunction or damage.
2. Install the converter in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.
3. Make sure the ventilation openings on the converter are not blocked.
4. DC input (12~48VDC). Follow the printed polarity for V+, V-, and Ground.
5. Digital output : ON/OFF, support 5VDC/1A. Digital input: level 0(Low), level 1(High).
CONNECTION
DC Power Input
D62-041-30-DC L2 PRO Gigabit PoE Switch
Quick Installation Guide
* 1x Quick Installation Guide
* 1x DIN rail bracket
1. Pull out the 4-pin terminal block.
2. Connect power wires to V+, and V-.
3. Connect SFP transceivers to the fiber port.
4. install the 4-pin terminal block.
F
G
E
D
C
H
I
B
J
K
A
L
* 1x 4-pin terminal block
* 6x 2-pin terminal block
A
10/100/1000 RJ45 port
B 10/100/1000 PoE RJ45 ports
C Console port
SYS LED
D
12V2 / 12V1 / 24V2 / 24V1 LED
E
Reset button
F
Power2 LED / Power1 LED
G
24VDC output ports
H
12VDC output ports
I
DI / DO ports
J
12~48VDC Input
K
L GND
DC Power Cable Spec.
Wire Size 12~24AWG
Wire Strip Length 10mm
