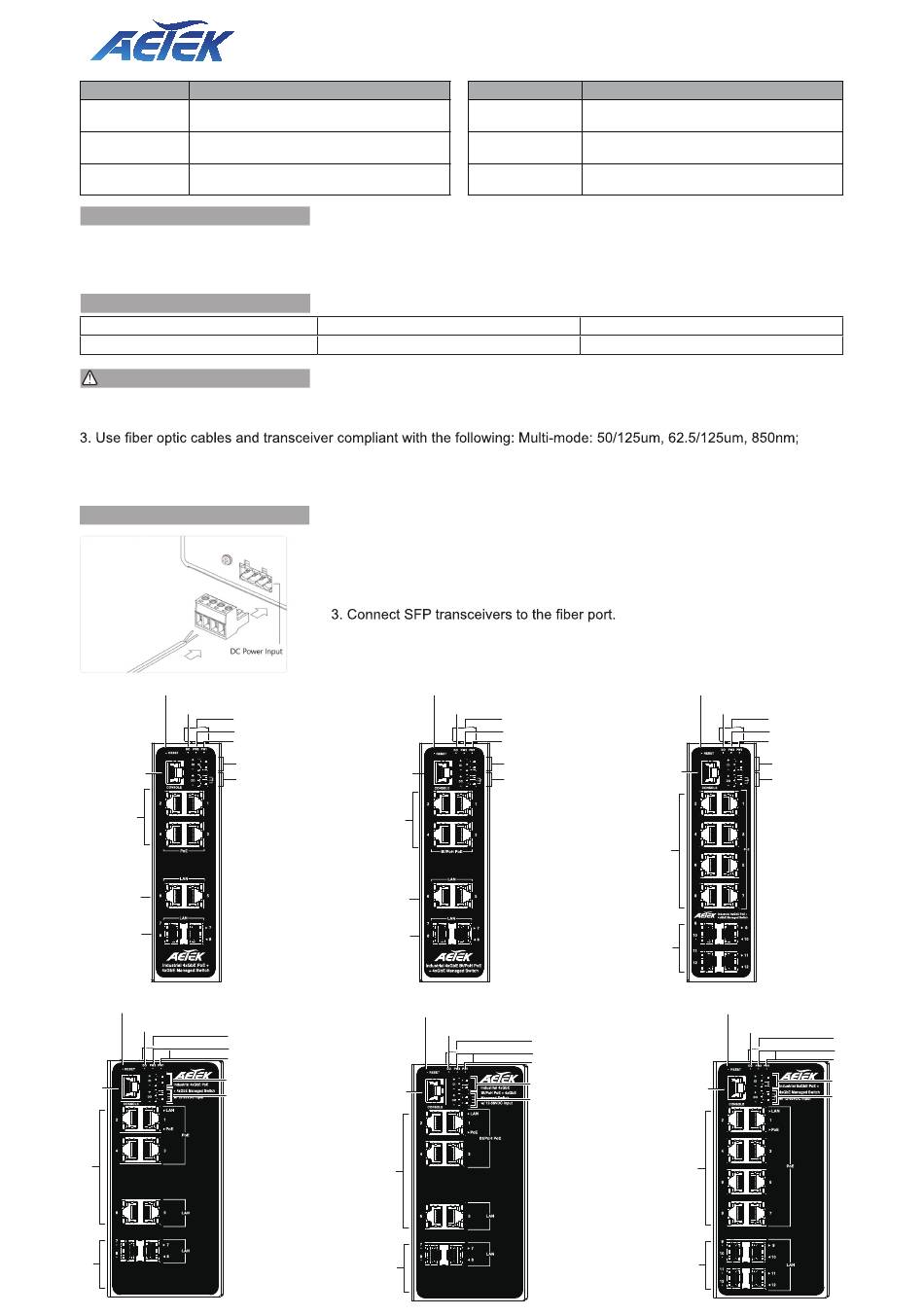

AETEK D51-084-30 Quick Installation Manual

Model
D51-044-30
D51-044-90
D51-084-30

INTRODUCTION

The D51 series is a 4/8 port 10/100/1000BaseT at PoE/ bt PoE switch capable of feeding 15.4/30W or 15.4/30//60/90W
(54Vmax. per port) power to Power over Ethernet (PoE) devices. It comes with another 2x GbE TP port + 2xGbE SFP port or
4xGbE SFP port.

PACKAGE CONTENTS

* 1x PoE switch
* 1x DB9F-RJ45 console cable

IMPORTANT :

1. Install the converter in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.
2. Make sure the ventilation openings on the converter are not blocked.
Single-mode): 9/125um ,1310nm.
4. DC input (48~57VDC or 12~56VDC). Follow the printed polarity for V+, V-, and Ground.
5. Digital output (relay): ON/OFF, support 24VDC/1A. Digital input: level 0(Low), level 1(High).

CONNECTION

Reset Button
Do Led
D51-044-30
Console port
10/100/1000
PoE RJ45 ports
10/100/1000
RJ45 ports
100/1000
SFP ports
Reset button
D51-044-30-DC
DO LED
Console port
10/100/1000
PoE RJ45 ports
100/1000
SFP ports
L2 Gigabit PoE Switches
Quick Installation Guide
Description
4xGbE 30W PoE+2xGbE SFP+2xGbE RJ45
48-56 VDC Input
4xGbE 90W bt PoE+2xGbE SFP+2xGbE RJ45
48-56 VDC Input
8xGbE 30W PoE+4xGbE SFP
48-56 VDC Input
* 1x Quick Installation Guide
* 1x DIN rail bracket
1. Pull out the 4-pin terminal block.
2. Connect power wires to V+, and V-.
4. install the 4-pin terminal block.
48~56VDC Input
D51-044-90
Power2 LED
Power1 LED
Digital input
Console port
Digital output relay
10/100/1000
PoE RJ45 ports
10/100/1000
RJ45 ports
100/1000
SFP ports
D51-044-90-DC
12~56VDC Input
Power2 LED
Power1 LED
Digital input
Console port
Digital output
relay
10/100/1000
PoE RJ45 ports
100/1000
SFP ports
Model
D51-044-30-DC
D51-044-90-DC
D51-084-30-DC
Reset button
DO LED
48~56VDC Input
Power2 LED
Power1 LED
Digital input
Digital output relay
Reset button
DO LED
12~56VDC Input
Power2 LED
Power1 LED
Digital input
Digital output
relay
P/N:A625012300G
Description
4xGbE 30W PoE+2xGbE SFP+2xGbE RJ45
12-56 VDC Input
4xGbE 90W bt PoE+2xGbE SFP+2xGbE RJ45
12-56 VDC Input
8xGbE 30W PoE+4xGbE SFP
12-56 VDC Input
* 1x 4-pin terminal block
* 2x 2-pin terminal block
Reset button
DO LED

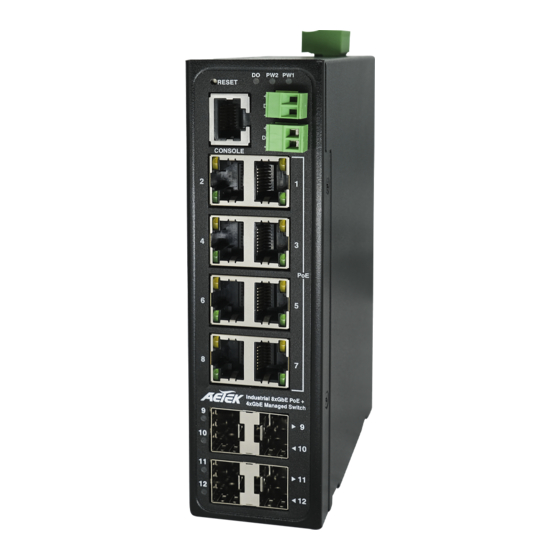

D51-084-30
Console port
10/100/1000
PoE RJ45 ports
100/1000
SFP ports
Reset button
D51-084-30-DC
DO LED
Console port
10/100/1000
PoE RJ45 ports
100/1000
SFP ports
48~56VDC Input
Power2 LED
Power1 LED
Digital input
Digital output relay
12~56VDC Input
Power2 LED
Power1 LED
Digital input
Digital output
relay
