AETEK D51-044-30 Quick Installation Manual

INTRODUCTION
The D51 series is a 4/8 port 10/100/1000BaseT at PoE/ bt PoE switch capable of feeding 15.4/30W or 15.4/30//60/90W
(54Vmax. per port) power to Power over Ethernet (PoE) devices. It comes with another 2x GbE TP port + 2xGbE SFP port or
4xGbE SFP port. The switch is capable of a total of 120W/240 Watts PoE power budget.
PACKAGE CONTENTS
* 1x PoE switch
* 1x DB9F-RJ45 console cable
IMPORTANT :
1. Install the converter in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.
2. Make sure the ventilation openings on the converter are not blocked.
Single-mode): 9/125um ,1310nm.
4. DC input (48~57VDC). Follow the printed polarity for V+, V-, and Ground.

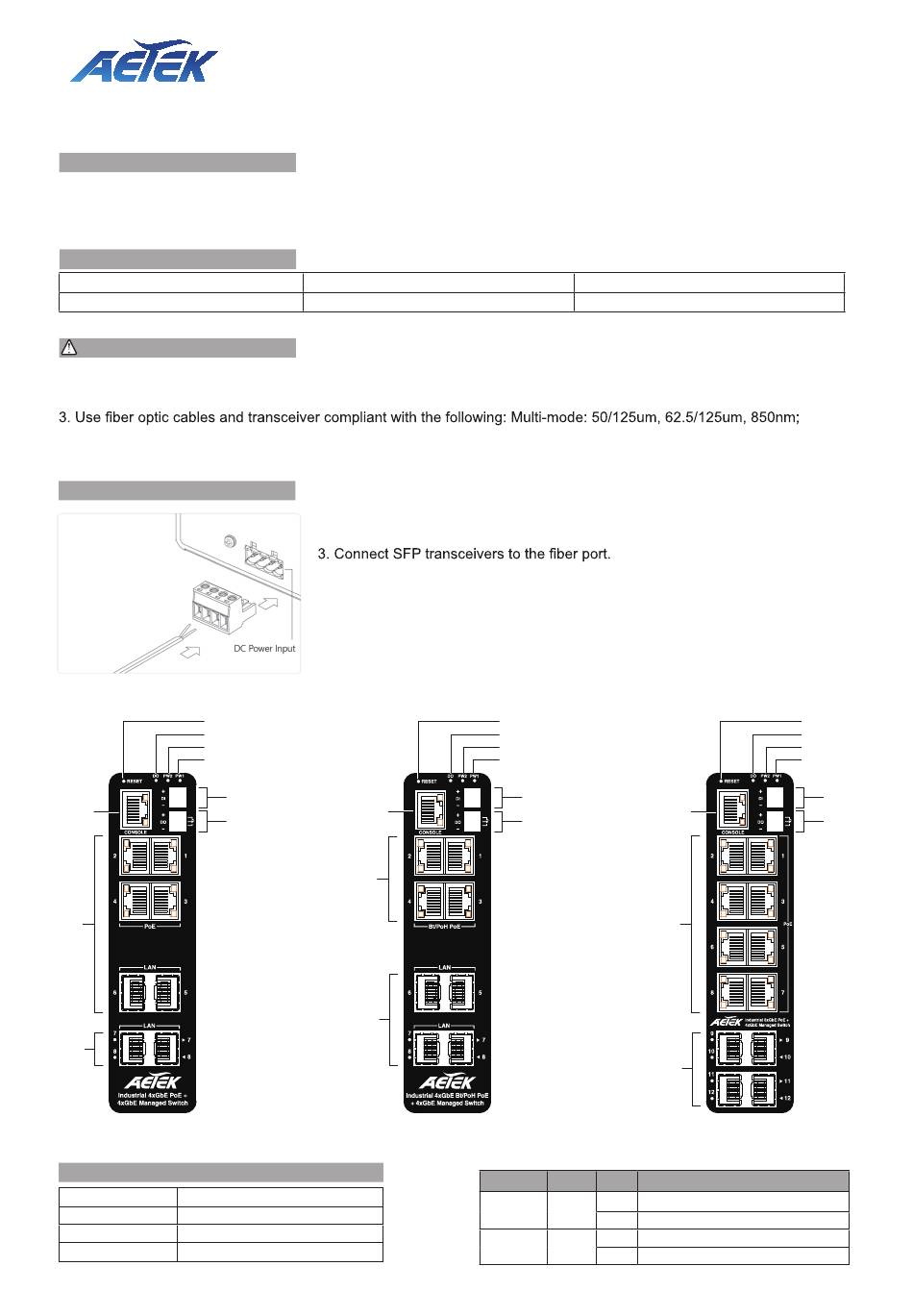

CONNECTION
D51-044-30
Console port
10/100/1000
RJ45 ports
100/1000
SFP ports
DEFAULTS
IP Address 192.168.1.1
Subnet Mask 255.255.255.0
User Name admin
Password admin

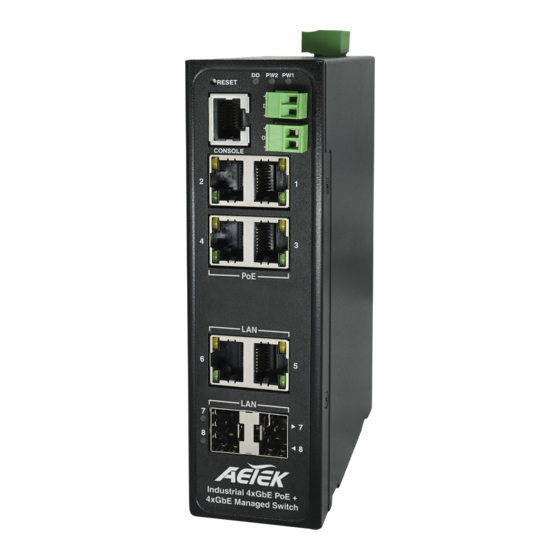

D51-044-30 Industrial L2+ Managed GbE PoE Switch
D51-044-90
D51-084-30
Quick Installation Guide
* 1x Quick Installation Guide
* 1x DIN rail bracket
1. Pull out the 4-pin terminal block.
2. Connect power wires to V+, and V-.
4. install the 4-pin terminal block.
NOTE: Digital output (relay): ON/OFF Digital input: level 0(Low) -> 0V,
level 1(High) -> 12V.
Reset button
DO LED
Power2 LED
D51-044-90
Power1 LED
Digital input
Console port
Digital output relay
10/100/1000
RJ45 ports
100/1000
SFP ports
* 1x 4-pin terminal block
* 2x 2-pin terminal block
Reset button
DO LED
Power2 LED
D51-084-30
Power1 LED
Digital input
Console port
Digital output relay
10/100/1000
RJ45 ports
100/1000
SFP ports
Power LEDs
LED Color State Description
Power1 Green On Powered on correctly.
Off Not receiving power from power1.
Power2 Green On Powered on correctly.
Off Not receiving power from power1.
P/N:A625012300G
Reset button
DO LED
Power2 LED
Power1 LED
Digital input
Digital output relay
