DV-CM

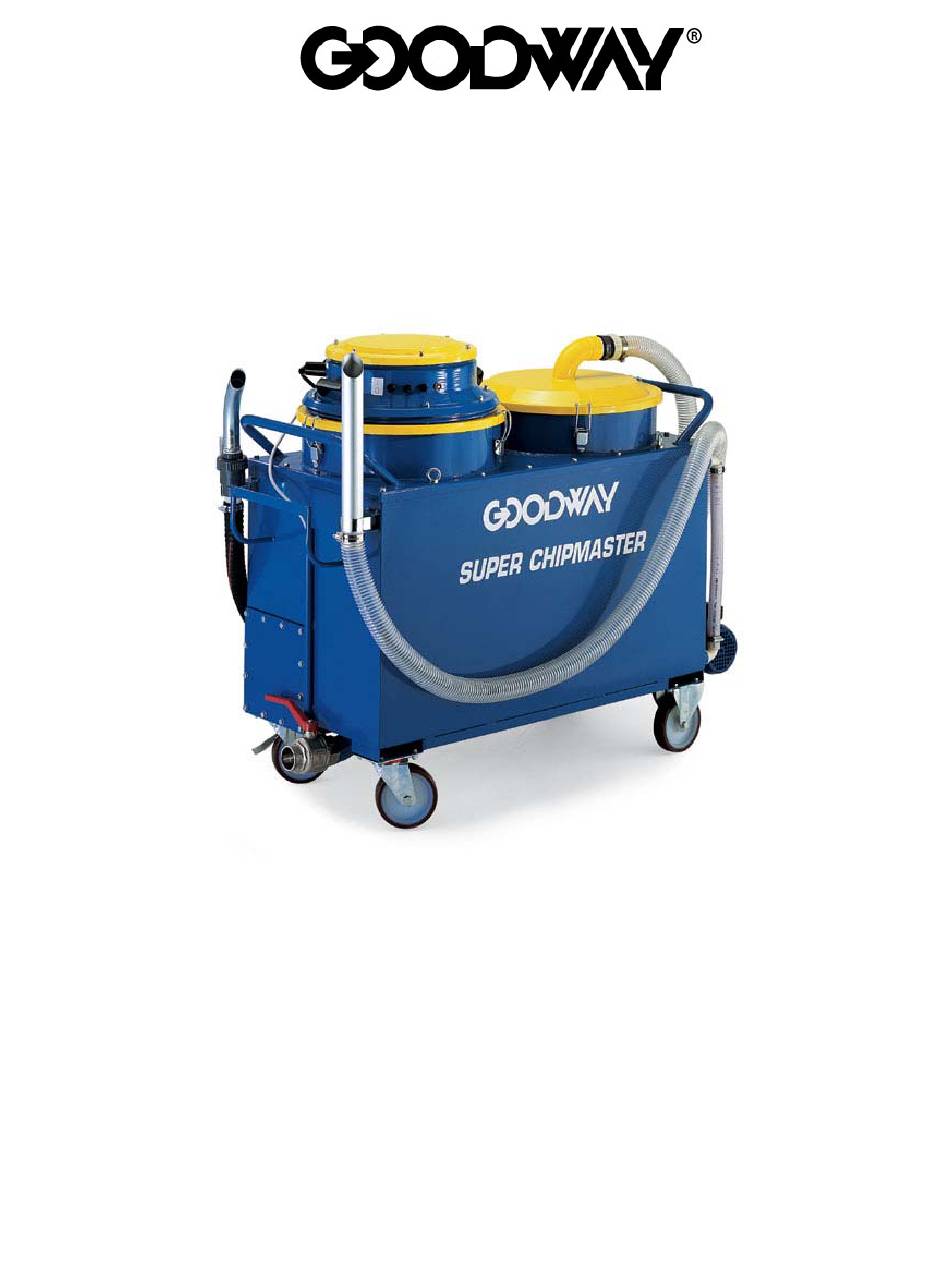

Super ChipMaster
Operating and Maintenance Instructions
Goodway Technologies Corporation
420 West Avenue
Stamford, CT 06902-6384 USA
Phone (203) 359-4708
Toll Free 1-800-333-7467
Fax (203) 359-9601
Internet: http://www.goodway.com
E-Mail: goodway@goodway.com
Effective date November 14, 2001
©Copyright 2000 Goodway Technologies Corp., Stamford, CT USA
Goodway is a Trademark of Per K. Reichborn.
Goodway reserves the right to improve products; contact the factory for the latest configuration and uses.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Super ChipMaster DV-CM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Goodway Super ChipMaster DV-CM

Summary of Contents for Goodway Super ChipMaster DV-CM

  • Page 1 Internet: http://www.goodway.com E-Mail: goodway@goodway.com Effective date November 14, 2001 ©Copyright 2000 Goodway Technologies Corp., Stamford, CT USA Goodway is a Trademark of Per K. Reichborn. Goodway reserves the right to improve products; contact the factory for the latest configuration and uses.
  • Page 2 1-800-333-7467 For Service call 1-800-370-2855 Goodway Technologies Corp. Goodway reserves the right to improve products; contact the factory for the latest configuration and uses. Copyright 2001 Goodway Technologies Corp., Stamford, CT, USA Effective Date: November 2001 Goodway is a registered trademark of Per K. Reichborn...
  • Page 3 6. Keep all openings free of lint, dust or anything that impedes air flow. 7. Be extra careful when cleaning stairs. 8. Use only attachments and filters recommended by Goodway. 9. Strict supervision is required when vacuum is operated near children.
  • Page 4 GROUNDING INSTRUCTIONS This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounded conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
  • Page 5 Components Oil proof hose Top lid Chip basket 11 Gallon [Optional: 22 Gallon] Oil Filter (polypropylene) Tank Electric discharge pump Discharge hose with handgun Polyurethane wheels with brake Nylon filter Floater Fiber Filter Suction motor Discharge valve Level indicator Motor switch Pump switch...
  • Page 6 General Features Switching on and off The vacuum unit and the electric pump can work simultaneously, allowing for recovery filter and pump back at the same time. Independent switches (14 & 15) activate the vacuum motors and the pump. Protection The vacuum motor is protected by a floating device (9): when the level of the liquid rises up, it lifts the...
  • Page 7 Filtering WARNING: Never use the chip basket together with the polypropylene filter. Always use either the chip basket alone OR the poly filter alone. (If used together, the space between the bottom of the basket and the bottom of the filter may fill too quickly). When to use the chip basket? The chip basket must always be used for the first filtration.
  • Page 8 Use and Maintenance Installing the Machine Models DV-CM4, DV-CM7.5-66, DV-CM 7.5-119: These machines can work anywhere a three-phase circuit of the proper voltage is available. Model DV-CM: This machine can work anywhere a single phase 220 volt is available. Operating Instructions First Filtration: Make sure the chip basket (2) is in place.
  • Page 9 Working Limits DANGER: The pump is not suitable for dangerous or inflammable liquids. WARNING: Maximum working pressure 116 PSI (8 bar) Maximum liquid temperature: 85°F Maximum number of starts per hour, evenly distributed: 40 Priming WARNING: The pump must be filled with water (see figure 4) before starting.
  • Page 10 Carry out this operation carefully to prevent formation of air pockets inside the suction pipe or the pump body. WARNING Frost can damage the pump if it remains full and inactive at freezing temperatures. The maximum noise of the electric pump when properly installed and operating within its limits does not exceed 70 dB(A).
  • Page 11 Troubleshooting The Suction is Weak: Make sure that the hose is not clogged, punctured or torn. Check the level of the liquid. If the tank is full, empty it before starting again. Make sure that the filter is not saturated or torn. Check any air leak from closing hooks, screws or gaskets.
  • Page 12 Technical Data Description Measure DV-CM DV-CM4 DV-CM 7.5-66 DV-CM 7.5-119 Voltage Volts 230/60 230/400/60 230/400/60 230/400/60 Power Vacuum (mm. H20) (2.300) (3.000) (5.000) (5.000) in. H20 90” 118” 176” 176” Air Flow (m3/h) (600) (300) (300) (300) Capacity (Liquids) Pump Flow (Lt/Min.) (30) (30)
  • Page 13 Parts List (Table 7 – Filtering System) Ref. Code Description CM-P001 Polypropylene filter cage CM-P002 Polypropylene filter CM-P003 Filter fastening clamp Ǿ500 CM-P004 Oil-proof gasket for Ǿ500 filter CM-P005 Tecnoil sieve grid CM-P006 Tecnoil Ǿ525 lid CM-P007 2” PVC double screw CM-P008 2”...
