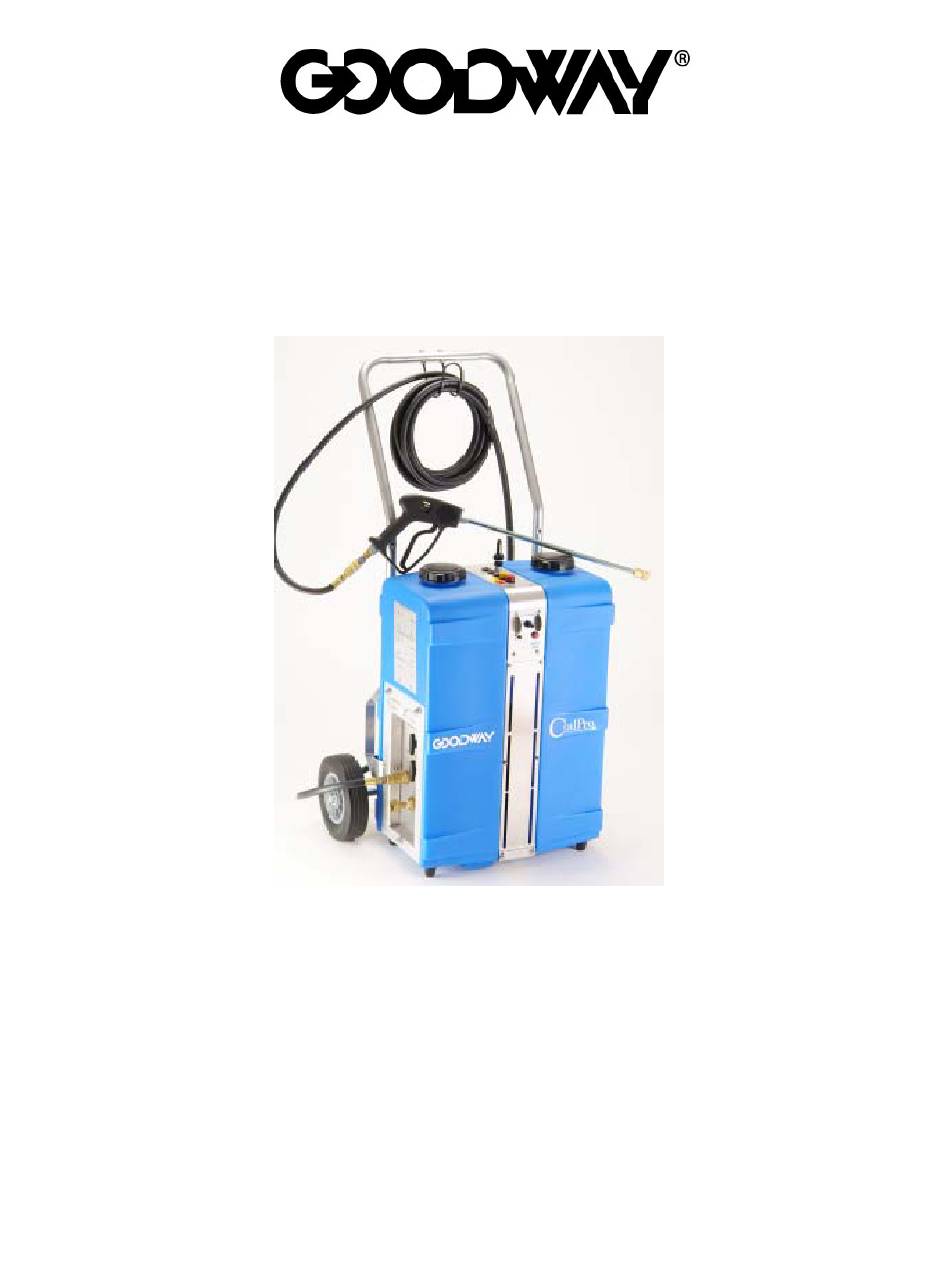

MODEL CC-140
™
COILPRO
COIL CLEANER
OPERATING AND MAINTENANCE INSTRUCTIONS
©Copyright 2005 Goodway Technologies Corp., Stamford, CT, U.S.A.
Effective Date: November 11, 2005
Goodway is a registered trademark of Per K. Reichborn
Goodway reserves the right to improve products; contact the factory for the latest configuration and
uses.
INTRODUCTION
™
Thank you for purchasing this Goodway CoilPro
Coil Cleaner. We appreciate your business and look
forward to serving you in the future. As with all Goodway products, you can be assured that the finest
quality components and workmanship have gone into this machine.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COILPRO CC-140 and is the answer not in the manual?

Questions and answers

Related Manuals for Goodway COILPRO CC-140

Summary of Contents for Goodway COILPRO CC-140

  • Page 1 Thank you for purchasing this Goodway CoilPro Coil Cleaner. We appreciate your business and look forward to serving you in the future. As with all Goodway products, you can be assured that the finest quality components and workmanship have gone into this machine.
  • Page 2 Please pay particular attention to the safety instructions and exercise caution when using this machine. We are here to serve you! For Sales call 1-800-333-7467 For Service call 1-800-370-2855 Goodway Technologies Corp.

  • Page 3: Table Of Contents

    Table of Contents General Safety Rules..........................1 Specific Safety Rules ..........................3 Safety Checklist ............................4 Operating Instructions ..........................5 Assembly..............................5 Pre-Operation Checklist .......................... 5 Charging the Battery ..........................5 Changing the Battery..........................6 ™ Using the CoilPro ..........................6 Operational Matrix ..........................

  • Page 4: General Safety Rules

    General Safety Rules Warning! Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury. SAVE THESE INSTRUCTIONS 1. Work Area • Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents. •...
  • Page 5 4. Tool Use and Care • Use clamps or other practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control. •...

  • Page 6: Specific Safety Rules

    Specific Safety Rules ™ Ground Fault Circuit Interrupter Protection: The CoilPro is provided with a ground fault circuit interrupter (GFCI) built into the power supply cord. This device provides additional protection from the risk of electric shock. Should replacement of the plug or cord become necessary, use only identical replacement parts that include GFCI protection.

  • Page 7: Safety Checklist

    (pump, plumbing, valves, etc). A full chemical compatibility check must be done first. CAUTION! IF YOU ARE UNSURE ABOUT CHEMICAL COMPATABILITY CALL GOODWAY AT ONCE BEFORE PUTTING ® CHEMICAL INTO THE COILPRO •...

  • Page 8: Operating Instructions

    Deep-Cycle High Output 12 volt Sealed Lead Acid Battery, which will provide many hours of intermittent use when fully charged. 2. With Goodway’s Ultra-Fast Intelligent Charging System, it will take approximately 31⁄2 hours to charge a fully discharged battery.

  • Page 9: Changing The Battery

    To continue operation, replace the battery with a fully charged battery (available from Goodway) or plug the unit in to a normal AC power outlet.
  • Page 10 ™ 7. If the CoilPro is to be run from battery power, you must first flip the Power Switch to the desired flow rate, then depress the Battery Start button to initiate the Low Voltage Battery Cutoff Circuit. Each time you flip the Power Switch to a flow rate setting, you must depress the Battery Start button. For example, if you turn the unit “Off”...

  • Page 12: Filling The Tanks

    Non-approved chemicals may damage the internal components of the CoilPro void the warranty. Call Goodway, If unsure 1-800-370-2855. 6. The tanks can be filled to the bottom of the fill spout. Avoid over-filling and spillage, wipe any spills up immediately.

  • Page 13: Normal Coil Cleaning Operation

    with water. For water-only operation skip to Step 11, for water with chemical injection operation continue with Step 10. 10. Set Chemical Valve to the “On” position. There should be at least 1 quart of chemical in Tank 2. 11. Attach foaming nozzle to spray gun lance. Point the spray lance in a safe direction and squeeze the spray gun trigger.

  • Page 14: Draining The Tanks

    ® 4. Water Valve and Chemical Valve in the “Off” positions and disconnect the garden hose from the CoilPro ™ 5. When done using the CoilPro , always make sure the Power Switch is in the “Off” position. This is to maximize battery life and to prevent accidental discharge from the spray gun.

  • Page 15: Long Term Storage Preparation

    Long Term Storage Preparation ™ 1. To protect the CoilPro from damage, chemical and/or water should be drained from the tanks before the unit is placed in long term storage. 2. If the unit is to be stored for an extended period of time in an unheated location, unit should be winterized with a 75% anti-freeze (ethylene glycol based) to 25% water mix.

  • Page 16: Troubleshooting

    Troubleshooting Problem Probable Cause Remedy Power Switch is “Off” Select “High Flow” or “Low Flow” GFCI tripped Depress the GFCI plug reset button Pump does not operate when spray gun trigger is squeezed Battery Start button not depressed Push the Battery Start button Battery too low to operate Plug into AC power or replace battery Pump does not remain on...
  • Page 17 Fill Tank 2 with appropriate chemical Pump runs but no chemical is sprayed Chemical Valve is not set properly Set Chemical Valve to “On” Fault with GFCI Contact Goodway Customer GFCI trips and will not reset Service (800) 370-2855 Electrical short in unit...
  • Page 18 -NOTES-...

  • Page 19: Coilpro ™ Faq

    Yes. Extra batteries and an independent external charger are available. 5. Can I use other batteries in the CoilPro™? Buy replacement batteries from Goodway Technologies. 6. Can the battery be damaged or “ruined” by over-discharging or over-charging? Sealed Lead Acid batteries (used in the CoilPro™) can be damaged by over-discharging or over- charging.
  • Page 20 9. At what rate does the CoilPro™ inject the chemical into the water flow? ™ The CoilPro is set for ~6 to 1 chemical injection (~6 parts water, 1 part chemical). This is set at the factory and cannot be change in the field. 10.

  • Page 21: Accessories

    Accessories / Spares Hoses & Nozzles: The nozzle orifices (holes) affect pressure. Over time, water pressure will wear the orifices in your nozzle. A worn nozzle can result in pressure drop and reduce the effectiveness of your coil cleaning. Nozzles need to be replaced periodically as normal wear occurs.
  • Page 22 6. AC Input: 90-130 Volts, 3 Amps max, 60Hz Or 230 Volts, 1.5 Amps 50 Hz 7. Battery: 12 volt, 12 amp hour, deep-cycle, high output Sealed Lead Acid 8. On-Board Tank Capacity: • Tank 1: 5 Gallons • Tank 2: 5 Gallons 9.

  • Page 23: Parts Call Out

    CC-140 Parts Call Out RAM-4-DOL-X 9624 Hose Assembly 5821 Gun 6307 Reducer 9622-1 Lance QDN-FA2 Quick Connect Female QDN-MA2-1 Quick Connect Male...
  • Page 24 9643-1 Water 9644-1 Chemical Tank Tank QDN-2504G QDN-0004R 9647 Caps QDN-1504Y 9619 Foaming Nozzle 2509 Grommets 3111 Hi-Low Switch 9611 Light 2309 Switch Boot 9610 Switch...
  • Page 25 9605 Water Control 9625 Chemical Control QDN-FA2 Water Output 953 Garden Hose Inlet 803 Screen Washer...
  • Page 26 9612-2 Battery 9642 (115V) 9642A (220V) Charger Control Board Battery Charger Status Light 9646 Circuit Breaker 9612-1 Power Supply 9638 Battery 9615 (115V) 9615A (220V)
  • Page 27 (2) 1012 Hose Clamp 9601 Motor/Pump 9605 Assembly 4 Way Valve (14) 9648 Hose Clamps 9621 Strainer 9621-1 Screen 9625 Two-Way Valve (2) 9608 Bulk Head Fitting Hose to Water Tank Right Side of Motor...
  • Page 28 6025 Chemical Injector 9621 Strainer 9621-1 Screw (2) 9648 Hose Clamp 935 Hose QSP-12-2 1/2 ID Hose 9604 Regulator Hose to Chemical Tank Left Side of Motor...
