Summary of Contents for Goodway BioSpray-5

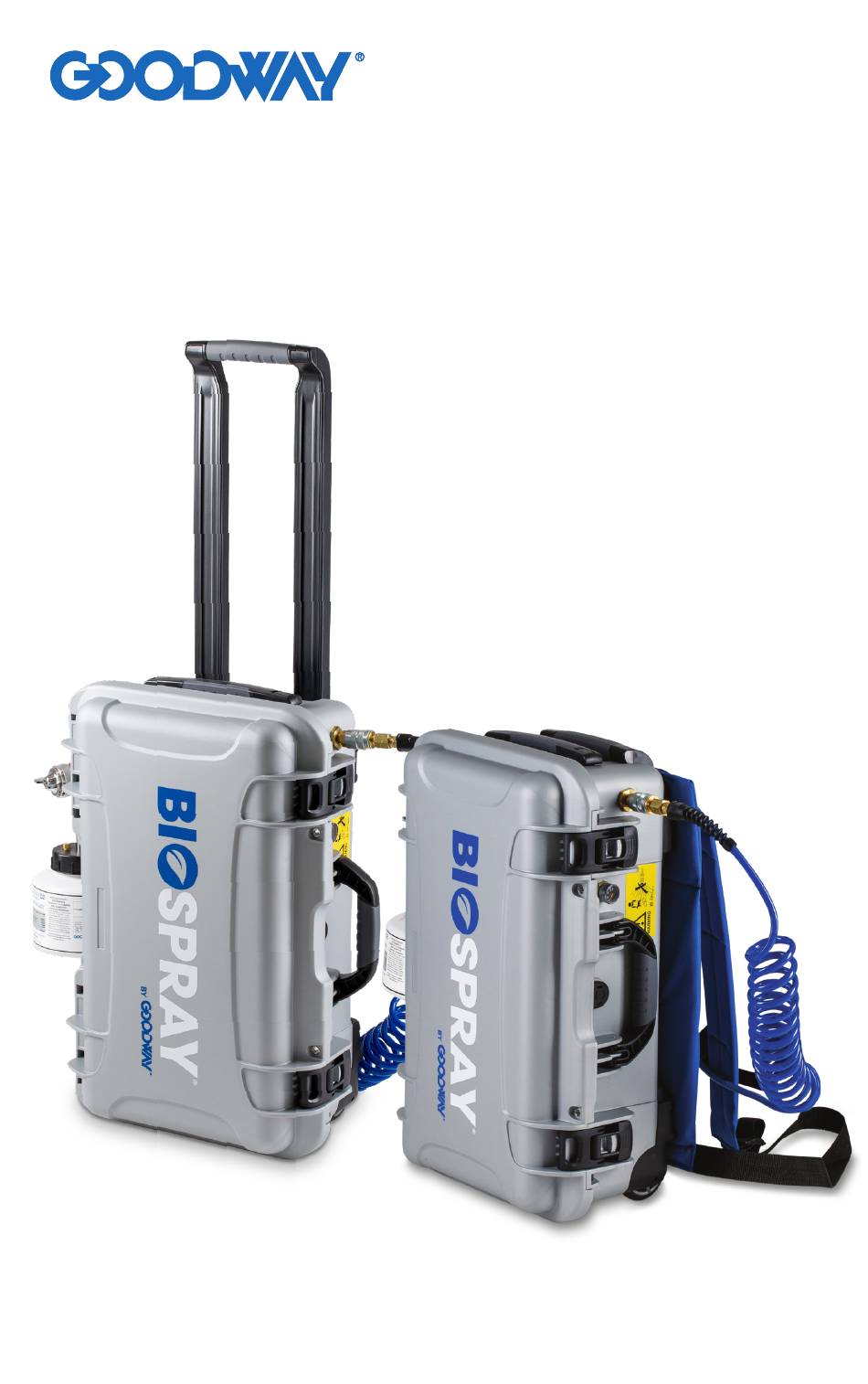

- Page 1 BioSpray®-5 BioSpray®-5-BP Surface Sanitation System Operating and Maintenance Instructions Read before operating.
-
Page 2: Table Of Contents
NOTES ..............................11 Thank you for purchasing this Goodway Surface Sanitization System. We appreciate your business and look forward to serving you in the future. As with all Goodway products, you can be assured that the finest quality components and workmanship have gone into this machine. -
Page 3: General
Do not operate without eye protection or other necessary protective gear. Consult SDS for all chemicals and for CO and OSHA exposure limits. Consult Goodway or chemical manufacturer about mixing or using unspecified chemicals with this unit. Service must be performed by qualified personnel. -
Page 4: Identifying Main Parts
IDENTIFYING MAIN PARTS Shoulder Straps Handle Coil Hose Mounting Hook BioSpray-5-BP Spray BioSpray-5 Outlet Connector Latch Pressure Gauge BIOSPRAY®-5, BIOSPRAY®-5-BP 0721... -
Page 5: Installation/Setup
Goodway Technologies. 2. Place the surface sanitization system on a flat surface. INSTALLING THE CO TANK: 1. With the BioSpray-5 lying flat, unlock the latches and open the cover. 2. Tighten the hand nut on the full CO tank. 3. Lay the CO down and strap the unit in place with the buckles. -
Page 6: Operating Instructions
BioSpray®-D2 or other Goodway 3. Connect the coil hose to the outlet approved chemicals. connector on the side on the unit. 9. BioSpray-5-BP only: when using 4. Open the CO tank valve by turning the backpack straps, tighten both the it counter clockwise ¾... -
Page 7: Spraying Protocol
SPRAYING PROTOCOL: Do not apply near an ignition source. Spray evenly in an overlapping pattern until surface remains thoroughly wet for the desired time: At the proper setting listed in ‘Spray Gun Settings’ Step 4, you should only have to make one pass in an overlapping pattern to apply enough solution to remain on the surface for the dwell time required. -
Page 8: Other Operating Information
STORAGE AND MAINTENANCE As a preventative maintenance measure, it is requested that the hoses be checked for wear and all sealing areas are checked for leaks after each use. To prevent the coil hose from dragging, guide it across the front of the unit and rest the gun on the mounting hook. -
Page 9: Technical Information
Operating Pressure 24-26 PSI (1.6-1.8 BAR) Working Tank Pressure 0-1000 PSI (0-69 BAR) Operating Environmental 68°F +/- 20°F (20°C +/- 11°C) Temperature Air Flow 5.4 CFM (.003 m³/s) Siphon Rate 160 mL/min (5.4 fl oz/min) Tank Safety Relief 3000 PSI (207 BAR) Regulator Safety Relief 150 PSI (10.3 BAR) TROUBLESHOOTING... -
Page 10: Common Replacement Parts
COMMON REPLACEMENT PARTS SANI-REGULATOR-ASSM-5 SANI-TANK-5 (5lb CO Tank) (Regulator Assembly) SANI-034-ASSM SANI-087 (Buckle Set) SANI-079 (Foam Set) (Spray Gun Assembly) SANI-045-ASSM SANI-BP-ASSM (Coil Hose Assembly, (Backpack Strap Assembly) 10', 3m) BIOSPRAY®-5, BIOSPRAY®-5-BP 0721... -
Page 11: Notes
NOTES BIOSPRAY®-5, BIOSPRAY®-5-BP 0721... - Page 12 Visit: www.goodway.com P/N: MNL-BIOSPRAY-5 ©Copyright 2021 Goodway Technologies Corp., Stamford, CT USA Effective date July 27, 2021 Goodway is a Trademark of Crossford International. Goodway reserves the right to improve products; contact the factory for the latest configuration and uses.
