- Page 1 RAM-PRO-XL VARI-SPEED REVERSING REAM-A-MATIC TUBE CLEANER WITH CHEMICAL DISPENSER Operating and Maintenance Instructions Read before operating.
-
Page 2: Table Of Contents
Thank you for purchasing Goodway’s “RAM-PRO-XL” VARI-SPEED REVERSING TUBE CLEANER . We appreciate your business and look forward to serving you in the future. As with all Goodway products, you can be assured that the finest quality components and workmanship have gone into this machine. -
Page 3: Important Safety Instructions
Use personal safety equipment. Always wear eye protection. Dust mask, non- skid rubber sole safety shoes, hard hat, gloves and hearing protection are recommended. Use only GOODWAY recommended accessories and replacement parts. Electrical Precautions • Never expose the unit to rain or the elements. Store unit indoors in a cool, dry area. -
Page 4: Operational Precautions
Check flexible shaft for weak or worn condition before each use. Make certain that all connections are tight and secure. • If the machine does not operate properly or is damaged contact Goodway Customer Service. • Disconnect the plug from the power source and turn off water supply before disconnecting hoses, fittings, or flexible shaft and before making any adjustments or changing accessories. -
Page 5: The Ram-Pro-Xl Ream-A-Matic

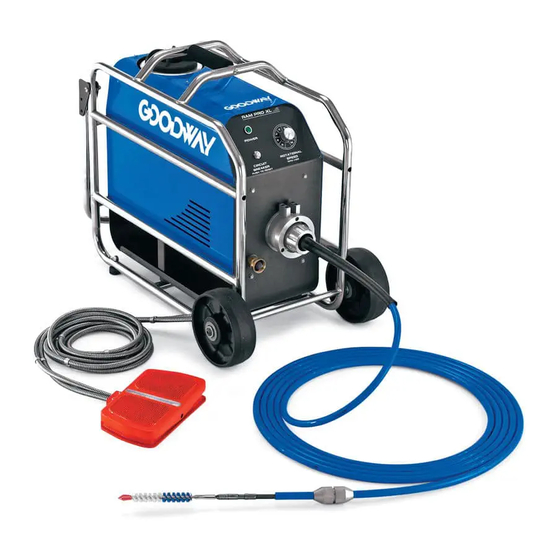

The RAM-PRO-XL Ream-A-Matic How It Works The RAM-PRO-XL Ream-A-Matic uses a brush or other cleaning tool on the end of a rotating, nylon-encased flexible steel shaft. As the operator feeds the rotating brush/shaft assembly through the tube, the brush or tool loosens any deposits (mud, sand, etc) and water flows through the casing to flush them out. - Page 6 Operation • Connect water hose to water inlet of no more than 100 p.s.i.. Use clean water supply. Make sure screen washer is in place. • Make sure cap is on dispenser and machine is off so water does shoot out of dispenser.
- Page 7 Chemical Dispenser • Unscrew cap • Remove cup and dump remaining water in cup – The purpose of the cup is to remove water so new tablets will not displace remaining water in the chamber onto the machine. • If the cap will not unscrew, wait a few seconds for pressure to bleed from flexible...
- Page 8 Connecting the SQC Flexible Shaft • Select the proper size flexible shaft for tube diameter and length to be cleaned. • Make sure the o-ring on the shaft insert is lubricated with appropriate grease (compatible with “Buna-N” or “Nitrile”). Shaft Insert Shaft Nut Square Strain...
- Page 9 Storage Discard remaining chemical in cup and rinse. Then run clean water through RAM- PRO-XL to rinse internal components. Disconnect water supply line. Disconnect the flexible shaft and use shaft lubricator, P/N GSL- 705, to prevent rusting of shaft. Do not store machine where residual water in machine may freeze.
-
Page 10: Wiring Diagram
• Leak in air control circuit • See Above direction only • Faulty wire connection(s) • Disconnect power, remove cover. Check all power connections • Faulty Air switch • Check air switches • Call Goodway • Faulty Control Board RAM PRO XL 0321... -
Page 11: Troubleshooting
• Water pressure too high • Lower water pressure Runs for short • Electrical short to ground • If GFCI continually trips call period of time Goodway - there may be an and stops unsafe electrical condition!! (power light off), GFCI trip/ won’t reset Motor jerks or •... -
Page 12: Exploded View And Parts List
EXPLODED VIEW AND PARTS LIST ITEM NO. PART NUMBER DESCRIPTION QTY. R7-01 BASE, R7 R7-02 COVER, R7 R7-03 SHELPF, ELECTRICAL, R7 R7-04 CHEMICAL DIVIDER, R7 R7-05 BRACE, MOTOR, R7 R7-07 ROLL CAGE, R7 R7-08 HANDLE, R7 R7-09 SHELF, MOTOR, R7 R7-10 HINGE, ROLL CAGE, R7 3101... - Page 13 ITEM NO. PART NUMBER DESCRIPTION QTY. SQC-03 MANIFOLD, SQC, 823 SQC-07 LATCH, QC MANIFOLD SQC-06 SPACER, SS, QC MANIFOLD HWS-1024-163-SC SCREW, 10-24, 1 5/8” L, SOCKET CAP CD-CAP CHEMICAL DISPENCE CAP CD-HOUSING CHEMICAL DISPENSING HOUSING CD-CUP CHEMICAL DISPENSER CUP TUBEGUALD-XL-2 TUBE CLEANING TABLETS R7-12 DC MOTOR DRIVE...
- Page 14 Visit: www.goodway.com P/N RAM-PRO-XL ©Copyright 2021 Goodway Technologies Corp., Stamford, CT USA Effective date March 18, 2021 Goodway is a Trademark of Crossford International. Goodway reserves the right to improve products; contact the factory for the latest configuration and uses.
